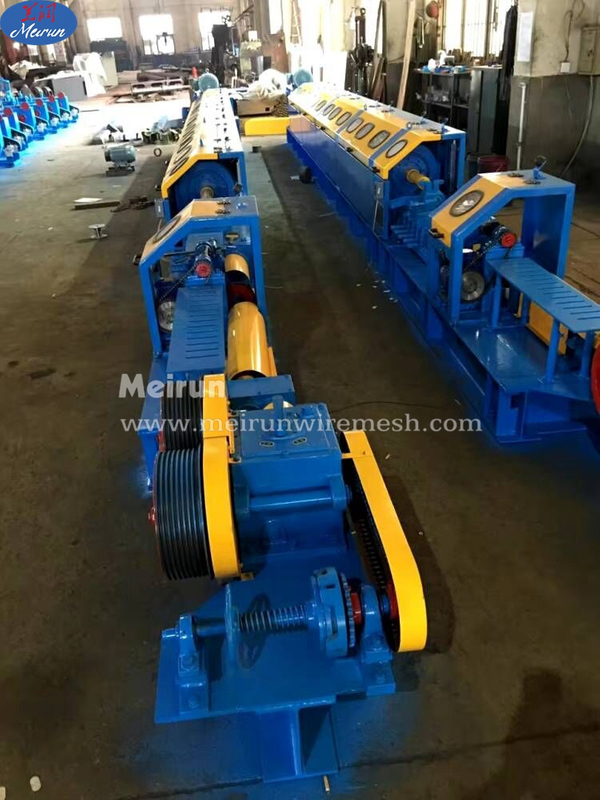

Twist Back Wire Rope Twisting Stranding Machine

This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with
taping head,it can used for insulation cores and some control cable stranding process.
Usage:
Inlet wire Diameter :
Stranding Pitch(mm)::
Availability:
Quantity:
  • MRFGJ

  • Meirun

  • 8463300000

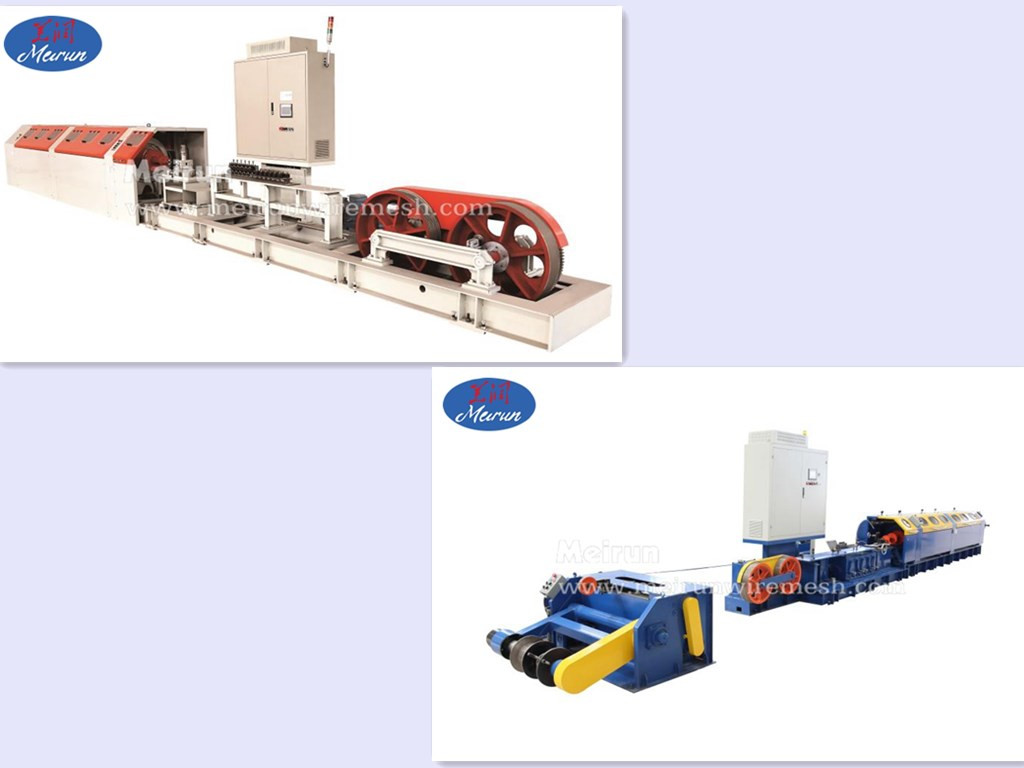

                                                                          Steel Wire Stranding Machine

合股机拼图

This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.

Application:
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Component:
Central pay-off. cage host,taping device (optional),capstan,take-up and traverse device,and electric control system.

01202


Specification

Model
400
500
630


Inlet wire Dia.(mm)
Conductor
1.5-3.5
1.8-4.0
2.0-5.0
Steel
1.0-2.5
1.5-3.0
1.8-4.0
Cores
1.2-3.5
1.5-5.0
Frame rotation speed(r/min)
700
600
400
Stranding Pitch(mm)
41-312
44-334
Linear Speed(m/min)
27-205.3
22-166.85
14-108.9
Capstan Dia.(mm)
800+1000
1000+1200
1000+1250
Size of tak-up bobbin
PN1250
PN1600
PN1600
