Machine name : | |
---|---|
Wire diameter : | |
Take up type : | |
Die box: | |
Availability: | |
Quantity: | |

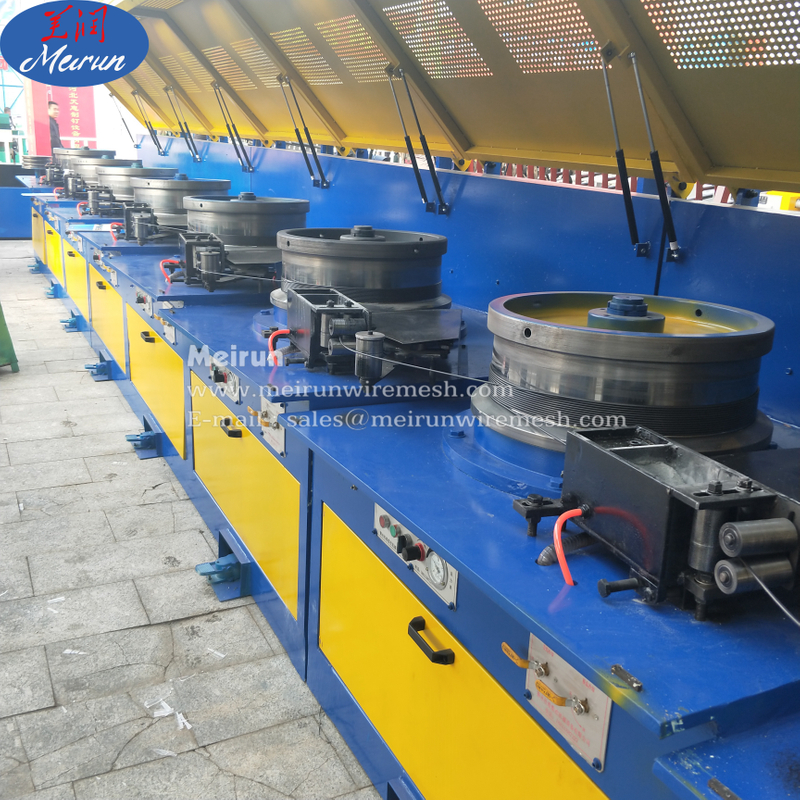

Straight line Wire drawing machine | |
Capstan diameter | 560mm |
Brand | Meirun |
Capstan number | 11 |
Inlet wire diameter | Φ5.0mm-Φ6.0mm |
Outlet wire diameter | Φ2.0mm-Φ3.0mm |
Tensile strength | ≤600mpa |
Total compressibility | 90.53% |
Average compressibility | 25.52% |
Max. Speed | 12 m/s |
Power | 22 KW*11 (Frequency conversion motor )+22KW*11(inverter) |
Mold size | Φ40mm×25 |
Block type | Vertical ,tilted |
Take-up wire | Elephant trunk type take-up system |
Die box | The mould box is composed of mixer and water cooling(4 set) |
Drawing drum | Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm. |
Mold box cooling | The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good. |
Tension frame | Internal tension frame. |
Main frame | Welding of steel plate and square pipe. |
Stop brake | Pneumatic brake |
Vacuuming design | Reserve suction hole |
Lighting | Each stand with separate lighting. |
PLC | Siemens |
Touch screen | Siemens |
Low voltage electrical appliances | Delixi |
