Usage: | |
---|---|
Inlet wire Diameter : | |
Stranding Pitch(mm):: | |
Availability: | |
Quantity: | |
MRFGJ
Meirun
8463300000
Steel Wire Stranding Machine
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with
taping head,it can used for insulation cores and some control cable stranding process.
Application:
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Component:
Central pay-off. cage host,taping device (optional),capstan,take-up and traverse device,and electric control system.
Specification
Model | 400 | 500 | 630 | |
Inlet wire Dia.(mm) | Conductor | 1.5-3.5 | 1.8-4.0 | 2.0-5.0 |
Steel | 1.0-2.5 | 1.5-3.0 | 1.8-4.0 | |
Cores | 1.2-3.5 | 1.5-5.0 | ||
Frame rotation speed(r/min) | 700 | 600 | 400 | |
Stranding Pitch(mm) | 41-312 | 44-334 | ||
Linear Speed(m/min) | 27-205.3 | 22-166.85 | 14-108.9 | |
Capstan Dia.(mm) | 800+1000 | 1000+1200 | 1000+1250 | |
Size of tak-up bobbin | PN1250 | PN1600 | PN1600 |

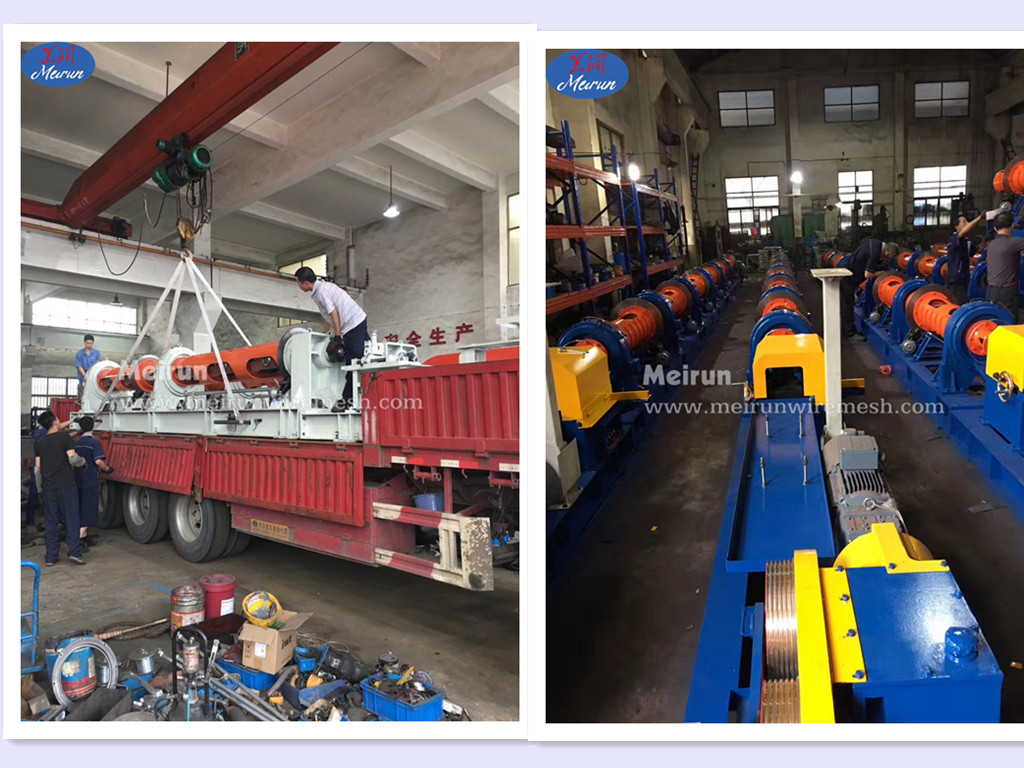

Packing and delivery
Our company
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
