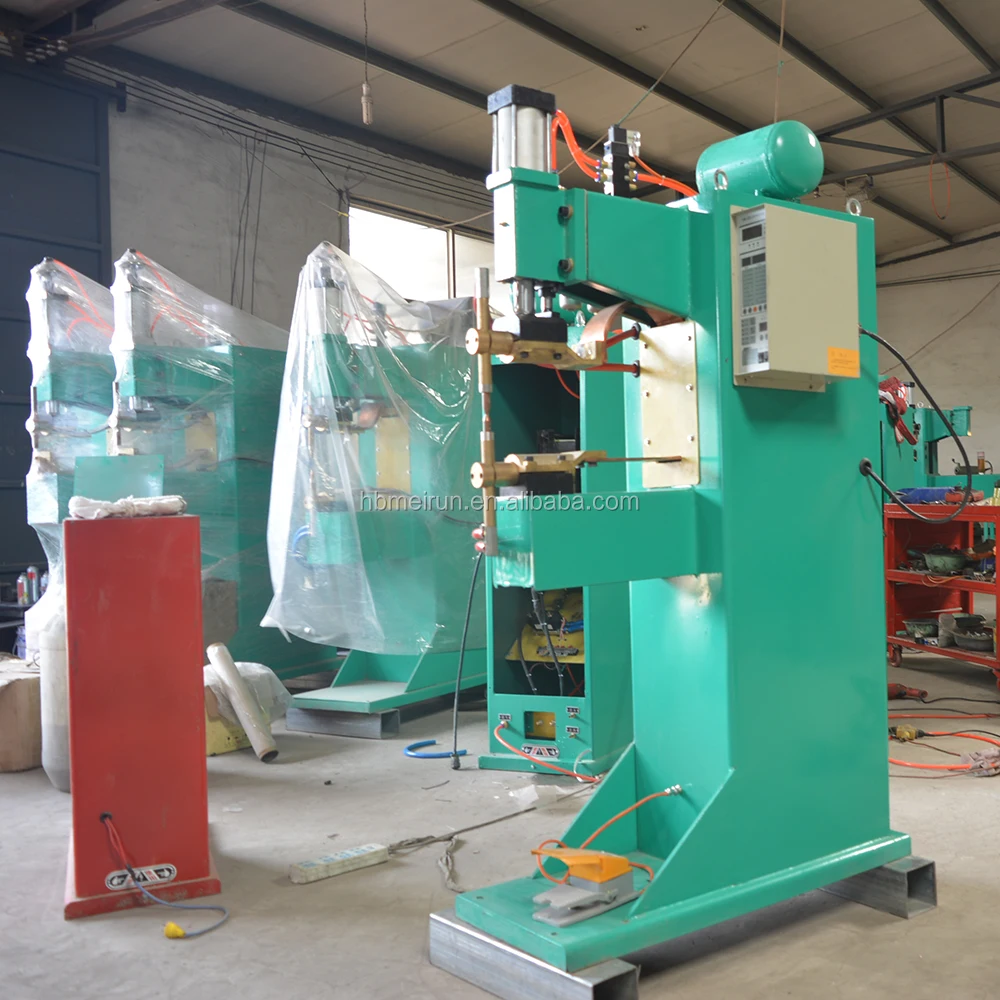

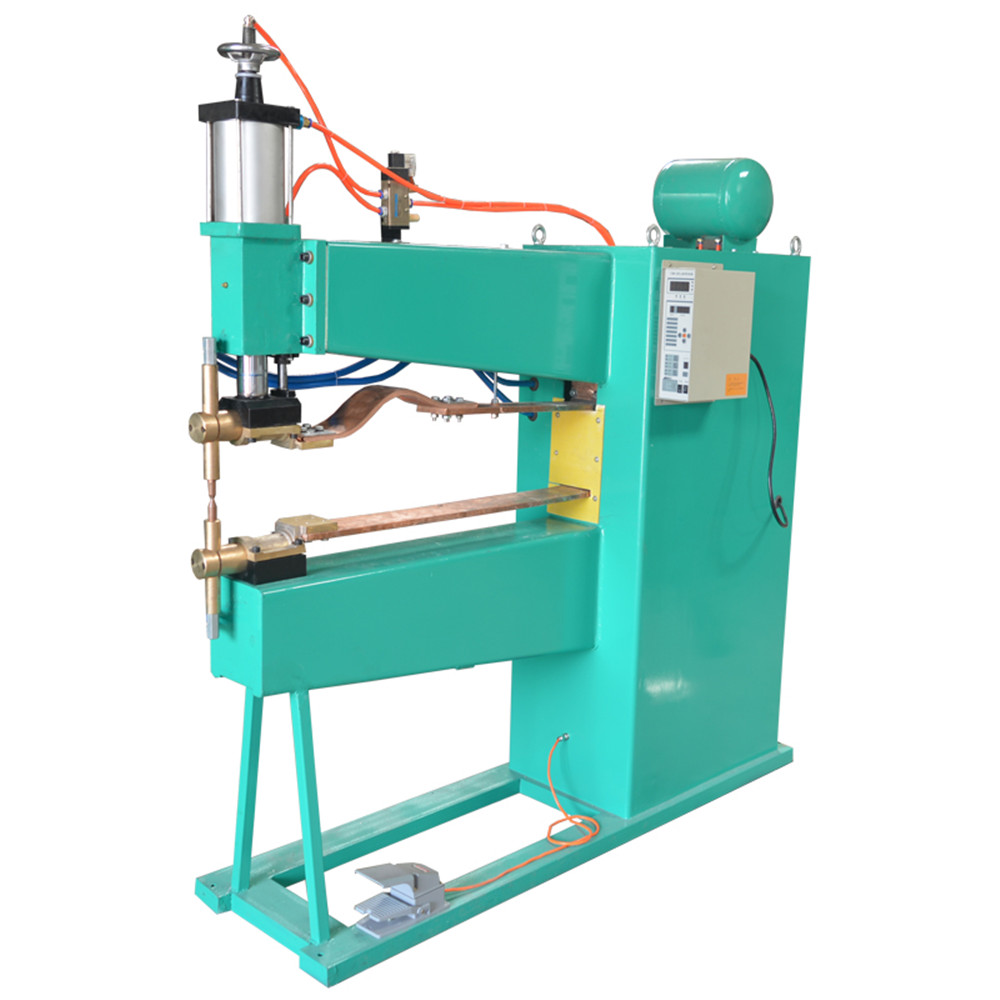

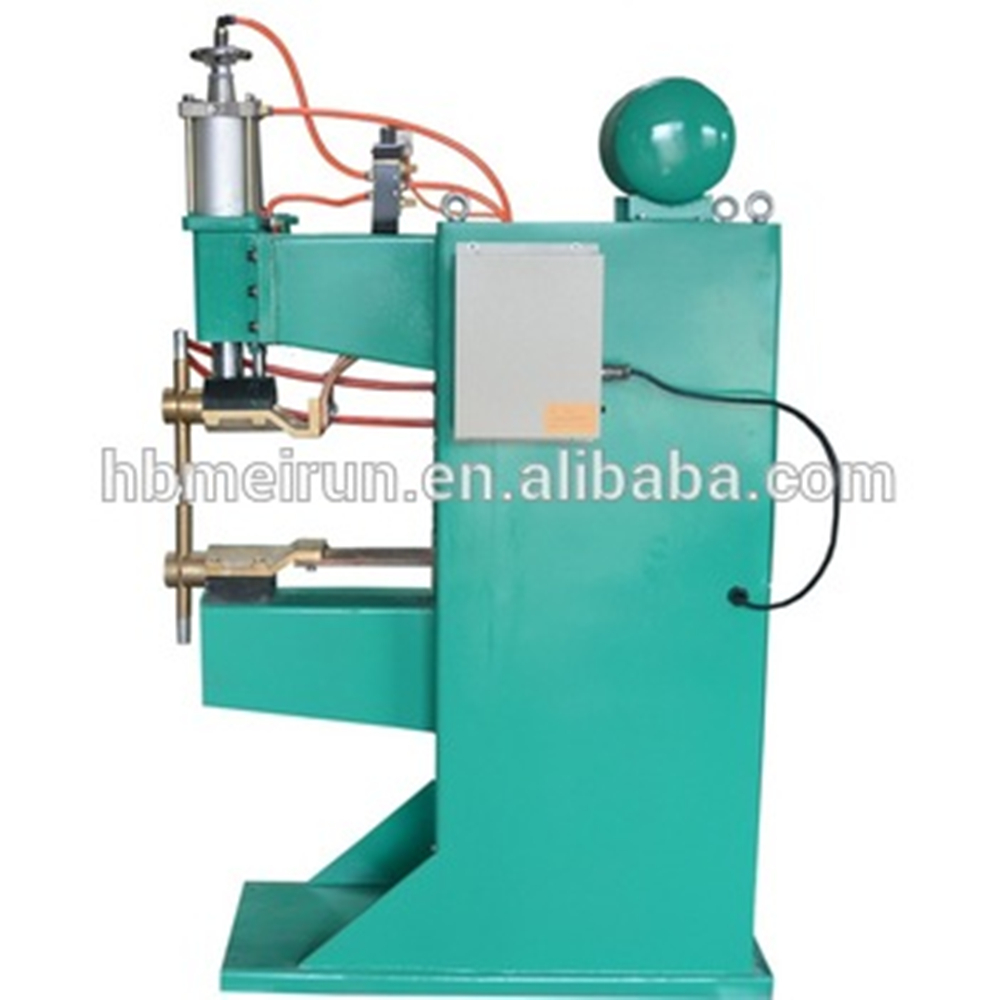

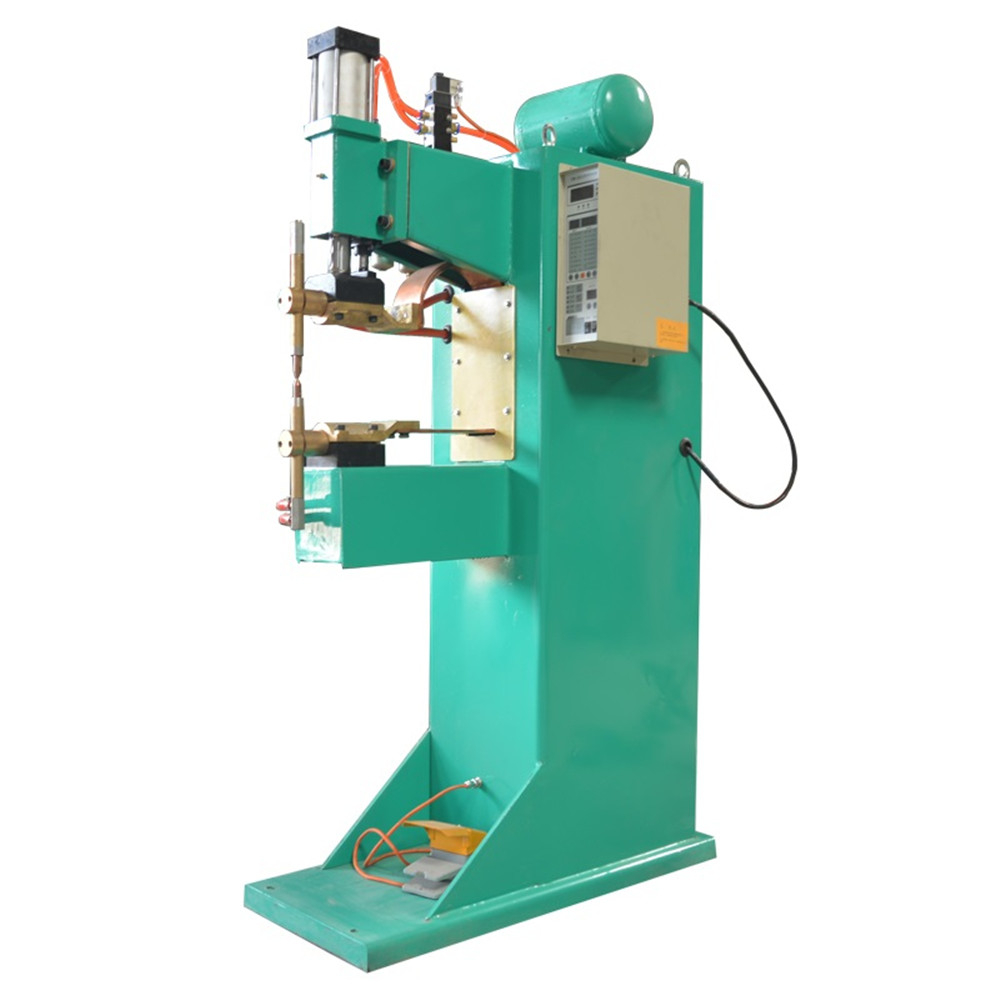

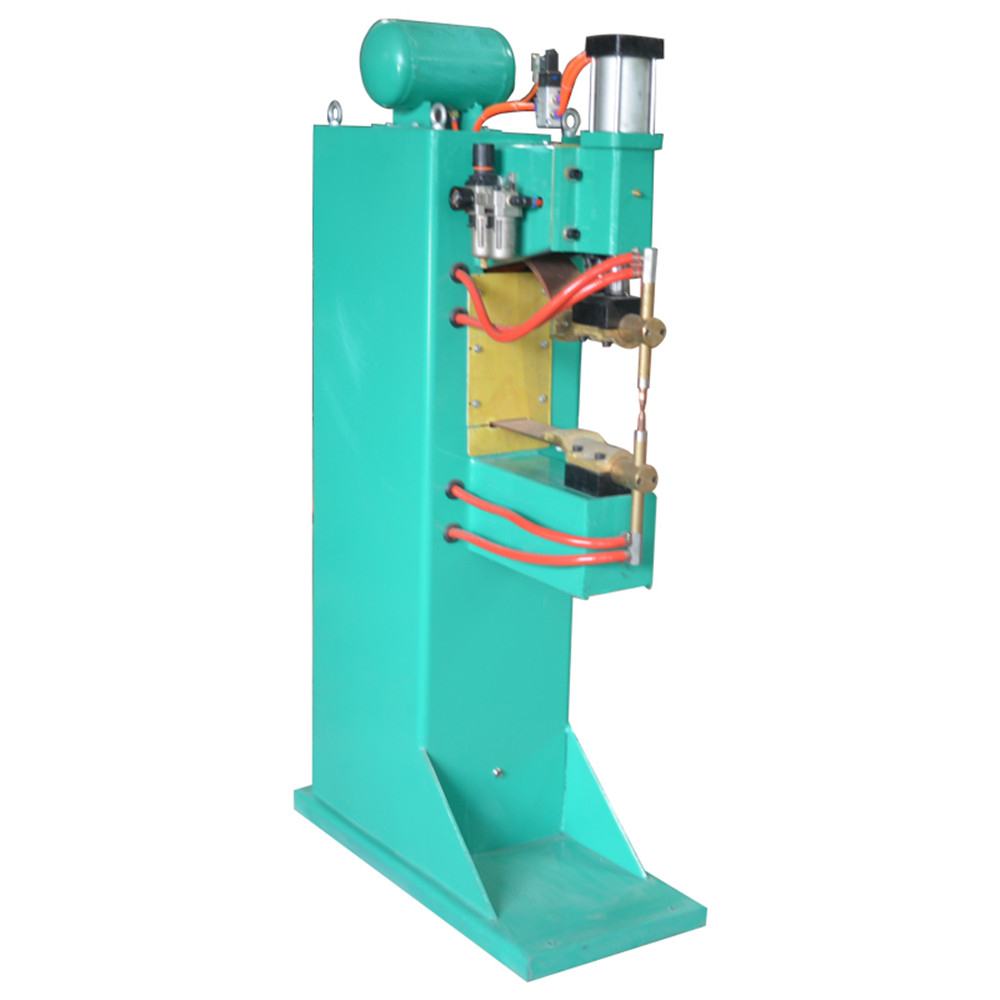

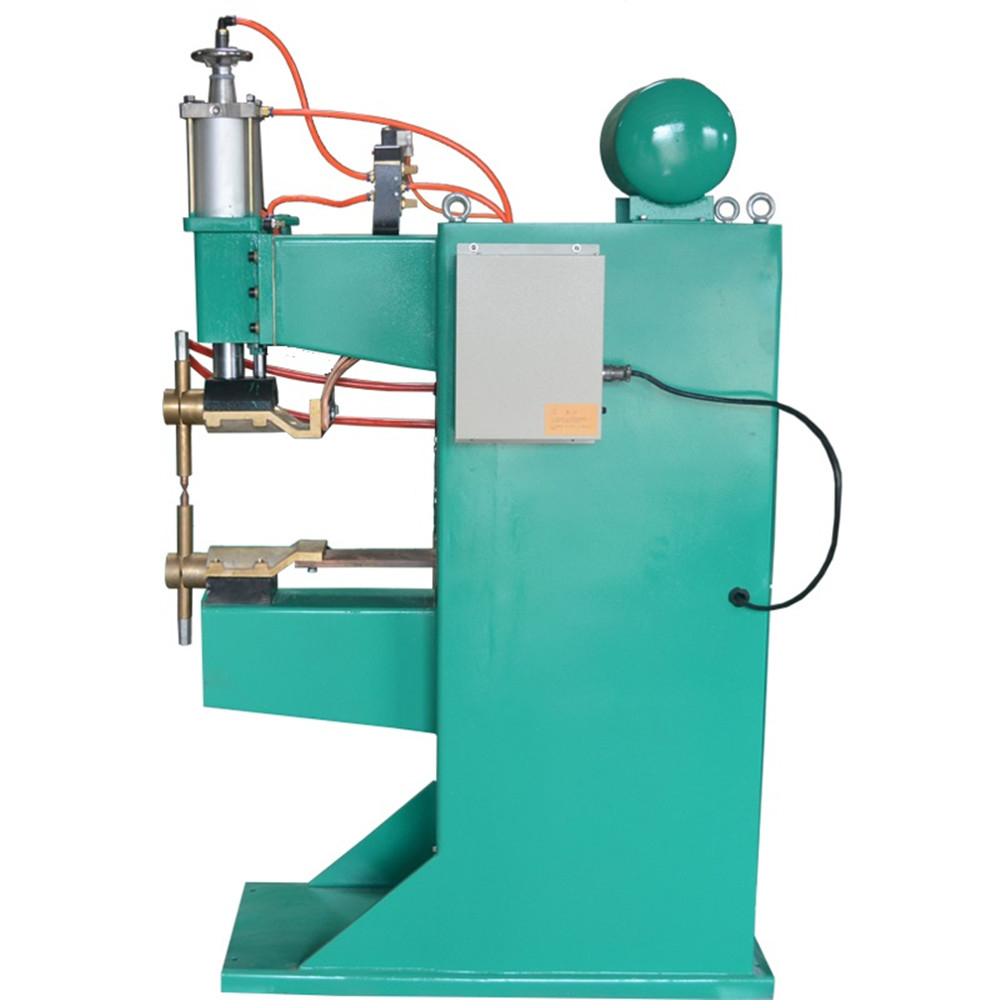

The pneumatic projection spot welder/spot welding machine
The pneumatic projection spot welder/ gas pressure spot welding machine is disigned and manufactured by our own factory,Hebei meirun, which is a kind of pneumatic compression semi-automatic welding equipment with automatic control function.The electrode pressure and working range can be adjusted arbitrarily in the range of setting.
They're mainly used in the spot welding and projection welding of various types of sheet metal structural workpieces.And they are also widely used in auto parts, motorcycle parts, steel radiator, solar water heater, metal packaging containers, steel safes and file cabinets, metal wire mesh, filtering equipment and other manufacturing industry.

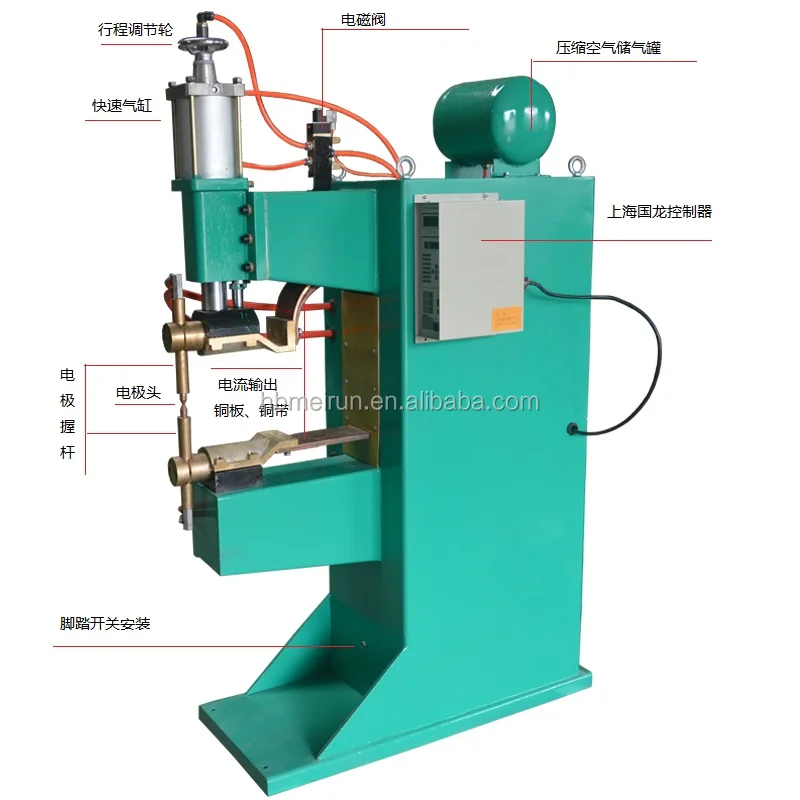

1. The machine mainly consists of main machine, transformer, copper wire, air cylinder,welding electrode, foot switch and electric control box etc
2. This machine is used in single and multi spots welding. (It can weld 2 spots one time when 6-10mm, 4-6 spots one time when 3-6mm, 8 spots one time when 2-3mm.)
3. The machine can weld wire automatically after setting the speed, and can also weld by foot switch.
4. The machine has advantages of high efficiency, low cost, saving materials, unique design, good rigidity.

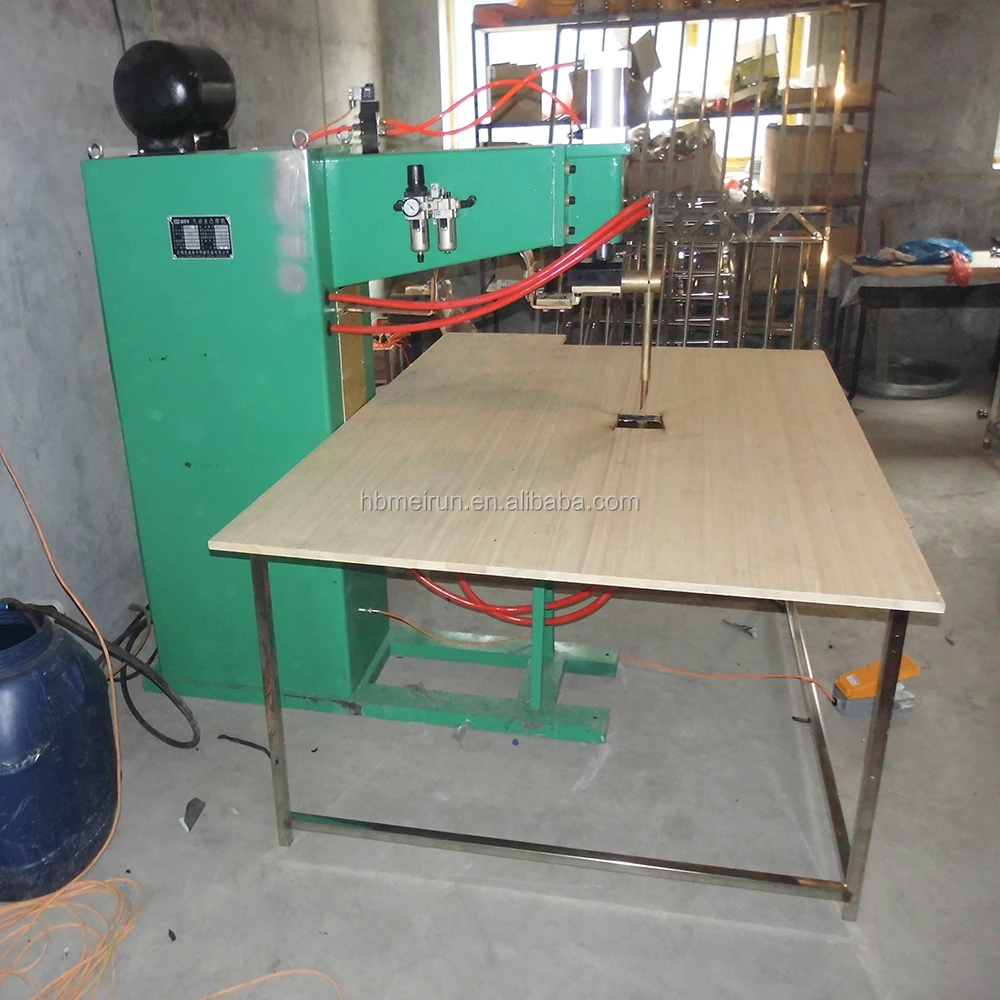

5. This machine mainly welds special mesh, such as mechanism, construction, steel bar mesh, fence mesh, barbecue mesh, craft mesh, stainless steel mesh and mesh edge.
| Technical Parameters | |||||
| Item | Unit | data | |||
| Rated capacity | kva | 75 | 100 | 150 | |
| Rated load duration | % | 20 | 20 | 20 | |
| Primary voltage | v | 380±10% | 380±10% | 380±10% | |
| Rated welding thickness | mm | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | |
| Max welding thickness | mm | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 | |
| Secondary voltage | v | 4.3-7.3 | 4.5-7.8 | 7.0-11.5 | |
| Secondary adjusted series | series | CNC | CNC | CNC | |
| Electrode max pressure | kgf | >300 | >500 | >800 | |
| Electrode stroke | mm | >=50 | >=50 | >=50 | |
| Electrode extended distance | mm | >400 | >400 | >400 | |
| Cooling water consumption | liter/h | 350 | 400 | 600 | |
| Full welding speed | times/s | 120 | 120 | 120 | |
The solder joints can be guaranteed to have enough welding strength. The machine is equipped with high performance, high reliability TCW-33EIII resistance welding controller,which can achieve the welding procedures of pre-pressing, pressing, pre-heating, welding, tempering, maintenance and stop. We can choose single point or continuous spot welding according to the work need. Compared with similar products, it has the advantages of simple operation, high output power, high welding speed and low equipment failure rate to meet the various needs of users
Here is the technical parameters for your referance.
We can send our technician to install the machine accordingly if needed.The buyer has to pay for the salary , air ticket, accommodation.Pls kindly note.
Hebei Meirun Wire Mesh CO,LTD is located in Anping county, Hengshui,Hebei. Anping County is the hometown of the wire mesh. And our company focuses on making and trading of various wire mesh products and relevant machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And about certain machines our market share is up to 70%. So we're your sensible choice and best friend.
Welcome to contact us and visit our company!
