straight and cut wire machine
MR
MR10
1.automatic steel wire straightening and cutting machine can straighten and cut stainless steel wire, aluminum wire,cold-drawing wire and steel wire.
2.The wire diameter of this kind of machine is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire,and steel wire with plastics.
4.This machine has many advantages,such as neat cutting mouth, less error and good functions.
Features:
1.Different lengths and numbers are remembered by the machine;
2.Hydraulic cut off,high accuracy but low noise;
3.Covering Less Space,convenient to move and install ;
4.Running steadily,easy to maintain,exchange parts are available;
5.Alter number and length without shutting;
6.Number of machines can be operated by one worker at a time.
Usage of wire straightening cutting machine:
The wire cutting machine is used to straightening galvanized wire or re-bar,and then cut it into the needed length.It can do a prepare work for the wire mesh welding machine.So it is widely accepted to the factory who is dealing wire wires and wire mesh.Also widely used in construction area.
Technical Parameters:
Model | HTK1.5-3.5 | HTK2-5 | HTK3-6 | HTK4-8 | HTK4-12 | HTK5-12 |
Wire diameter | 1.5-3.5mm | 2.0-5.0mm | 3.0-6.0mm | 4.0-8.0mm | 4.0-12.0mm | 5.0-12.0mm |
Cutting length | 30-2000mm | 30-6000m | 30-6000mm | 200-6000mm | 200-6000mm | 600-12000mm |
Cut error | +1mm | +1mm | +1mm | +1mm | +1mm | +10mm |
Speed | 25m/min | 30m/min | 30m/min | 35m/min | 30m/min | 45m/min |
Straight motor | 1.5kw | 1.5kw | 2.2kw | 4.0kw | 7.5kw | 11kw |
Cut motor | 0.75kw | 0.75kw | 0.75kw | 3.0kw | 4.0kw | 4.0kw |
Overall size | 1.7×0.4×0.8m | 1.2×0.4×0.9m | 1.2×0.5×1.1m | 7.3×0.6×1.2m | 8×0.8×1.3m | 2.1×0.7×1.3m |
Weight | 130kg | 150kg | 180kg | 650kg | 1000kg | 1200kg |
1. Packed in wooden case, or customization.
2. FOB Tianjin or other China main port by sea.
1.The seller will send our engineer to install the machine accordingly if the buyer need.
2.The buyer have to pay the salary US$100 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
3.It is in same condition if the buyer need the seller to send the interpreter.
4.The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.

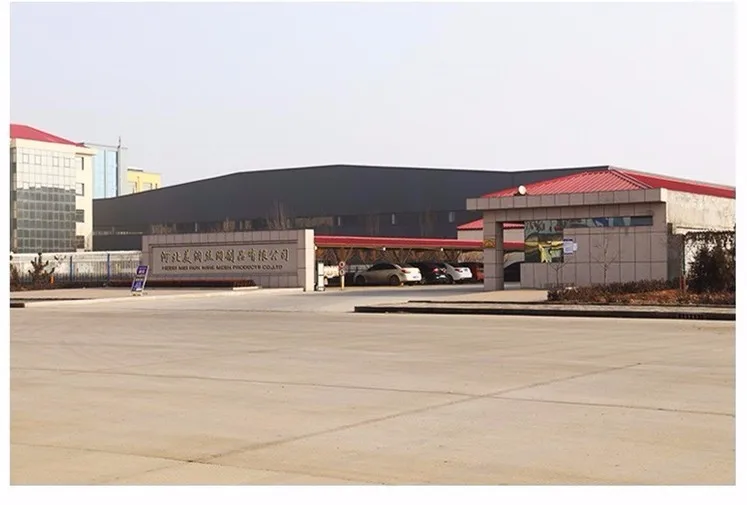

Hebei Meirun Wire Mesh CO.,Ltd.
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines. All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines.
