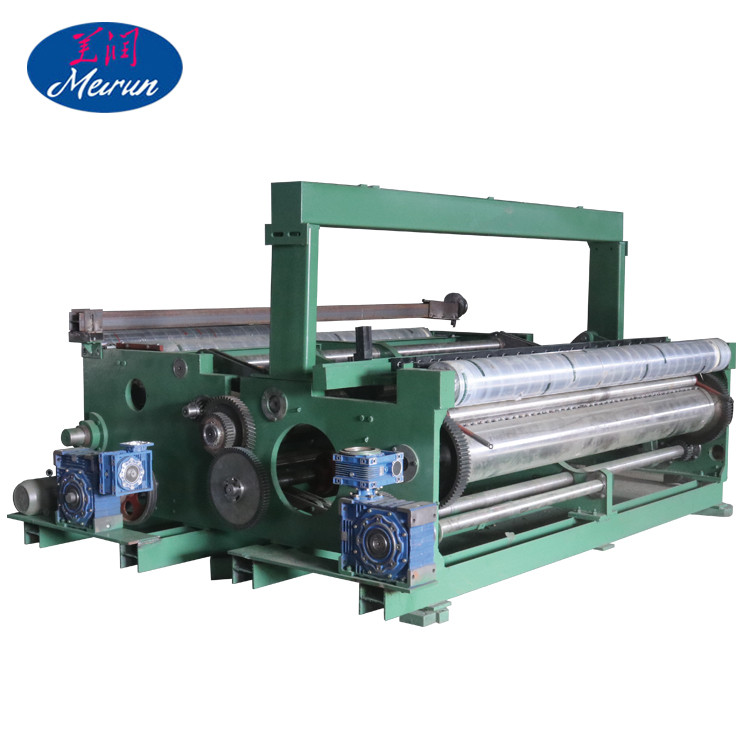

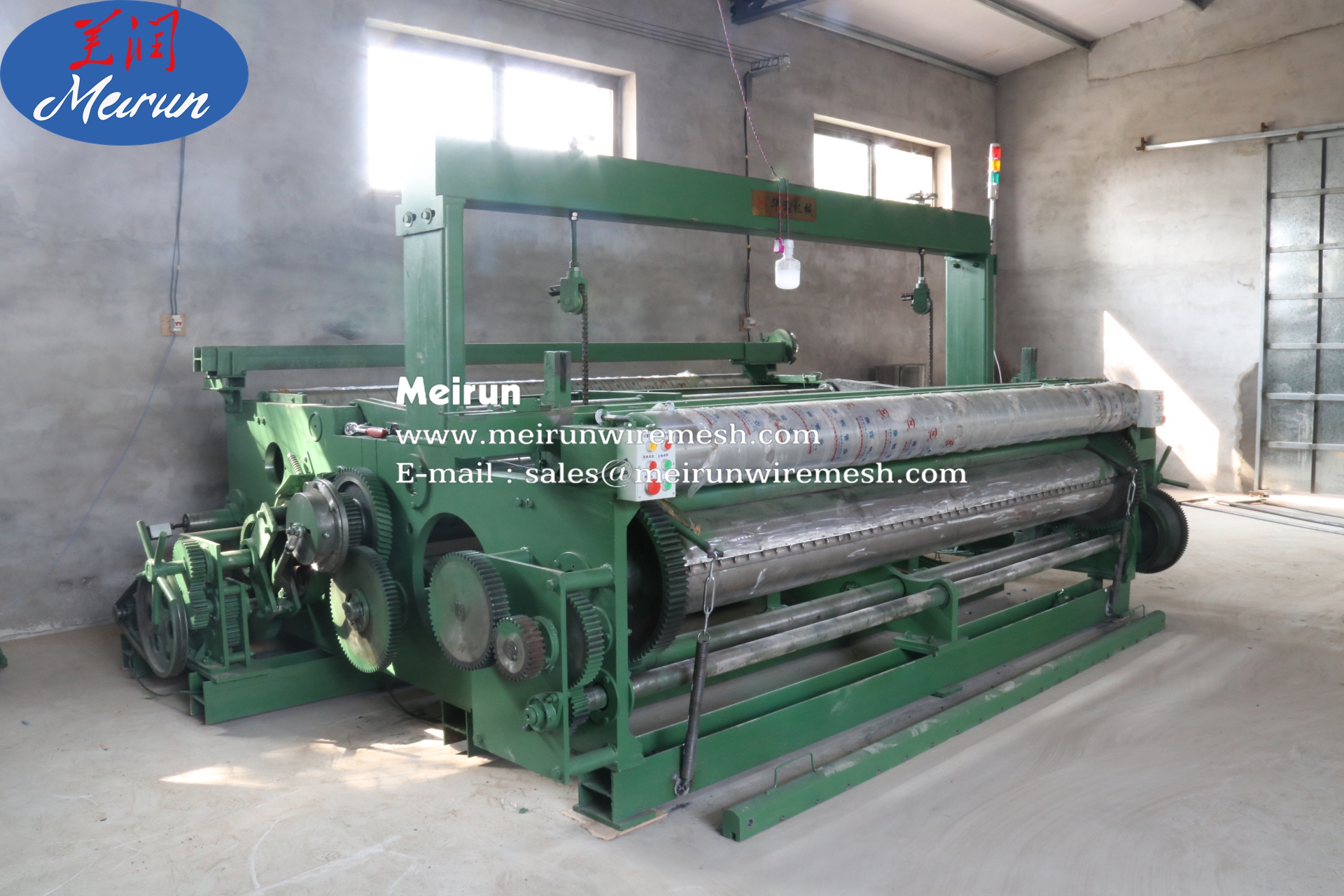

Stainless Steel Wire Mesh Weaving Machine

Metal wire mesh weaving machine,its second name is mesh weaving maching without shuttle. CNC Stainless Steel Wire Mesh Weaving Machine is a kind of machine independently developed by our company to meet the market demand. It can replace similar imported products. It adopts flexible swords with straight weft insertion, mechanical intermittent automatic feeding, active roll net, and step hanger.
Dimension:
Power:
Speed:
weight:
wire diameter:
Availability:
Quantity:
  • MRJGWJ

  • Meirun

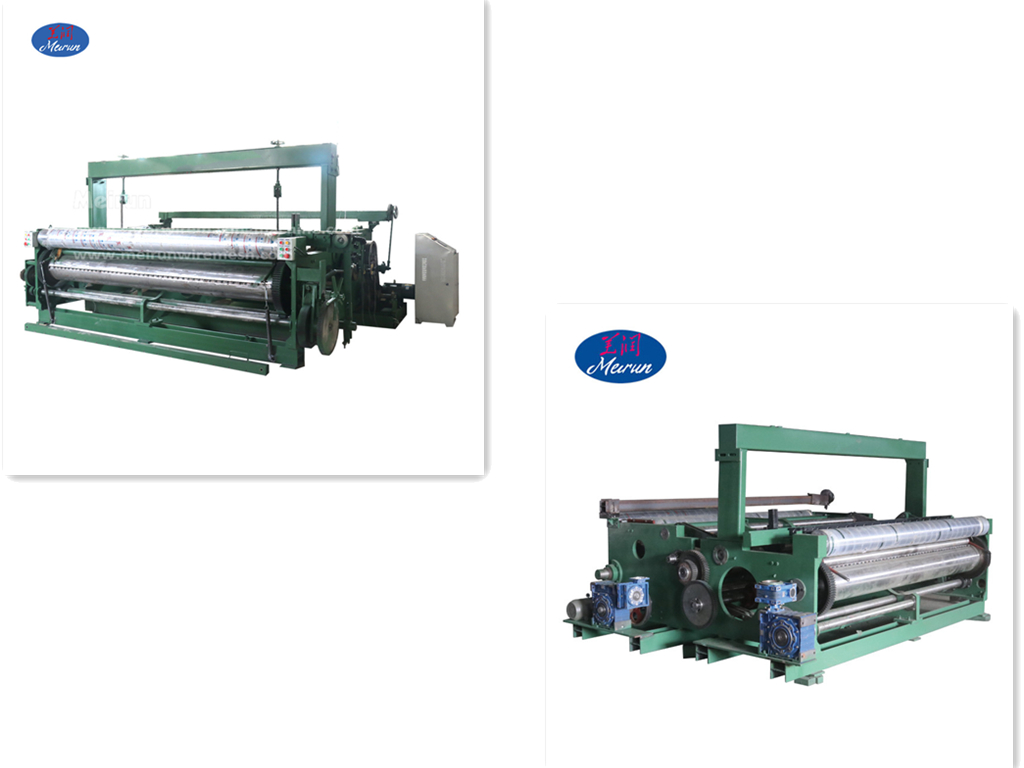

Automatic non- shuttle metal wire mesh weaving machine


金刚网机器拼图



Metal wire mesh weaving machine,its second name is mesh weaving maching without shuttle.CNC Stainless Steel Wire  Mesh Weaving Machine is a kind of machine independently developed by our company to meet the market demand. It can replace similar imported products. It adopts flexible swords with straight weft insertion, mechanical intermittent automatic feeding, active roll net, and step hanger.

Specification

Type
ZWJ-Q160
ZWJ-Z160
Wire Diameter
0.25-0.45mm
0.45-0.8mm
Mesh
10-60mesh
10-30mesh
Weaving width
1600mm
1600mm
Weft insertion method
CNC weft insertion
CNC weft insertion
Weaving speed
60--80times/min
60--80times/min
Motor Power
2.2kw
4kw
Voltage
380V/50HZ 3hp
380V/50HZ 3hp
Dimensions
2.8*3.3*1.8m
2.8*3.3*1.8m
Weight
3.2T
5T

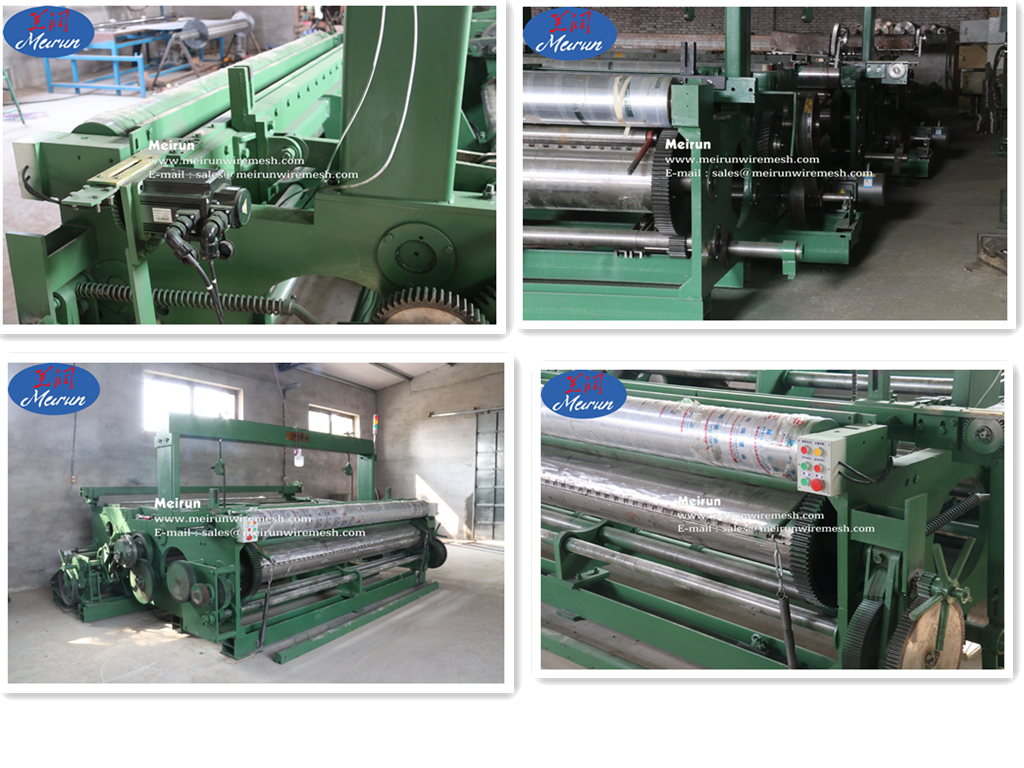

金刚网机器各部分图片1


Wire Weaving Machine
1.single electromotor driving
2.Automatic compensation of winding and was feeding
3.It stopped atomatically when the latitude and longitude is cutted off
4.Be suitable for soft ferrous metal,stainless steel,flexible brass wire,galvannized wire and organic fibre
5.Five linds of arbitrary combination

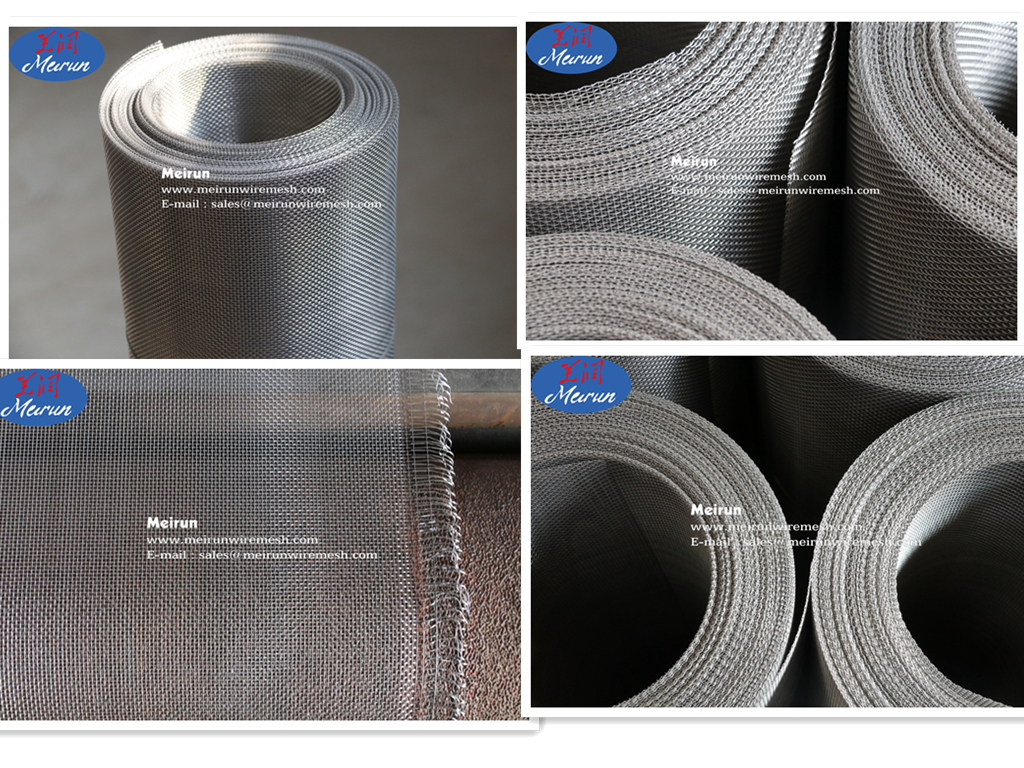

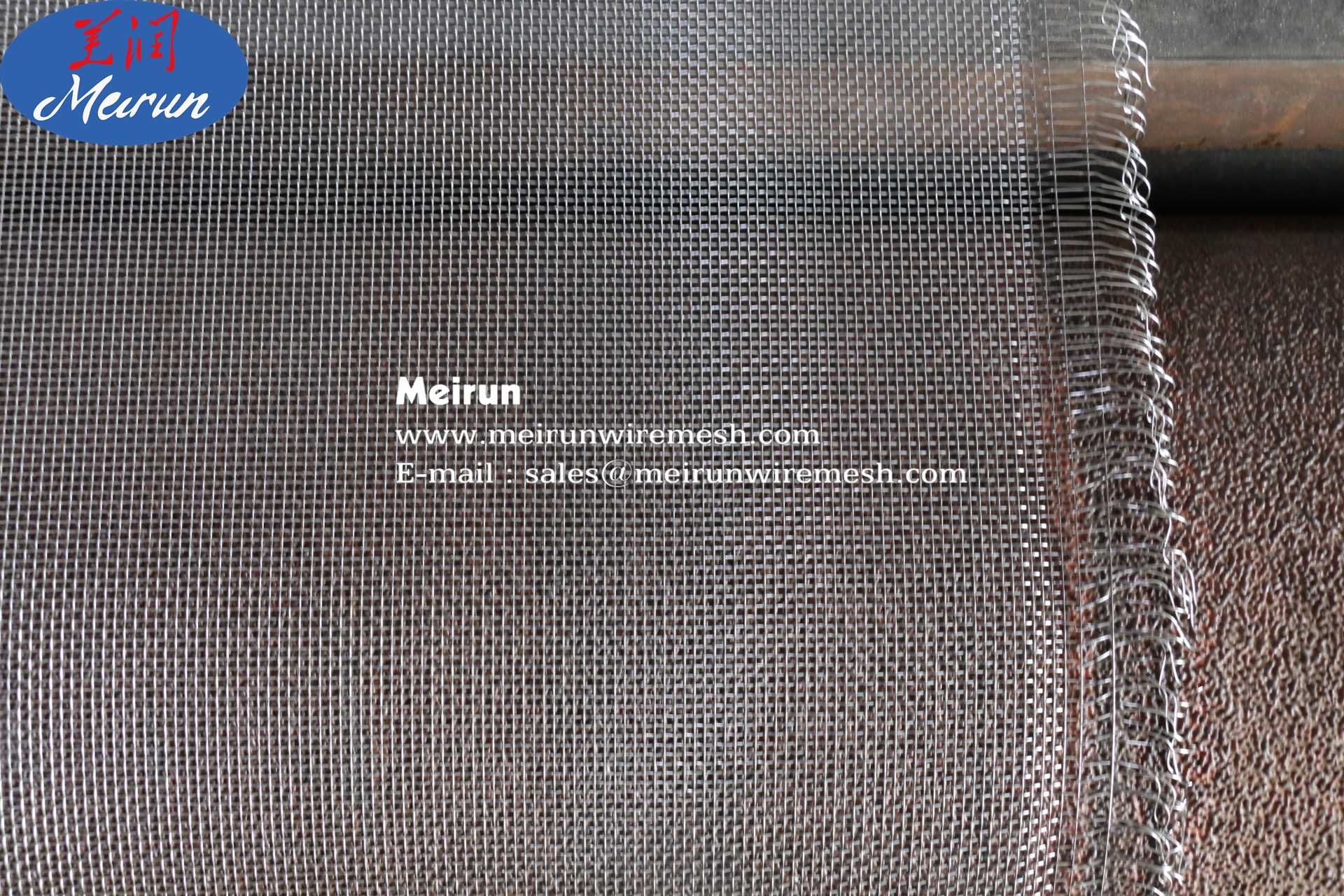

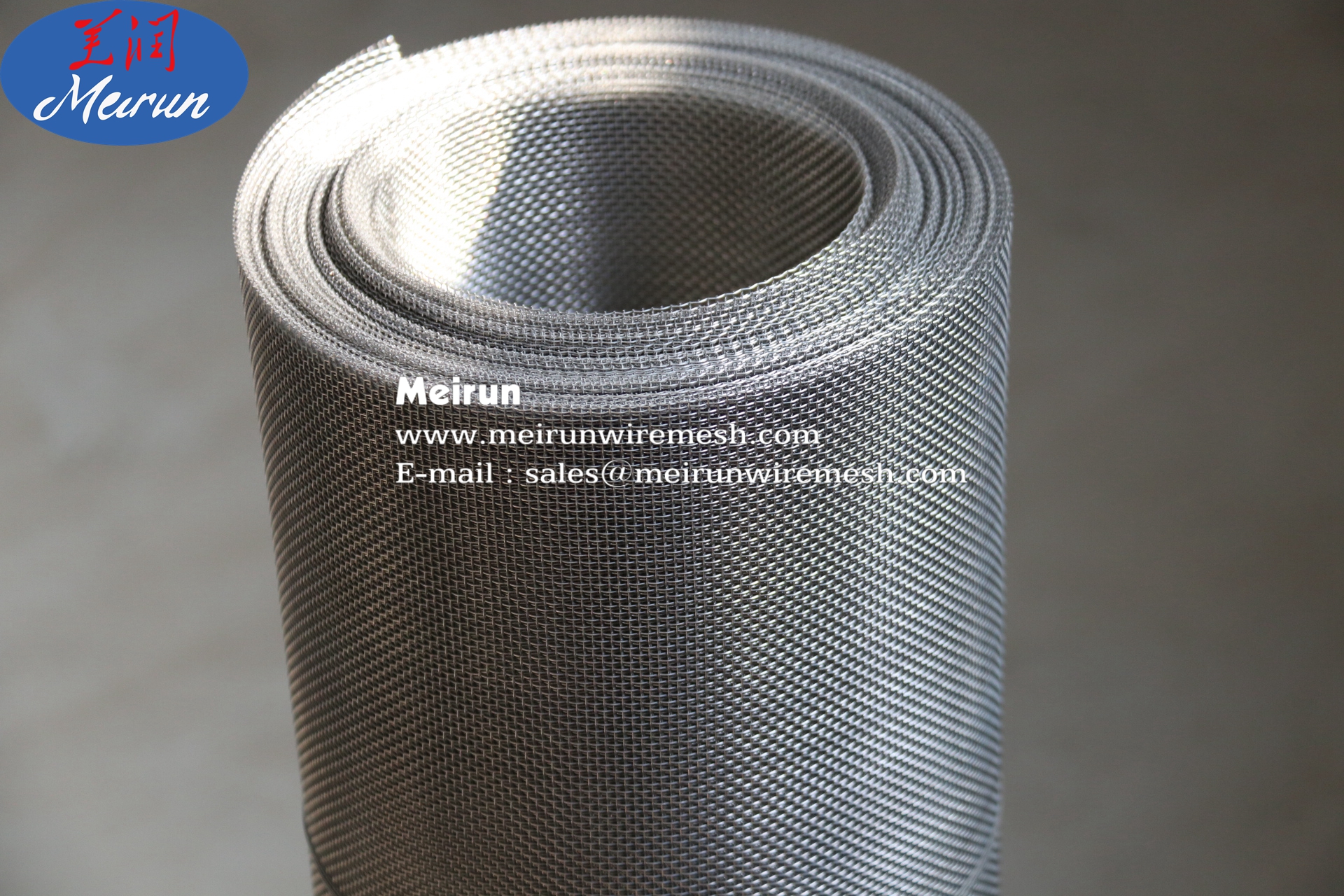

Products

金刚网产品图片11

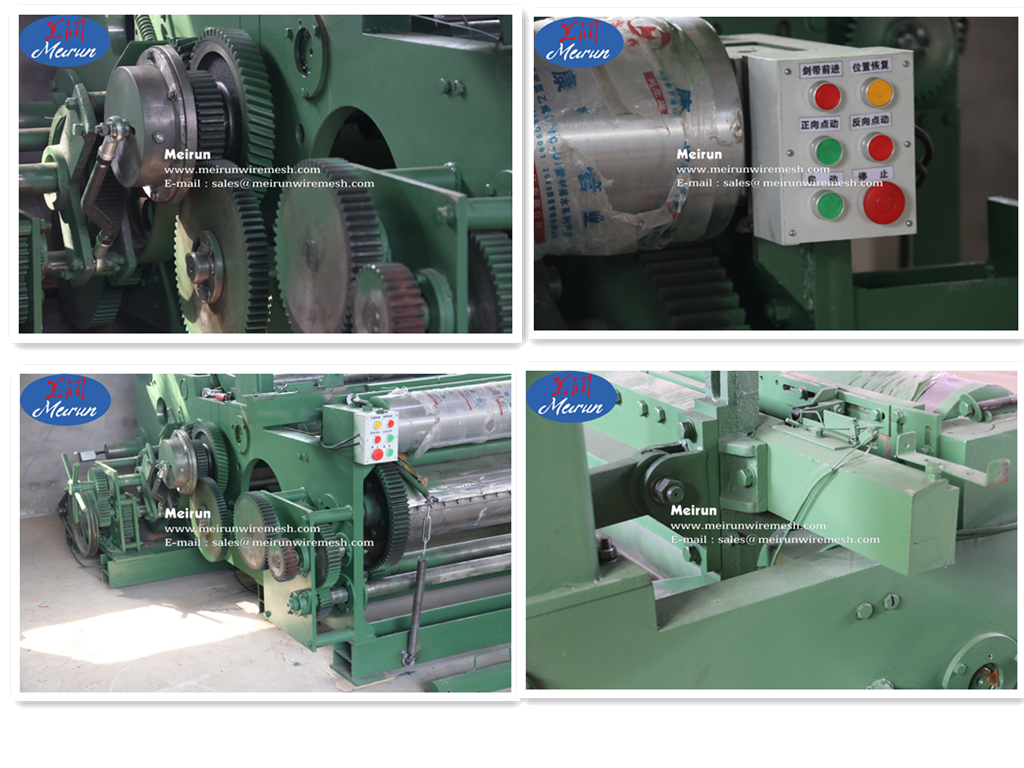

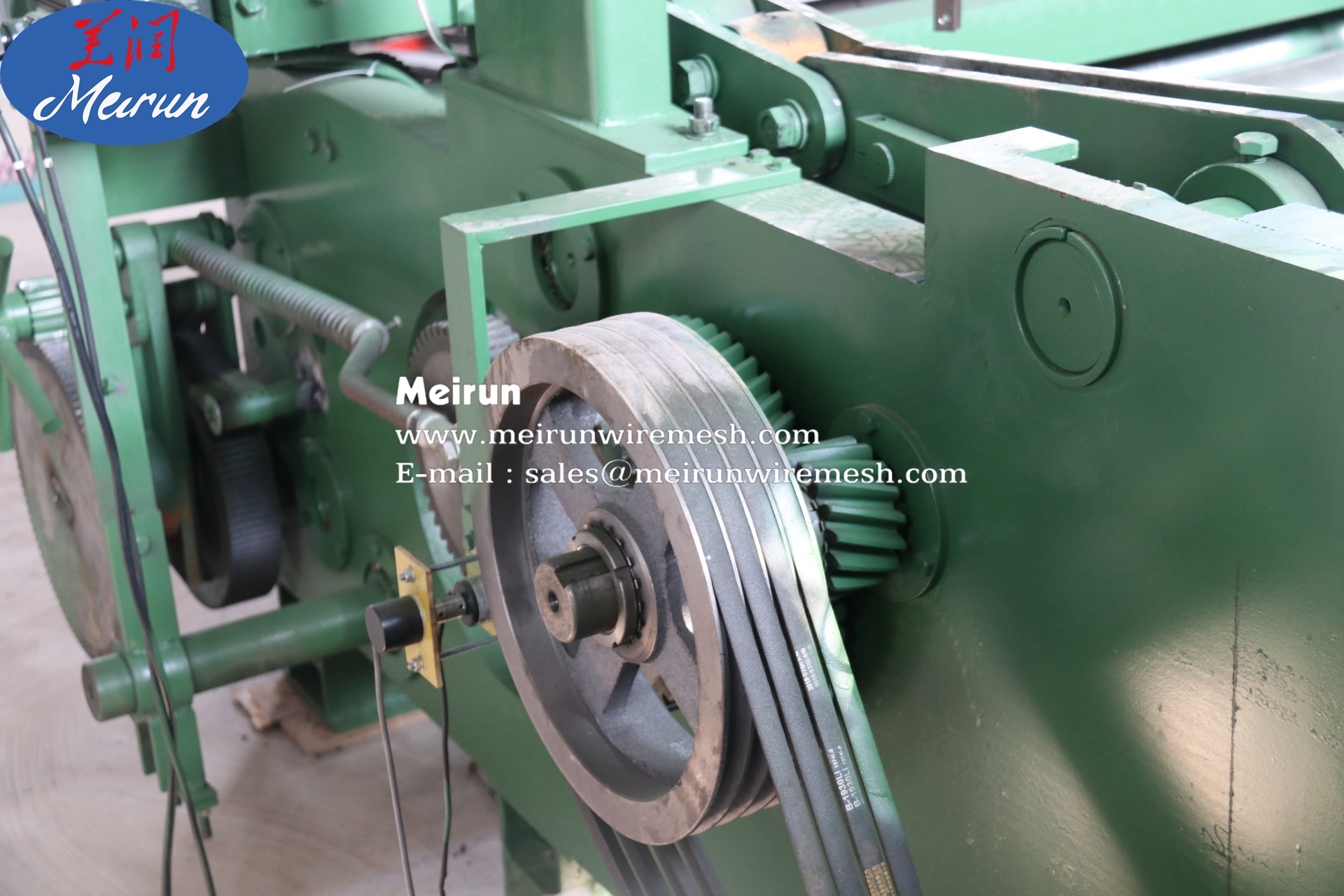

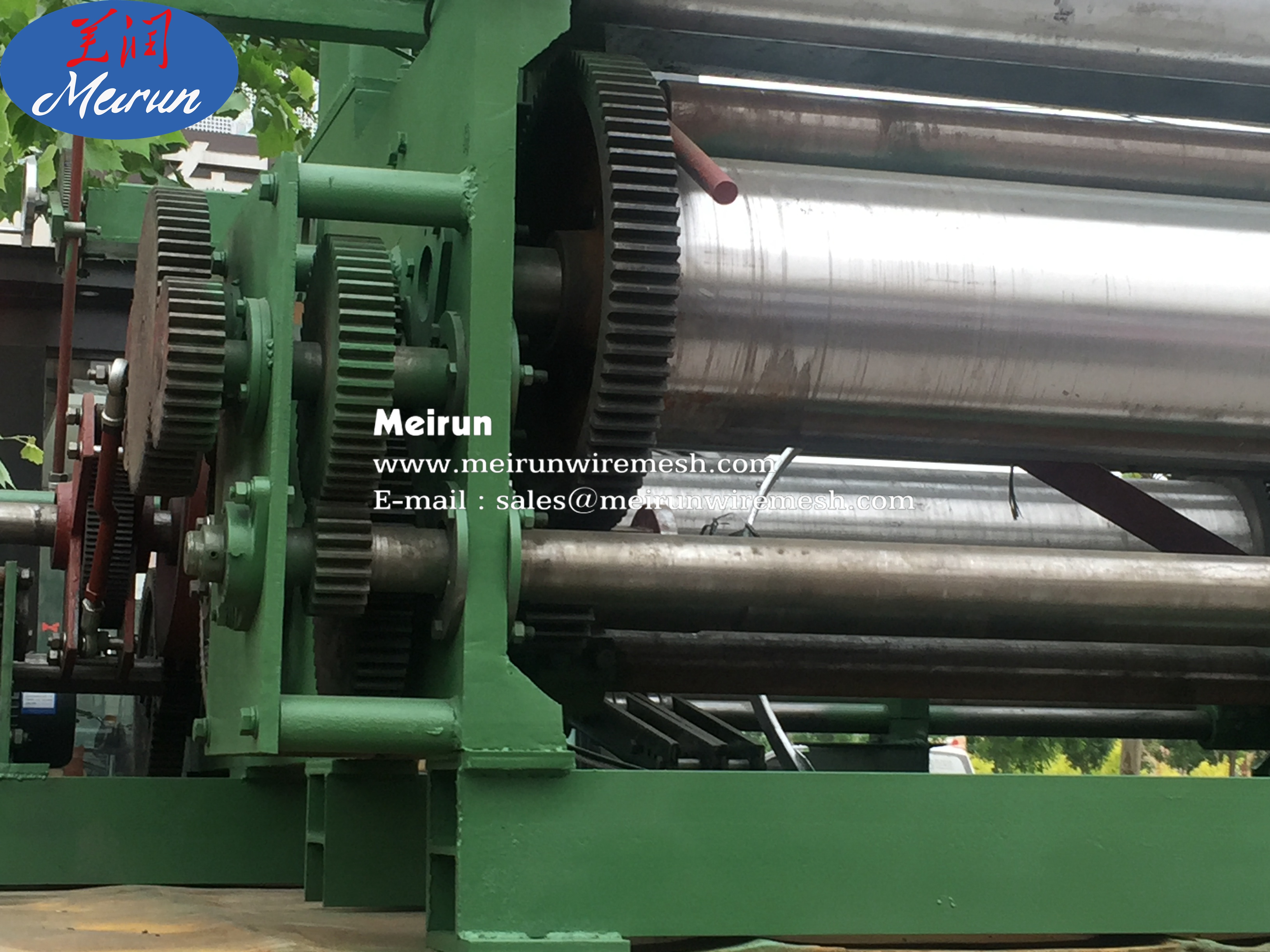

Part of machine

金刚网机器部分图片

Packing and delivery

官网发货图片_副本


Our company


Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee
the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
