MR
meirun

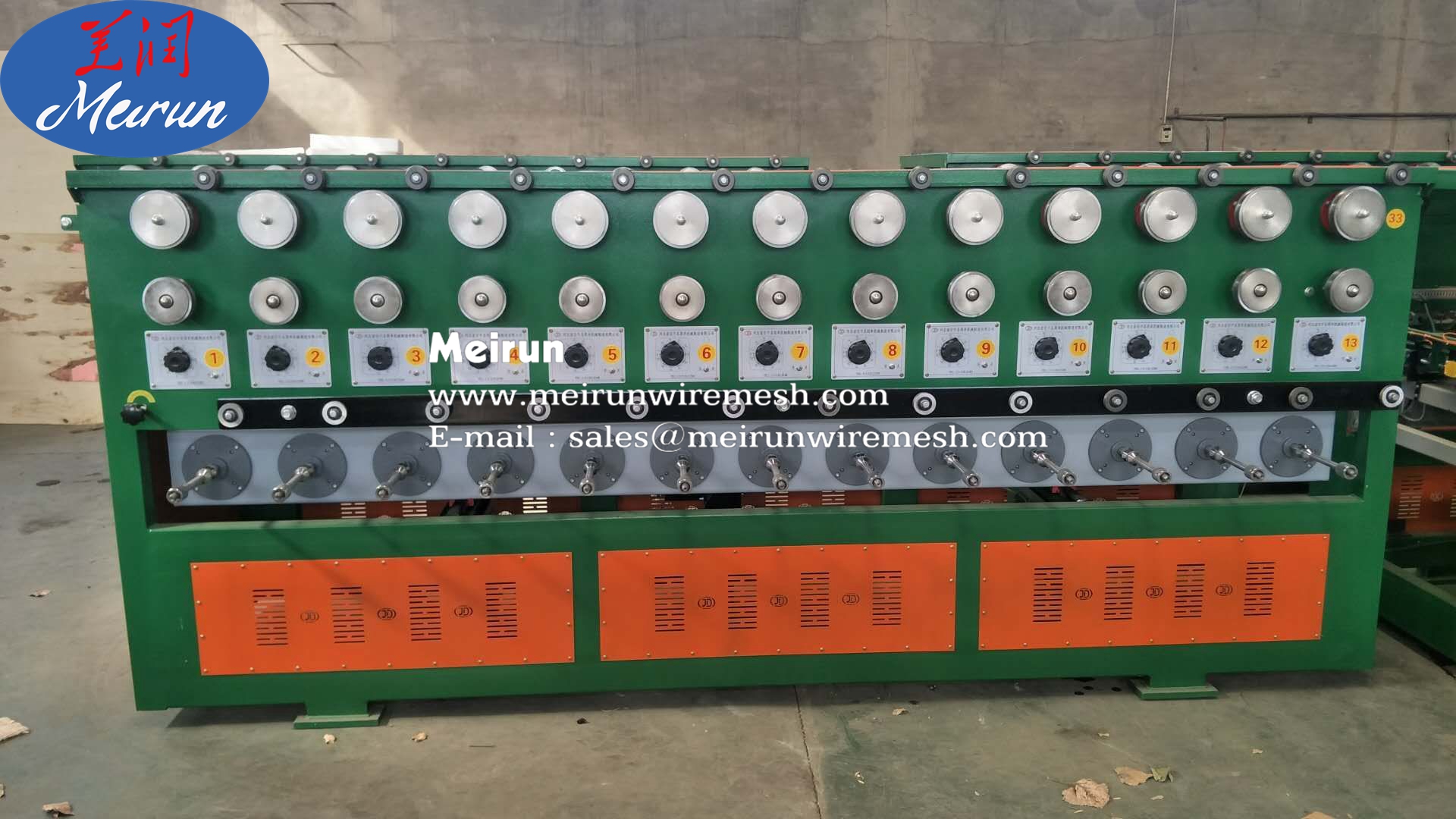

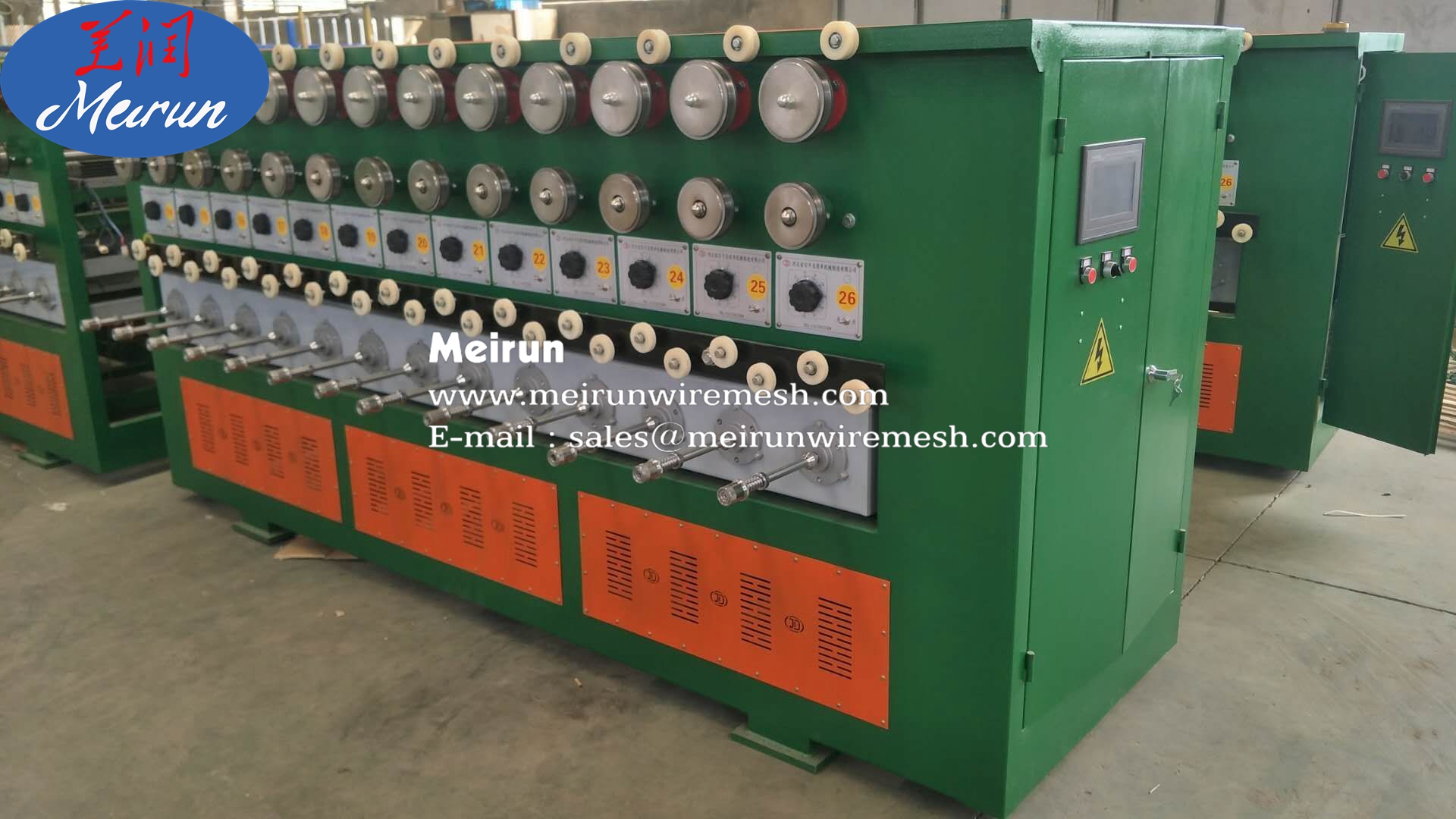

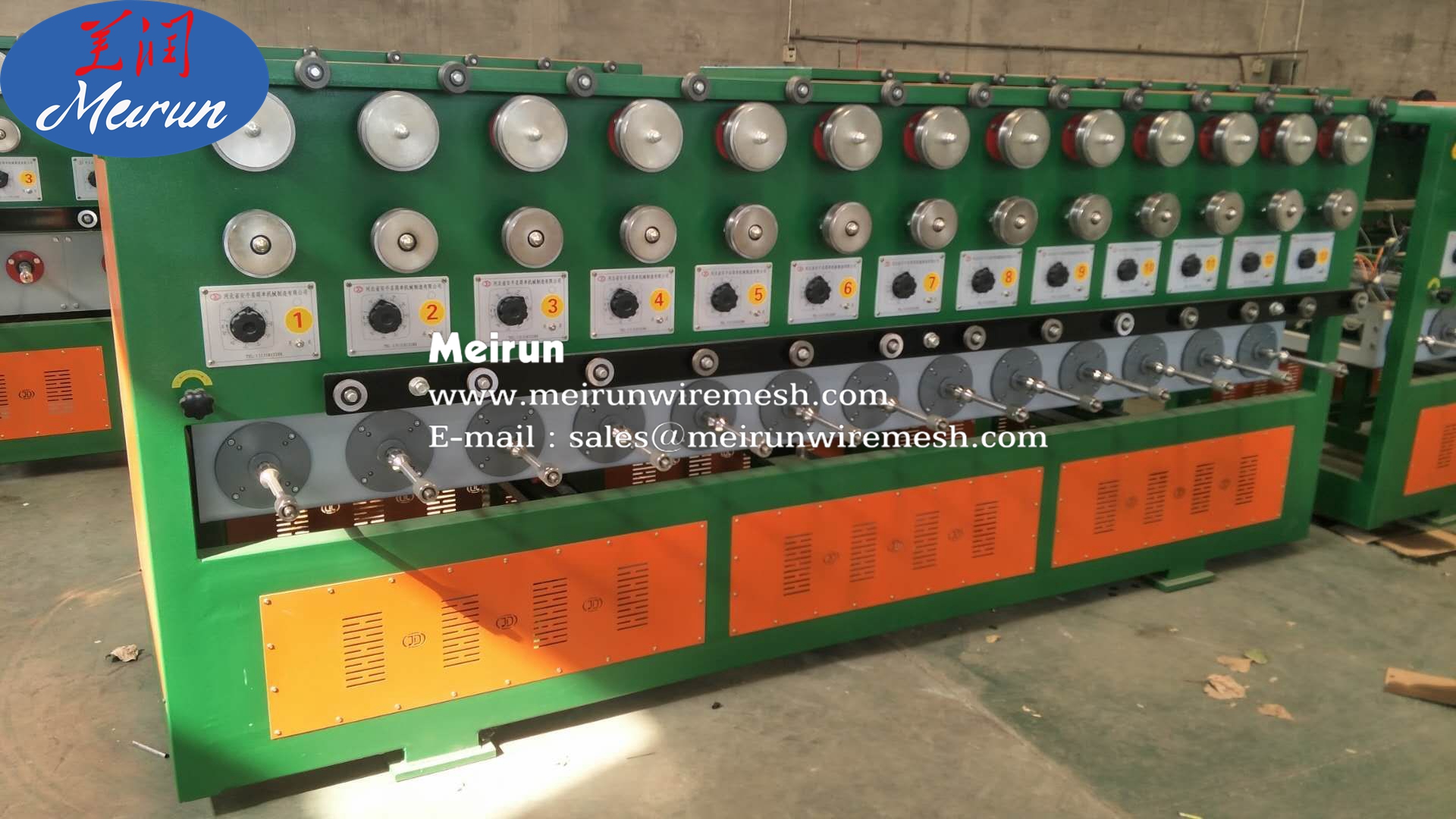

Wire drawing machine
Steel bar drawing machine is the auxiliary machinery and equipment of CNC stirrup bending machine and straightening and cutting machine.It is mainly for reducing diameter of round bar to reach the size for straightening and bending .This machine is good for waste bar recycling.
Technical parameter :
| Inverter control | Double inverter control |
| Max.inlet Dia.(mm) | Ø1.0-1.6 mm |
| Outlet Dia.(mm) | Ø0.25-Ø0.65 mm |
| Max.Line speed(m/min) | 1200 |
| Body structure | Ironed cast |
| Drawing captan | Tungsten plasma capstan |
| Slip ratio of m/c(%) | 15 |
| Main motor power(kw) | 18.5 |
| Take-up motor power(kw) | 5.5 |
| Fix speed capstan Dia.(mm) | Ø268 |
| Transmission type | By gear |
| Lubrication type | Full immersion |
| Max.annealing voltage(V) | DC60 |
| Max.annealing current(A) | DC600 |
| Take-up bobbin size(mm) | Φ300/Φ400 |
| Traversing type | By motor |
| Tension control | Air pressure type |
| Brake | Disc brake |
| Weight(KG) | 3500 |
| Name | wire drawing machine |
Advantage:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2). This electrical wire making machine ’s body and other key components and parts are produced by our own factory, quality is reliable
3).High tension durably flat belt gain convenient replacement and low noise in operating.
4).This electrical wire making machine use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,France Schneider electric and Shenzhen Inovance inverter.
5).we have gotten ISO 9001:2008,CE and TUV certificate
Packing and delivery
Our company
Our customers
