MRDHJ
Meirun

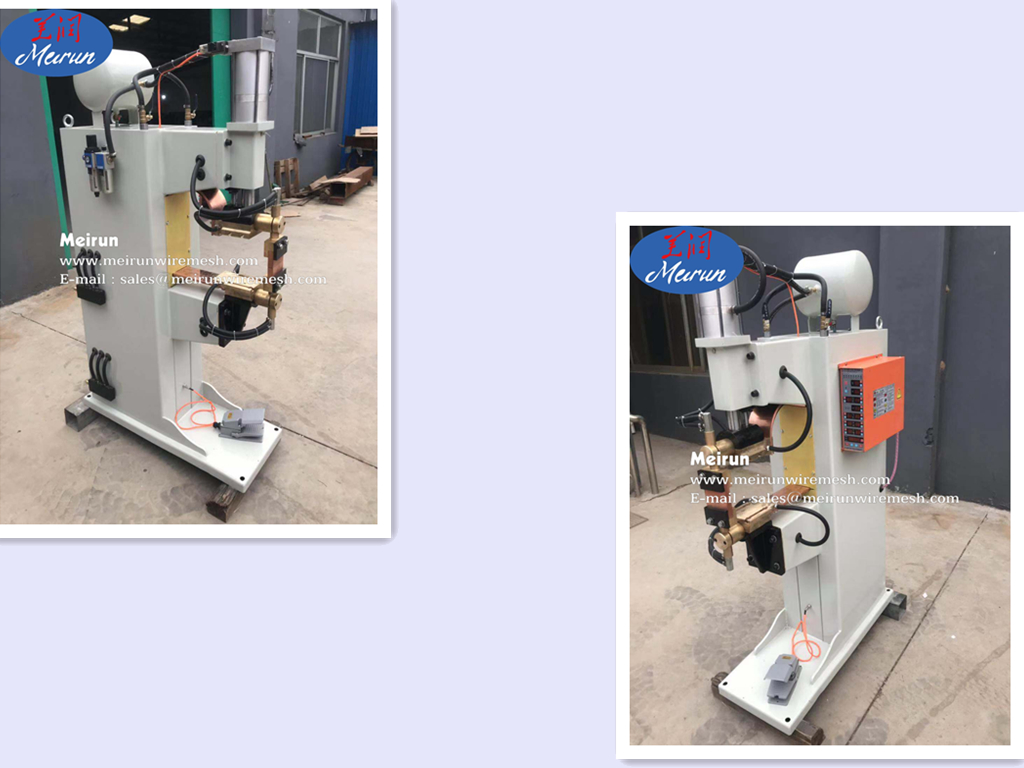

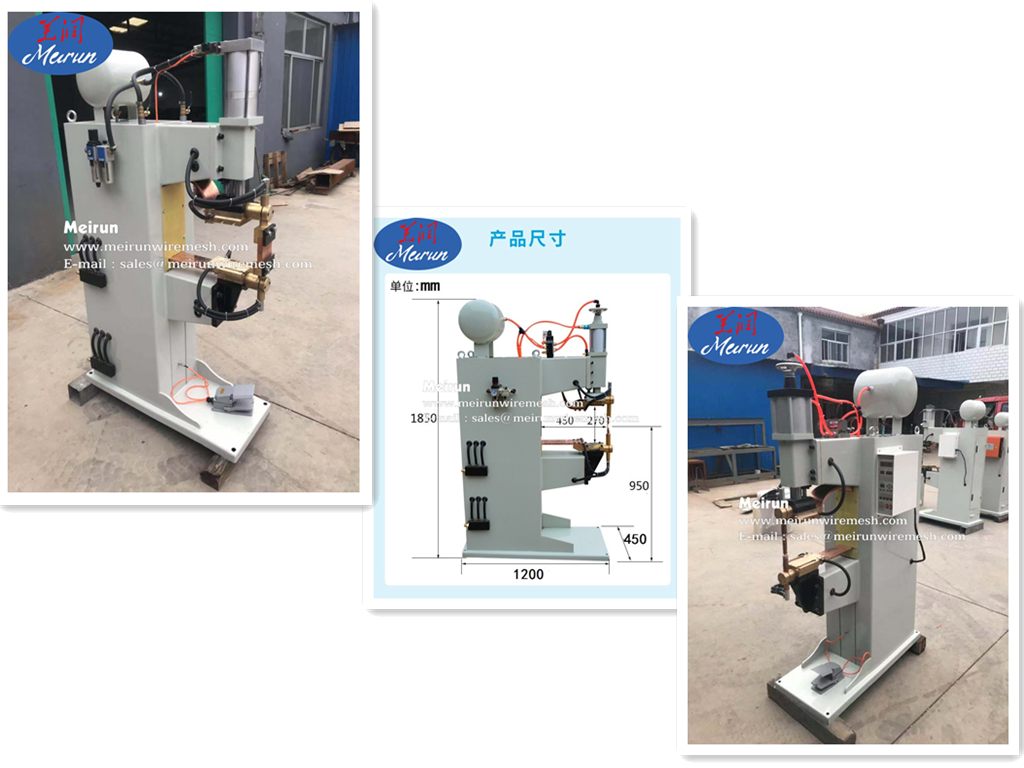

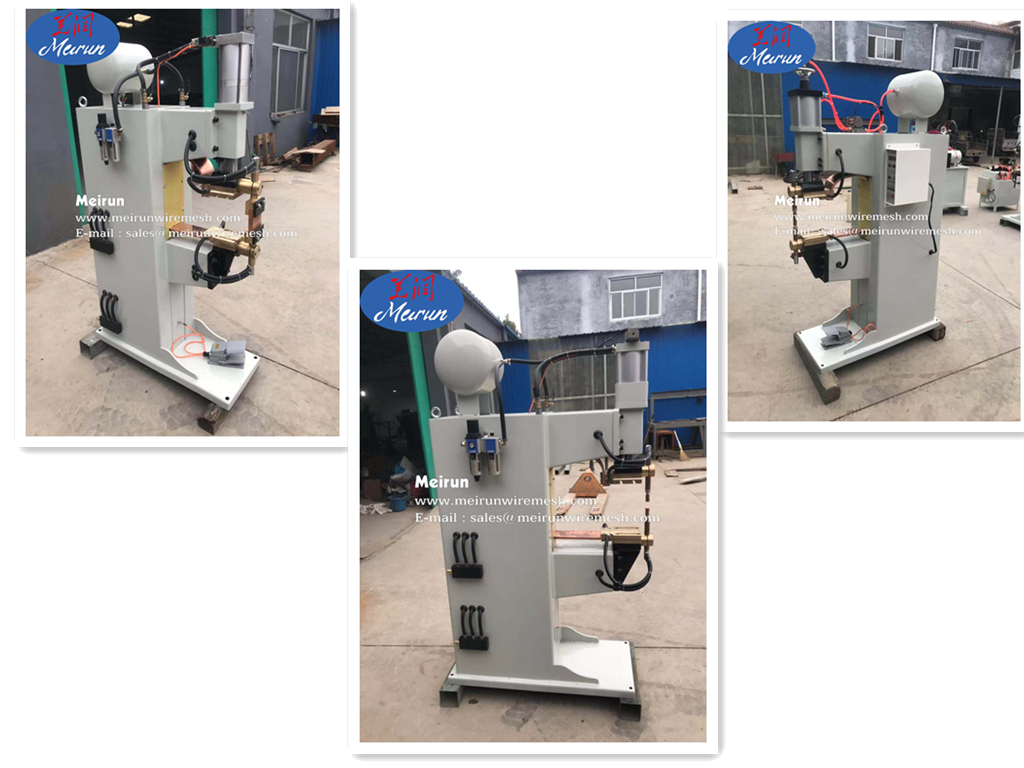

Spot welding machine
Compact design, easy to operate, simple to use, stable performance.
1. The welding transformer adopts the optimized structure design. The all-copper secondary pole coil and high magnetic material are made.
2. The welding controller adopts the integrated control system of single chip microcomputer, input various parameters by high-precision digital keys, and is equipped with the first parameter control of welding current, welding time and wave. All parameters can be controlled within the cycle number.
3. The primary welding loop is controlled by imported integrated two-way thyristor to ensure the stable output of welding current.
4. The machine head is designed in the form of vertical pressure, and it is equipped with precise sliding block to make the transfer pressure flexible and reliable, the electrode is free of displacement, the flexible and convenient pressure adjusting structure and the non-wearing contact switch can guarantee the quality of welding parts.
5. The lower electrode arm can be adjusted freely from top to bottom and from left to right, so as to avoid special workpieces.
Our factory in the continuous innovation and progress, if there are changes to the material subject to notice.
Parameter
| Product Name | point welding machine |
| Voltage | 220v and 380v |
| power | 5.5kw |
| Use | It is used it for spot welding. |
Products describle
Spot welding machine, small pneumatic spot welding machine, pneumatic spot welding machine, air pressure spot welding machine, 35KVA spot welding machine, 50KVA spot welding machine

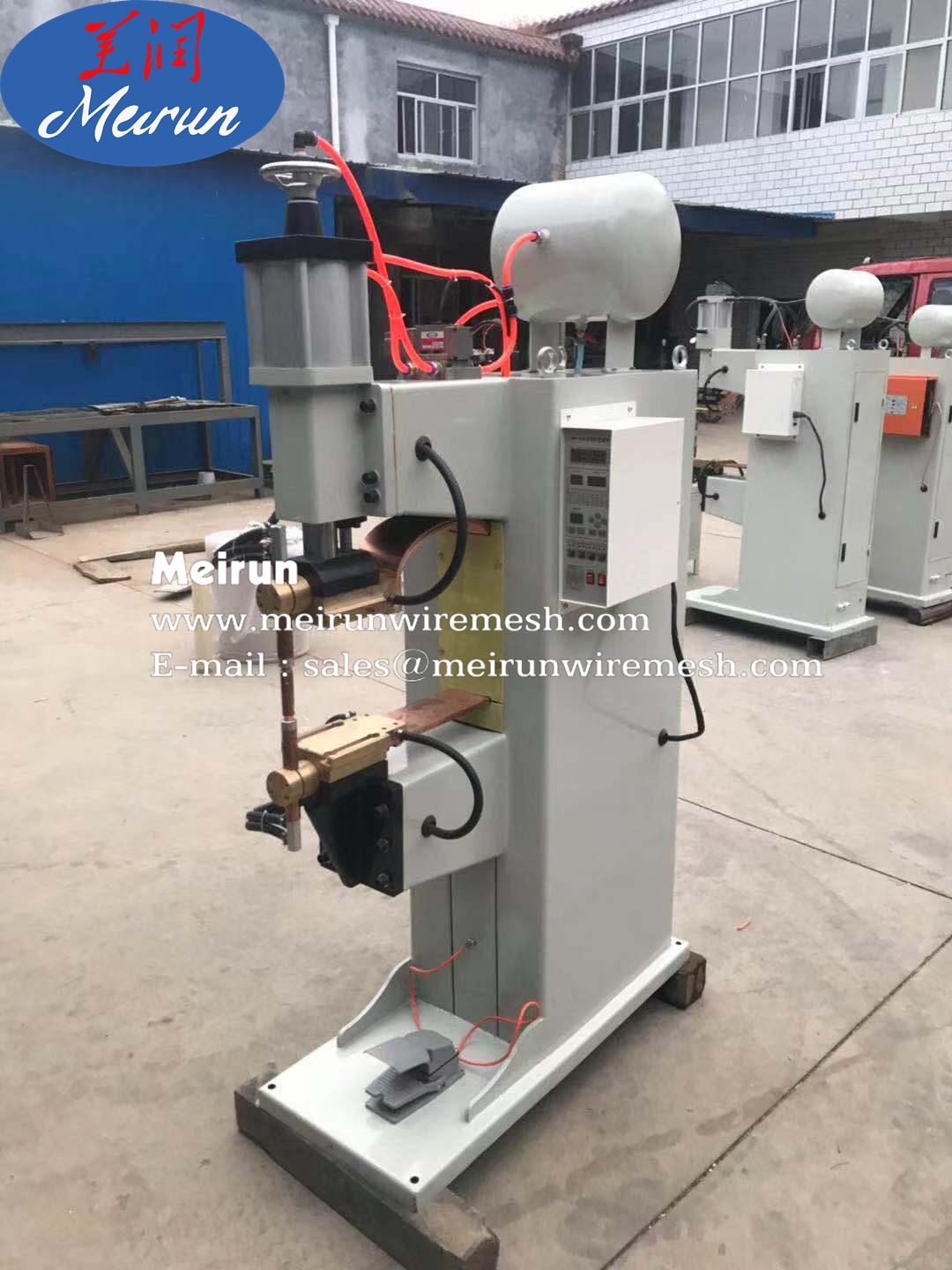

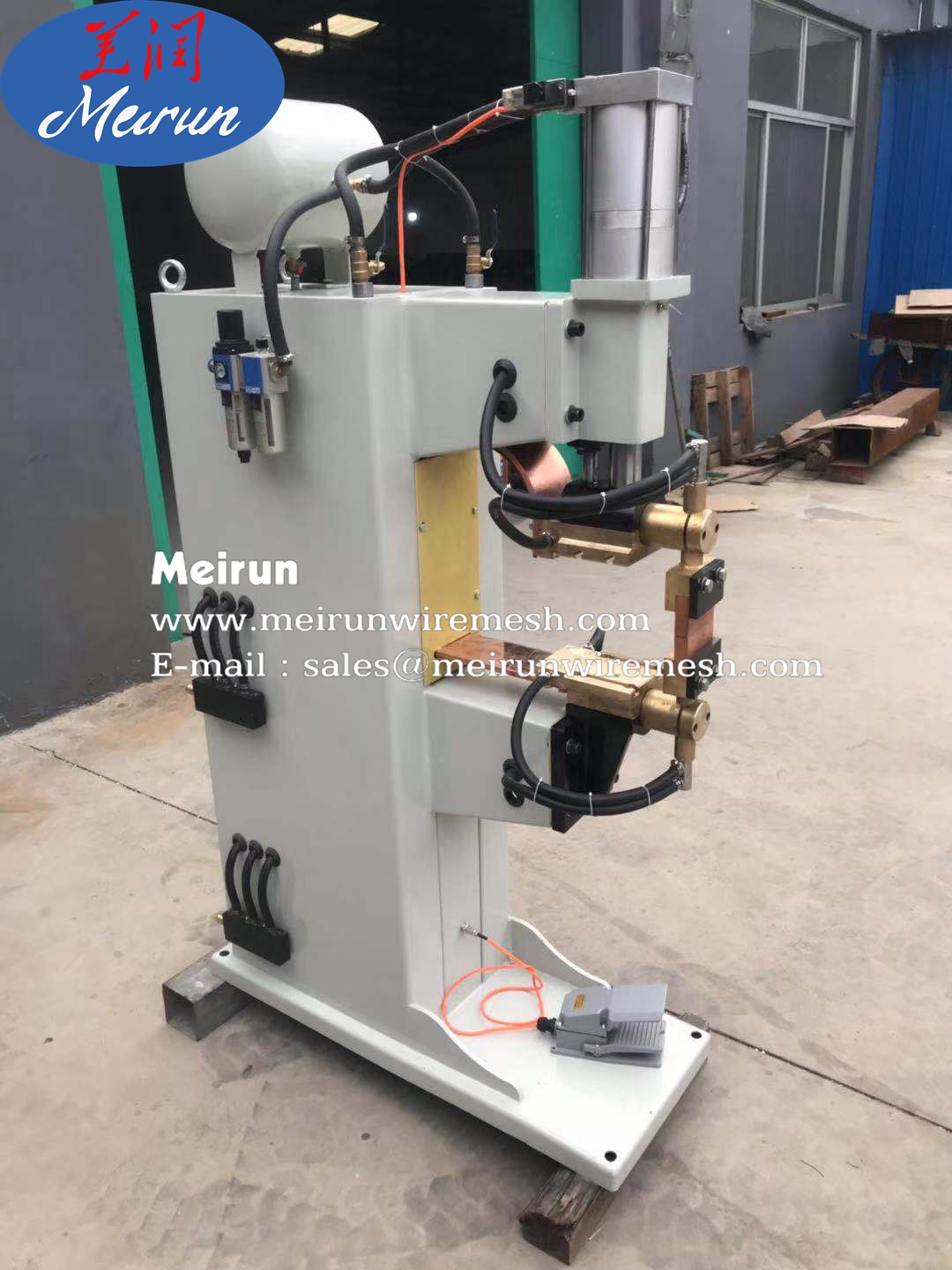

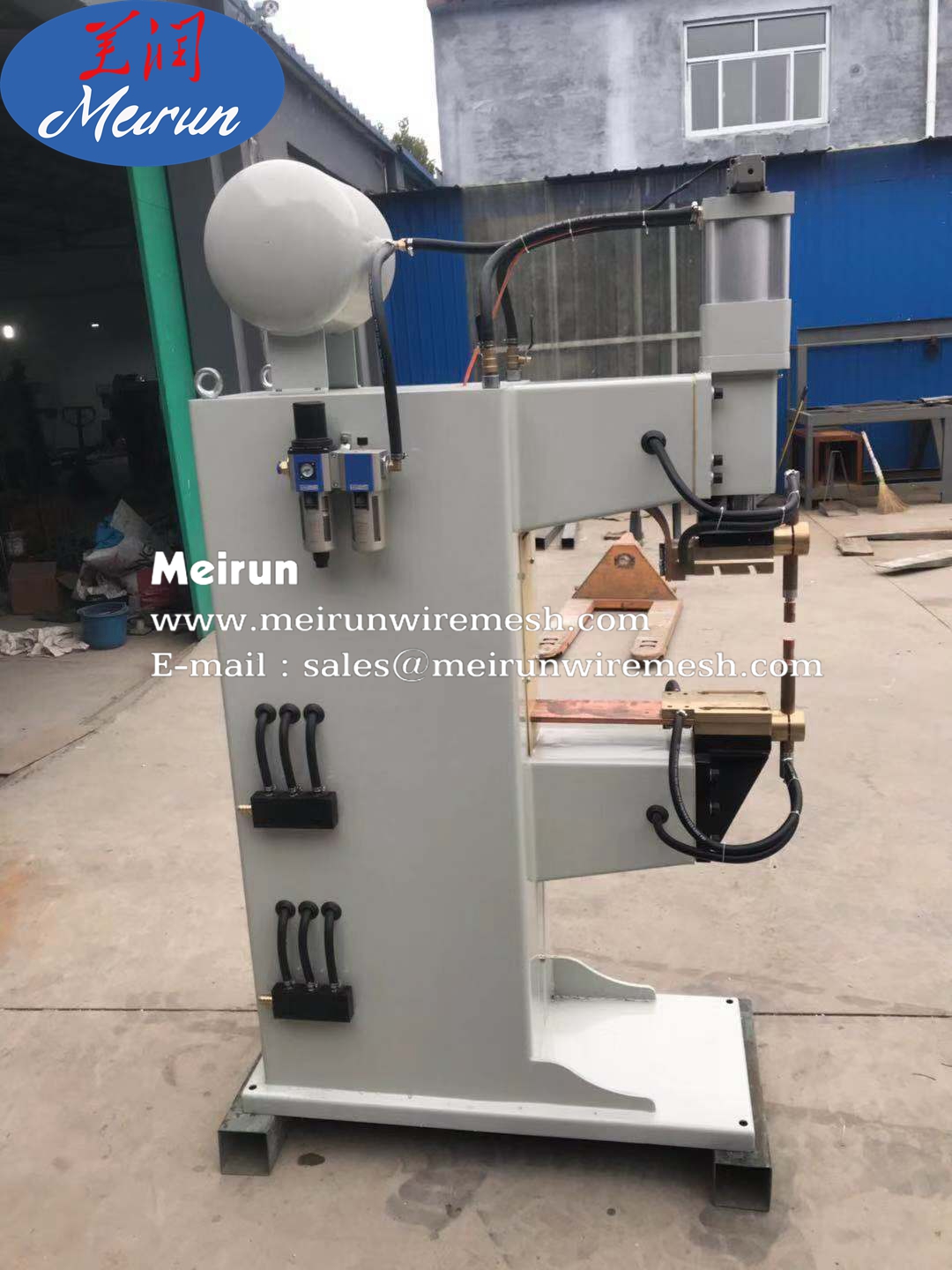

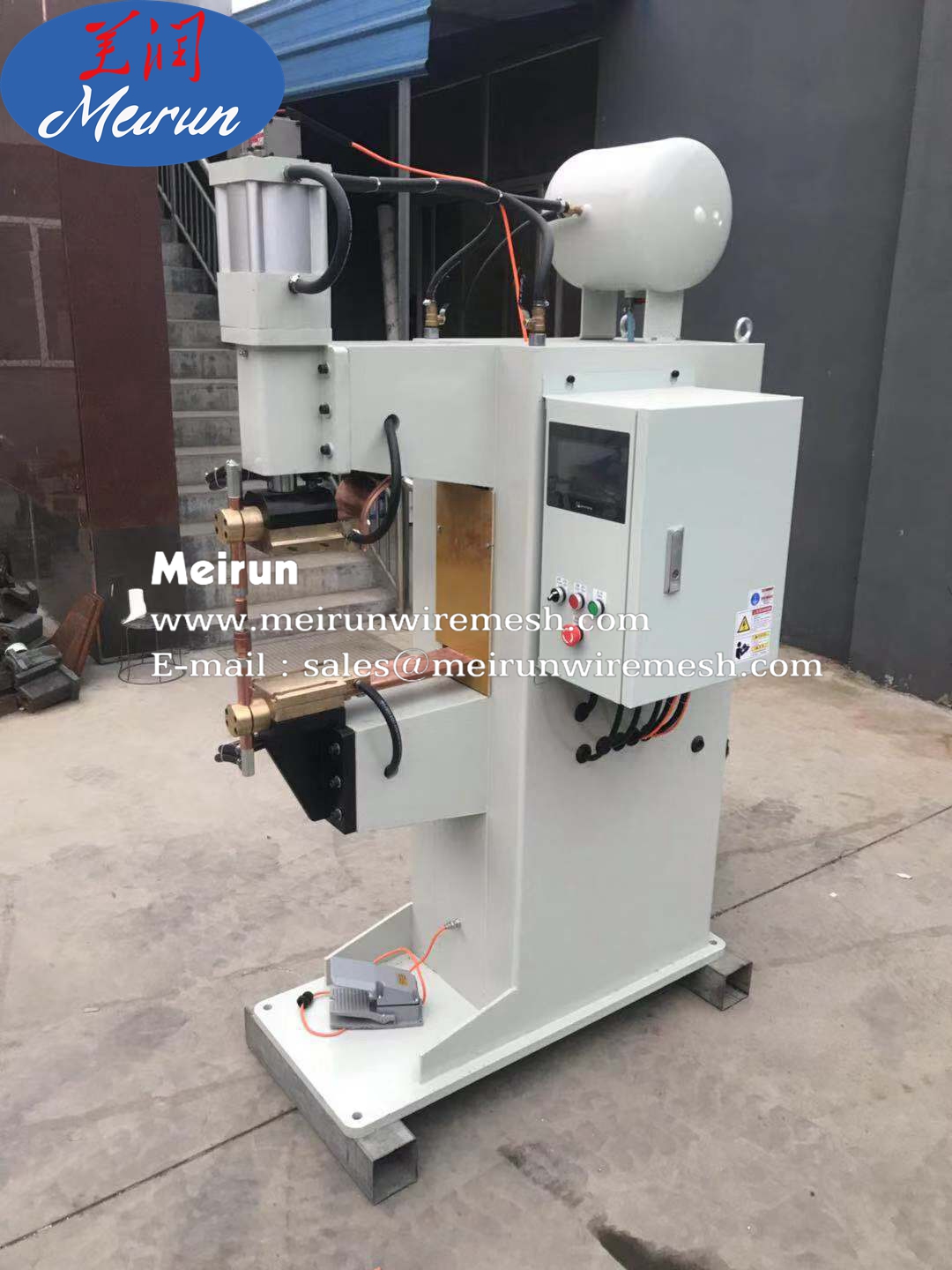

Air-pressure Spot Welding machine,
1. This spot welding machine is modified by foot step spot welding machine with cylinder, electromagnetic valve, control box, foot pedal,
2. This kind of spot welding machine has the compact and convenient foot step spot welding machine, as well as the easy characteristics of air pressure spot welding machine.
3. It is mainly used for spot welding machine within 2MM of sheet metal, which is economical and affordable, and the welding pressure can be adjusted automatically. The operator is very relaxed.
4. With the performance of automatic continuous spot welding, it is very convenient and quick to weld some rhombic nets or small barbed wire that need continuous spot welding, and the workpiece can be removed.
5. Taiwan type control box, copper transformer and Korean solenoid valve ensure the long-term stability of your machine.
Three. Air pressure spot welding machine, pneumatic spot welding machine, air pressure touch welding machine, high-power spot welding machine, high-power touch welding machine, precision spot welding machine .60KVA spot welding machine, 80KVA spot welding machine, 100KVA spot welding machine, 150KVA spot welding machine, 200KVA spot welding machine,Auto plate spot welding machine, iron plate spot welding machine, nut spot welding machine, bolt spot welding machine, iron processing spot welding machine, long arm spot welding machine.Air-pressure Spot Welding machine.It is mainly used for welding of low carbon steel, stainless steel and part of non-ferrous metal, and can realize welding of plate and plate, plate and convex welding nut and stud.It is the field of automobile, household appliance manufacturing, metal box and other parts welding.
Performance features:
It is mainly used for welding of low carbon steel, stainless steel and part of non-ferrous metal, and can realize welding of plate and plate, plate and convex welding nut and stud.It is the field of automobile, household appliance manufacturing, metal box and other parts welding
1. Direct pressure mechanism has good follow-up performance and fast welding speed
Solenoid valve adopts Japanese kuroda, quick reaction, good quality, and solenoid valve is directly connected with cylinder to speed up action reaction, which can reduce the loss of air flow.
2. Long service life and low noise
The machine body is reinforced with strong steel structure, which can resist impact and vibration, realize stable welding, fine machining and compact, smooth operation of the cylinder, improve service life and reduce noise.
3. Safe and convenient to use
The filter cup of the high-performance air path system is equipped with a protective cover, which can prevent the debris spatter when the cup is broken, and also protect the impact from external impact.The cup and cover can be loaded and unloaded, easy to repair.
4. Adopt water-saving forced cooling method
Adopt circulating cooling water to avoid water waste and reduce cooling water greatly.Work longer hours.
5. The upper insulation is simple and practical
The secondary conductor adopts the upper insulation method, which can avoid the short circuit accident of the insulation part easily caused by the attachment of iron chips or the installation of welding tools at the lower seat.
6. The main circuit adopts high-power SCR contactless switch
The main loop adopts water-cooled high-power thyristor element, and the output power supply is strong, stable, reliable and has a long service life.
7. High conductivity, low power loss and high temperature automatic protection.
In the secondary current loop, the secondary output of the main transformer adopts multi-layer high-toughness and high-conductivity red copper soft belt, which is connected in a V shape.The service life is improved greatly, the lower secondary output adopts the integrated direct connection mechanism, and the power loss is reduced to the minimum.
The main transformer is equipped with a temperature control system. The temperature of circulating water is too high. The machine will be automatically cut off.
