MRDPCJHWJ
MR

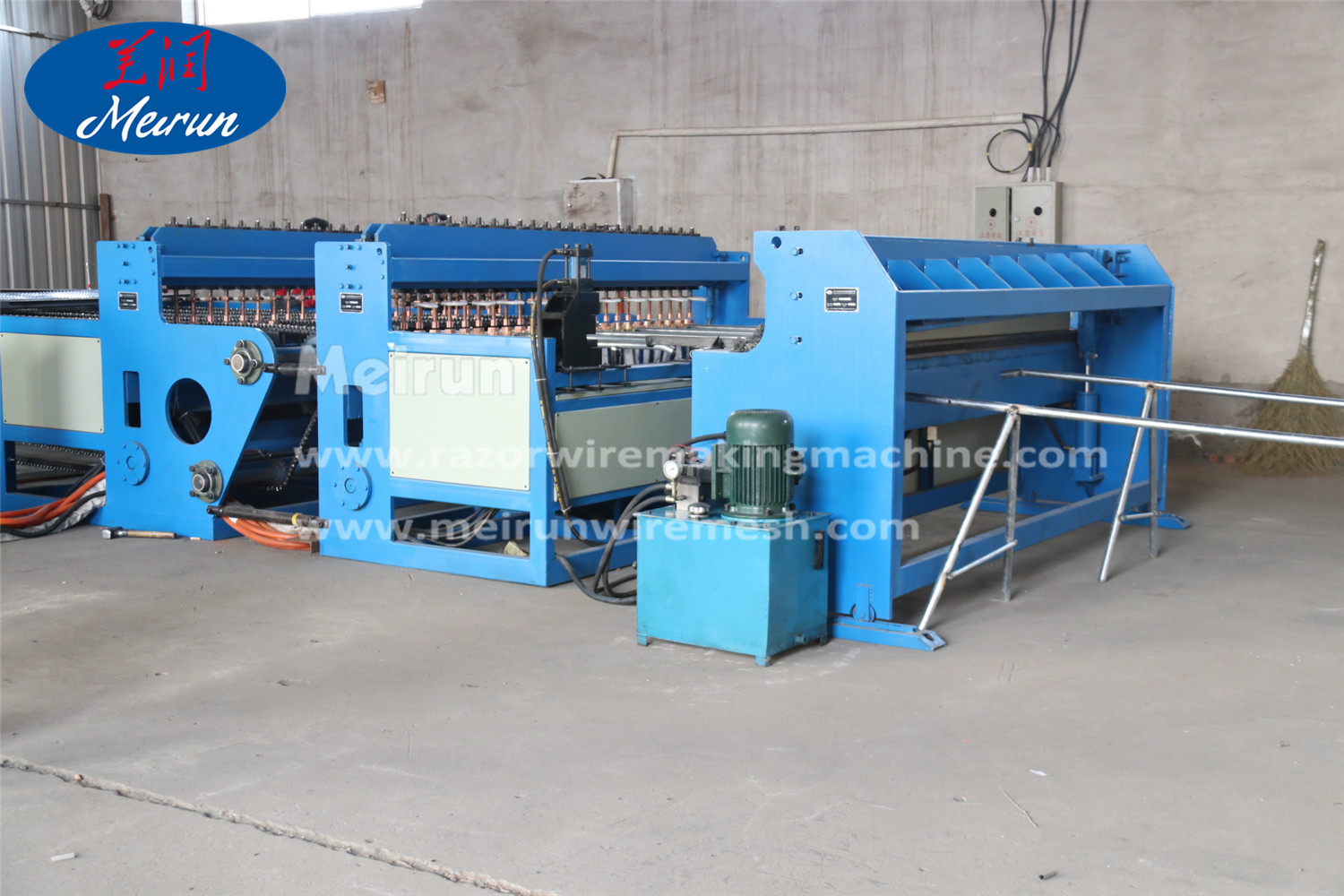

Razor Wire Mesh Welded Machine
The Razor Wire Mesh Welded Machine is a machine independently developed by our factory, mainly for the production of razor barbed wire fence. Suitable for welding galvanized and stainless steel razor barbed wire fence.
1.Razor Wire Mesh Welded Machine are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
2.Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.
3.Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4.The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5.Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.
Parameter
| Name | razor barbed wire welding machine |
| Width | 0.5-2.5m |
| Length | 0.5-100m |
| Control System | PLC |
| Drive mode | Hydraulic motor |
| Total power | 250KW |
| Voltage | 380V 50HZ |
| Dimensions | 15*8*1.8m |
| Weight | 4T |
Assembly line of machine
Razor Wire Mesh Welded Machine produce line include three steps:
Using punching machine to produce razor barbed.

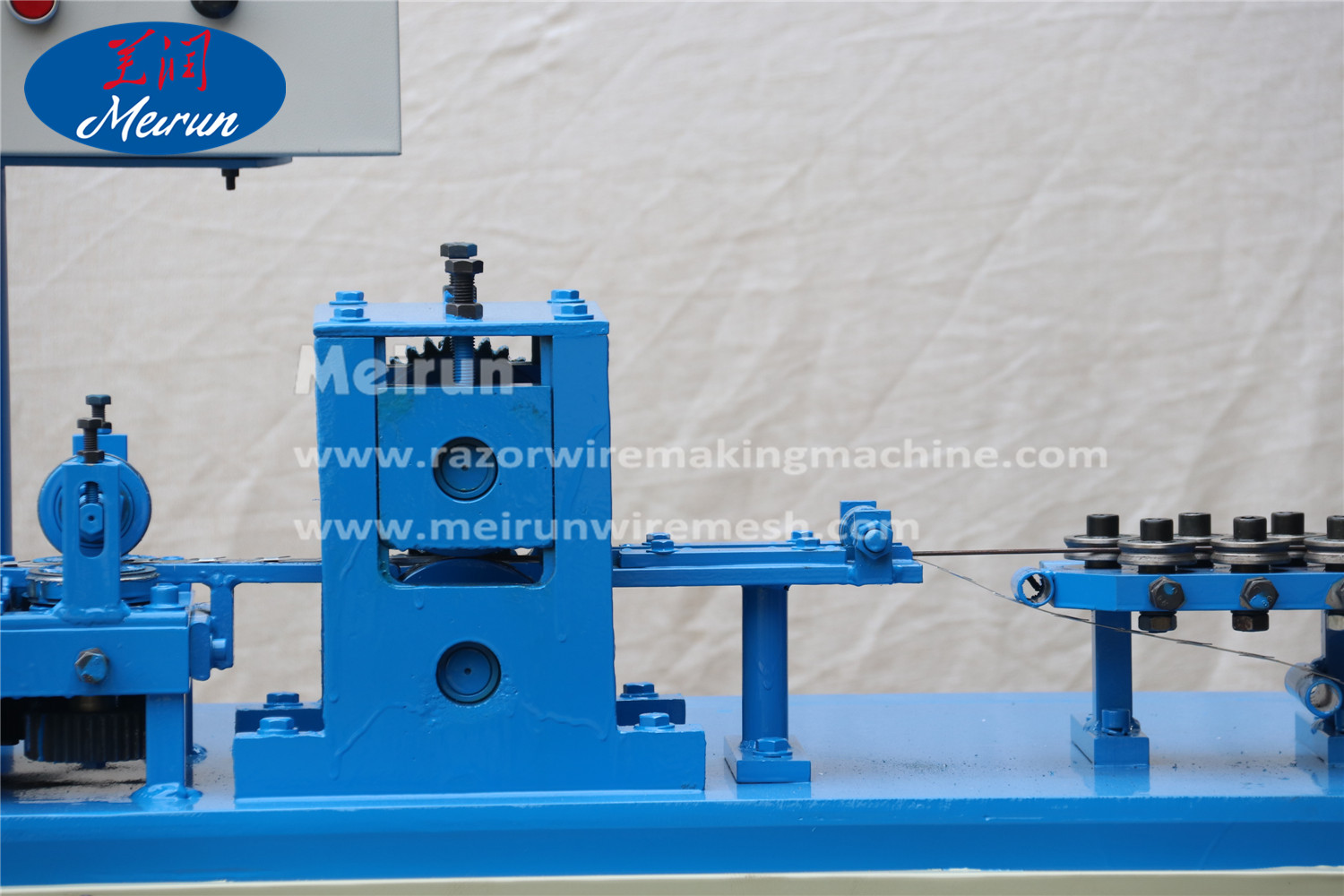

Using warp wire and straightening machine to products straight razor barbed wires.
Details of machine
Razor Wire Mesh Welded Machine is a blade gill net that welds the blade barbed wire into a diamond hole or a square hole. If you want to climb over, the mesh blade is sharp.
The protective wall has strong intimidation and blocking effect, which is both beautiful and practical. It is Normally used by prisons, military and government facilities.
The Usage of Razor Panel: garden apartments, institutions, prisons, posts, border guards, etc. The blade gill net is made of sharp pointed galvanized steel plate or stainless steel thin plate as the blade, and the high tension steel wire is used as the resistance device for the combination of the core wire
Products
Mainly used for garden apartments, institutions, prisons, posts, border guards, etc. The blade gill net is made of sharp pointed galvanized steel plate or stainless steel thin plate as the blade, and the high tension steel wire is used as the resistance device for the combination of the core wire. Because the gill net shape is unique and difficult to touch, it can achieve excellent protection and isolation.
Our company
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
