| Dimension(L*W*H): | |
|---|---|
| Rolling thinckness: | |
| Feeding width: | |
| weight: | |
| Production capacity: | |
| Quantity: | |
MRLZJ
Meirun
Welcome to send us your need post size or a drawing , then we recommond our suitable machine type to you!

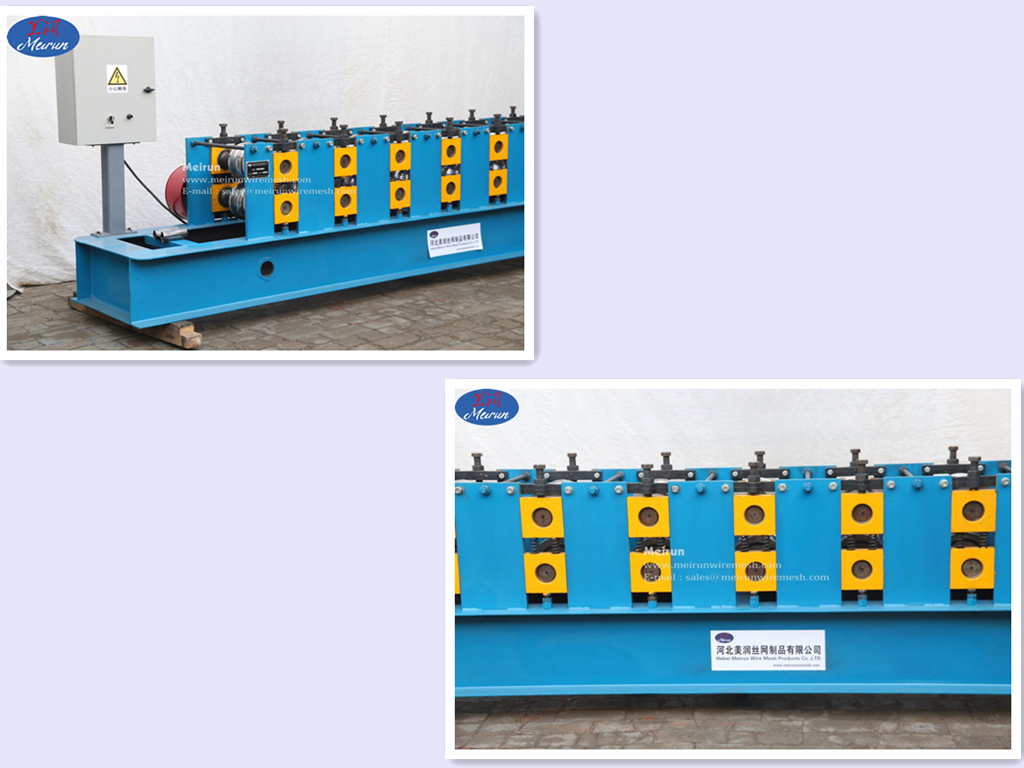

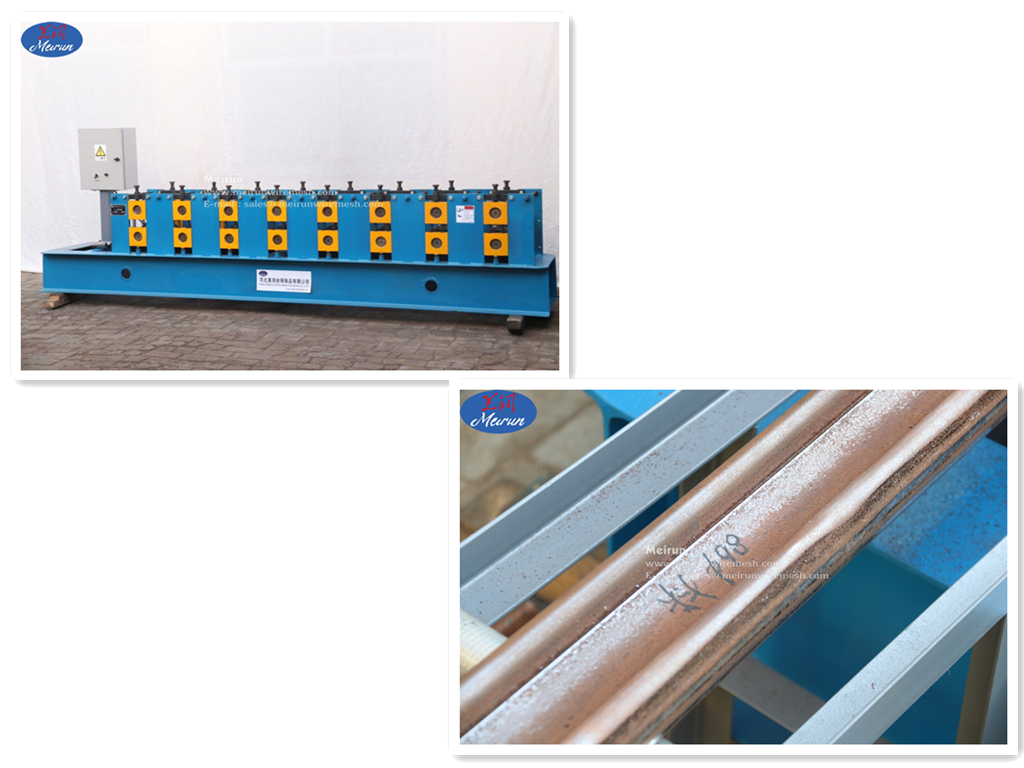

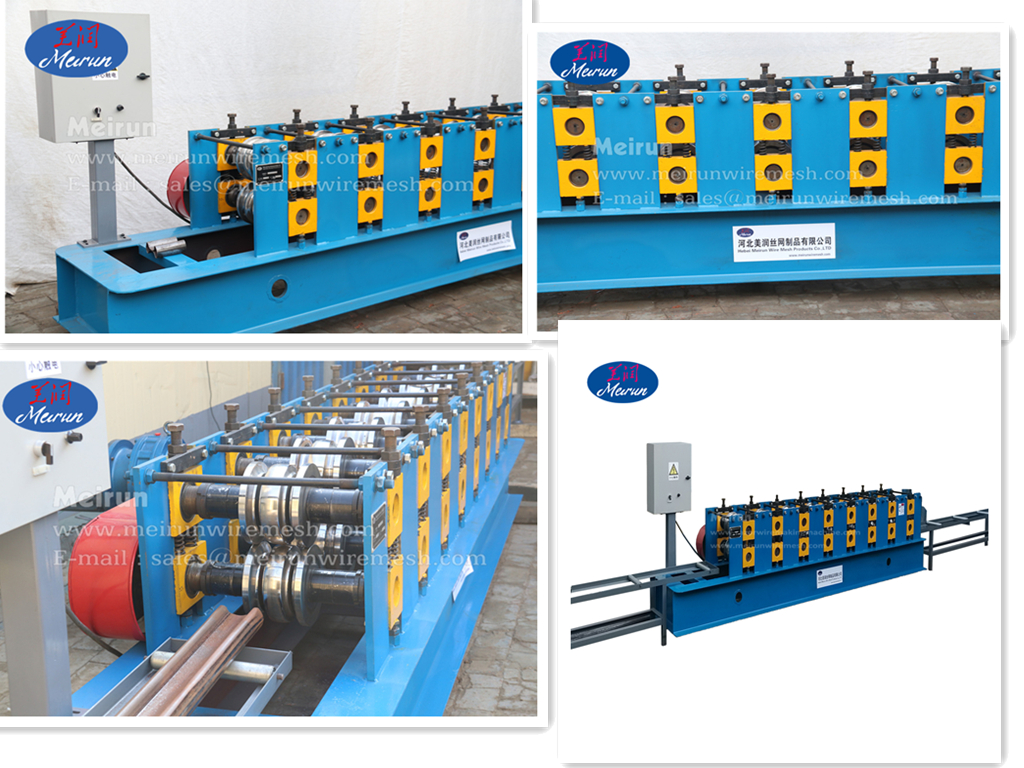

Part of machine
Machine Details:
Decoiler / Uncoiler:
Coil Width : Max. 1500mm
I.D : 510-610mm
O.D: Max. 1300mm
Capability: Max. 10 Tons
Decoiler type: Manual / Hydraulic/Automatic
Feeding & Leveling:
Pinch feeding: 3 Units ( 6 Rollers )
Leveling : 7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )
Punching device:
Punching motion: Hydraulic Punching, Post-punching
Punching dies: Cr12 Mov Steel, HRC58-62
Punching station: 1-2 Unites ( depend on hole patterns )
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.
Cutting device:
Cutting motion: Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades: Cr12Mov with heat treatment HRC58-62
Length Measuring: Automatic length measuring by encoder & PLC.
Cutting Tolerance: +/-1.5mm(per 3m)

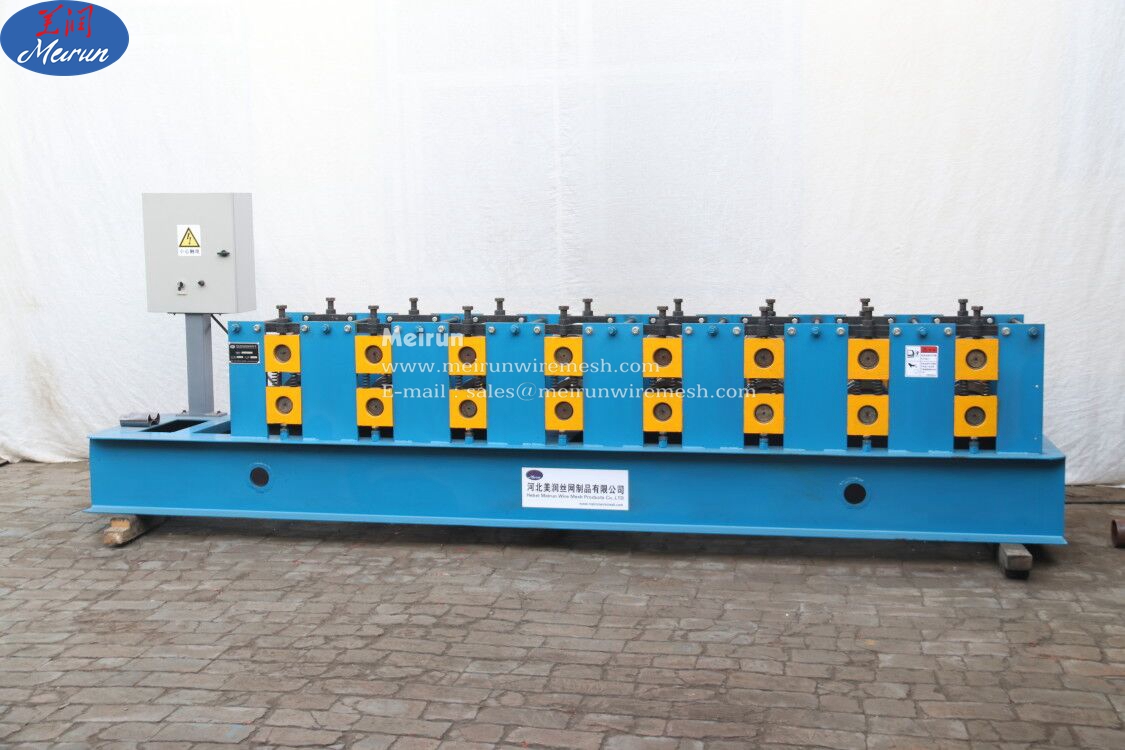

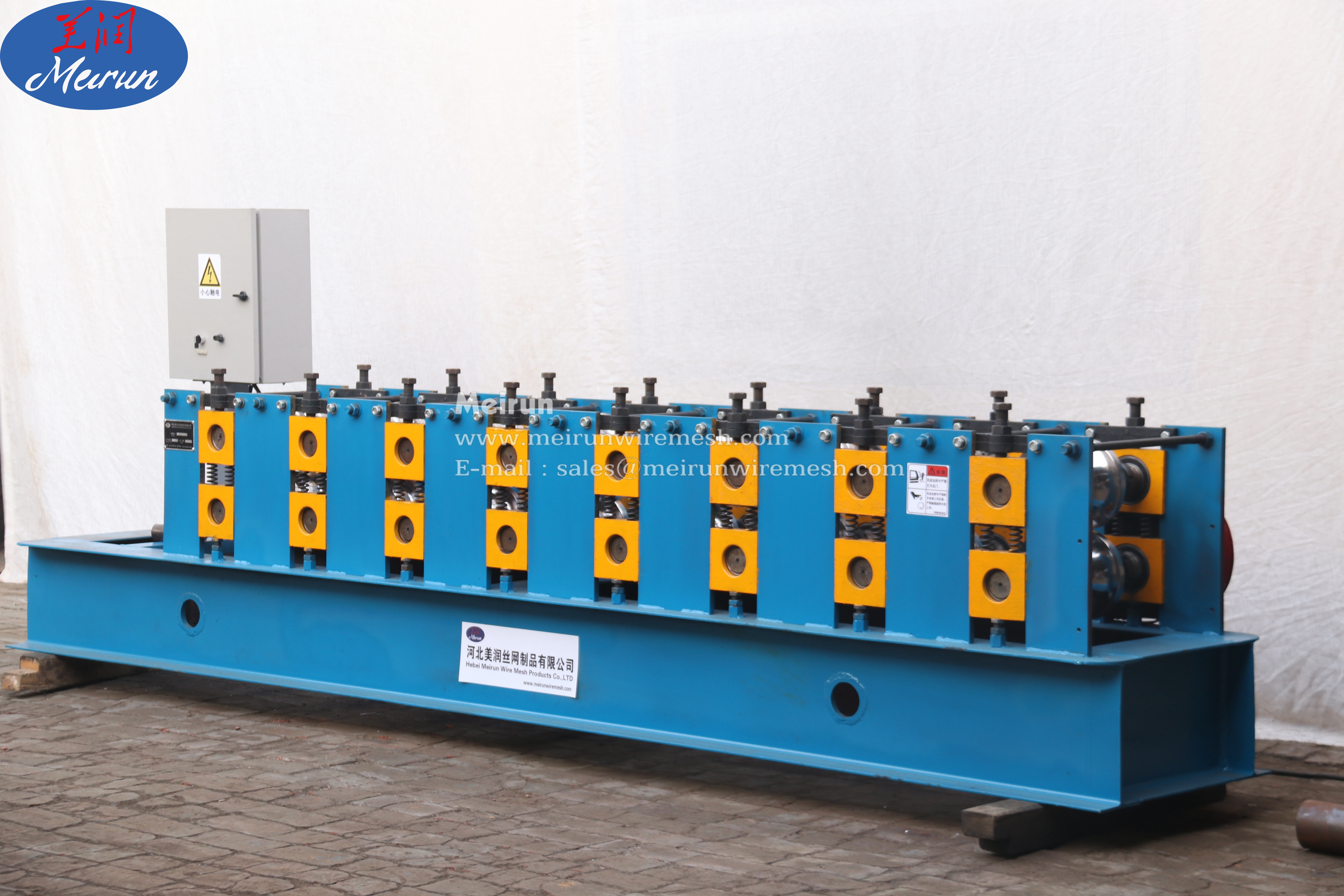

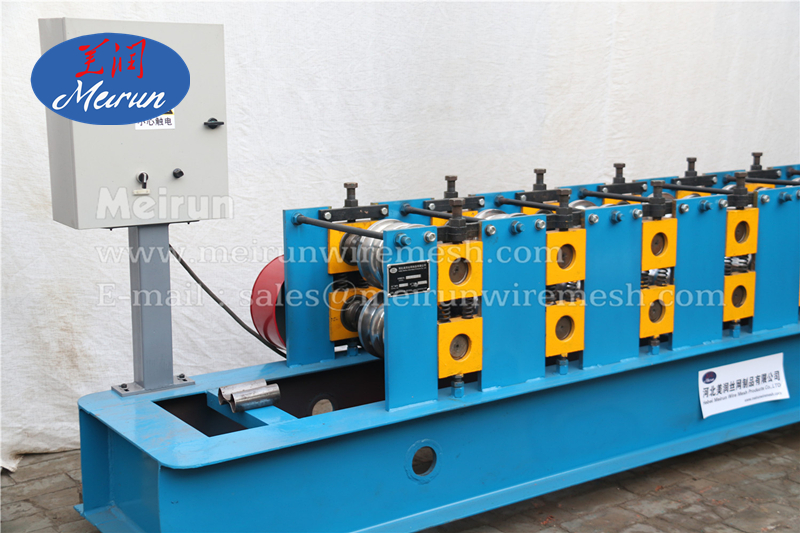

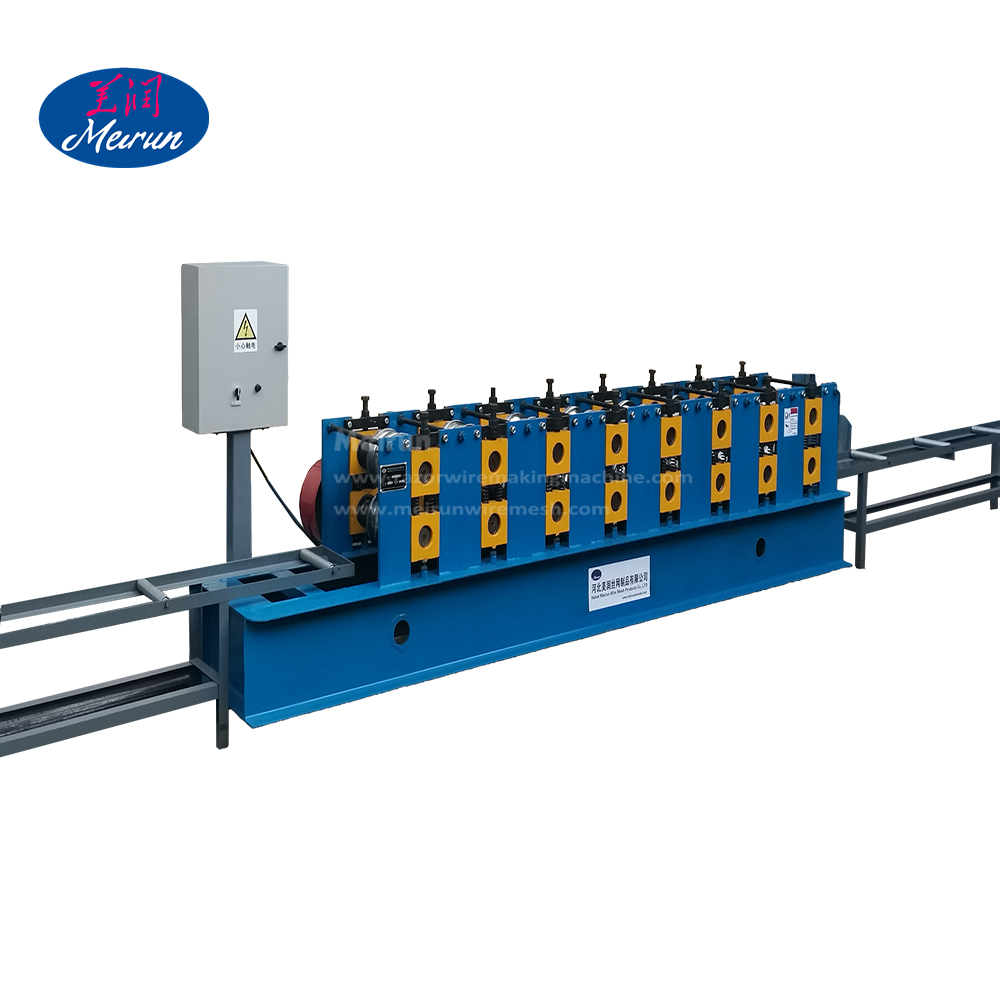

Roll Forming Machine:
Forming Stations: 17 Stations
Rectifying: 1 unit
Roller material: GCr15 steel, heat treatment
Diameter of shaft: 100mm
Shaft material: High grade 45# steel
Drive type: Gear-box
Forming speed: 0-15m/min
Main power: 22KW(11kw*2)
Servo motor: 2 Units
Electrical control :
PLC: PANASONIC Brand or Custom-made
Inverter: YASKAWA Brand or Custom-made
Touch screen: MCGS Brand or Custom-made
Operation type: Touch screen & Button
Hydraulic Station:
Hydraulic station: Famous Chinese brand
Hydraulic power: 30KW
Runout Table :
Table type: Simple non-power type
Function: To support the finished panels

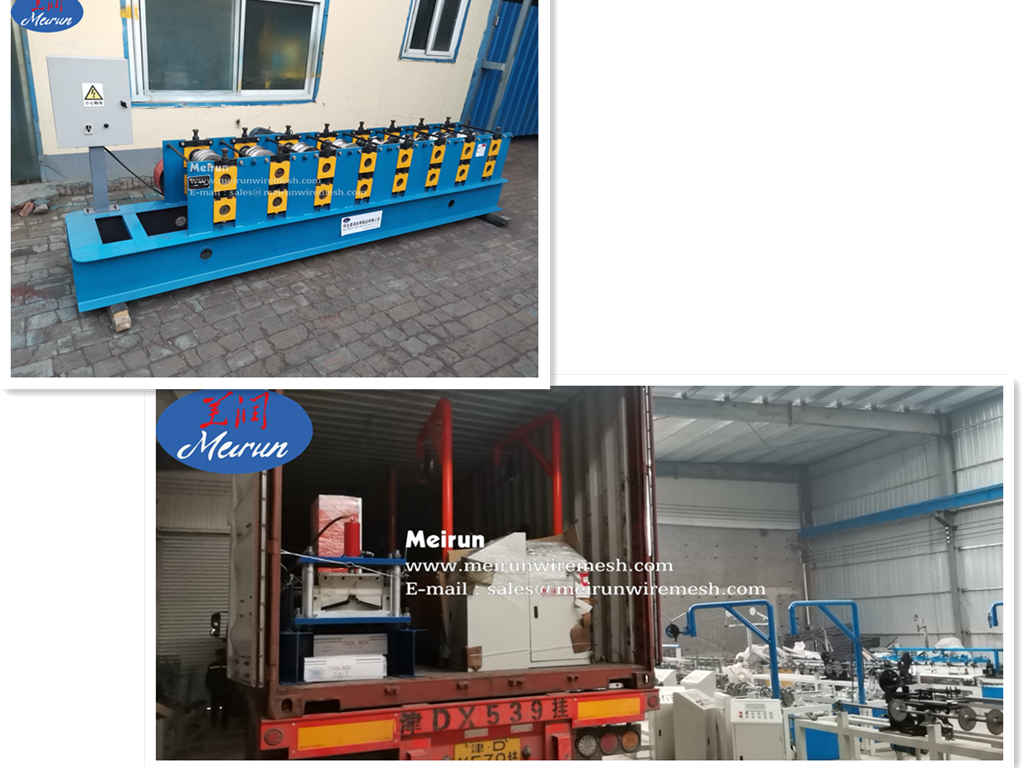

Packing and delivery
Our company
Our customers
