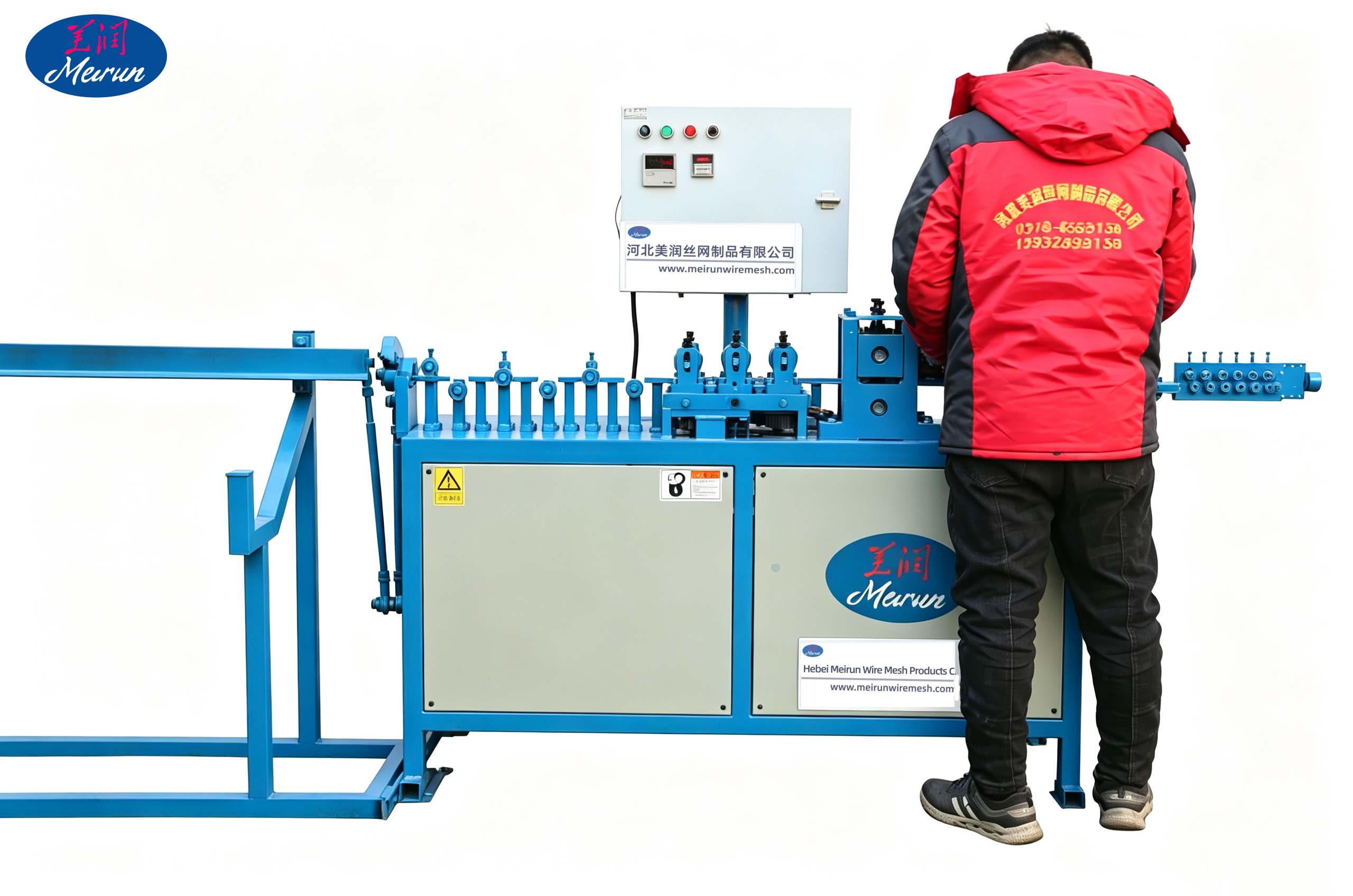

Professional Razor Barbed Wire Straightening and Cutting Machine Manufacturer

Professional Razor Barbed Wire Straightening and Cutting Machine Manufacturer

An automated processing machine that integrates wrapping, forming, straightening, and cutting functions for razor barbed wire.

●Can be paired with the automatic razor wire mesh welding machine for batch production of welded materials.

●Driven by precision servo motors to minimize production errors.

●Equipped with a digital control panel for one-touch preset of production parameters.

MeiRun: Broadly exploring new demands for razor barbed wire products

Since its establishment, MeiRun has been dedicated to the design and development of razor barbed wire machinery. We have built an efficient, flexible, and comprehensive production line that covers every stage from punching, forming, straightening, and welding to packaging, with specialized equipment replacing manual labor at each step. As a partner to the razor wire mesh welding machine, this razor barbed wire straightening and cutting machine integrates two critical processes – straightening and forming – into a compact unit, eliminating the need for material handling and secondary processing while also reducing equipment costs for operators. MeiRun continues to explore a wide range of processing needs for razor barbed wire products, turning them into reality through better design concepts. A good machine opens up endless possibilities for your business.

Fully automatic razor barbed wire straightening and cutting machine

100% fully automated processing mode, supporting razor barbed wire with wire diameters ranging from 1.5 mm to 3 mm. Special specifications can be customized upon request.

A convenient, efficient, and integrated razor barbed wire straightening and cutting machine – the ideal partner for the razor wire mesh welding machine

One razor wire mesh welding machine combined with two straightening and cutting machines creates an efficient industrial fence welding production line.

Integrated design

Effectively saves floor space and reduces overall energy consumption

High-efficiency operation

Cutting speed up to 30 m/min.

High compatibility

Capable of processing various wire materials

Convenient discharge

Guide frame and chute design for easy collection of finished products

Product Introduction

The razor barbed wire straightening and cutting machine is an automated device for processing straight-line razor wire. During the production process, the punching press punches galvanized or stainless steel sheets into initial blade shapes, and the wire forming machine assembles and shapes the blades with the core wire. The razor barbed wire coils are then processed through the straightening and cutting machine. MeiRun's straightening and cutting machine features an integrated design that combines the functions of the wire forming machine and the straightening and cutting machine into a single unit, streamlining the production process. The machine automatically draws raw materials through pay-off reels and performs assembly, shaping, straightening, and cutting in a fixed sequence, turning razor barbed wire coils into straight strips with uniform length and consistent specifications. These straight strips serve as key raw materials for welded razor wire fence panels.

Typically, one razor wire mesh welding machine can be paired with two or more razor barbed wire straightening and cutting machines to achieve continuous line production. The straightening and cutting machine can process straight-line razor wire with lengths ranging from 1 m to 2.8 m, and can also be customized with extended versions such as 3.5 m, 4.5 m, etc., according to customer requirements. Machine specifications will be adjusted to meet your needs before shipment.

High-precision processing

The machine is equipped with a servo motor system that provides precise control over wire feeding speed, barb spacing, and cutting length. This ensures that the straight-line razor wire has uniform barb shapes, consistent spacing and depth, and length tolerances within ±0.2 mm. A digital control panel on the electrical cabinet enables basic functions such as counting, speed adjustment, and reset.

 Automatic collection device

A U-shaped guide frame is installed at the discharge outlet, with a tilting ejection device mounted above it. After the straight-line razor wire strips are cut, the ejection device automatically tilts and allows the strips to fall along the chute into the guide frame, where they stack neatly in an orderly manner. No manual picking or sorting is required. The length of the guide frame is customized according to the actual product length, preventing unnecessary material waste or space occupation.

Sturdy machine frame

The machine is built with a high-strength steel frame and premium alloy bearings, and is capable of processing various types of wire, including low-carbon steel wire, high-carbon steel wire, galvanized wire, and more. It is equipped with both horizontal and vertical straightening wheels (7 sets of 2 wheels each) to ensure that the wire straightening results meet the requirements.

Customization available upon request

The machine supports processing of most razor barbed wire products in the BTO and CBT series. The barb shape, barb spacing, and core wire diameter can all be adjusted according to your requirements. Unless otherwise specified, the default configuration is the BTO22 model.

Wire diameter: 2.5 mm by default, adjustable from 1.5 mm to 3 mm. Special specifications can be customized.

Straight-line razor wire length: adjustable from 1 m to 2.8 m. Special specifications can be customized.

Galvanized sheet thickness: 0.5 mm by default.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

 Machine parameters

Straight-line razor wire production process:

Step 1: Feeding and straightening. The machine automatically draws raw materials from the wire pay-off reel and the sheet pay-off reel. The wire passes through the straightening wheels and is stretched into a straight strip.

Step 2: Winding and assembly. The straightened wire and the punched blade casings are assembled into razor barbed wire.

Step 3: Flattening and forming. The assembled razor barbed wire is flattened and straightened again to ensure complete forming.

Step 4: Cutting. The built-in cutting device cuts the straight-line razor wire to a preset length.

Step 5: The finished strips slide down along the chute and fall into the guide frame.

Step 6: Finished product display.

FAQ

1.Can this machine switch to different wire diameters as raw material for razor barbed wire? (For example, from 2.5 mm to 3.0 mm.)

Answer: Generally, no. The size of the feeding inlet is fixed and adjusted to your specified value before shipment. Switching from 2.5 mm to 3.0 mm wire as you mentioned may cause the wire to fail to pass through the inlet, or lead to incompatibility with some molds and parts. We recommend confirming your requirements with our staff when making an inquiry.

2.Why do you recommend pairing one razor wire mesh welding machine with two razor barbed wire straightening and cutting machines?

Answer: To match production capacities. The razor wire mesh welding machine is an integrated welding unit that actually contains two welding machines. Therefore, it is best to pair it with two or more straightening and cutting machines to achieve the best continuous operation results.

3.If I want to weld razor wire fence panels in large quantities, do I need to purchase additional punching equipment?

Answer: Yes, you can check out other models in MeiRun's razor barbed wire series. We offer both high-speed and conventional stamping presses for your choice. The high-speed stamping press can achieve a daily output of 8 to 10 tons.

Why does razor barbed wire need straightening? Essential preparation before welding razor wire fence panels

Straightening is a critical process in the production of straight-line razor wire. When asked why straightening is necessary before welding razor barbed wire, many people simply answer, "to make the welded mesh flatter and more aesthetically pleasing." However, that is only part of the reason. The importance of the straightening process goes far beyond what most people expect.

After the punching press produces the initial blade shapes, the steel strips need to be wound onto reels and stored in coil form. The core wire, meanwhile, is also raw and untreated wire. Neither is sufficiently flat. Without straightening, the finished razor barbed wire would be crooked, with unevenly spaced barbs on both sides. To address this issue, the razor barbed wire straightening and cutting machine is equipped with two sets of straightening wheels. Once the steel strips and core wire are assembled, they are pressed flat through molds to shape them into straight-line razor wire.

Most importantly, the flatness of the straight-line razor wire directly affects the welding pressure applied by the welding machine, which in turn impacts the quality of the fence panels. Since each set of welding electrodes operates simultaneously and the welding pressure is nearly identical across all points, any warping or uneven thickness in the straight-line razor wire used to assemble the panels will become even more noticeable after welding, and may even affect customer acceptance. Therefore, choosing a high-quality straightening machine is essential not only for welding but also for the success of subsequent sales.

As a company specializing in razor barbed wire machinery, MeiRun's product line covers every stage of razor barbed wire processing. Our razor barbed wire straightening and cutting machine replaces the function of the wire forming machine by combining assembly, shaping, straightening, and cutting into a single unit. Machine specifications can also be customized according to your requirements, giving you greater control over your production.

If you would like to learn more about the razor barbed wire straightening and cutting machine, please feel free to visit our official website and online store.MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best-selling stores for wire mesh machinery, with a 100% on-time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
