MR358HJ
Meirun

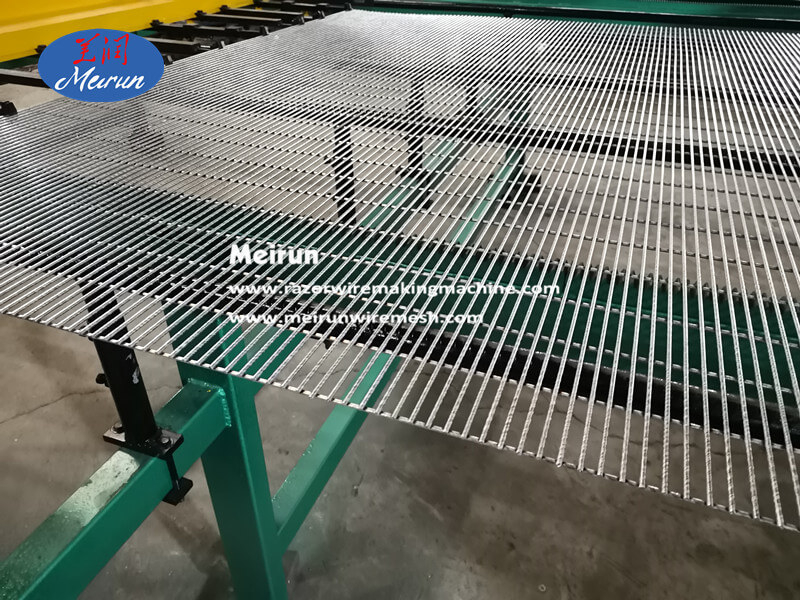

358 security fence anti climb security fence machine
1. The product model:358 security fence anti climb security fence High Security Fence for protection/Welded wire mesh machine
2. Power system:Electromagnetic brake motor
3. Introduction:This machine mainly for production of anti-climb mesh,high degree of automatic .The anti-climb mainly used in industrial,agricultural,prison,municipal,transportation and other industries for fences,decoration,protection and other facilities.
Specification
358 security fence anti climb security fencealso called security fence machine,it is used to mae fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.
New Technologies
Air cylinders&pneumatic parts,machine working more stable;we are the unique manufacturer of this machine in China.
Feeding Systerm
The longitude wires and cross wires should be pre-straightened and pre-cut.
♦The longitude wires are inserted into the slot tunnels manually.
♦The cross wire are put into the cross wire feeder, which is controlled by step motor&Japan air cylinders,automatic falling.
Mesh Pulling System
The guide adopts linear rails,used with famous brand servo control together,whichh greatly improves accuracy of mesh.
Model | MW - 358 |
Width | 1m-3.2m |
Wire diameter | 3mm-4mm |
Mesh size | 75.6 mm x 12.7 mm |
Length | 2000mm -4000mm |
Dimension | 7300mm x 3500mm x 1600mm |
Capacity | 40-55 times /min |
Voltage | 380V 50HZ |
Power | 5KW |
Weight | 4--5.5T |
Drive type | PLC |
Corollary equipment | Straightening Machines x2 |
Part of machine
Welding electrodes is from upper 20mm pure cooper.
Main motor connect axis by double chains,enough transmission torque
Eigh-grade regulation-changed transformers,high efficiency.
Duplex pull rod and Mechanical hook for mesh pulling,machine.Machine working more stable
Wire Feeding Way
The longitude wires is feeding from wire coils automatically.
The Cross wire is feeding from hopper (step motor)
Auxiliary Equipment
Wire straightening and cutting machine 1 set.
Overall size: 4.2m x 0.5m x 0.9m
Weight: 280kg
Straight motor:2.2kw, Cut motor:1.5kw.
Speed: 30m/minutes.
Cut length: 100mm-3000mm.
Wire diameter: 3mm-6mm.
Characteristics of 358 security fence anti climb security fence
Flat surface
Uniform mesh hole
No burn marks
High precision
Anti-climb
Beautiful appearance
