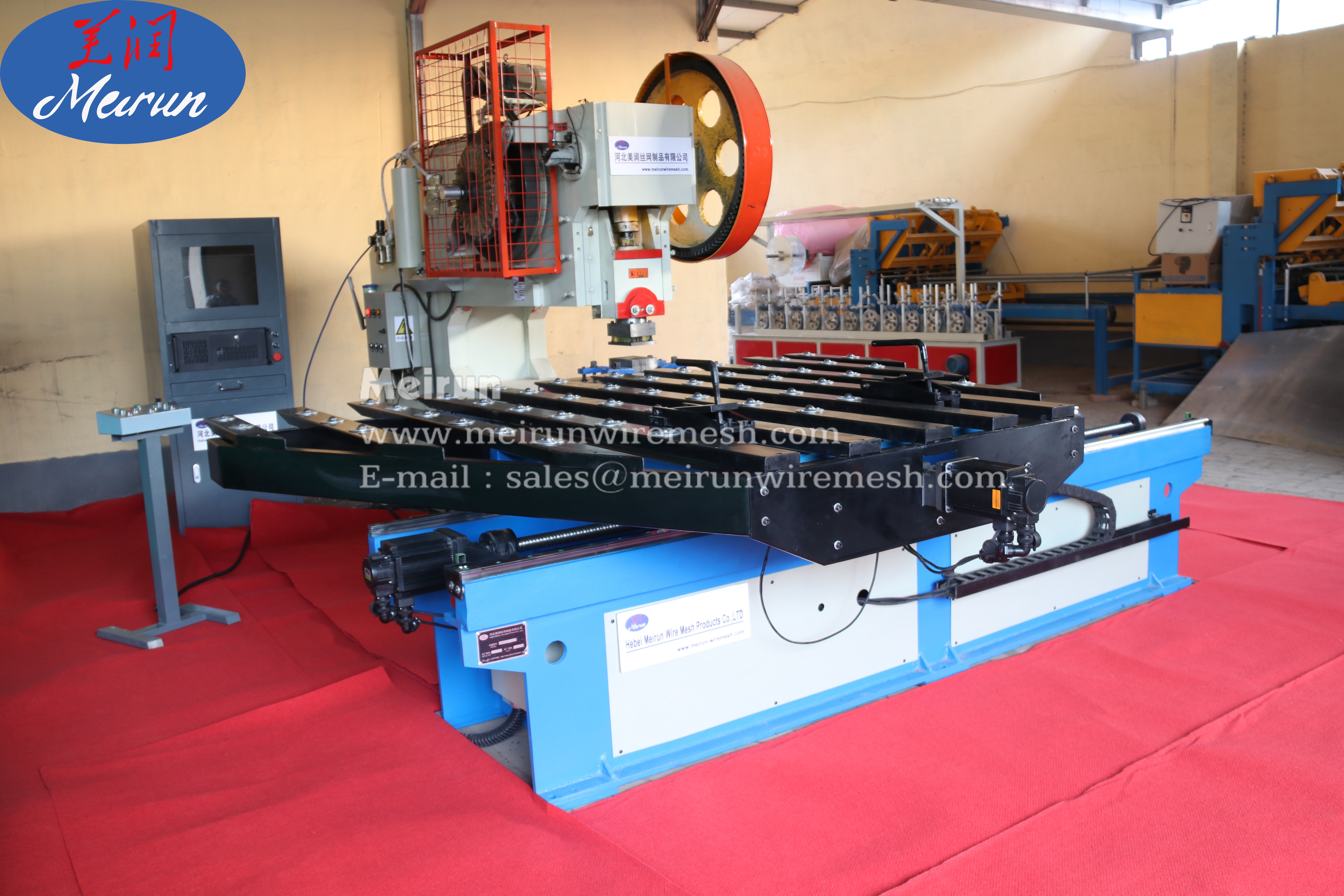

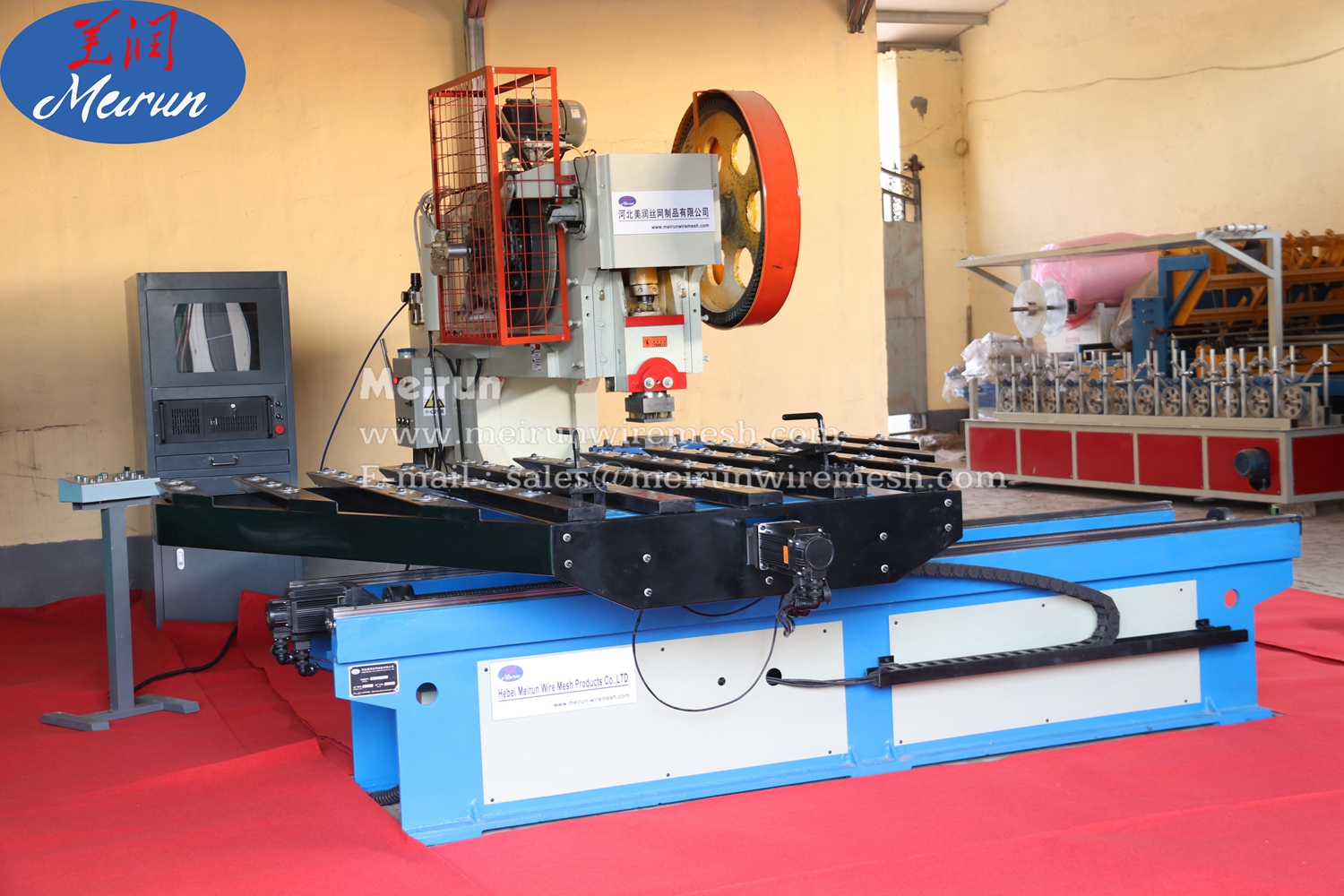

Press Punching Machines

Press Punching Machines : iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.The shape of the hole: round hole, long roundhole,square hole, trigonometrical hole,bulgy hole(scale hole), diamond hole,hexagonal hole, crossed hole etc.
Max punching width:
Punching speed:
Max punching thickness:
Dimension:
Power:
Availability:
Quantity:
  • MRCKWJ

  • Meirun

               Press Punching Machines

Press Punching Machines: iron plate, stainless steel plate, aluminum plastic composite panel,cuprum plate,aluminum plate, galvanized plate etc.The shape of the hole: round hole, long roundhole,square hole, trigonometrical hole,bulgy  hole(scale hole), diamond hole,hexagonal hole, crossed hole etc.

冲孔网机第一张图片


Specification


1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.

2. Structure:Steel plate welded structure,Hydraulic cylinder system

3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error.

Skilled workers can change the mould within 10 minutes.

4. Punching Category: 1.single hole punching;

                                     2.Multi hole punching;

                                     3.Isometric hole punching;

                                     4.none- Isometric hole punching;

                                     5.rotary punching.

5. Hydraulic and Servo System.

6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

7. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

8. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Machine model MR
Max punching width 1.0m
Punching speed 45-70times/min
Max punching thickness 1.0mm
Dimension 2500x1800x2000mm
Control digital control
Power 7.5kw
Weight 5500kg

冲孔网机第一张

Please provide following information,if you want me to quota:


1. Plate Mateial
2. Thickness
3. Hole Size
4. Hole Distance
5. Hole Central distance
6. Stem Width

The shape of a punch


模具图片2

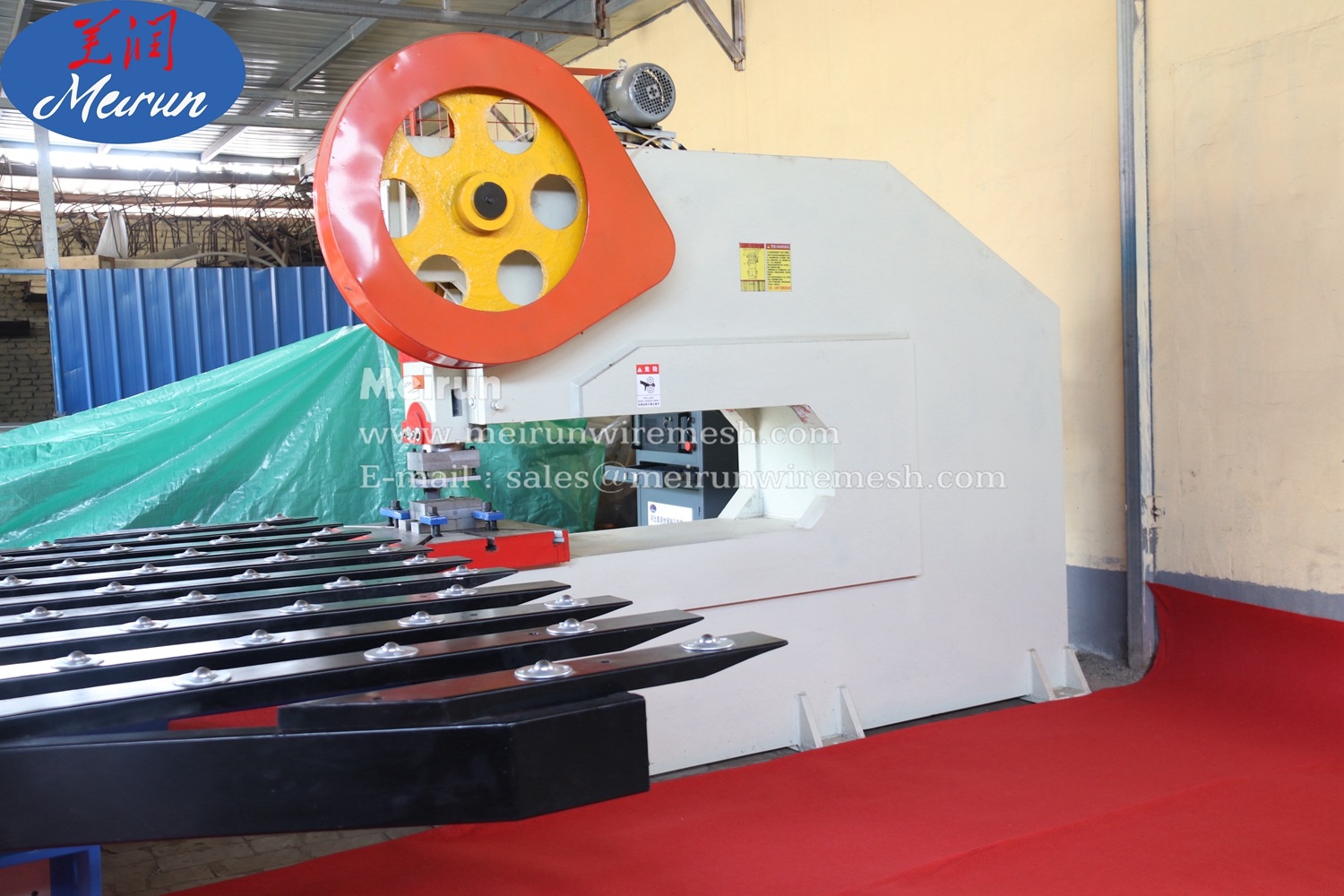

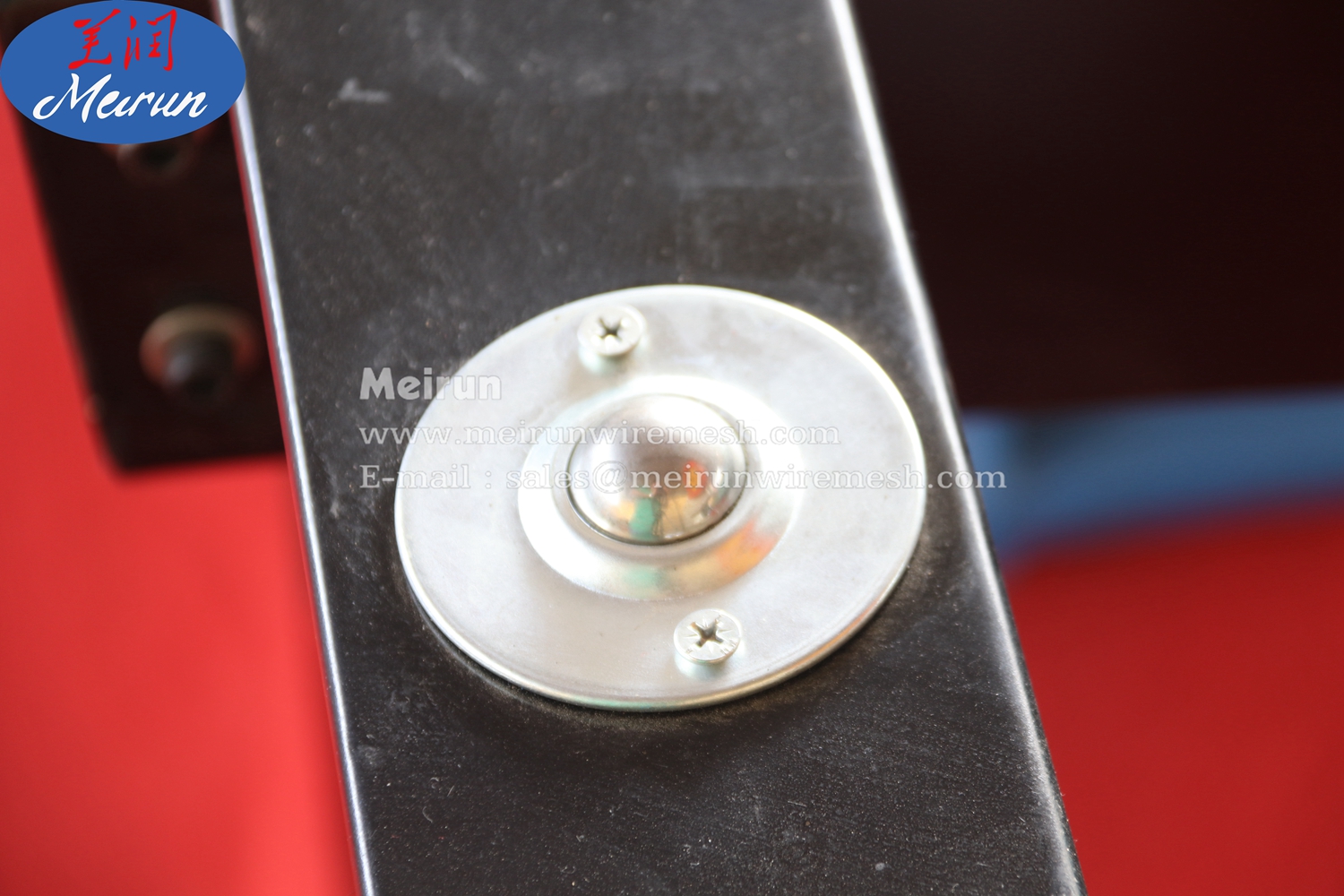

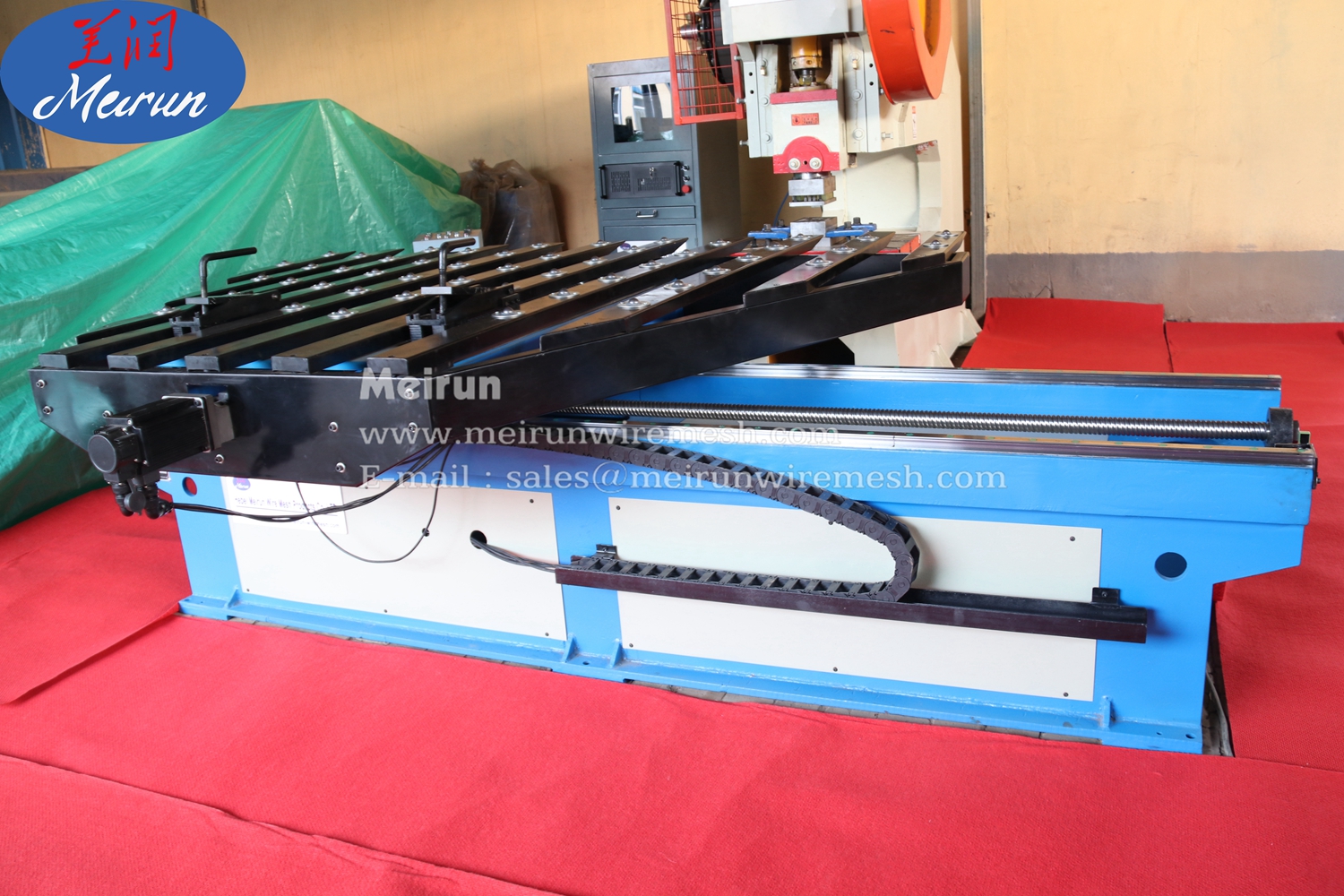

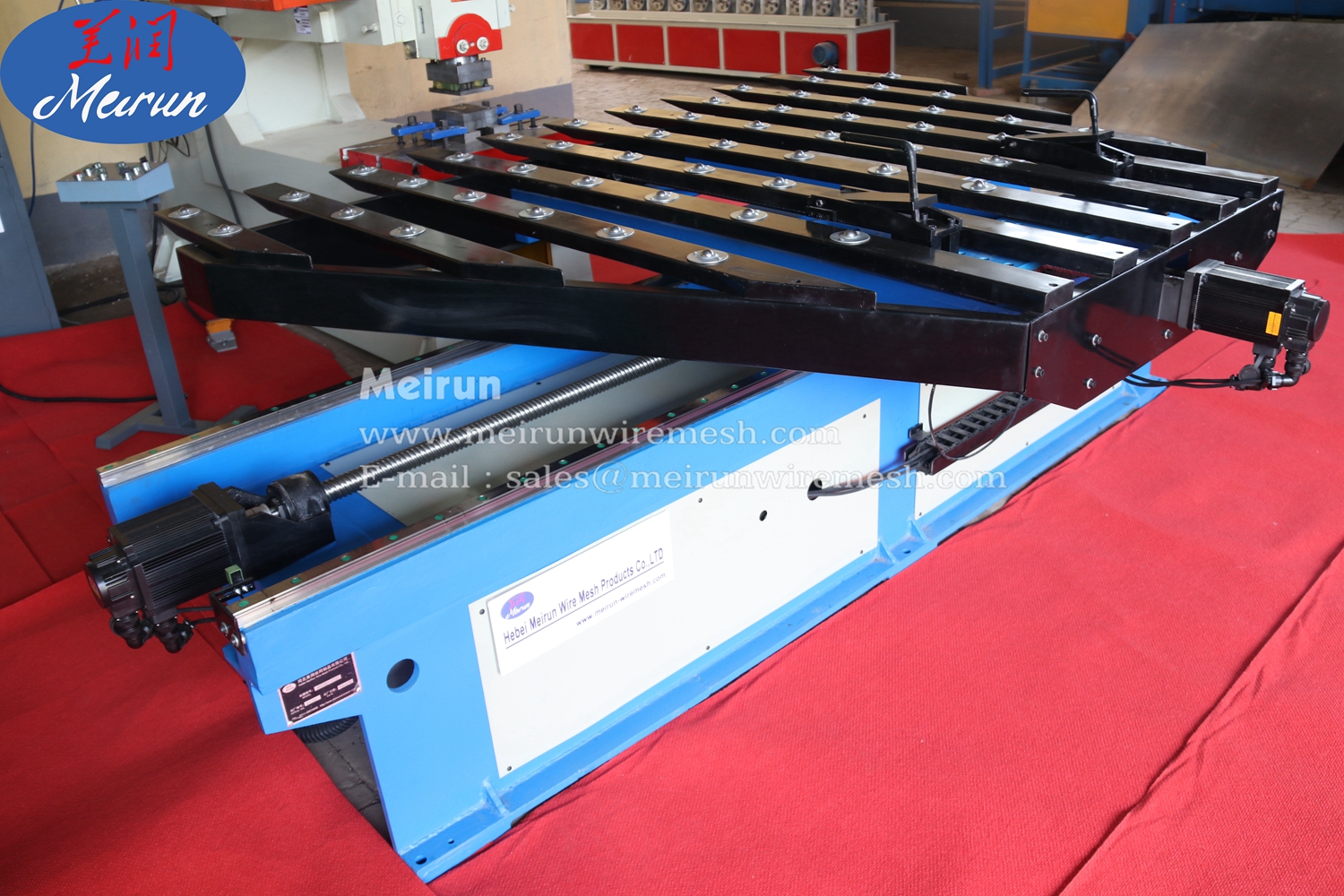

Part of machine

冲孔网机部分图片 (2)

Packing and delivery

冲孔装箱图片

Our company

公司图片1
