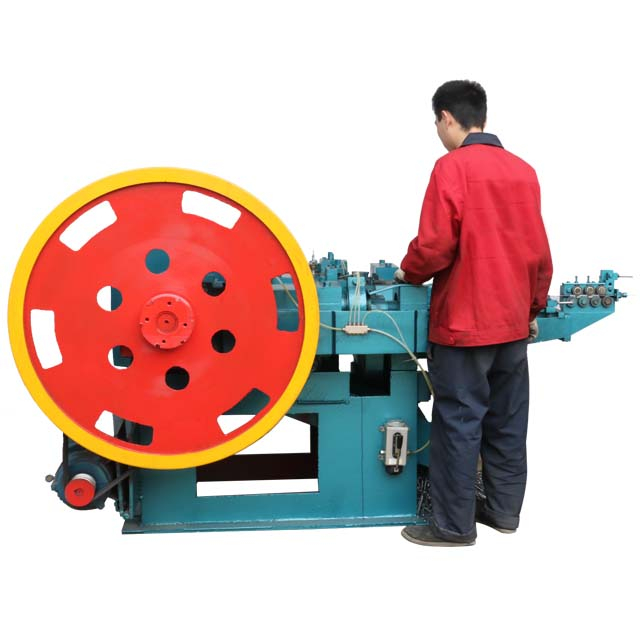

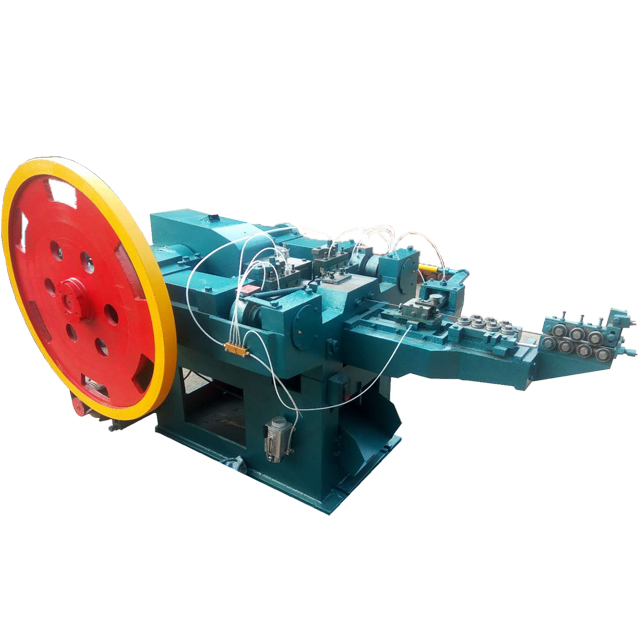

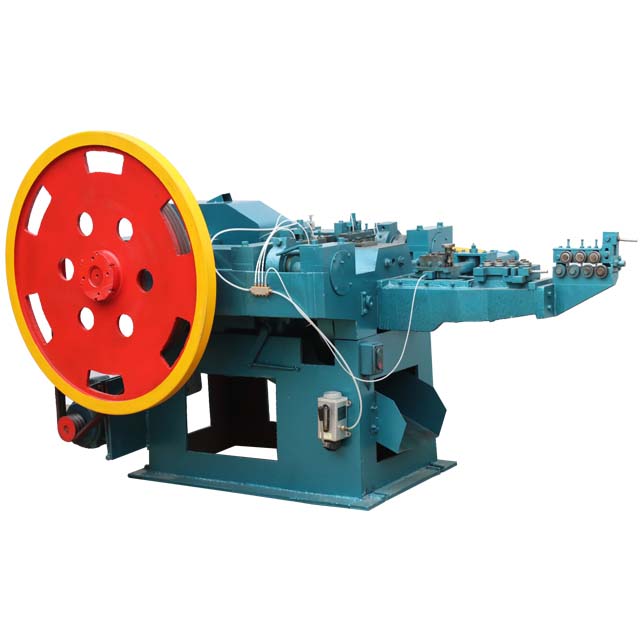

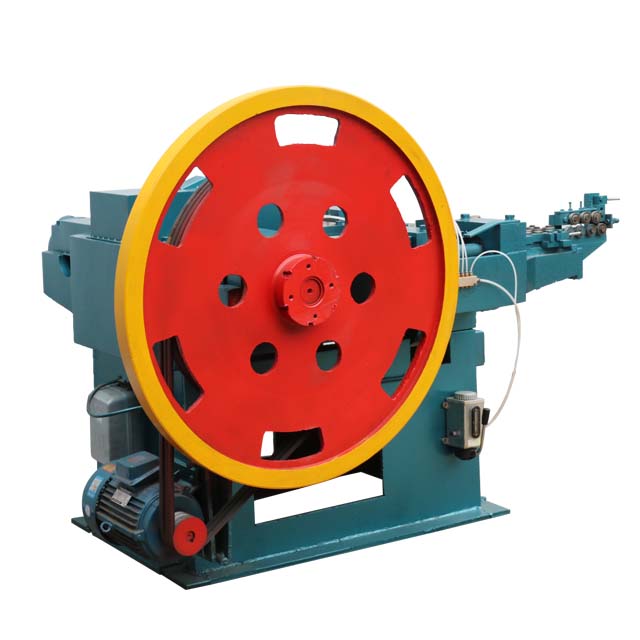

New Generation High Speed Good Quality Japan Nail Making Machine Made In China

Z94 Type C New Generation, High Speed, Low Noise, Automatic Nail Making Machine. This Z94 series, new type C nail making machine plunger structure and oil pipe lubrication so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of clout nails and other special nails.
Wire Diameter  :
Nail length:
Designed capacity:
Motor power :
weight:
Availability:
Quantity:
  • MRDJ-1

  • Meirun

  • MRDJ-1

Product Description

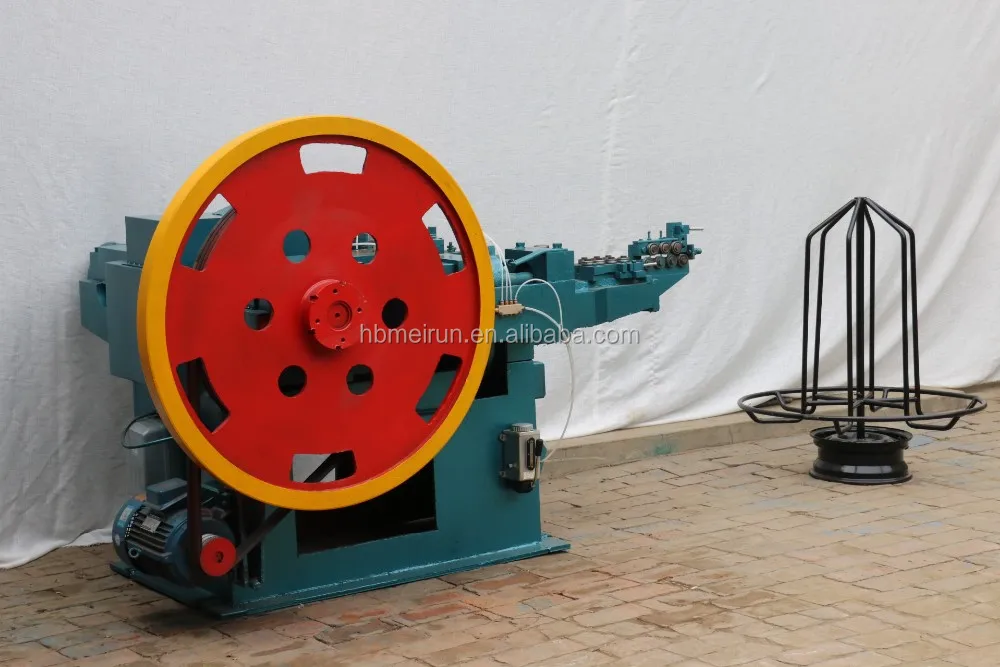

Nail making machine

Z94 Type C New Generation, High Speed, Low Noise, Automatic  Nail Making Machine. This Z94 series, new type C nail making machine plunger structure and oil pipe lubrication so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of clout nails and other special nails.

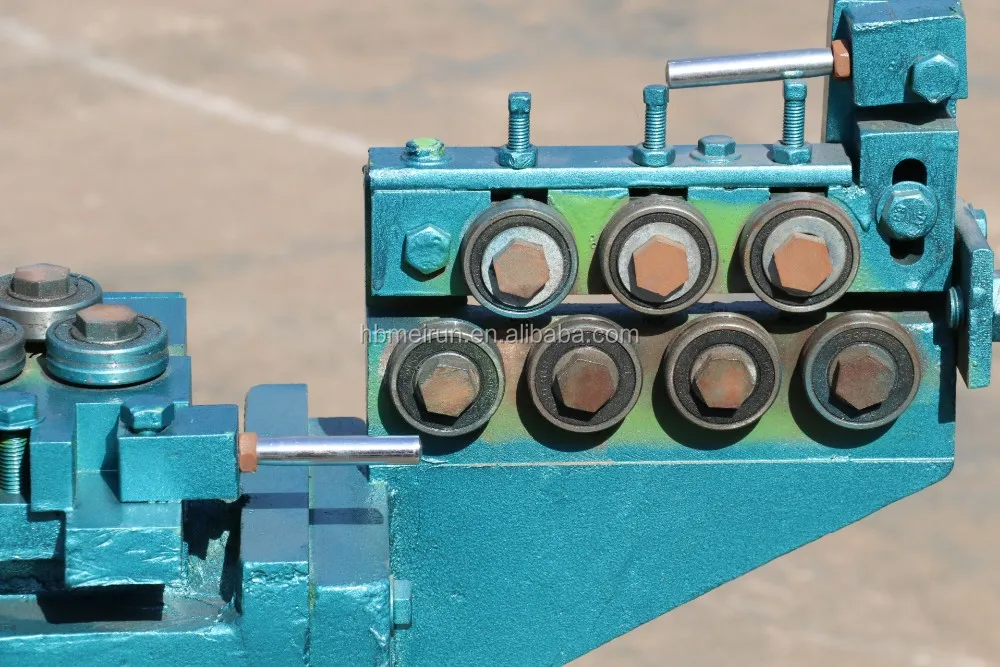

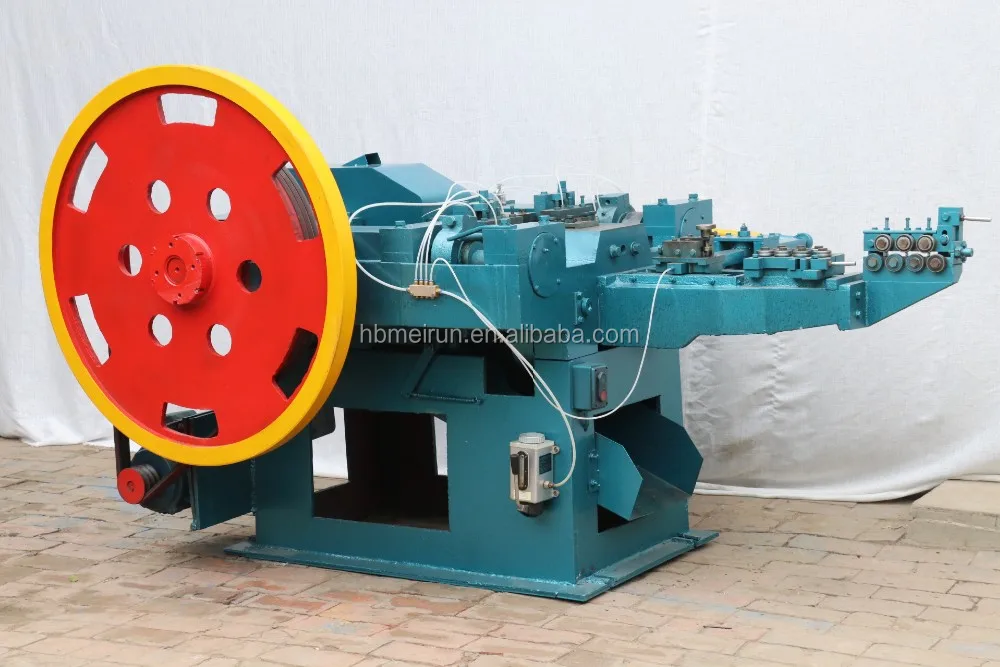

Detailed Images

Main Specifications

Technical data
Z94-6.5C
Z94-5.5C
Z94-4C
Z94-3C
Z94-2C
Z94-1C
Dia of nail max
(mm)
6.5
5.5
4.5
3.4
2.8
1.6
Dia of nail min
(mm)
4.5
3.7
2.8
1.8
1.2
0.9
Length of nail max
(mm)
200
150
100
75
50
25
Length of nail min
(mm)
100
80
50
30
16
9
Designed capacity
(pcs/min)
160
200
280
320
350
450
Motor power
(kw)
11
5.5
4
3
2.2
1.5
Weight (approx)
(kg)
5000
2500
2000
1400
1200
800
Overall dimensions
(mm)
3200X2200X2200
2380X1580X1660
2120X1540X1590
1800X1260X1240
1645X1215X1345
1440X1040X1270

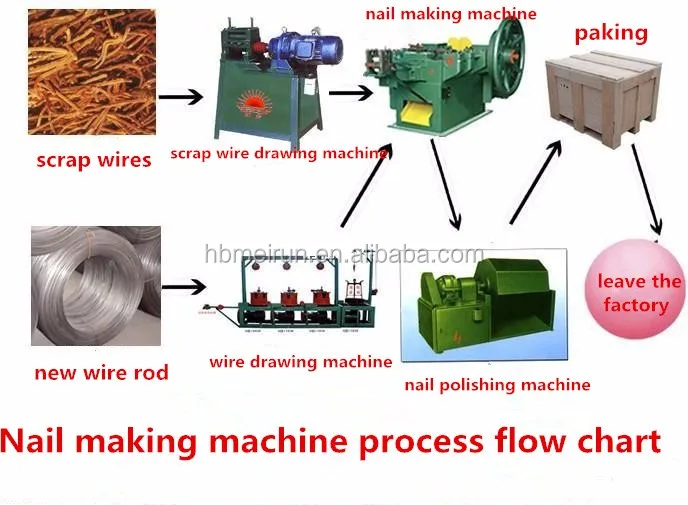

Production Line:


The Advantage Of Z94-C Nail Making Machine

1. The machine is made from bearing, which make the machine less impact and low noise.

2. The machine can feed the raw material automatically.

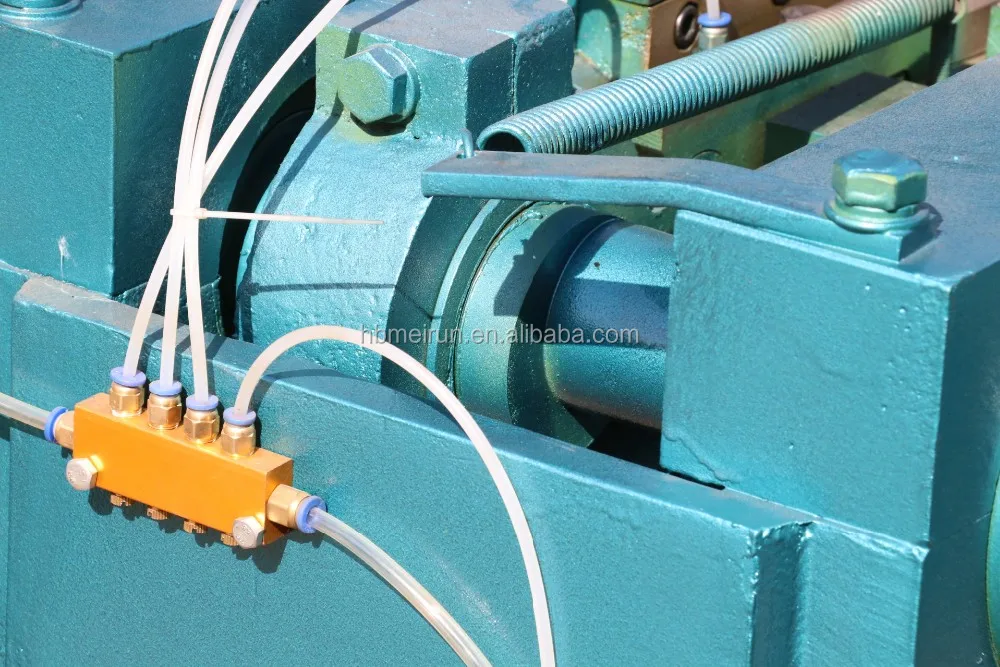

3. The machine can add lubricating oil automatically.

4. One model nail making machine can make different size of nails.

5. The warranty time of our machines is 2 years.

Auxiliary equipment

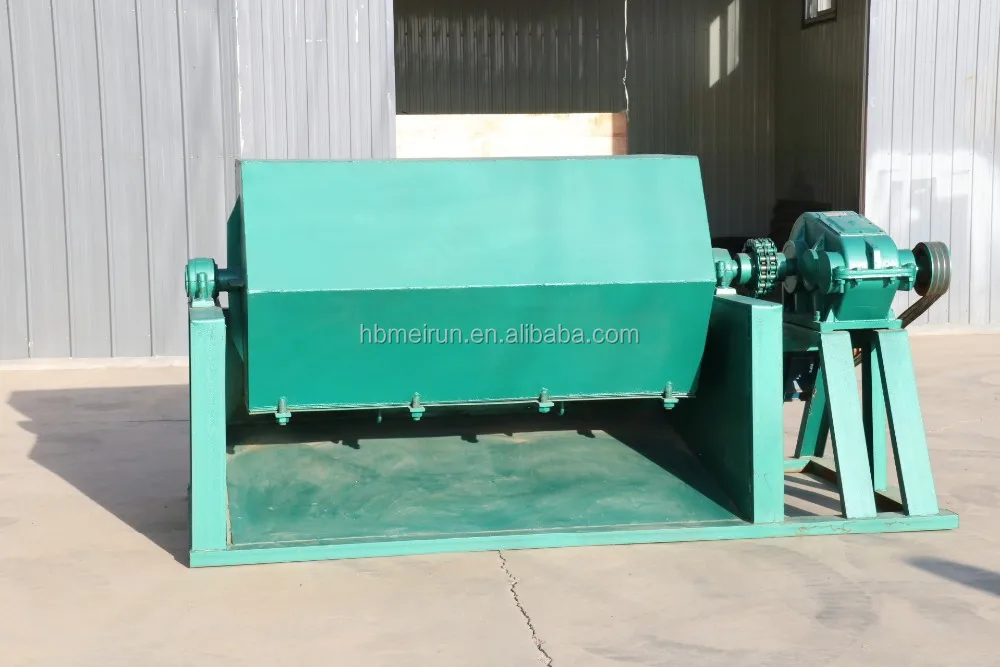

Nail Polishing Machine Specifications:


Technical data
SD-400
SD-600
SD-700
SD-1000
SD-2000
capacity
(kg)
400
600
700
1000
2000
Motor Power
(kw)
3-4
4.5-5.5
5.5-7.5
5.5-7.5
11-15
Overall Size
(mm)
1640X90
X1000
1800X1000
X1100
1900X1050
X1200
2000X1050
X1400
2500X1500
X1600


Butt welding machine

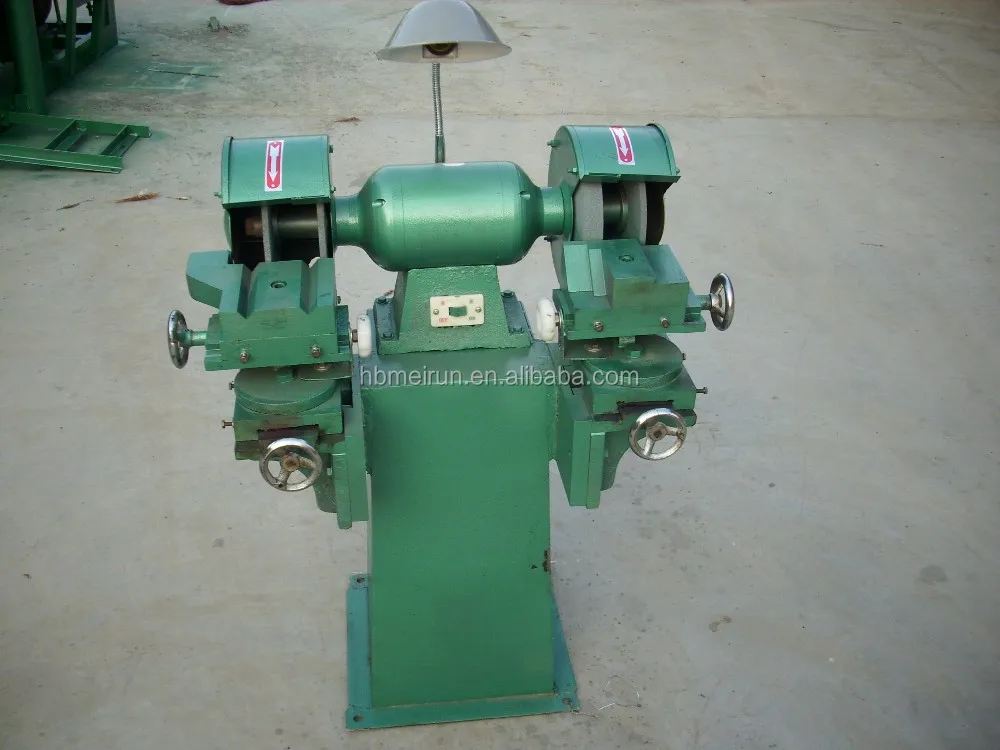

Nail cutter grinder


Point rolling machine

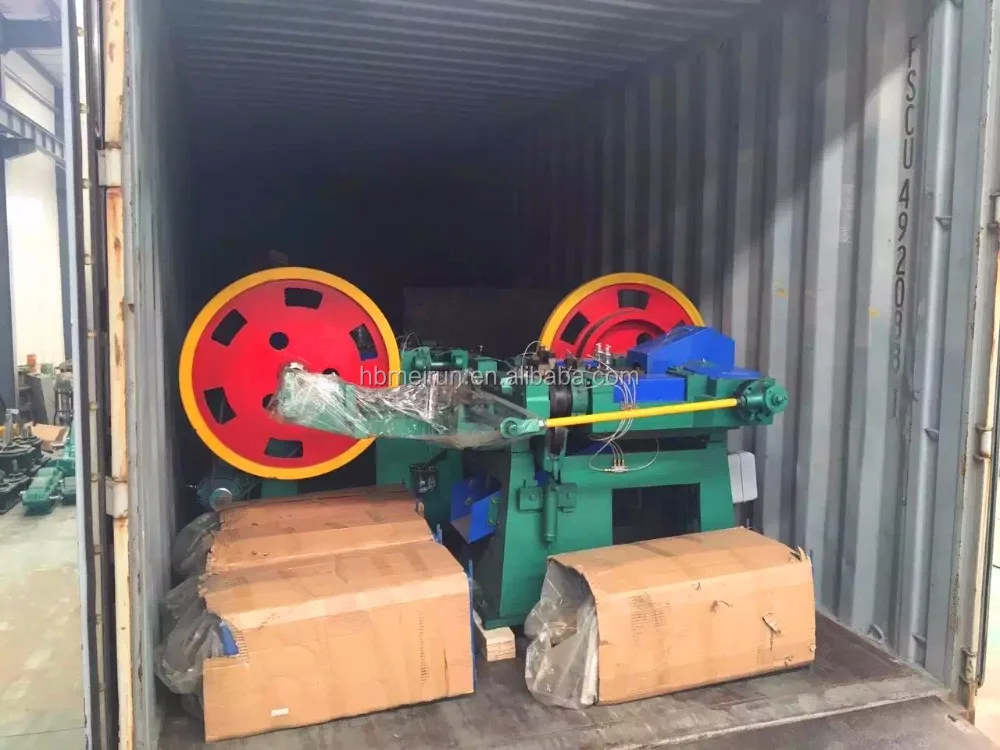

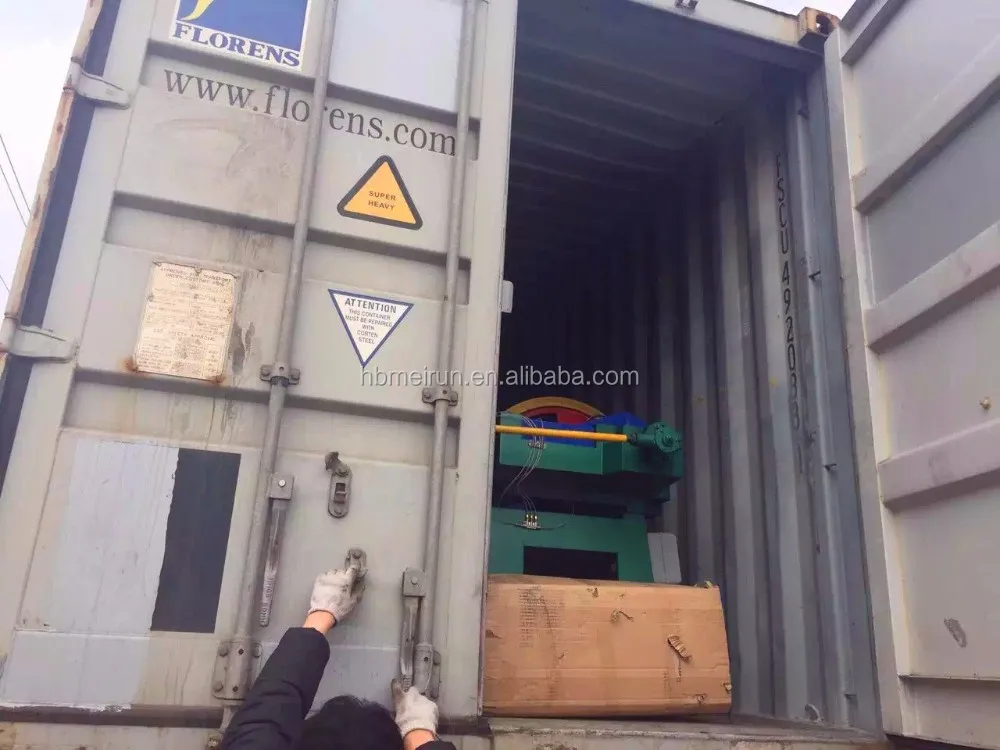

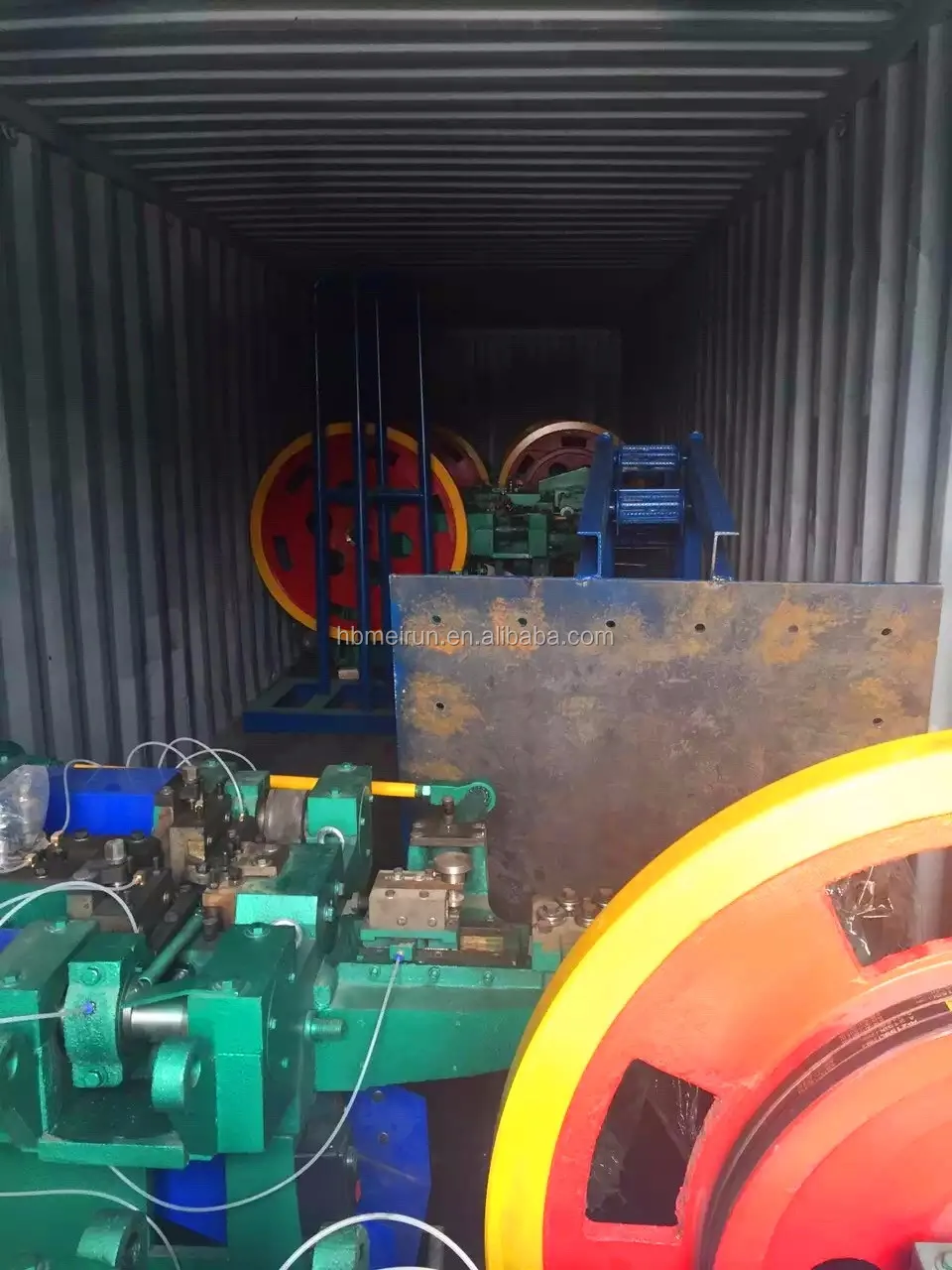

Packing & Delivery

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training: we will send one engineer to install and training the machine for the customer, and need you pay the engineer the salary usd100/day, and the tickets and hotel and food ,if the machine price including the install salary the customer just pay for the tickets, hotel and
foods.
Delivery time: 20days after advance payment some times we have stock ,then can load container when we get the advance
Payment terms: T/T, 30% in advance, and the balance before delivery

Our Company

About Us:
Hebei Meirun Wire Mash CO, LTD is located in the Anping county, Hengshui, Hebei. Anping county is the hometown of the wire mash having hundreds of years history and in the international screen production it occupies an important position. And our company produce, research and develop kinds of wire mesh making machine and we have our own factory. About some of machines our market share is about 70%.
Welcome to visit our company!

THE TENET OF THE FACTORY:
The tenet of our company are integrity as a foundation, customer first, upgrading quality of products, focusing on equality and mutual benefit and promoting common development.
