Lower Price Grassland Field Fence Machine For Animals Cattle Grassland Fence Machine Wire Mesh Making Machine

Share to:

Lower Price Grassland Field Fence Machine For Animals Cattle Grassland Fence Machine Wire Mesh Making Machine

The new type fixed knot fence machine is developed by our technical team .
Mechanical production of wire mesh products have great advantages :
1. Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable.
2. Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years.
3. The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state.
4.The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.

Weight:	3200kg
Dimensions:	5.02.32.6m
Voltage:	380V
Line wire spacing:	120 mm (Multiple adjust)
Cross wire spacing:	70-300 mm(Arbitrarily adjust）
Control system:	PLC+touch screen
Availability:

Quantity:


Inquire Add to Basket

Brand: Meirun

Product Description

Grassland Field Fence Machine For Animals

The new type fixed knot fence machine is developed by our technical team.
Mechanical production of wire mesh products have great advantages :
1. Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable.

2. Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years.

3. The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state.

4.The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.

牛栏网合成1

01204

01240

01218

01241

01214

Specification

Model	KZF-1560	KZF-1800	KZF-2400
Fence height	Max 1560mm	Max 1800mm	Max 2400mm
Roll mesh length	30-100 meter	30-100 meter	30-100 meter
Line wire number	Max 14	Max 16	Max 21
Line wire spacing	120mm(Multiple adjust)
Cross wire spacing	70-300 mm(Arbitrarily adjust)
Edge wire diameter	2.0-3.5mm
Line wire diameter	1.6-3.2mm
Knot wire diameter	1.6-2.5mm
Production speed	32 times/min
Line wire testing	Automatic stop lack of wire
Cross wire testing	Automatic stop lack of wire
Knot wire testing	Automatic stop lack of wire
Control system	PLC+touch screen
Wire material	Iron wire, Steel wire, Galvanized wire,etc
Dimensions	5.02.02.6m	5.02.32.6m	5.02.82.6m
Weight	2800kg	3200kg	4500kg

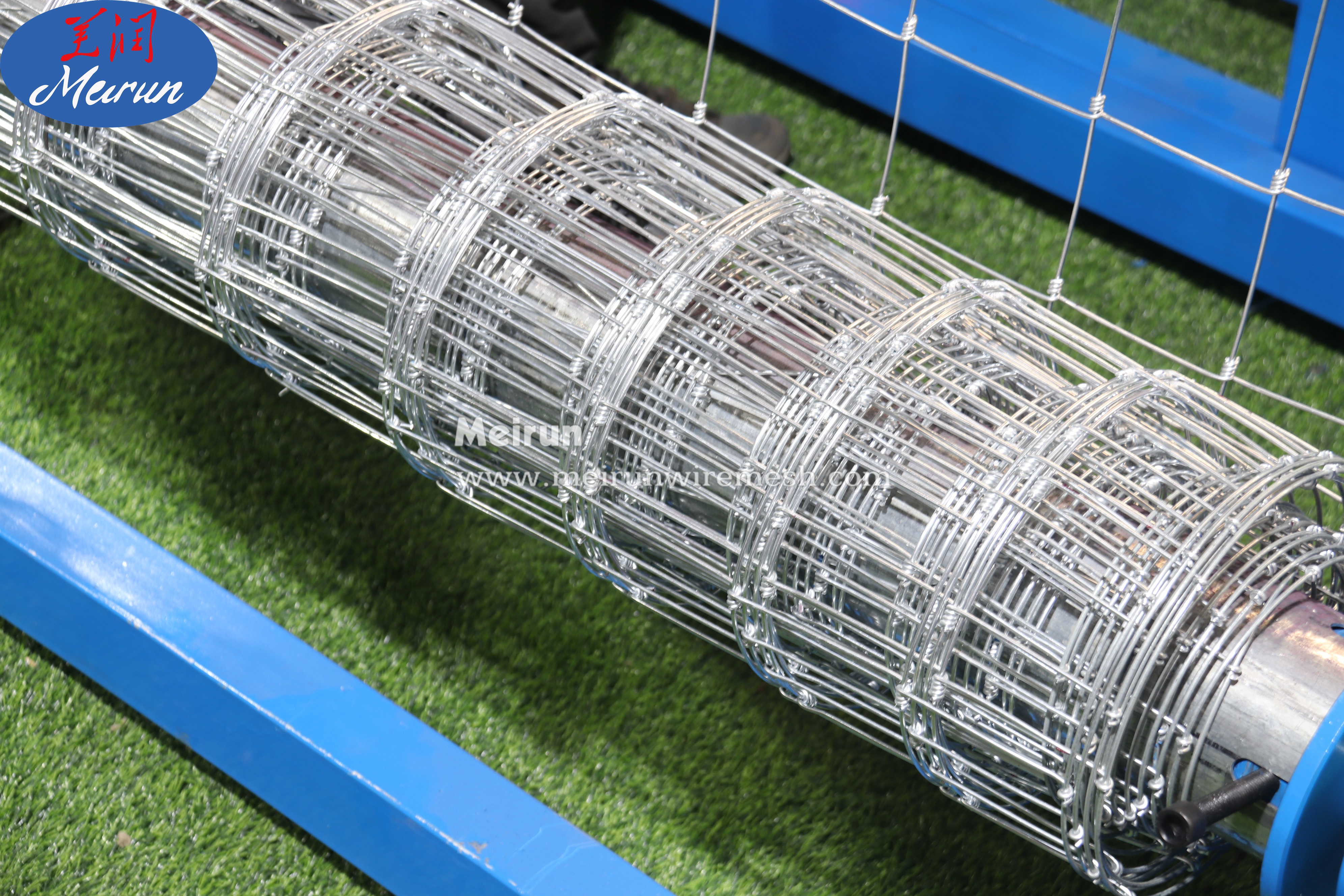

Finished Product

01229

01237

QQ图片20220720101010

Packing & Delivery

装箱图片

1.The main machine is nude packing or plastic packing.

2.Also can do as customer's request
