A PVC electrostatic powder spray coating line specifically designed for clothes hangers

●Cabinet-type structure for easy disassembly and installation.

●Equipped with high-efficiency electrostatic spray guns to ensure effective PVC powder coverage

●Features a powder recovery function that significantly improves material utilization and reduces waste.

2026: Building a More Comprehensive PVC-Coated Wire Clothes Hanger Production Line

PVC-coated wire clothes hangers are one of the best-selling hanger types on the market. They are more durable than ordinary iron wire hangers, offer better load-bearing capacity, and are less likely to deform clothing. By applying a uniform PVC coating to the surface of iron or galvanized wire, the finished hangers not only have a glossy appearance but also resist rust. Since launching its first hanger making machine, MeiRun has continuously expanded its hanger production line and developed various automated machines tailored to the characteristics of PVC-coated wire, including PVC wire coating machines, PVC powder coating machines, and PVC-coated wire clothes hanger forming machines. This powder coating machine is one of the standout representatives. Bringing better hanger products to customers has always been our pursuit.

The ideal partner for clothes hanger making machines - the Clothes Hanger Powder Coating Machine

It adopts an upgraded spraying process with a wider spraying range and faster speed, forming a uniform, smooth, and highly adhesive PVC powder coating on the hanger surface. Paired with a clothes hanger making machine, it forms an efficient clothes hanger production line.

Batch processing

Can accommodate 100-200 hangers for powder coating at the same time

Simple operation

Available with either a handheld electrostatic spray gun or an automatic spray gun

Multi-purpose

Besides hangers, it can be used for powder coating small and medium-sized metal, plastic, or wooden parts

Moderate size

Overall dimensions: 1.7m*0.9m*1.55m, easy to disassemble

Easy Assembly and Disassembly, Space-Saving

The main body of the machine adopts a cabinet-type structure with dimensions of 1.7m*0.9m*1.55m. During transport, the electrostatic spraying machine and the spray booth can both be stored inside the rectangular oven to prevent impact and damage. After delivery, they can be assembled separately on site, offering a high degree of flexibility.

Recovery and Reuse - Reducing Material Waste

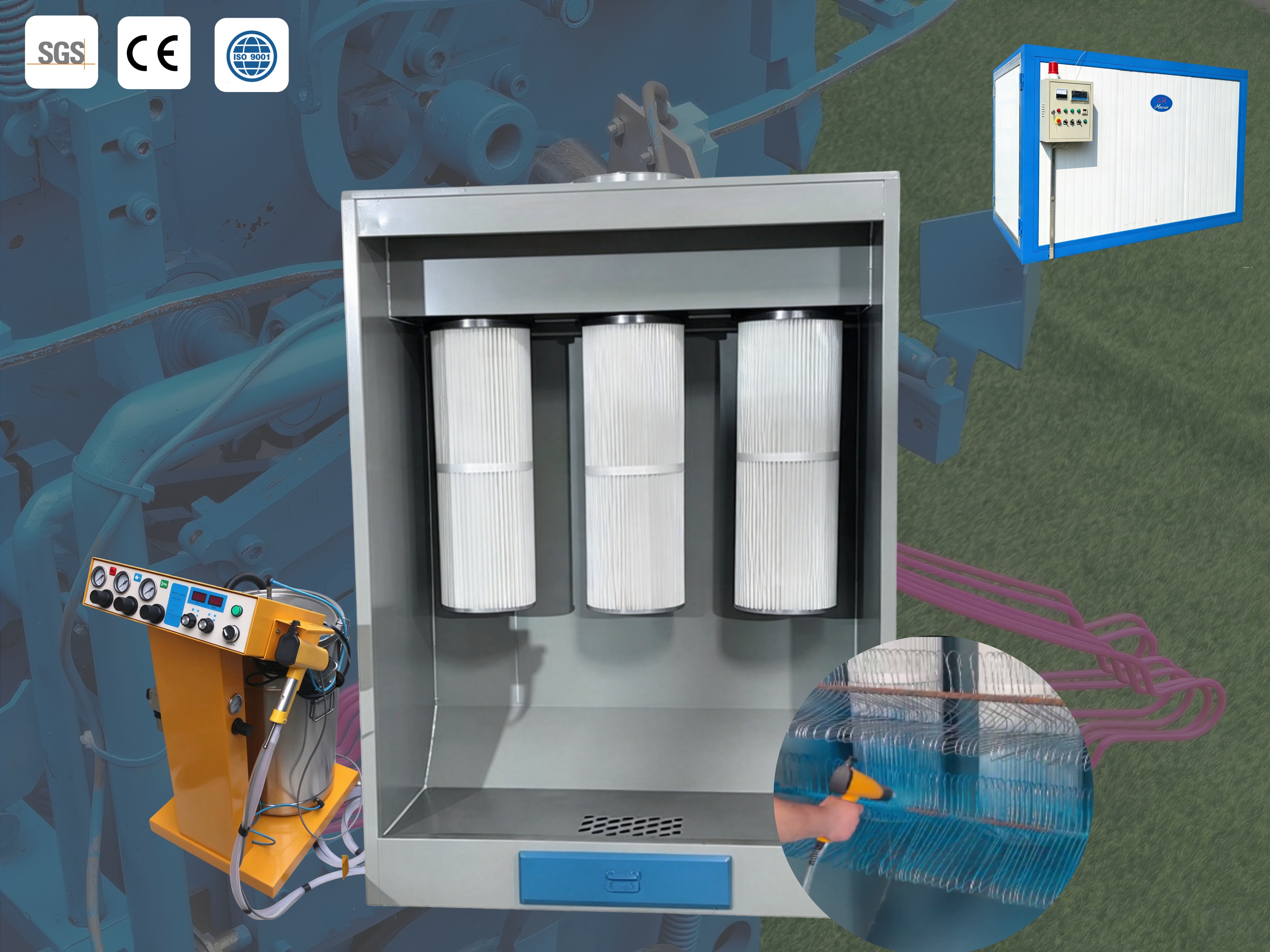

The spray booth is equipped with three high-density polyester long-fiber filter cartridges, along with an exhaust system and a control system. During hanger spraying, excess PVC powder is filtered through a cyclone separation system. Usable powder is retained, while waste powder is automatically filtered out and discharged. The purified airflow generated during the process is discharged outdoors through an exhaust fan. This design ensures the recovery and reuse of PVC powder, reduces the waste of production materials, and prevents operators from inhaling dust, which can harm their health.

Electrostatic Spraying Machine: A Combination of Flexibility and Efficiency

The main unit adopts an upgraded electrostatic spraying process, offering a wide spraying range, high speed, and high precision. It effectively enhances the adhesion of PVC powder, ensuring a uniform, smooth, and durable coating.

The built-in high-voltage spray gun is simple to operate and delivers stable performance. Through the control interface, operators can adjust multiple parameters such as powder output air pressure and powder output volume, and monitor the current index and high-voltage index in real time.

Environmentally Friendly and Harmless Processing

With the help of an efficient filtration system and exhaust system, harmful dust and gases are discharged in a timely manner, ensuring workers' health and a safe, clean on-site environment.

Two Configurations, Two Choices

Both semi-automatic and fully automatic configurations are available. The semi-automatic model requires workers to hold the electrostatic spray gun and spray the hangers manually, while the fully automatic model can perform this process automatically.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Rapid Setup of Industrial Production Line

In addition to the clothes hanger powder coating machine, MeiRun also offers supporting products such as clothes hanger making machines. If you need multiple machines to set up a PVC-coated wire clothes hanger production line, MeiRun can meet your needs to the greatest extent and provide a tailor-made production solution for you.

Machine Parameters

Come to MeiRun and Find the Clothes Hanger Processing Equipment You Truly Need

Behind the creation of a single clothes hanger lies the effort of an entire industrial production line. MeiRun has developed different product series based on hanger categories. Clothes hanger forming machines, clothes hanger powder coating machines, PVC wire coating machines... and even wire galvanizing equipment. At MeiRun, you can always find the machine that truly meets your needs.

PVC Powder Coating Clothes Hanger Processing Flow:

Step 1: Assemble the electrostatic spraying machine and the spray booth equipment.

Step 2: Add an adequate amount of PVC powder to the powder tank of the spraying machine, and adjust various parameters according to production requirements.

Step 3: Hang the clothes hangers sideways in the spray booth, and begin the spraying process with the handheld spray gun. Leave a certain gap between every two hangers so the powder can cover evenly.

Step 4: Transfer the sprayed hangers into the heating oven, press the heating button, and adjust the temperature.

Step 5: Organize the finished clothes hangers after heating and curing.

Step 6: Regularly clean the pull-out powder collection box at the bottom of the spray booth, and recover the scattered powder for reuse.

FAQ（Frequently Asked Questions）

1.Can this machine be used for powder coating hardware parts?

A: Yes, but the machine's space imposes certain limitations on the size of hardware parts, and the structure of the spray booth also needs to be modified accordingly. We recommend consulting our staff to obtain detailed reference data before deciding whether to place an order.

2. Is the spray booth prone to powder adhering to the walls or accumulating? These PVC powders look like they could easily stain.

A: Basically not, so you don't need to worry about this. The walls of the spray booth are made of thick galvanized steel sheets and have been pre-treated with powder coating, making them resistant to powder adhesion. Even if a small amount of powder falls, it is easy to clean. A pull-out powder collection box is installed at the bottom of the spray booth to prevent powder accumulation.

3.If I want to change the color of the hangers (switch to a different color of PVC powder coating), is the process complicated?

A: Not complicated. You only need to replace the remaining powder in the powder supply hopper and ensure there is no residue in the powder hose connected to the spray gun. The spray booth and heating oven are basically unaffected.

4.Can you provide samples?

A: Yes. We provide sample delivery services. You can place an order after you are satisfied with the samples.
