Hyrib Permanent Formwork Rib Lath Punch Making Machine

Hy-Rib is a steel encasement stiffened by rigid ribs used in reinforced walls, ceilings, and floors. They are helical hooping units of steel sheathing forms used in concrete, stucco and plaster. Hy-Rib products are a derivative of the "wings" used in the patented Kahn System of reinforced concrete, invented by Julius Kahn in 1903. The products are made from a single plate of steel. Hy-Rib products were used in concrete doors, ceilings, and roofs. It was also used in sidings, partitions and ceilings to eliminate channels. Hy-Rib products were designed to take on plaster and cement to eliminate layout forms in the construction of buildings. The steel sheet form would be embedded with plaster or cement directly and would flow into the lath surface to attach itself to the steel and harden to secure the material into the steel.
Dimensions:
Weight:
Punching shear thickness:
Availability:
Quantity:
  • MRYGWJ
  • Meirun



              Concrete formwork/galvanized hi rib lath formwork making machine

Metal rib is expanded and roll formed to be the special lath which is of light weight and high reinforce which is complied with the standard of ASTM C 847. The metal rib is applied to reinforce the wall reinforcement, and also it can be easier for the clip installation, which increase the production efficiency and save the cost.


Machine Specification

Thickness (mm)
Weight (kg)
Width (mm)
Length (mm)
Rib Height (mm)
Rib Distance(mm)
0.21
1.70
450
2200
14-20
90
0.23
1.90
450
2200
14-20
90
0.30
2.48
450
2200
14-20
90
0.35
2.90
450
2200
14-20
90
0.40
3.30
450
2200
14-20
90
0.45
3.70
450
2200
14-20
90
0.50
4.10
450
2200
14-20
90
Machine composition
1.one of the sample decoiler or automatic hydraulic decoiler.
2.one set of punch machine .
3.two pieces of pinching moulds.
4.one set of expanded and forming machine.
5.one set of cutting device.
6. one set of automatic stacker or simple run out support table.
7.one set og PLC console.
8.one set of hydraulic station.

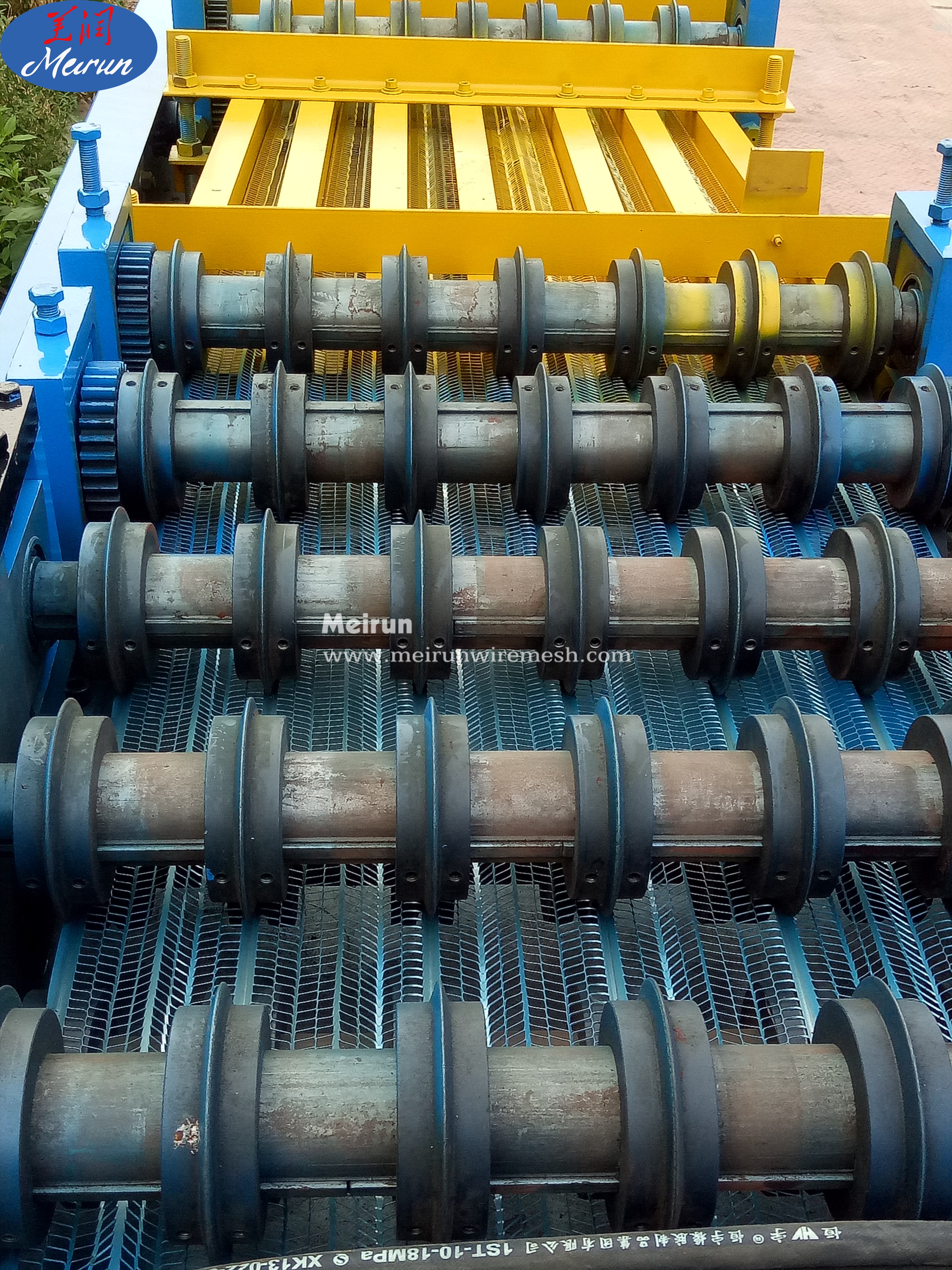

Machine   component

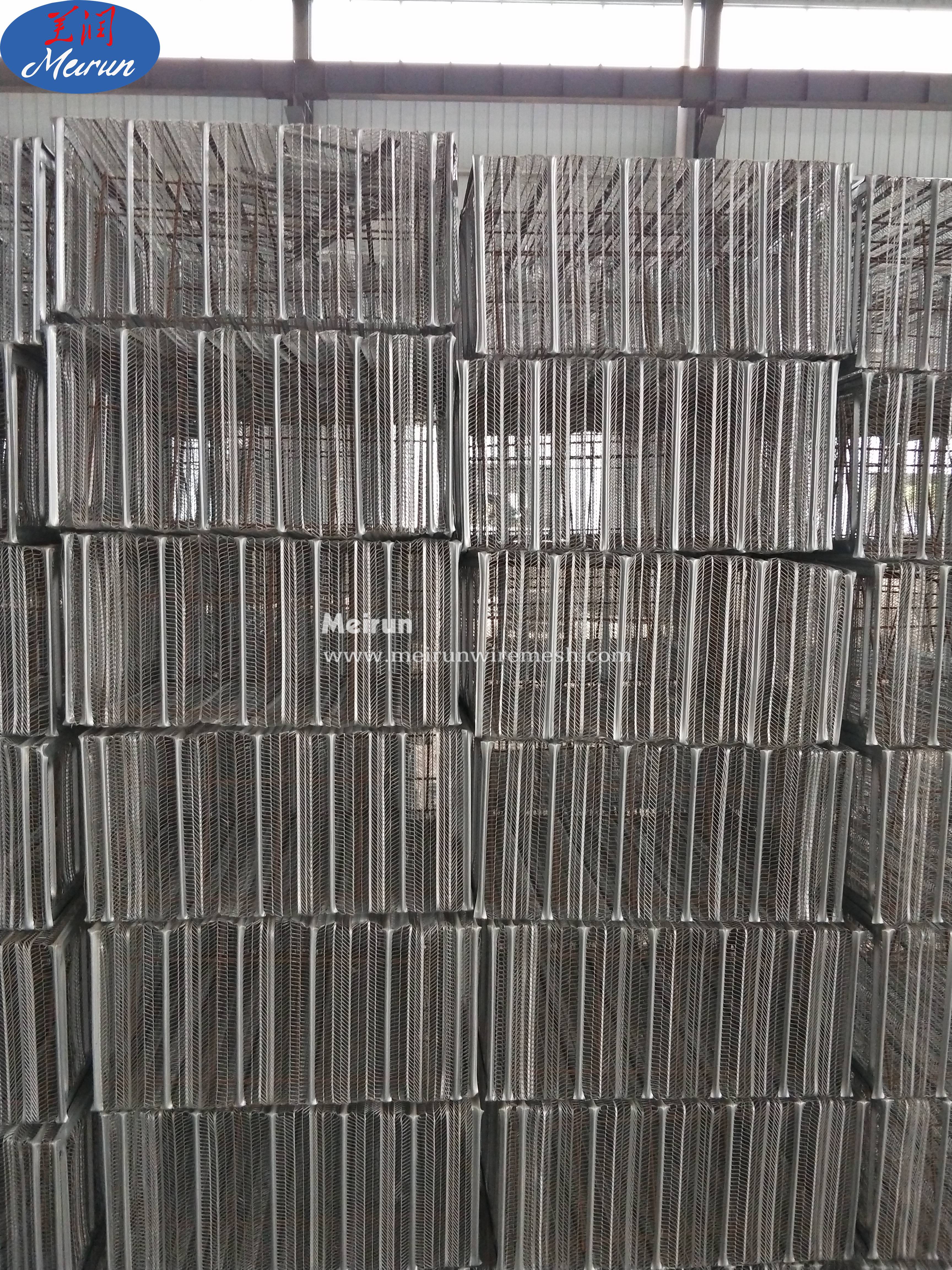

Machine products
