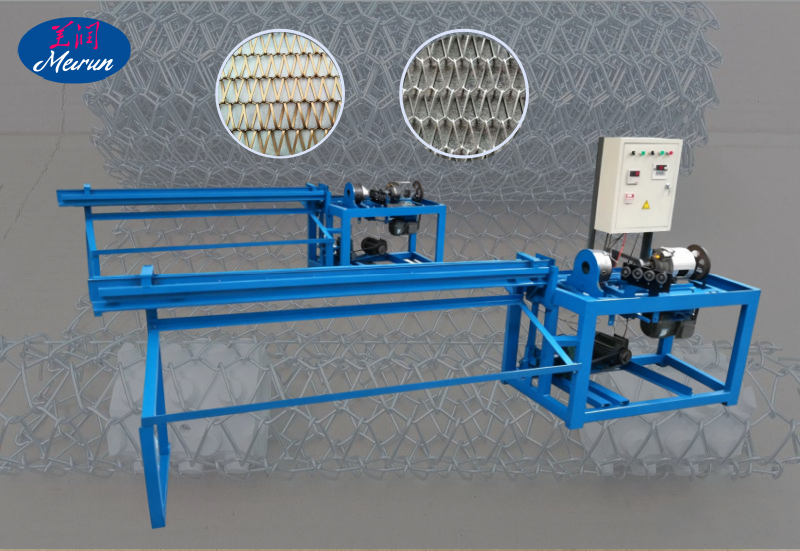

Hot Sell Type Stainless Steel Conveyor Perforated Wire Mesh Belt Making Machine

Hot Sell Type Stainless Steel Conveyor Perforated Wire Mesh Belt Making Machine

It includes two conveyor belt metal mesh forming machines and one crimping wire machine, suitable for continuous industrial operations.

● Specially designed for producing crankshaft-type conveyor belts. The finished mesh has a firm structure, resistant to stretching and deformation.

●The motor core features a heat-resistant design to prevent the machine from stopping due to overheating.

●Supports processing of raw materials such as galvanized wire, stainless steel wire, carbon steel wire, and aluminum wire.

At MeiRun, you can quickly find the right conveyor belt customization solution for your needs.

Conveyor mesh belts are widely used in food processing, pharmaceutical manufacturing, mining, and industrial production lines. Different industries require different conveyor belt specifications. As a professional wire mesh machinery manufacturer, MeiRun offers a high degree of customization - we can adjust machine molds and production parameters according to your requirements, and mail samples for your evaluation before you place an order. The width, material, mesh size, and the bending curvature of the crimping wire used for connections can all be customized to ensure the final product meets your production needs.

Concise and smooth industrial design - a reliable conveyor mesh belt making machine

Separate design

The forming machines and the crimping wire machine are installed separately, making it easier to plan the production floor layout.

Versatile applications

The wire diameter range of 0.8-4.0 mm suits a variety of application scenarios to meet specific industrial requirements.

Easy maintenance

Routine maintenance is straightforward, and part replacement comes with dedicated instructional guides.

 Real-time cooling

During operation, flowing water is used to remove excess heat, preventing overheating and shutdown.

Mesh belt finished product display

Simple and easy to operate

The machine comes with a straightforward control panel that allows preset production parameters or one-key reset. Main functions are controlled by push buttons and knobs. The electrical cabinet requires a key to open, preventing workers from accidentally coming into contact with power or wiring.

Durable components

The core components of the motor are designed with heat resistance to reduce the risk of downtime and damage caused by excessive temperatures.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Machine Parameters

Conveyor mesh belt production process:

Step 1: The wire enters through the feeding inlet to start the production process.

Step 2: The machine bends, shapes, and cuts the wire to a preset length.

Step 3: The finished left-hand spirals wire drops into the hopper.

Step 4: The right-hand spirals wire is processed by another machine.

Step 5: The crimping wire machine is used to bend the metal wire, producing the crankshafts needed for connecting the mesh belt.

Step 6: Workers manually assemble the left-hand spirals wire, right-hand spirals wire, and crankshafts to form a complete conveyor mesh belt.

FAQ

1.Is this machine fully automatic?

Answer: This machine operates in a semi-automatic production mode. In the final step, workers need to join the left-hand spirals wire and right-hand spirals wire together, and then thread the bent metal wire through them to form a complete conveyor mesh belt.

2.Can the mesh shape and density of the conveyor mesh belt be adjusted on the machine?

Answer: The mesh shape and density are mainly adjusted through the machine's molds. We recommend that you inform our staff of your specific production requirements when making an inquiry, and we will provide you with a suitable solution.

3.Can I purchase the forming machine or the crimping wire machine separately?

Answer: Yes, you can. If you already have compatible machinery for production, you may purchase any of the units separately. Please contact our customer service team for a separate quotation.

Why does producing conveyor mesh belts require two forming machines?

When learning about conveyor mesh belt processing equipment, many people often wonder: since these belts look symmetrical and the wire shapes appear identical, why do manufacturers include two forming machines in their conveyor mesh belt making machine? Isn't one machine enough?

The blue lines represent the concave sides of the wire strands, and the yellow lines represent the convex sides. Observing two adjacent rows of wire strands, you will notice subtle differences in their structure.

To answer this question, we need to go back to the structure of the conveyor mesh belt itself. Unlike ordinary flat wire mesh, it has a three-dimensional structure. The wires used to make a conveyor mesh belt extend in a spiral shape, similar to springs. If you put two strands of wire with the exact same spiral direction together, you will find that they simply cannot interlock with each other. It is necessary to use wires with opposite spiral directions, held together by bent metal wires, to form a firm mesh structure. That is why the conveyor mesh belt making machine needs to be equipped with two forming machines -one to produce left-hand spirals wire and the other to produce right-hand spirals wire. When weaving the mesh belt, these wires are placed crosswise and assembled in a sequence of "one row of left-hand spirals wire + one row of right-hand spirals wire" to produce a finished conveyor mesh belt that meets the required standards.

 If you would like to learn more about the conveyor belt metal mesh making machine, welcome to contact MeiRun. MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best‑selling stores for wire mesh machinery, with a 100% on‑time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
