Expanded metal mesh machine
MR
MR12

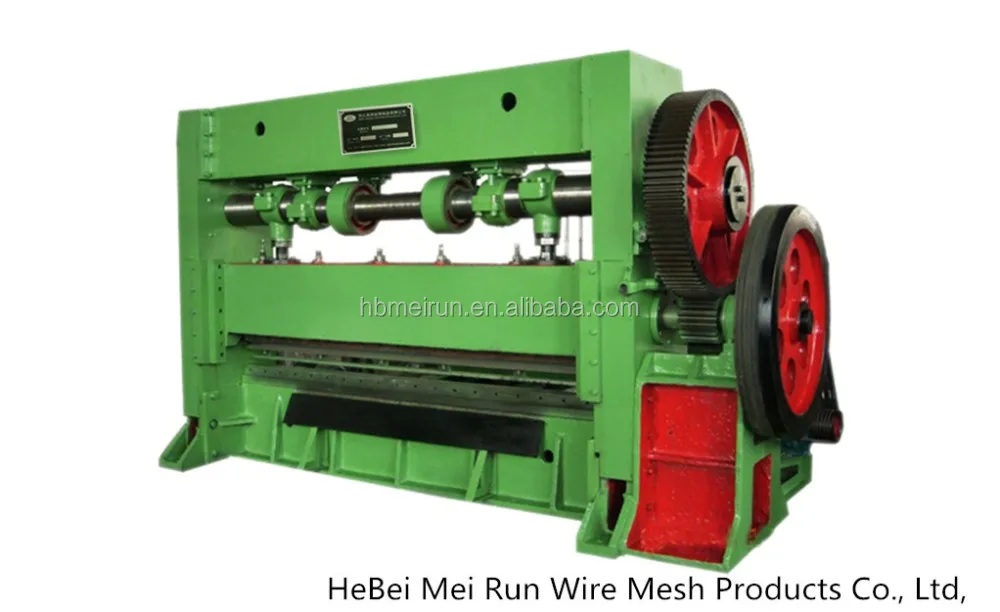

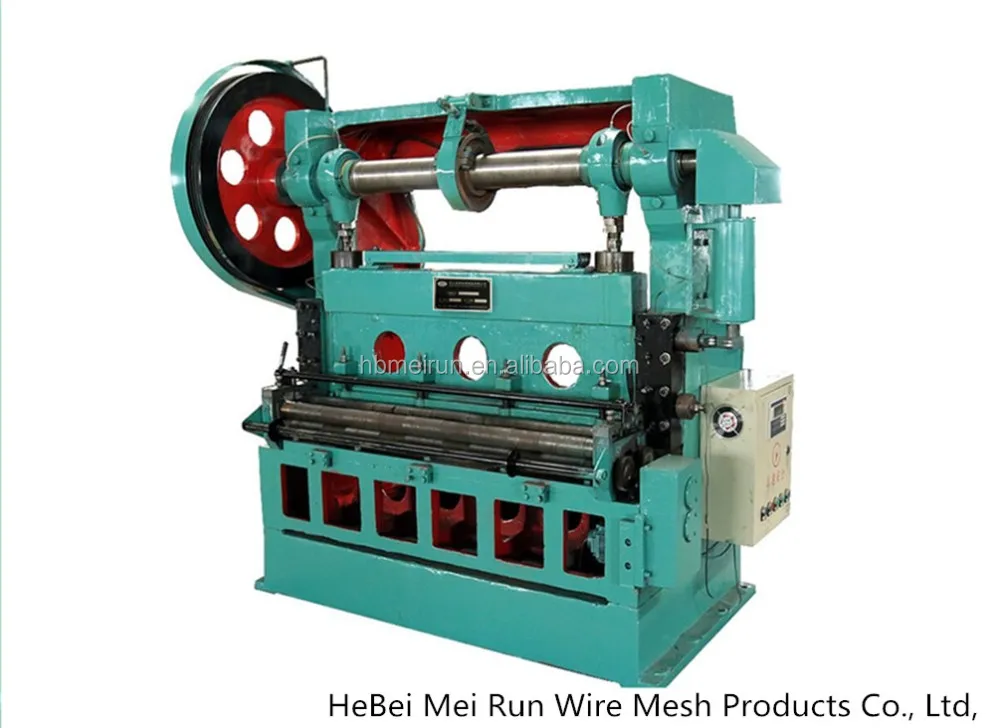

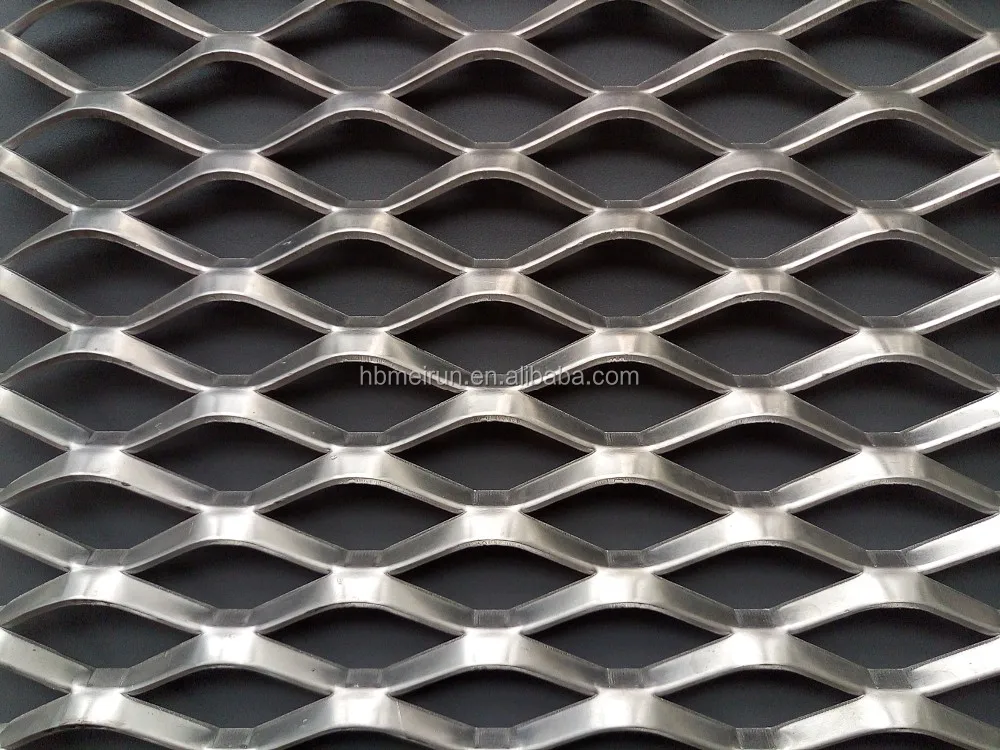

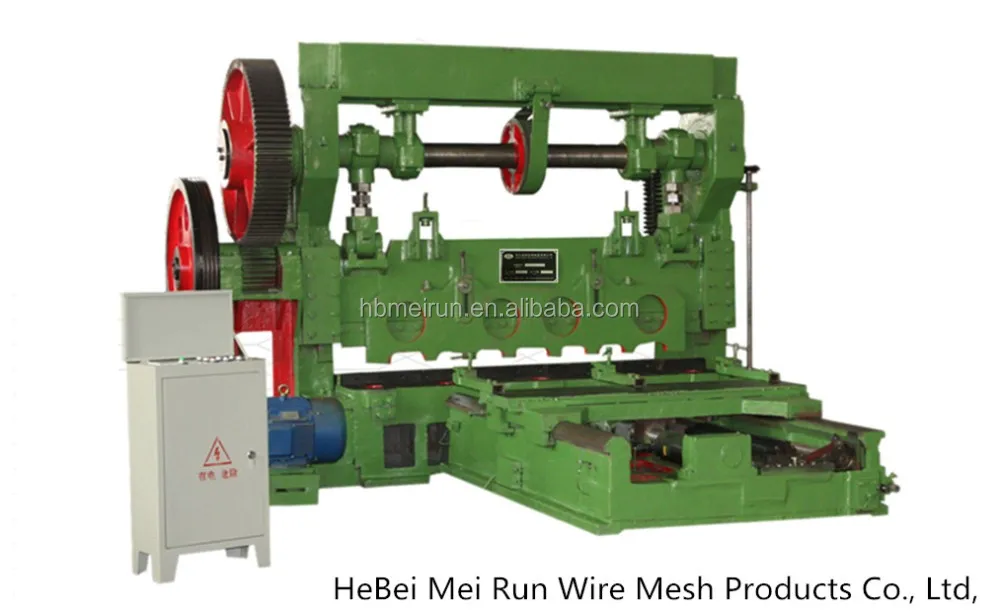

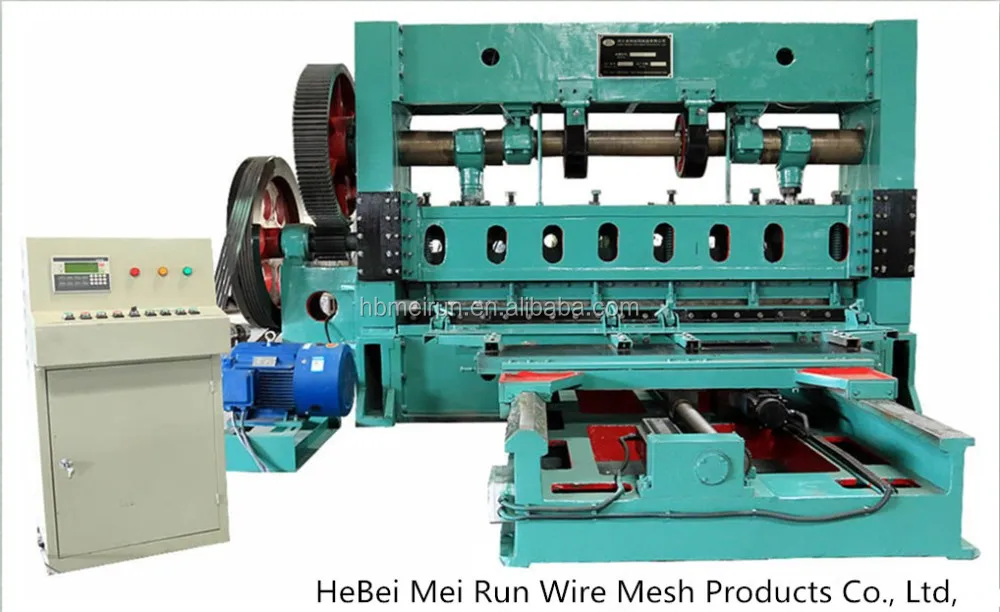

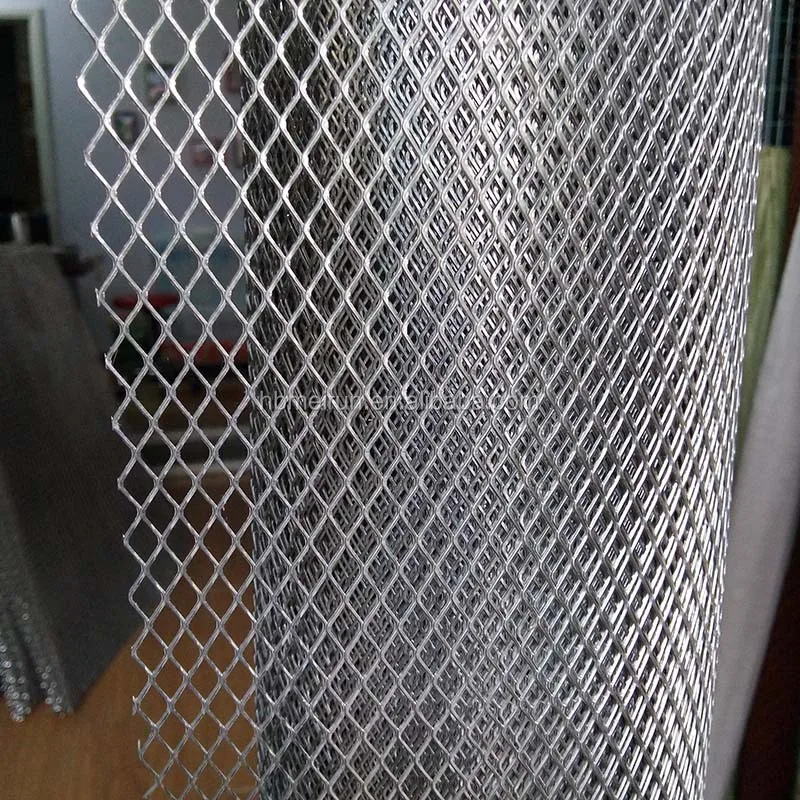

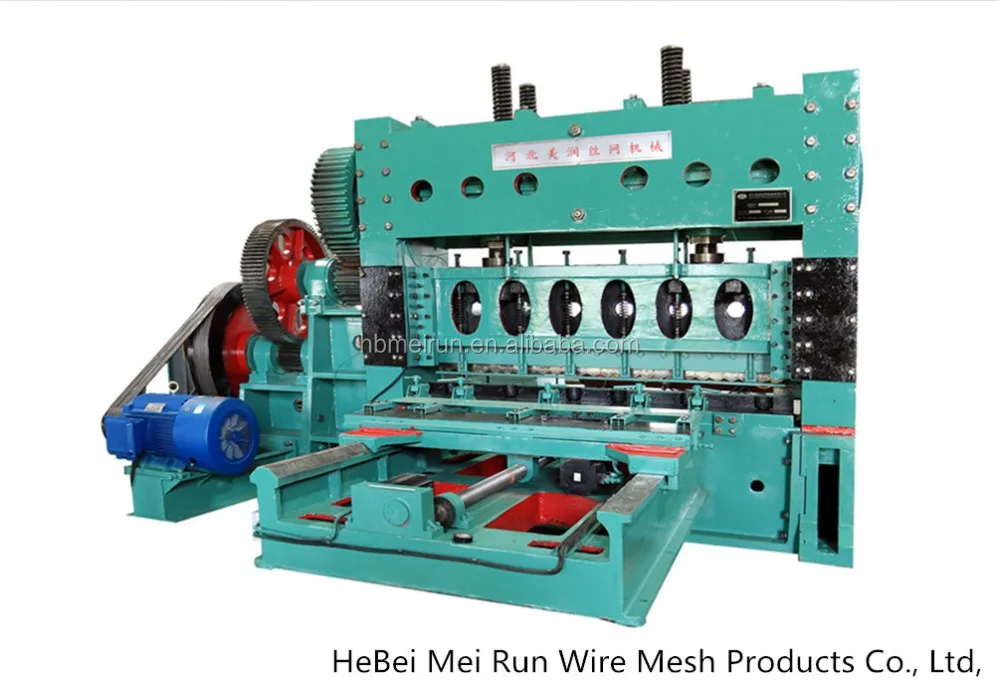

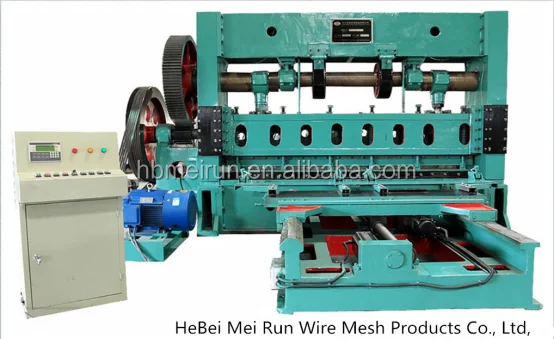

Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.It can be produced max. 1250mm and thickness of metal sheet max. 1mm.The material for expanded metal sheet mesh making machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.The raw material can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
1. It is high speed and low noise.
2. It is practical and durable.
3. Different pressure can perforate different metal.
4.We can make different moulds according to customer's requirements.
Model | JQ25-6.3A | JQ25-6.3B | JQ25-16 | JQ-25-16A | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 | JQ25-160 |
Material thickness | ≤1.0mm | ≤1.0mm | 0.2-1mm | ≤1.0mm | ≤1.5mm | 0.5-2.5mm | 0.5-3mm | 0.5-4mm | ≤8.0mm |
Material width | 500-600mm | 500-600mm | 1000 mm | 1000 mm | 1250 mm | 2000 mm | 2000 mm | 2000 (2500)m | 2000 mm |
Long way of diamond | ≤20 mm | 15 mm | ≤25 mm | ≤25 mm | ≤30 mm | 100 mm | 150 mm | 150 mm | ≤200mm |
Feed distance | 0-1.5 mm | 0-1.6 mm | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | 0-4 mm | 0-4 mm | 0-7 mm |
Stroke per min | 195times/min | 195-320times/min | 150times/min | 250times/min | 150times/min | 70times/min | 45times/min | 55times/min | 45times/min |
Motor | 2.2KW | 2.2KW | 3.0KW | 5.5KW | 4KW | 11KW | 11KW | 18.5KW | 30KW |
Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Weight | 0.95T | 0.95T | 2.3T | 2.05T | 3.5T | 11.5T | 11.5T | 13T | 22T |
Dimension | 1.09*7.1*145m | 1.09*7.1*1.45m | 1.74*1.40*1.5m | 1.74*0.85*1.63m | 1.94*1.6*2.01m | 3.5*2.4*2.3m | 3.5*2.4*23m | 3.28*3.1*2.28m | 3.28*3.62*2.85m |
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shipment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.It can be produced max. 1250mm and thickness of metal sheet max. 1mm.The material for expanded metal sheet mesh making machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.The raw material can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
1. It is high speed and low noise.
2. It is practical and durable.
3. Different pressure can perforate different metal.
4.We can make different moulds according to customer's requirements.
Model | JQ25-6.3A | JQ25-6.3B | JQ25-16 | JQ-25-16A | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 | JQ25-160 |
Material thickness | ≤1.0mm | ≤1.0mm | 0.2-1mm | ≤1.0mm | ≤1.5mm | 0.5-2.5mm | 0.5-3mm | 0.5-4mm | ≤8.0mm |
Material width | 500-600mm | 500-600mm | 1000 mm | 1000 mm | 1250 mm | 2000 mm | 2000 mm | 2000 (2500)m | 2000 mm |
Long way of diamond | ≤20 mm | 15 mm | ≤25 mm | ≤25 mm | ≤30 mm | 100 mm | 150 mm | 150 mm | ≤200mm |
Feed distance | 0-1.5 mm | 0-1.6 mm | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | 0-4 mm | 0-4 mm | 0-7 mm |
Stroke per min | 195times/min | 195-320times/min | 150times/min | 250times/min | 150times/min | 70times/min | 45times/min | 55times/min | 45times/min |
Motor | 2.2KW | 2.2KW | 3.0KW | 5.5KW | 4KW | 11KW | 11KW | 18.5KW | 30KW |
Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Weight | 0.95T | 0.95T | 2.3T | 2.05T | 3.5T | 11.5T | 11.5T | 13T | 22T |
Dimension | 1.09*7.1*145m | 1.09*7.1*1.45m | 1.74*1.40*1.5m | 1.74*0.85*1.63m | 1.94*1.6*2.01m | 3.5*2.4*2.3m | 3.5*2.4*23m | 3.28*3.1*2.28m | 3.28*3.62*2.85m |
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shipment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
