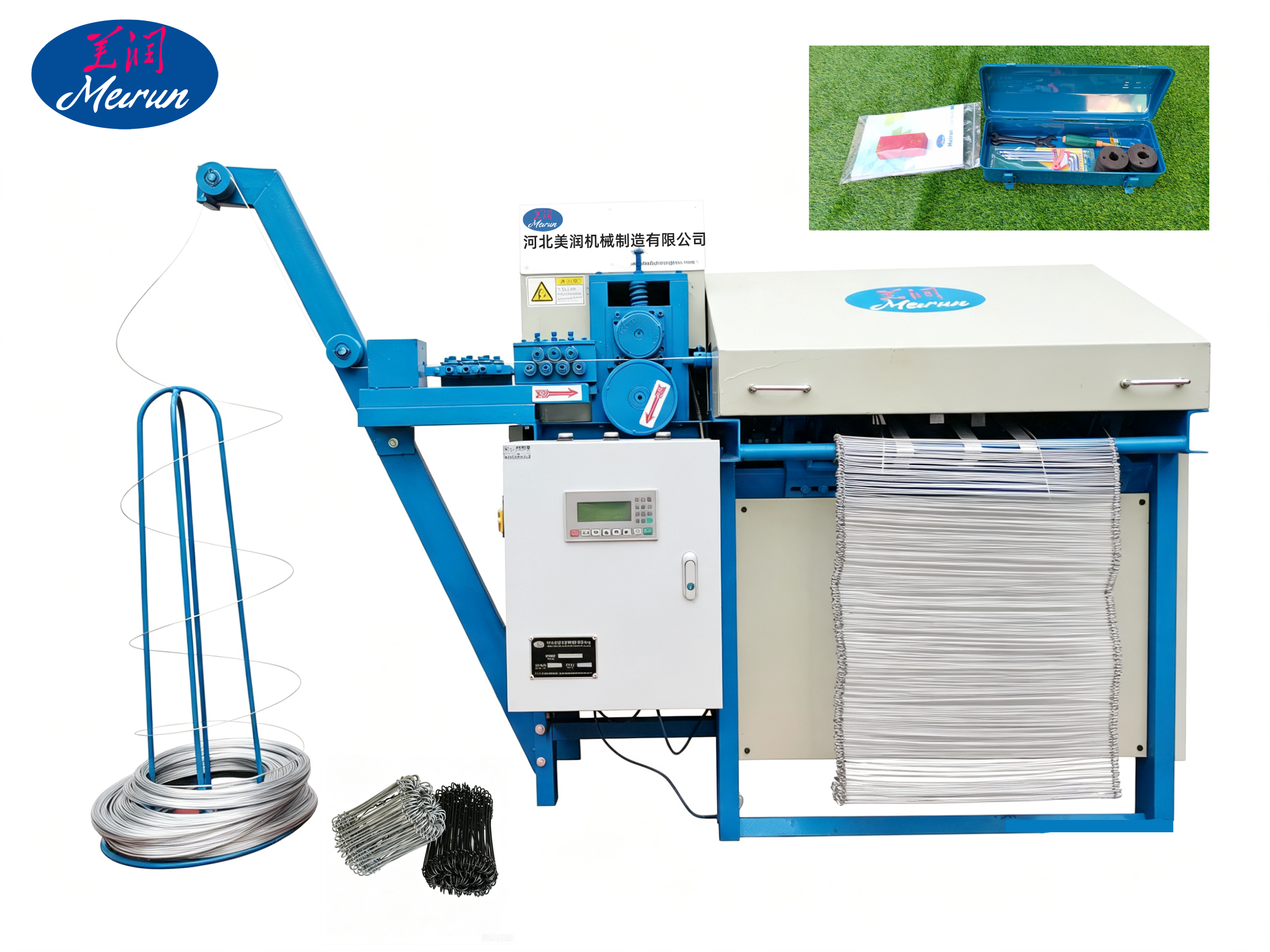

High Tensile Strength Double Loop Wire Tie Making Machine for Construction

High Tensile Strength Double Loop Wire Tie Making Machine for Construction

An energy-saving machine with 0.75 kW power, capable of easily producing double loop wire ties in the 4-20 inch range.

●New generation improved model with a compact footprint, weighing under 500 kg, suitable for most work sites.

●PLC control system with a simple operation panel, allowing one‑touch preset of production parameters.

●Finished products are automatically threaded onto binding wire at the discharge outlet, making it easy to bundle for shipment without extra packaging.

The double loop wire ties machine is easy to install, simple to operate, and highly compatible. With only a small workspace required, you can start production right away.

Easy installation

The machine measures 1.4m* 0.8m* 1.3m and can be installed on construction sites, in small workshops, and warehouses. Its 0.75 kW power output places low demands on circuit load, making it suitable for most locations.

Easy operation

Push-button controls with an LCD panel make parameters easy to read. The machine automatically performs wire drawing, straightening, bending, and forming, greatly saving labor.

Strong compatibility

It supports processing of various wire types, including black wire, annealed wire, galvanized wire, copper wire, PVC wire, and plastic-coated wire. It can produce double loop wire ties ranging from the compact 4-inch size to the extra-large 20-inch size.

Premium components

The machine is built with high-quality alloy gears and bearings, significantly improving durability and extending the overall service life to over 8 years.

Product Introduction

The double loop wire ties machine is a piece of equipment specifically designed for producing loop‑type tying tools. This machine can straighten, cut, bend, and form wire, producing ties with a pre-formed ring at each end in a symmetrical shape. These ties are not easily broken, offer ample toughness, and are flexible enough to be easily twisted and secured. Workers only need a simple wire tying tool to complete the installation. Double loop wire ties are mainly used for bundling and fastening rebar, sandbags, temporary fencing, and coiled tubular materials, and they have a broad application market worldwide.

Unique exterior design

Compared with the older model, the new version features an added metal dust cover that isolates the key production components. In addition to its aesthetic appeal, it helps prevent workers from coming into contact with moving parts during operation, ensuring production safety.

Dual straightening effect

The machine is equipped with both horizontal and vertical straightening wheels, providing a dual straightening effect that ensures the wire is straighter and tougher.

 Highly automated production process

With push-button controls and a simple LCD operation panel, product specifications, total quantity, and production speed can be preset. The formed double loop wire ties are automatically strung onto a wire for collection, eliminating the need for manual picking and counting. The machine will automatically stop once the preset production quantity is reached.

 An essential choice for industrial production lines

The machine adopts standard industrial design, ensuring that each finished tie is consistent in size, shape, and weight, with a tolerance of no more than ±0.1g. Taking the 6-inch double loop wire tie as an example, the conventional model can achieve a production speed of 70–80 pieces per minute, with an hourly output of over 4,000 pieces, fully meeting the rebar tying needs of ordinary construction sites.

Deep customization options

The size of the finished ties and the size of the pre - formed loops at both ends can be adjusted through molds to suit different application scenarios. The machine is available in two models --- the conventional model and the high-speed model,users can also customize special versions according to their actual production and business needs.

Transportation and installation support

From price inquiry to installation support, Meirun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Double loop wire ties production process

Step 1: Start the machine by pressing the button;

Step 2: The wire feeding device draws the wire into the machine;

Step 3: Two sets of straightening wheels (vertical and horizontal) straighten the wire;

Step 4: The wire goes through cutting, bending, and forming inside the machine;

Step 5: The finished ties drop from the discharge outlet and are automatically strung onto two binding wires;

Step 6: When the finished products reach a certain quantity (e.g., 500 pieces), the binding wires are cut and twisted tight to form bundles for easy handling and shipment.

Machine Parameters

A site of only 2m * 2m is enough for producing double loop wire ties.

Compared with heavy-duty machines, this double loop wire ties machine offers more flexible installation requirements - an area of about 4 square meters is sufficient to accommodate it. Moreover, it combines the advantages of being environmentally friendly, energy-efficient, and low-noise, helping operators save resources to the greatest extent.

FAQ

1.Is the production speed of this machine constant? Can it maintain the same output regardless of the size of the double loop wire ties being produced?

Answer: No, the actual production speed will vary depending on the product size, because larger ties require more time for bending and forming. On the same machine, producing smaller ties such as 4-inch or 6-inch ones will result in a slightly faster speed, while producing larger ties like 18-inch or 19-inch ones will be somewhat slower.

2.Is this machine fully automatic?

Answer: Yes, this machine operates in a fully automatic mode. Only at the collection stage is manual intervention needed - workers cut the iron wires and remove the bundled wire ties. The rest of the process requires almost no worker involvement.

3.Can the wire ties produced by this machine only be used for bundling?

Answer: Yes, these wire ties are primarily designed for bundling purposes and should not be used for load‑bearing or lifting. Their relatively light weight makes them unsuitable for supporting heavy loads, and using them improperly could pose risks.

Industry outlook - an economical, practical, and safe double loop wire ties machine that gives you peace of mind.

Double loop wire ties are one of the most commonly used tying tools on construction sites. During construction, rebar is laid in a crisscross pattern, and double loop wire ties are used at the intersection points of the rebar to secure them in place. After being tied, the rebar structure becomes more stable and less likely to shift, providing the proper conditions for pouring concrete. Each tie has a pre-formed loop at both ends, which can be folded into a "U" shape around the rebar. The worker uses a tying tool about 30 cm long, hooks it through the two aligned loops, and quickly twists the tie tight. The entire installation process takes only a few seconds to around ten seconds.

Due to their excellent installation flexibility and outstanding tying performance, double loop wire ties are also widely used for bundling and reinforcing wire mesh, sandbags, temporary fencing, and coiled tube materials. Currently, the most commonly available types on the market are made of black annealed wire, galvanized wire, and 16-gauge steel wire. In addition, our machine also supports processing of other materials such as copper wire, plastic-coated wire, and PVC-coated iron wire.

Applications of Double Loop Wire Ties

Before purchasing a double loop wire ties machine, many business owners may have concerns like these - the market demand for double loop wire ties is indeed large, but the unit price is very low. A single tie costs only 3-4 cents, and with bulk purchases the price can even drop to 2 cents. "I don't want to spend that much money on a large machine – what if I end up losing money?" Or perhaps your factory already has many large pieces of equipment, and you are only buying this machine to expand your product line, without making double loop wire ties your main business. In either case, this double loop wire ties machine from MeiRun would be your best choice. We guarantee:

●The price of this machine is absolutely affordable. We ship directly from the source factory, with no extra middleman costs. For the same price, MeiRun offers you the best quality machine.

●This machine is 100% practical. From presetting production parameters to finished output, the operation is easy to learn. With a machine length of about 1.5 m and width of about 1 m, only a small workspace is needed to keep it running.

●This machine is very safe. Thanks to technical improvements, key molds and electrical components are enclosed by a metal dust cover, so workers do not come into contact with any live parts during operation, effectively preventing accidents.

MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best‑selling stores for wire mesh machinery, with a 100% on‑time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
