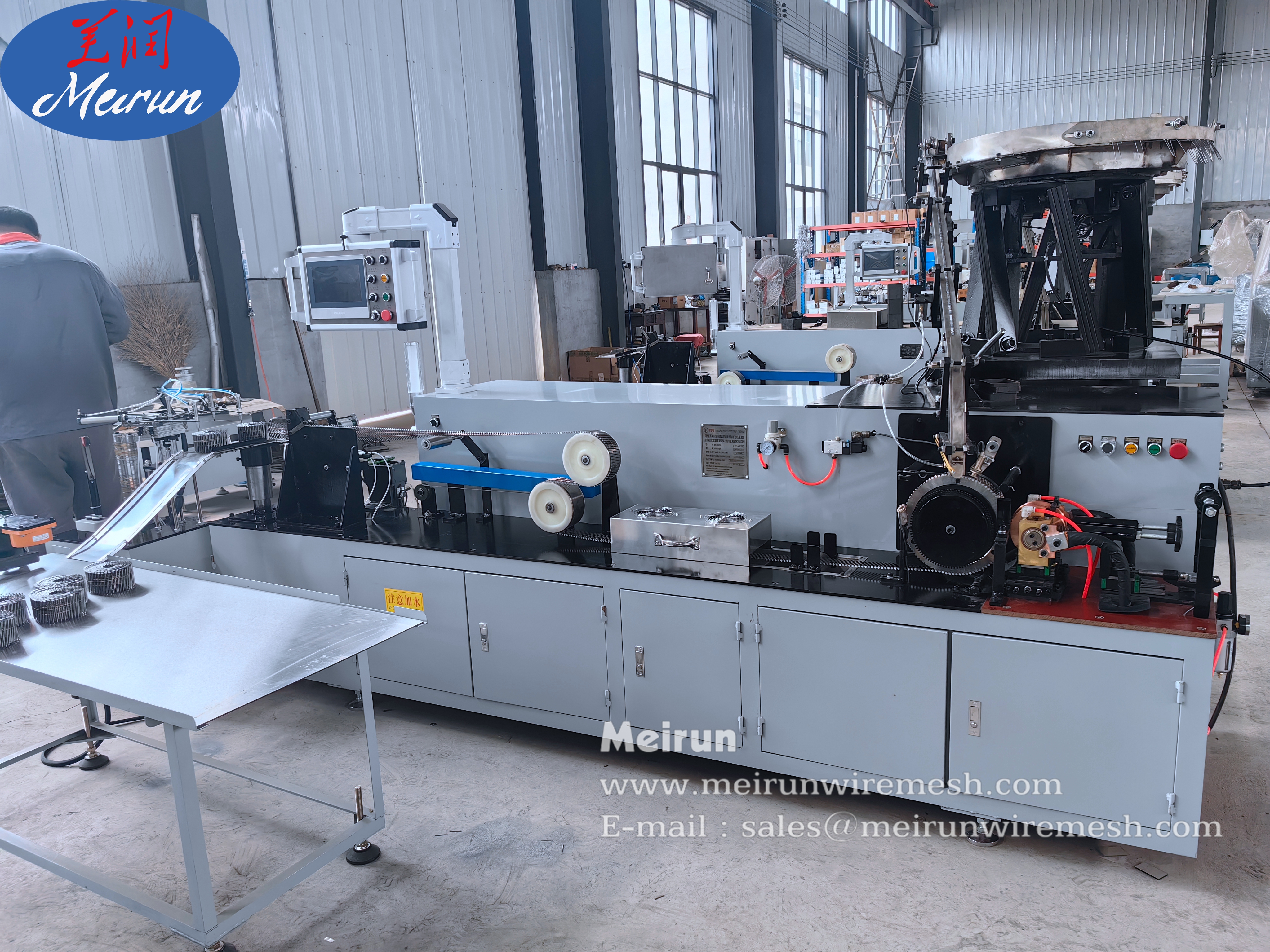

Nail Coils Rolling Making Machine
Fully-automatic pallet coil nail making machine is used for make all size of coil nails and coil roofing nails which widely used for pallet,roofing,construction,etc.
Mainly Features:
1) Simple structure in linear type ,easy in installation and maintain.
2) High working speed, long life using.
3) Touch screen on Coil Nail Making Machine, easy to change the quantity of each coil.
4) Running in a high automatization and intellectualization,no pollution
5) Setting rubber bands automatically
Machine specification
Machine model | MR-100 |
Length | 25-100mm(Normal type ) |
Wire diameter | 1.8-4.5mm |
Welding speed | 3300pieces |
Power | 20 KW |
Warranty period | Two years |
Speed (Output is adjustable,length is long ,the output is low. Length is short , the output is fast .) | Length is 50mm ,per minute output is 2300pieces Length is 25-38mm,per minute output is 3000pieces |
Length is 45mm, per minute output is 2500 pieces | |
Fob price (Per set ) | 20550USD |
New machine Features and Advantages
1.The nail is automatically formed and fitted with a rubber band . Automatically pull out the finished product and push into product flat . The process of removing rubber bands by hand . Improve the previous model must have manual timely catch finished products , Otherwise will be broken deformation of the actual working situation ,greatly reduce the work intensity of workers and workers technology and proficiency requirements , improve the production efficiency .
2.The improved finished product fits flat . Can store about 60pieces roll nails.
3.New improved welding seat mechanism .
4.The new patent roll nail cutting technology :Reduce the occurrence of waste products
5.Improve automatic operation .
01. The technolgy of high frequency is very mature , it is equiped with the device to make voltage and current stable during working.
02. Touch screen can help workers adjust the datas from the machine fastly. machine with PLC control system and automatic failure stop. Compared with other models in markets it is with high production.
Machine produce line include :
Coil screw host, welding wire frame, vibration plate, vibration plate frame, finished product platform, automatic rubber band mechanism.(With PLC control system,automatic failure stop)
Accessory accessories of nailing machine :
one mould nailing wheel (Size can be customized ) and 94 ,115 counting wheel and Two sets of screw wheel and spare 2 welding wheels , Stanby proximity sensor ,photoelectric switch ,relay,circular belt,etc .
