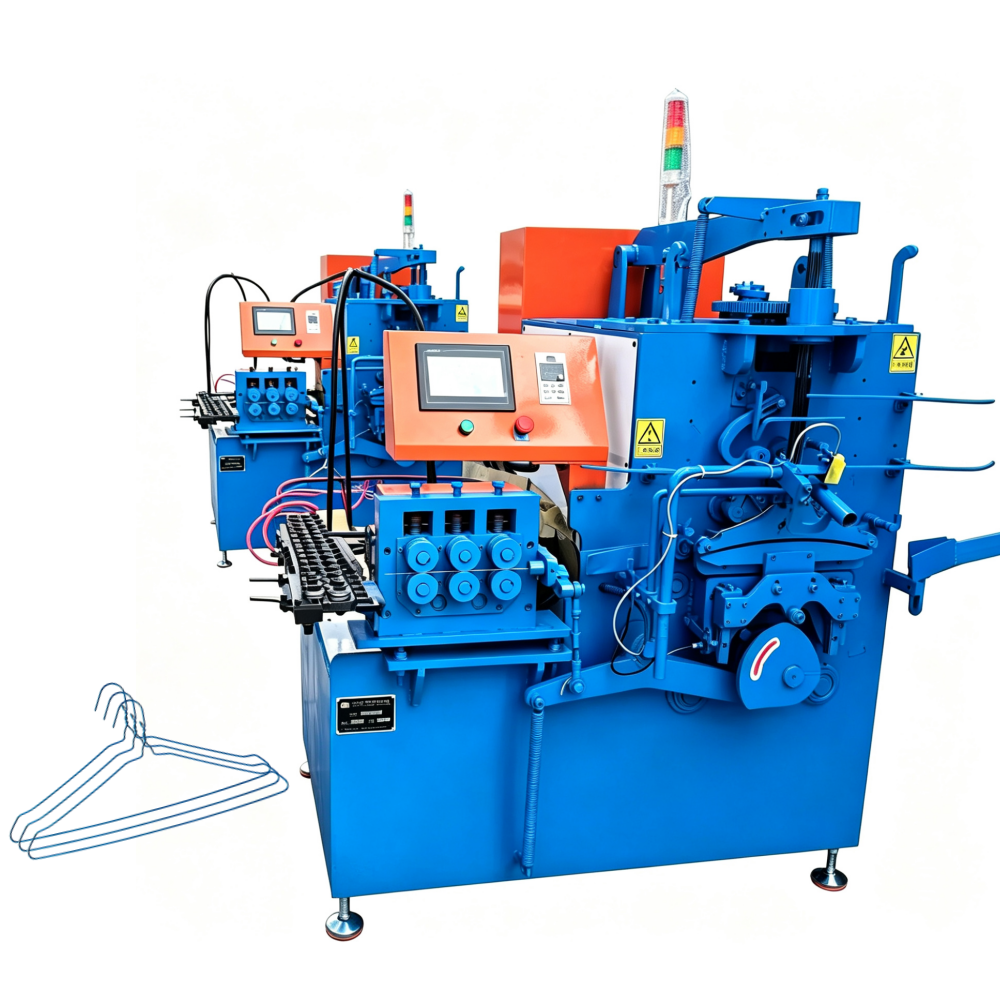

High Speed Clothes Hanger Forming Machine for PVC Coated Wire Suit Hanger with Notches

High Speed Clothes Hanger Forming Machine for PVC Coated Wire Suit Hanger with Notches

A forming machine specifically designed for PVC-coated clothes hangers, offering higher efficiency and greater practicality than standard clothes hanger making machines.

●PLC control system with a highly responsive touch screen for quick parameter setup.

●Molds and accessories are professionally calibrated to handle high-intensity PVC-coated wire processing.

●In-depth customization services available, with multiple clothes hanger specifications to choose from.

Multi-Directional Design for Hanger Making Machines: PVC-Coated Wire Also Needs a Dedicated Machine

PVC-coated wire clothes hangers are one of the best-selling hanger types on the market. They are more durable than ordinary iron wire hangers, offer better load-bearing capacity, and are less likely to deform clothing. The PVC coating also gives the hangers a certain degree of rust resistance. However, it is difficult to find a suitable machine for processing PVC-coated wire hangers. Most standard hanger making machines are designed for galvanized wire, iron wire, and stainless steel wire. PVC-coated wire is thicker in diameter and has greater toughness, so these machines do not process it well.

Recognizing this problem, MeiRun introduced a clothes hanger making machine specifically designed for processing PVC-coated wire. It integrates straightening, cutting, bending, and twisting functions into a single machine, completing the hanger forming process in a very short time. The molds and accessories have also been upgraded to handle PVC-coated metal wire with ease. Moving hanger making machines toward dedicated, application-specific designs is an innovative step taken by MeiRun. MeiRun is committed to being your most reliable industrial partner.

Integrated Design: The Key to Efficient Production with the PVC Coated Wire Clothes Hanger Making Machine

From feeding and straightening to bending, forming, and final hanger collection, all processes are completed by this single machine, significantly reducing labor costs.

Multi-Size Processing

Supports customization of most hanger styles in 14–19 inch sizes.

Simple Operation

Push-button and touch screen operation with an intuitive and easy-to-understand interface.

Customizable Voltage

Supports custom voltages such as 220V, 380V, and 440V, adapting to the power supply requirements of different regions and factories.

Technical Support

Designed and developed in MeiRun's own factory, with related patents obtained.

The straightening wheel section is foldable for easy transport and packaging

Vertical Integrated Design

Abandoning the traditional horizontal machine design, this model adopts an open three-dimensional layout, with all operating interfaces concentrated on the front of the machine. From wire feeding to forming, every step is clear and controllable, making it easy for operators to observe and adjust at any time.

Simple and User-Friendly Control Interface

Most machine functions can be operated through the touch screen panel, including setting the feeding speed, hanger length, and production quantity. The green button below the panel is the power button, and the red knob is the emergency stop button, making operation intuitive and easy.

In addition, the machine features a jog mode to facilitate debugging and equipment calibration.

Multiple Straightening Units

The machine is equipped with multiple sets of straightening wheels to fully straighten and stretch the PVC-coated wire, ensuring that the finished clothes hangers are both visually appealing and meet quality standards.

Convenient Collection Design

The discharge outlet is not equipped with a hopper. Instead, collection rods are used to gather the finished products. After each clothes hanger is completed, it slides down along the metal rods and stacks neatly in one place. Combined with the machine's built-in counting function, production can be set to fixed quantities such as 100, 200, or 500 pieces. Workers can then take the hangers directly from the collection rods for packing and shipping, making the entire process more efficient.

Customization Services for Multiple Specifications and Shapes

The hook bending curvature, shoulder shape (grooved or flat shoulder design), and crossbar length can all be customized on request.

Rapid Setup of Industrial Production Lines

In addition to clothes hanger making machines, MeiRun also offers supporting products such as PVC plastic-coated wire machines and PVC hanger spraying machines. If you need multiple machines to set up a PVC-coated wire clothes hanger production line, MeiRun can meet your needs to the greatest extent and provide a tailor-made production solution for you.

Transportation and Installation Support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional packaging and shipping experience, and can provide you with export documents and relevant customs clearance certificates. Before shipment, we conduct full machine testing and performance checks to ensure the machine operates properly. Upon arrival, you can install the machine through remote guidance and instruction manuals, and we also support sending engineers to the site for installation, operation, and training.

Machine parameters

Come to MeiRun and Find the Hanger Making Machine You Truly Need

High-speed models, standard models, and even manual hanger making machines. Machines dedicated to iron wire and stainless steel wire clothes hangers,machines dedicated to PVC-coated wire hangers, and customized hanger making machines... At MeiRun, you can always find the machine that truly meets your needs.

PVC-Coated Wire Clothes Hanger Processing Flow:

Step 1: Install the PVC-coated wire onto the pay-off reel. Once the machine is started, it automatically draws the raw material.

Step 2: The PVC-coated wire passes through multiple straightening stages.

Step 3: After the wire is cut to a preset length, the machine bends the PVC-coated wire using molds.

Step 4: Two small rollers above the mold press a specific shape into the shoulder of the clothes hanger.

Step 5: A synchronized twisting bar secures both ends of the PVC-coated wire and twists them into a braided shape to form the hook.

Step 6: The finished clothes hangers slide down along the collection rods and stack neatly in one place.

FAQ (Frequently Asked Questions)

1. Is this clothes hanger making machine a high-speed model or a standard model?

A：The new PVC-coated wire clothes hanger making machines are all high-speed models by default, upgraded with a PLC control system and touch screen panel. Only a small stock of standard hanger making machines remains. If you need a standard model, please consult our staff.

2.What should I do if wire breakage or other faults occur during machine operation?

A: Under normal conditions, the machine will automatically alarm and stop running when the wire breaks. You can also use the emergency stop button to halt the machine, pull out the broken PVC-coated wire, and then restart it. If you encounter a fault that cannot be resolved, please contact our technical team for assistance.

3.Can this clothes hanger making machine only produce one-piece PVC-coated wire hangers?

A: Yes, the hanger making machines in this series are mainly designed for one-piece hangers. In addition, we also offer trouser hanger making machines and clothes hook making machines. The clothes hook making machine is specifically designed for producing hooks used in combination-style hangers. If you are interested, please contact us for more information.

4.Can you send specified clothes hanger samples?

A: Yes. We provide sample delivery services. You can place an order after you are satisfied with the samples.

Choosing a Clothes Hanger Making Machine: Look Beyond the Machine, Look at the Manufacturer

Are you facing any of the following situations?

You want to order a clothes hanger making machine and have already been browsing related models on Made-in-China and Alibaba International. Some are priced at $5,000, some at $8,000, and others at just $3,000. Which one is actually better? With doubts in mind, you look for user reviews, only to find that the number of reviews is zero.

You cannot help but worry whether you are dealing with a distributor or a manufacturer. If you order this machine from overseas, will you receive timely installation guidance and after-sales service? If a machine part breaks, will replacement parts be shipped promptly? If production is delayed by a month or even two, the losses are far from insignificant.

There are many clothes hanger making machine models available on the market. But choosing a hanger making machine is not just about selecting a machine; it is also about choosing a manufacturer. If you choose a manufacturer that integrates industry and trade, technical staff can answer many of your questions during the ordering stage, such as how the machine operates, how to prepare raw materials, and how much space is needed for installation...As an enterprise integrating industry and trade, MeiRun has its own factory and a complete production system. This year, we also obtained patent certification for our clothes hanger making machines. From Egypt and Oman to Yemen and the UAE, MeiRun hanger making machines are well received everywhere.

In addition to a strong product reputation, MeiRun also offers multiple series of hanger making machines, including high-speed models, standard models, and manual models, as well as machines specifically developed for iron wire hangers,stainless steel wire clothes hangers and PVC-coated wire hangers, trouser hanger making machines, clothes hook making machines, and more. Most of these machine specifications can be customized. You have ample choices. If you have any concerns about product specifications, you can request samples first and place your machine order only after confirming everything is correct.

A Selection of MeiRun Products, Including Automatic High-Speed Clothes Hanger Making Machines, Manual Hanger Making Machines, PVC-Coated Wire Hanger Making Machines, and Hanger Spraying Machines

If you would like to learn more about the PVC-coated wire clothes hanger making machine,please feel free to visit our official website and online store.MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best-selling stores for wire mesh machinery, with a 100% on-time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
