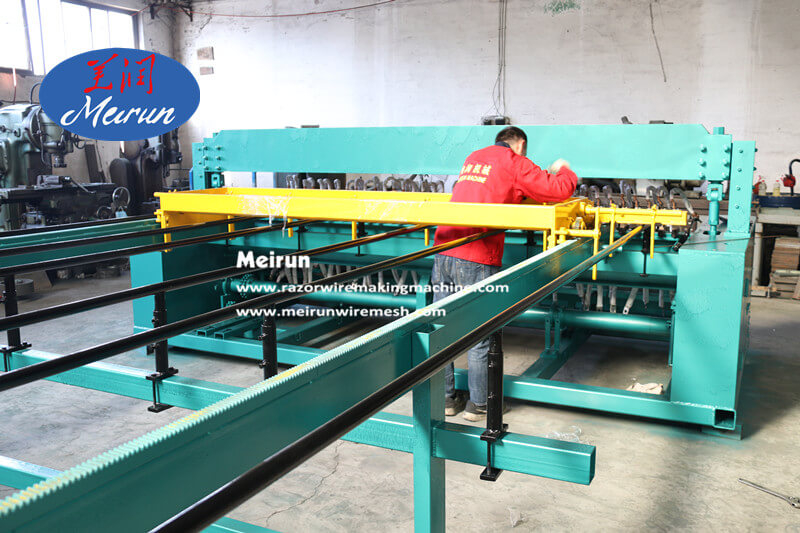

High Security Powder Coated Wire Mesh 358 Anti Climb Fence Malaysia

1. The product model: High Security Powder Coated Wire Mesh 358 Anti Climb Fence Malaysia for protection/Welded wire mesh machine 2. Power system:Electromagnetic brake motor 3. Introduction:This machine mainly for production of anti-climb mesh,high degree of automatic .The anti-climb mainly used in industrial,agricultural,prison,municipal,transportation and other industries for fences,decoration,protection and other facilities.
mesh size:
Dimension:
Voltage:
Power:
weight:
Availability:
Quantity:
  • MR358HJ

  • Meirun

 High Security Powder Coated Wire Mesh 358 Anti Climb Fence Malaysia

1. The product model: High Security Powder Coated Wire Mesh 358 Anti Climb Fence Malaysia High Security Fence  for protection/Welded wire mesh machine
2. Power
system:Electromagnetic brake motor

3. Introduction:This machine mainly for production of anti-climb mesh,high degree of automatic .The anti-climb mainly used in industrial,agricultural,prison,municipal,transportation and other industries for fences,decoration,protection and other facilities.

358首图

Specification

 High Security Powder Coated Wire Mesh 358 Anti Climb Fence Malaysia also called security fence machine,it is used to mae fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.

New Technologies

Air cylinders&pneumatic parts,machine working more stable;we are the unique manufacturer of this machine in China.

Feeding Systerm

The longitude wires and cross wires should be pre-straightened and pre-cut.

 ♦The longitude wires are inserted into the slot tunnels manually.

 ♦The cross wire are put into the cross wire feeder, which is controlled by step motor&Japan air cylinders,automatic falling.

Mesh Pulling System

The guide adopts linear rails,used with famous brand servo control together,whichh greatly improves accuracy of mesh.

Model
MW - 358
Width
1m-3.2m
Wire diameter
3mm-4mm
Mesh size
75.6 mm x 12.7 mm
Length
2000mm -4000mm
Dimension
7300mm x 3500mm x 1600mm
Capacity
40-55 times /min
Voltage
380V 50HZ
Power
5KW
Weight
4--5.5T
Drive type
PLC
Corollary equipment
Straightening Machines x2



358网片产品图片



Part of machine


 Welding electrodes is from upper 20mm pure cooper.

 Main motor connect axis by double chains,enough transmission torque

 Eigh-grade regulation-changed transformers,high efficiency.

 Duplex pull rod and Mechanical hook for mesh pulling,machine.Machine working more stable

Wire Feeding Way

 The longitude wires is feeding from wire coils automatically.

  The Cross wire is feeding from hopper (step motor)

 Auxiliary Equipment

  Wire straightening and cutting machine  1 set.

  Overall size: 4.2m x 0.5m x 0.9m

  Weight: 280kg

  Straight motor:2.2kw,  Cut motor:1.5kw.

  Speed: 30m/minutes.

  Cut length: 100mm-3000mm.

  Wire diameter: 3mm-6mm.

358 机器部分图片123323


Characteristics of the Anti Climb 358 Security Wire Mesh Fence for Airport:
Flat surface
Uniform mesh hole
No burn marks
High precision
Anti-climb
Beautiful appearance

358 机器部分图片111

Packing & Delivery

358装箱图片
