High Production Efficiency Straightening And Cutting Machine for Precision Wire Processing

High Production Efficiency Straightening and Cutting Machine for Precision Wire Processing

A standalone wire straightening unit, suitable for industrial production lines requiring batch processing of wire materials.

●Compact size, easy installation, with a machine weight of under 300 kg.

●Supports processing of stainless steel wire, aluminum wire, cold drawn wire, plastic-coated wire, and more.

●Available in both conventional and high-speed models.

For wire straightening equipment, Meirun can offer you more options

Straightening and cutting are fundamental steps in industrial wire processing. To meet this need, MeiRun has fitted straightening wheels and cutting units on many small machines, such as hanger making machines. As wire passes through the straightening wheels, it becomes flat and straight. On some special models, the straightening wheels are designed in both horizontal and vertical directions to optimize wire alignment. These practical designs maximize convenience for operators and improve production efficiency. However, if you have large-volume wire processing requirements, the built-in straightening units on these machines may not be able to complete the task quickly and in time. This is where a standalone wire straightening and cutting machine comes in -it can respond quickly to your needs and multiply production speed several times over. The wire straightening and cutting machine from MeiRun supports professional processing of wire diameters ranging from 1.5 mm to 12 mm, and is available in both conventional and high-speed models to choose from, making it your most reliable industrial partner.

Conventional Wire Straightening and Cutting Machine

With 380V/50Hz output, cutting accuracy is within ±1 mm. The machine features a compact structure and is easy to operate.

High-speed Wire Straightening and Cutting Machine

Equipped with a PLC system and touch screen, the processing speed can reach over 100 m/min.

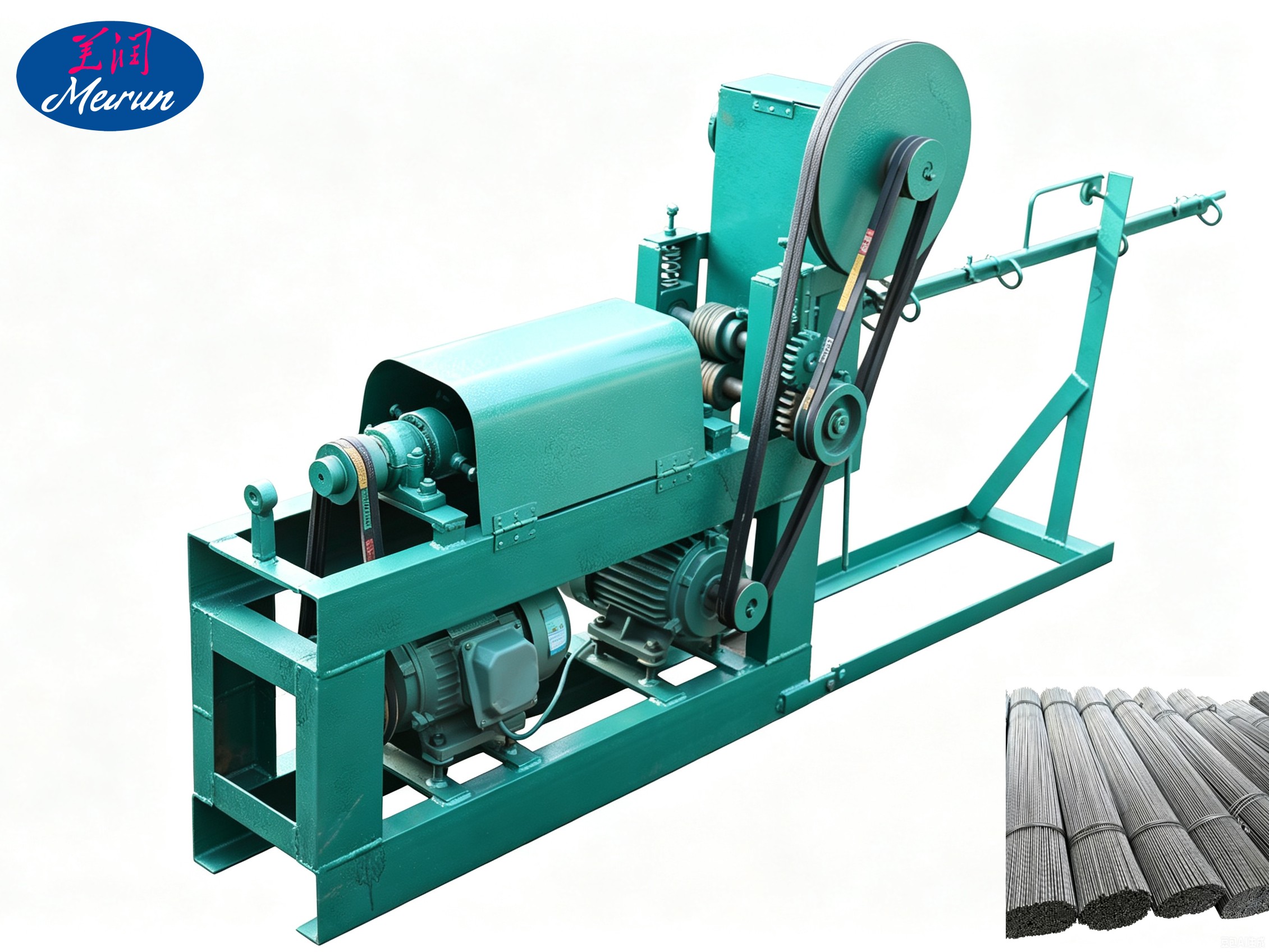

Green-Coated Wire Straightening and Cutting Machine

The entire machine features a green coating, and the LOGO and nameplate can be customized.

Flexible and easy-to-move wire straightening and cutting machine – can be “tucked” into any corner of your factory

With a slim body design and a width of only about 0.6 m, this machine saves valuable floor space for operators. The finished straightened wire can be used in a wide range of applications.

 Wire mesh weaving

Used for making livestock mesh, crimped wire mesh, and certain welded wire meshes

 Hanger manufacturing

For producing integrated hangers made of iron wire, stainless steel wire, or plastic-coated wire

 Precision parts manufacturing

Small-diameter wires can be used to manufacture precision screws, springs, electronic connecting wires, and other components

 Construction

For tension wires in concrete structures and welded brick force mesh used to reinforce load-bearing walls

Compact structure, small footprint

The machine's straightening mechanism, feeding mechanism, cutting mechanism, and motor are all housed in a compact space, with the hopper located on the other side. The entire machine weighs less than 300 kg (except for customized models), making it easy to handle and transport. A workspace of about 2m × 1m is enough to accommodate this wire straightening and cutting machine.

Strong compatibility

Supports processing of stainless steel wire, aluminum wire, cold drawn wire, plastic-coated wire, and more. It can handle solid wire diameters ranging from 1.5 mm to 12 mm. From fine wires used for springs and cables to thicker wires used for nails and steel bars, this machine is up to the task.

Supports customization on demand

Parameters such as wire processing length, speed, machine dimensions, and motor power can all be customized according to your requirements.

Both conventional and high-speed models are available

The high-speed wire straightening and cutting machine is equipped with a PLC control system, a touch screen, and an upgraded counter device. Its output reaches over 100 m/min. Compared with the conventional model, the high-speed model doubles the production capacity and offers a longer service life.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Machine Parameters

High-efficiency straightening, precision cutting – a compact machine that solves it all!

With a bulky frame set aside, the new MeiRun wire straightening and cutting machine measures only 1.7m × 0.5m × 1.1m, and offers a range of straightening, collection, and alignment solutions to fit your needs and budget.

FAQ

1.Can this machine be used to cut metal mesh panels or rolls?

Answer: No, this machine is specifically designed for processing solid wire. The width of mesh panels or rolls cannot pass through the feeding inlet. If you have special cutting requirements, we recommend consulting our staff – we will be happy to recommend a suitable machine or find the best solution for you.

2.Does this machine come standard with two motors?

Answer: Yes. The machine is equipped with two motors – one powers the straightening unit, and the other powers the cutting unit. Their power ratings are different. For example, on the MRTZJ-3.5 model, the two motors are 1.5 kW and 0.75 kW.

3.If I purchase a wire straightening and cutting machine, how should I maintain it on a daily basis? Is maintenance difficult?

Answer: Daily maintenance for this machine mainly involves oiling and dust removal, and the procedures are very simple. You can request operation tutorial videos or instruction manuals from our staff to learn more about machine care and maintenance.

Installation and commissioning steps for the wire straightening and cutting machine

1.Upon receiving the machine, place the main unit on a flat floor and check for any visible damage and ensure all accessories in the box are complete. Once confirmed, turn on the power to the motor switch.

2.Toggle the switch handle and observe the rotation direction of the feed wheel. If the direction is incorrect, change the motor's power supply connection.

3.Following the product installation video or instruction manual, apply oil to the key gears and rotating parts.

4.Before starting the machine, lower the protective cover and check for any electrical leakage at the motor connections. The main unit must be properly grounded in advance.

5.Run the machine idle for 2–3 minutes, then thread the metal wire into the high-speed rotor, press the wire with the feed wheel, and then pass it through the cross-cutting die hole.

6.Adjust the angle of the adjusting die inside the high-speed rotor until the wire comes out straight, and then the machine is ready for normal production.

Daily maintenance of the wire straightening and cutting machine mainly involves oiling and dust removal. Oiling is primarily for lubrication, while dust removal is to prevent dust buildup from causing machine jams. The wire straightening and cutting machine produced by MeiRun features a closed design that conceals key components inside a metal enclosure, which not only protects against dust but also ensures operational safety by preventing accidental worker contact and injury. Both the traction and straightening drive units are designed with adjustable structures, greatly improving operational flexibility.

If you would like to learn more about the wire straightening and cutting machine, please feel free to visit our official website and online store.MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best-selling stores for wire mesh machinery, with a 100% on-time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
