High-Performance Barbed Wire Fence-Positive And Negative Barbed Wire Making Machine

High-Performance Barbed Wire Fence-Positive And Negative Barbed Wire Making Machine

The most cost-effective barbed wire production machine,a top-choice product that is easy to maintain and built to last.

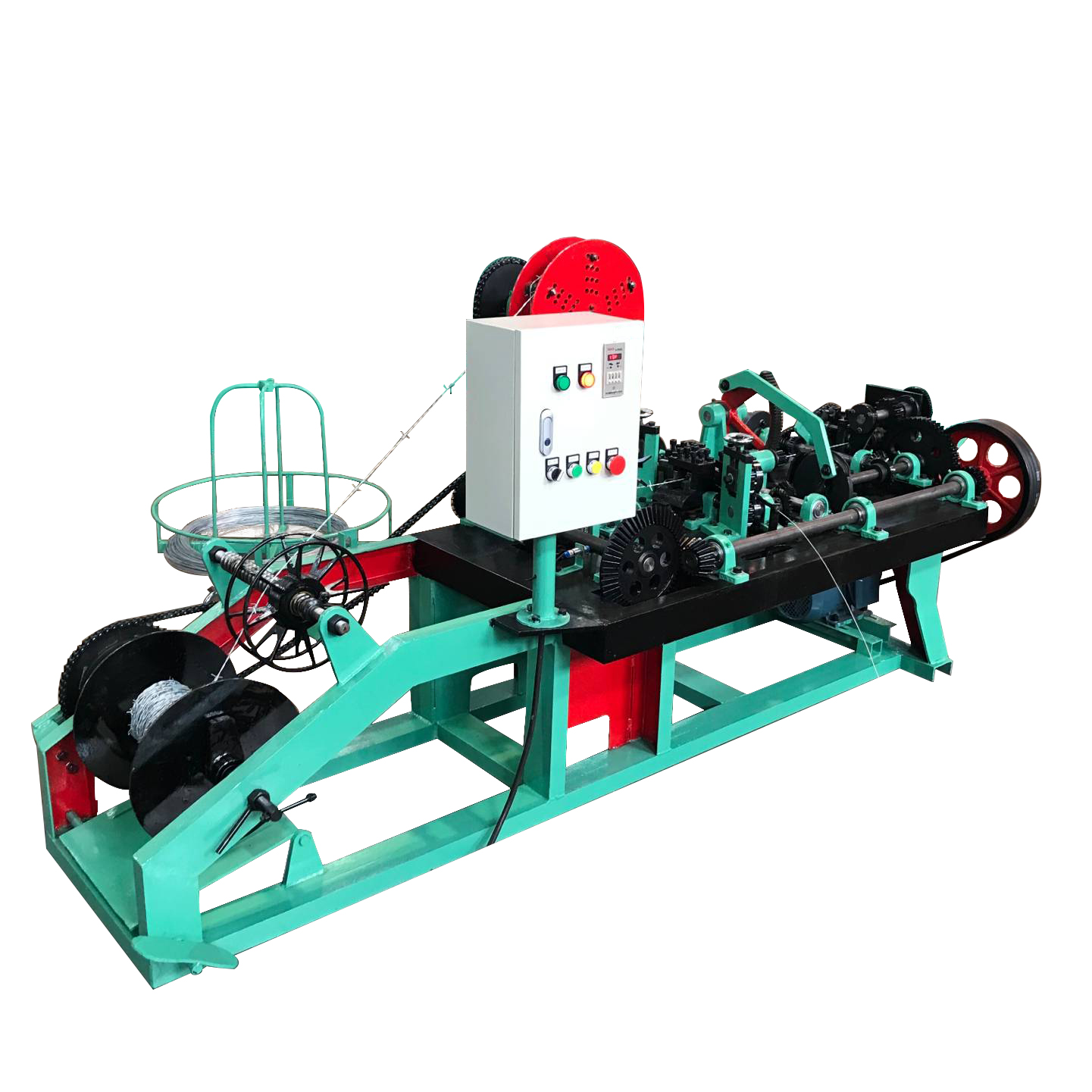

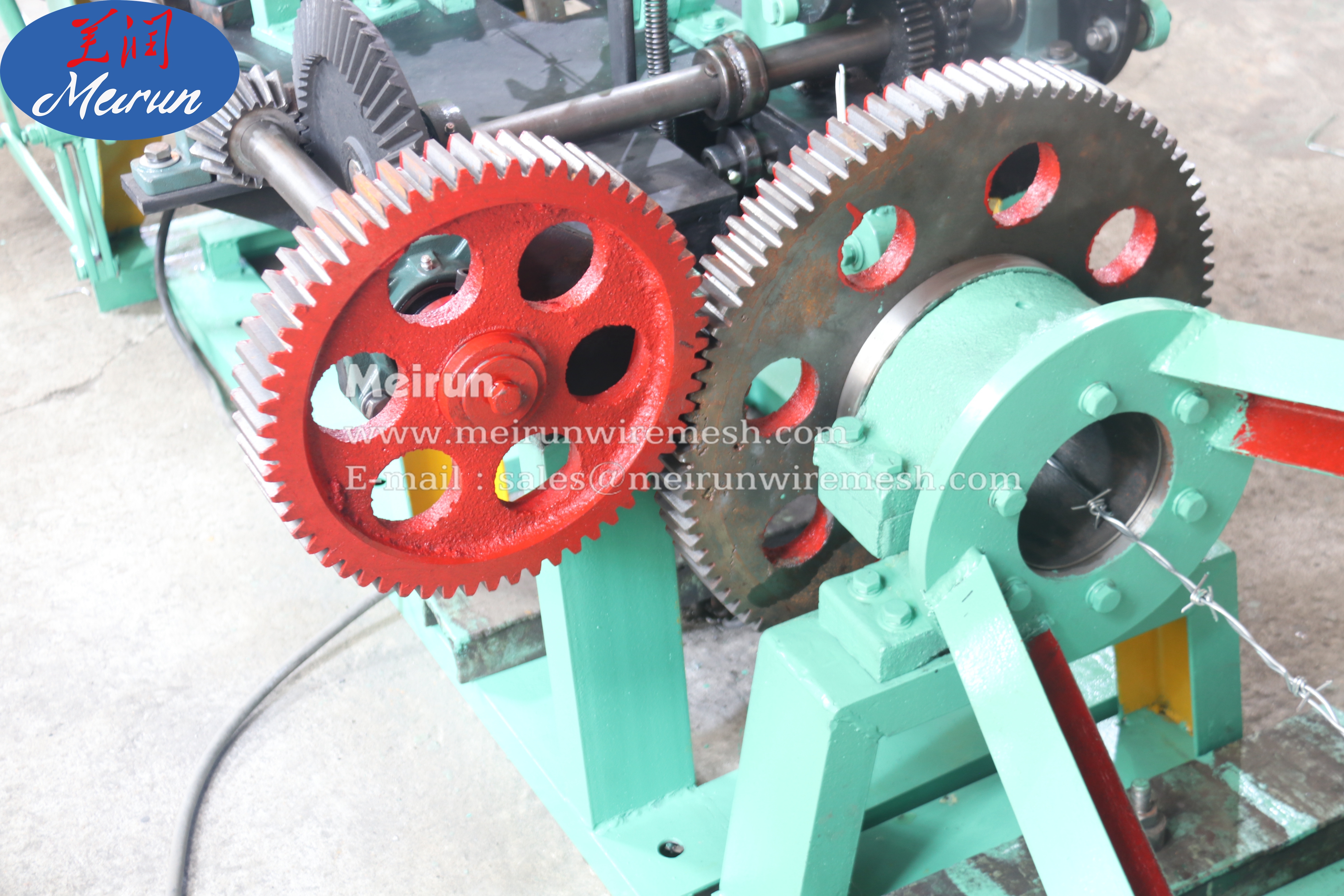

●Horizontal design with a compact structure. The gears and transmission units are clearly visible, making it easy for workers to monitor the machine's operating status.

●Automatically performs wire feeding, barbing, cutting, and spool winding without manual assistance, with a production capacity of over 70 kg/h.

● Supports processing of CS-A, CS-B, CS-C models, as well as custom barbed wire styles upon request.

With the same price, we bring you the best quality machine; with the same machine, we offer you the most satisfactory quotation.

As a self-operated enterprise integrating industry and trade, Meirun leverages the advantages of local industrial clusters to build a parts supply chain with convenient delivery and excellent quality control, thus keeping product prices to a minimum. For the same machine, the quotation we offer is typically 10% to 15% lower than that of other manufacturers. In addition, we provide comprehensive on-demand customization services to adapt to the production conditions in your region and factory. If you need to set up a complete barbed wire production line, Meirun can provide all the necessary support – including product selection, installation advice, sample mailing, and more – to ensure a smooth start to your production.

An economical, practical, and high-performance barbed wire making machine – a popular model selling well both at home and abroad.

Strong compatibility

Supports processing of various materials, including galvanized wire, stainless steel wire, low-carbon steel wire, PVC-coated steel wire, and aluminum wire.

Customized on demand

Barb spacing, wire diameter, and twist material can be adjusted according to customer requirements to ensure the product meets the required specifications.

Stable performance

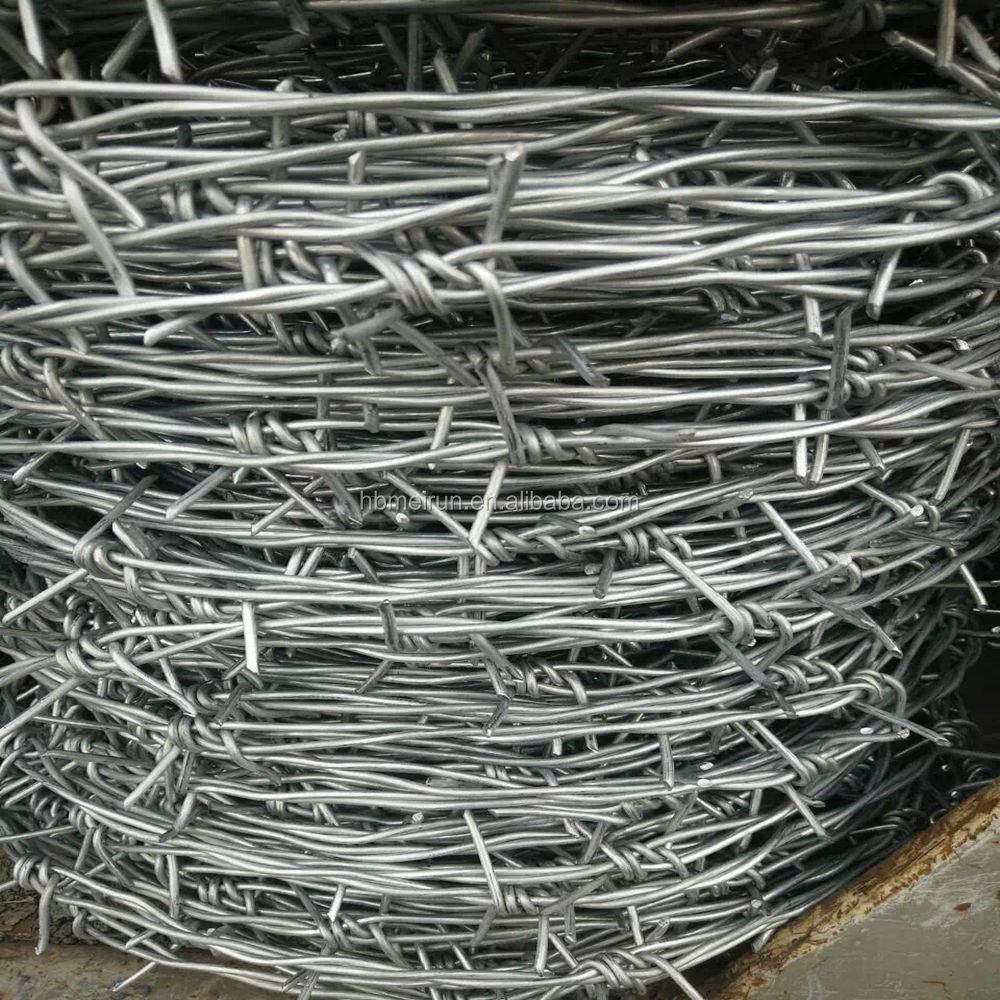

The finished barbed wire features high precision and uniform barb spacing, making it an ideal product for industrial applications.

 Safe and reliable

The drive shaft section is equipped with a protective cover to prevent workers from direct contact with machine components, avoiding production accidents.

Production monitoring function

The control panel displays real-time information on machine speed, production rate, and fault issues, making it easy for workers to monitor the machine's operating status. The machine also features an automatic counting function, which stops production once the preset target is reached.

Easy to maintain

The entire machine is very easy to install and operate. Start-up and standby are both controlled by push buttons, and the modular components come with a quick-access inspection panel for routine maintenance and parts replacement, reducing downtime and extending service life.

Flexible customization service

In addition to standard CS-A, CS-B, and CS-C barbed wire models, this machine can also produce custom barbed wire styles as specified by you. Please send us the corresponding product drawings or parameters when making an inquiry, and we will provide you with a flexible customization solution. Meanwhile, the wire diameter, material, and barb spacing can all be adjusted through molds and accessories.

Fully automated operation

The machine operates with a high degree of automation throughout the entire production process, including wire feeding, winding, barb cutting and twisting, and finally spool coiling – all without manual intervention. Workers are only required to monitor the operation nearby, stop the machine when the spool reaches the target weight, replace it with an empty one, and restart the machine.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

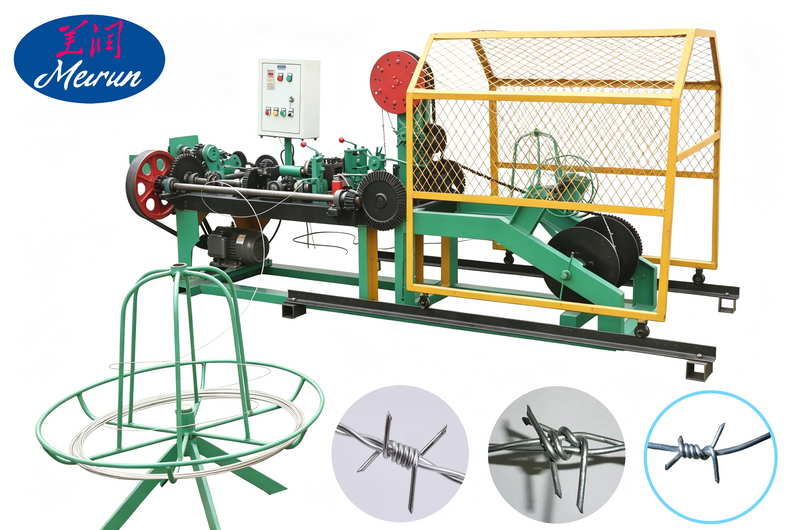

Machine detail display

Machine Parameters

Double strand barbed wire production process:

Step 1: Wire feeding. The two main core wires enter through the feeding inlet to start the production process.

Step 2: The single wire that will form the barbs enters the machine from the side.

Step 3: The built-in cutting unit cuts the barb wire evenly, twists it into the required shape, and secures it between the two core wires.

Step 4: The core wires are tightly twisted together to form the finished strand.

Step 5: The finished barbed wire passes through the gearing unit and is delivered onto the spool.

Step 6: When the spool is full, workers replace it and restart the machine to begin the next production cycle.

FAQ

1.Is the installation and commissioning process of this machine complicated? Does it require professional training to operate?

Answer: No, it doesn't. The machine only requires simple adjustments before it can be put into production. The installation process is also relatively straightforward - you can follow the detailed videos and instruction materials we provide, step by step, to learn how to operate it.

2.If wire breakage occurs during production and the broken wire gets stuck inside the machine parts, is there any danger?

Answer: This machine is equipped with a sensor device. If a wire breaks during production, the sensor will trigger an alarm and stop the machine. Workers can simply remove the broken wire and restart the machine - there is no need to worry about any danger.

3.Can this machine produce IOWA barbed wire or GLIDDEN barbed wire?

Answer: Yes, it can. You will need to let us know the barbed wire style and relevant specifications in advance, so our engineers can make the necessary adjustments to the machine.

Barbed wire fences have a firm structure and high tensile strength, making them an ideal protective material for borderlines, highways, railways, and security projects on farms and ranches. They share many similarities with razor wire: both can be used outdoors, both serve security purposes, and both have sharp components that deter and intimidate intruders. Many people tend to confuse razor wire with barbed wire. In fact, they differ greatly in manufacturing process, appearance, application, and even target customers. The two cannot be used as substitutes for each other.

First, razor wire. A complete razor wire production line should include a stamping press and a forming machine. The stamping press stamps metal sheets into initial blade shapes, while the forming machine assembles the blades with the core wire. The finished razor wire is typically in coil form, or can be made into fencing through a welding process. The production of barbed wire, on the other hand, is all done in a single forming process and is much simpler. It only uses metal wire as raw material and requires no metal sheets. In terms of price, a razor wire making machine costs about 3 to 4 times more than a barbed wire making machine. However, the selling price of razor wire is also higher than that of ordinary barbed wire.

In terms of applications, razor wire is suitable for higher‑security installations such as military bases, border outposts, prisons, mining areas, and power plants. Barbed wire fencing, on the other hand, is widely used in large open areas like grasslands, pastures, farms, and orchards due to its cost‑effectiveness, and is sometimes also used along railways and highways. The combination of "razor wire coils + barbed wire fencing" offers double the protection and is therefore well received by consumers.

 Are you choosing between a razor wire making machine and a barbed wire making machine, or are you interested in learning more about both? As a professional manufacturer of wire mesh machinery, MeiRun welcomes you to compare and inquire. We guarantee:

 ● Machine prices are absolutely affordable. We ship directly from the source factory, with no extra middleman costs. For the same price, MeiRun offers you the best quality machine.

 ● Machine quality is 100% stable. From preset production parameters to finished output, the operation is easy to learn. The automation level of the entire machine reaches over 90%, effectively saving labor.

 ● The production process is 100% safe. Basic electrical components and easily conductive parts are enclosed with protective covers, reducing the operator's risk of electric shock and effectively preventing production accidents.

 MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best‑selling stores for wire mesh machinery, with a 100% on‑time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
