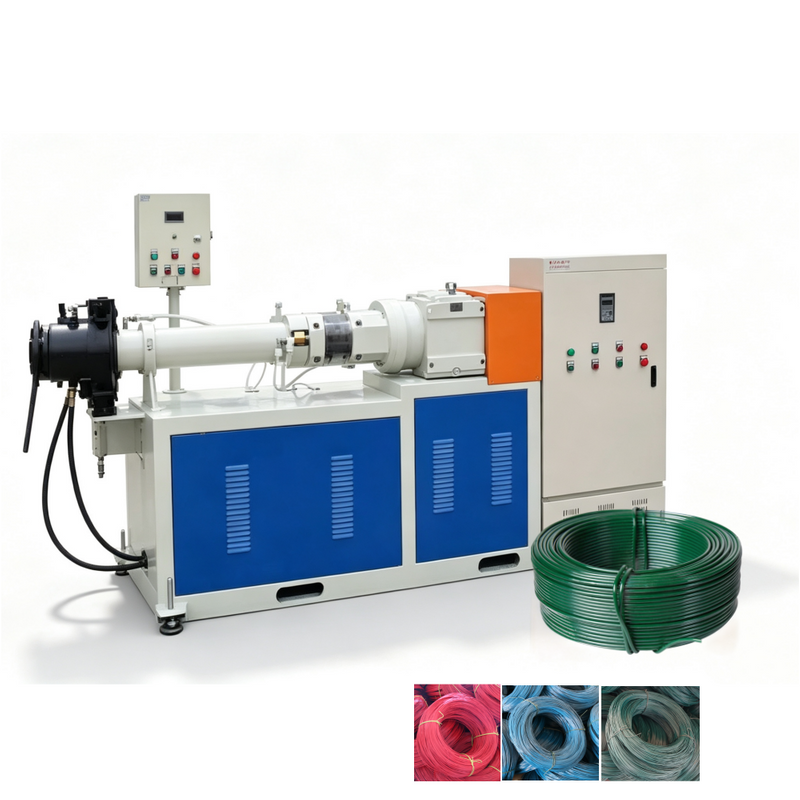

High Efficiency Steel Wire PVC Coating Machine with Coil Winder

High Efficiency Steel Wire PVC Coating Machine with Coil Winder

Applies a durable PVC coating to metal wire, enhancing corrosion and rust resistance.

● Suitable for processing metal wire with a diameter range of 1.0-4.0 mm.

●An ideal partner for PVC clothes hanger forming machines, enabling batch production of hanger raw materials.

●Fully automatic operation with precise PLC control. Hourly output exceeds 300 kg.

The Ideal Partner for Clothes Hanger Making Machines: PVC Wire Coating Machine

Efficiently processes PVC-coated wire, supplying raw materials in bulk for the production of PVC-coated clothes hangers. Simply pair it with a clothes hanger forming machine to create a continuous hanger production line.

Strong compatibility

Supports processing of various plastic pellets including PVC, PA, ABS, and PP.

Single-screw structure

Classic design for easier maintenance.

Precise temperature control

Adopts a multi-stage independent heating and cooling system.

Uniform coating

Ensures consistent wire quality.

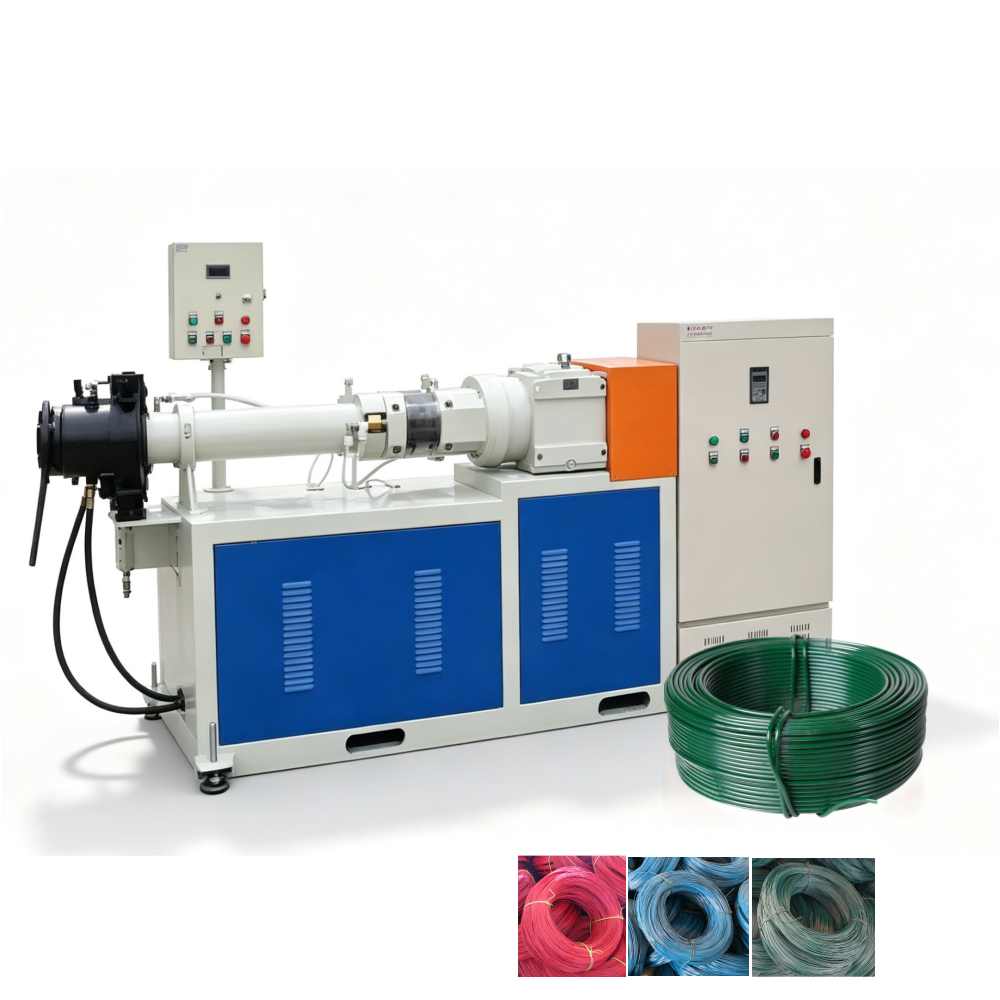

The PVC wire coating machine, also known as a PVC plastic extruder, is an integrated piece of equipment composed of a series of modules including the main unit, vacuum device, water tank, haul-off, and winder. This equipment is mainly used for processing PVC-coated wire. Through a single-screw extrusion system, heated and melted PVC pellets are uniformly coated onto the surface of iron wire or galvanized wire. After cooling, a tight, smooth plastic insulating protective layer forms on the metal wire surface. The PVC coating enhances the corrosion and rust resistance of the metal wire and gives it a more attractive appearance. The finished product can be used as raw material for making PVC-coated clothes hangers. In addition to PVC, this machine also supports the processing of various plastic pellets such as PA, PE, ABS, and PP, with a production speed of 50-80 m/min.

Excellent Temperature Control and Cooling

The barrel adopts a multi-stage independent heating and cooling system, with the temperature of each zone adjusted separately for precise control of temperature increases and decreases. This preserves the excellent properties of the PVC pellets to the greatest extent and prevents quality issues in the coated wire caused by excessively low or high temperatures.

Simple Operation

The main unit uses push-button controls with an intuitive, easy-to-understand interface. The speeds of the main unit, haul-off, and cutting can be synchronized and linked to improve operating efficiency.

High Safety

Equipped with dual overload protection for melt pressure and temperature. If excessive temperature or material blockage occurs, the machine will automatically alarm and stop running to avoid production risks.

Flexible Adjustment Capability

The machine is equipped with a gear pump that accurately controls plastic extrusion pressure and coating thickness. Before shipment, technicians will pre-adjust components such as the haul-off shaft according to the characteristics of PVC plastic to ensure smooth machine operation and long-term continuous production. The finished PVC-coated wire has good toughness, is not prone to cracking, and features bright, vivid colors, making it a high-quality material for hanger production.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Rapid Setup of Industrial Production Line

In addition to the PVC wire coating machine, MeiRun also offers supporting products such as clothes hanger forming machines and clothes hanger powder coating machines.If you need multiple machines to set up a PVC-coated wire clothes hanger production line, MeiRun can meet your needs to the greatest extent and provide a tailor-made production solution for you.

Machine Parameters

Come to MeiRun and Find the Clothes Hanger Processing Equipment You Truly Need

Behind the creation of a single clothes hanger lies the effort of an entire industrial production line. MeiRun has developed different product series based on hanger categories. Clothes hanger forming machines, clothes hanger powder coating machines, PVC wire coating machines... and even wire galvanizing equipment. At MeiRun, you can always find the machine that truly meets your needs.

PVC Wire Coating Process:

Step 1: Feeding. The metal wire on the pay-off reel enters the production line at a constant speed through the haul-off device.

Step 2: Pretreatment. The machine performs necessary straightening and cleaning on the metal wire to ensure the wire surface is free of stains and impurities, so it does not affect the coating process.

Step 3: Feeding and Plasticizing. The operator adds an adequate amount of PVC pellets into the hopper. The screw rotates continuously, pushing the PVC pellets into the barrel. The barrel gradually heats up according to preset parameters, melting the plastic pellets inside and turning them into a softened melt.

Step 4: Coating. The metal wire passes through the center hole of the die head. The melted PVC is extruded from the gaps around the die head and evenly coats the surface of the metal wire, forming a plastic protective layer.

Step 5: Cooling. The coated PVC wire enters the water tank and is cooled in the water flow.

Step 6: Winding. The cooled PVC wire is pulled out by the haul-off machine, cut to a fixed length, and wound into coils.

FAQ（Frequently Asked Questions）

1.Does this machine have a counting function? Can it measure the length of PVC-coated wire produced in each run?

A: Yes, this machine is equipped with an automatic meter counter. You can use its length measurement function to track the meters of PVC-coated wire produced each time and set a fixed cutting length for winding.

2.Does the die head of the main unit need to be disassembled and cleaned regularly?

A: It is best to disassemble and clean it regularly. When the machine runs continuously over a long period, old PVC melt tends to accumulate in the screw and die head. Repeated heating can cause discoloration and affect the quality of the finished PVC-coated wire. Therefore, we recommend following the product manual or instructional videos to regularly disassemble and clean the die head and remove residual melt.

3.What should I do if the machine gives an alarm during operation?

A: If the alarm is caused by excessive temperature, you can turn on the cooling system or let the machine sit for a while until the temperature drops naturally. If it is caused by material blockage, press the emergency stop button, cut off the power, clear the blocked material from the channel as instructed, and then restart the machine.

4.Do you provide material formulations or related guidance?

A: Yes, we are happy to provide production guidance. If needed, we also offer sample delivery services.

Spray Coating vs. Wire Coating: Two Completely Different PVC Clothes Hanger Production Lines

PVC-Coated Wire Clothes Hangers

 PVC Powder-Coated Clothes Hangers

Although PVC-coated hangers and PVC powder-coated hangers are both commonly referred to as PVC hangers and look similar in appearance, their production processes are completely different. The production process for PVC-coated hangers follows a “coat first, then form” sequence. Using a PVC wire coating machine, plastic pellets are heated and melted into a soft coating material, which is then extruded onto the surface of the metal wire to form a PVC coating. After the wire is processed, it is fed into a clothes hanger making machine. PVC powder-coated hangers, on the other hand, follow a “form first, then coat” sequence. After the hanger is formed, PVC powder is sprayed onto it using a powder coating machine, and then heated and cured in an oven to form a plastic film.

As a result, the wire diameter of PVC-coated wire hangers is noticeably thicker than that of powder-coated hangers, the PVC coating is thicker, and the overall load-bearing capacity is better. However, powder-coated hangers also have their own advantages: they are lighter, lower in cost, and have a shorter production cycle. If you want to produce both types of products, MeiRun can provide the multiple machines needed to set up a production line, along with detailed technical guidance and production solutions.

If you would like to learn more about the PVC wire coating machine,please feel free to visit our official website and online store.MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best-selling stores for wire mesh machinery, with a 100% on-time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
