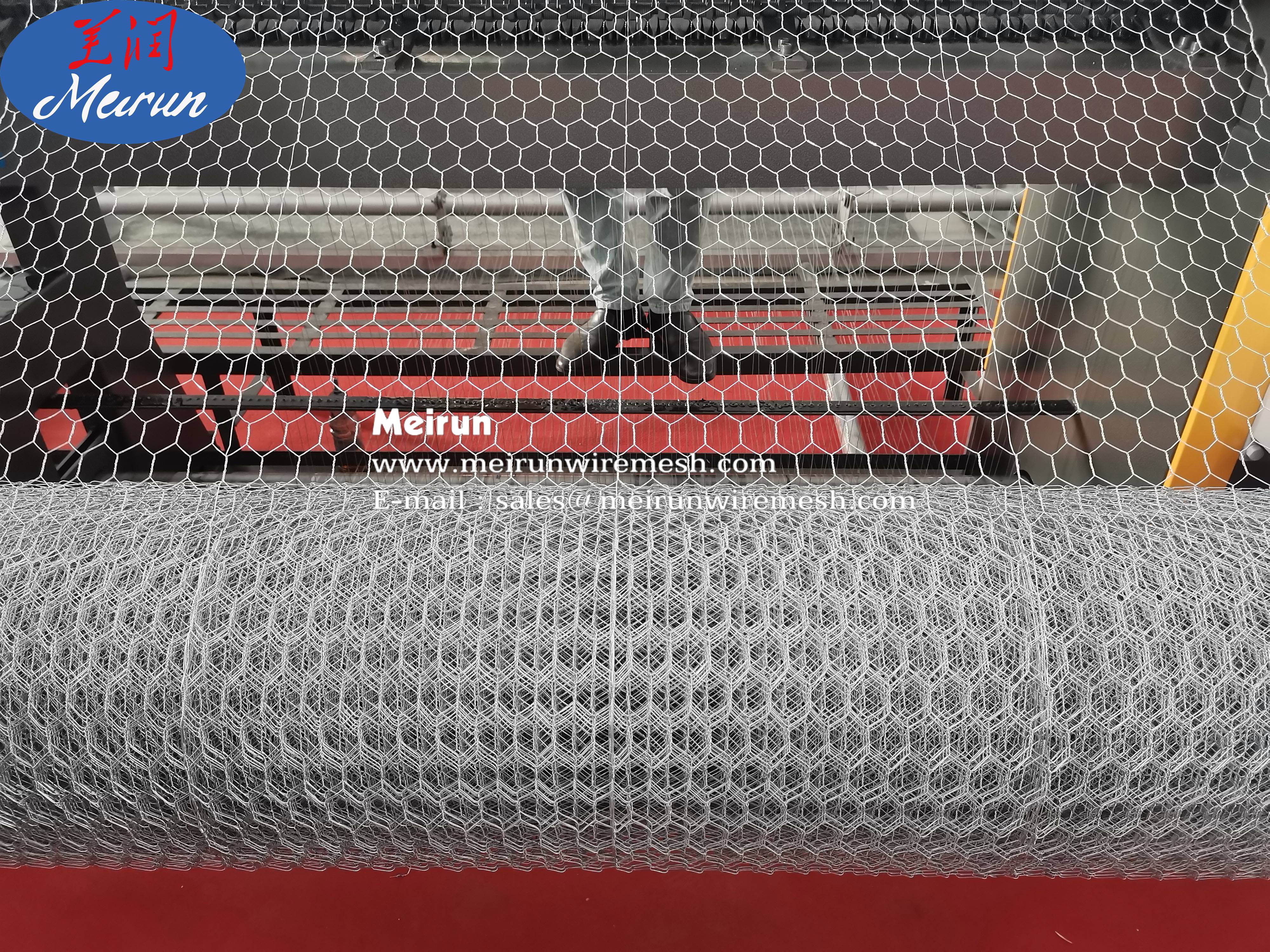

Hexagonal Wire Mesh Making Machine is a special equipment for producing the hexagonal metal mesh, which is designed and produced independently by our own factory, Hebei meirun. It is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noice and high effiency.
Hexagonal Wire Mesh Making Machine
Also known as the big six mesh specifications or hexagonal, stone cage net, by the high quality steel wire netting machine twisted .Our type gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth. A full set of gabion mesh machine include main machine, spring winding machine, mesh coiling machine and wire tension machine.
Specification
Mesh size(mm) | Max width(mm) | Max wire diameter(mm) | Capacity (kw) | Weaving speed (m/hour) | Opening size (mm) | Weight (T) |
60x80 | 2400 | 3.2 | 15 | 165 165 | 5200*1400*2400 | 13.5 |
3300 | 3.2 | 18 | 6200*1400*2400 | 15 | ||
4300 | 3 | 22 | 7200*1400*2400 | 16 | ||
80x100 | 2400 | 3.2 | 15 | 200 200 | 5200*1400*2400 | 13.5 |
3300 | 3.2 | 18 | 6200*1400*2400 | 15 | ||
4300 | 3 | 22 | 7200*1400*2400 | 15.5 | ||
100x120 | 2400 | 3.2 | 15 | 220 | 5200*1400*2400 | 13.5 |
3300 | 2.8 | 18 | 6200*1400*2400 | 16 | ||
4300 | 2.8 | 22 | 7200*1400*2400 | 15.5 | ||
120x150 | 2400 | 3.2 | 15 | 230 | 5200*1400*2400 | 13.5 |
3300 | 2.8 | 18 | 6200*1400*2400 | 15 |
Hexagonal Wire Mesh Making Machine have the following characteristics :
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
5.Good permeation can prevent the damage by hydrostatic.
Our products
Packing
Our company
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
