Hebei Meirun Best Service High Quality CNC Metal Mesh Machine Punching Hole Mesh Metal Sheet Perforating Machine

The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.The machine is automatic and pneumatic and it is very during and stable
Warranty:
Weight:
Voltage:
Thickness:
Width of steel:
Availability:
Quantity:
  • Meirun

CNC Metal Wire Punching Machine

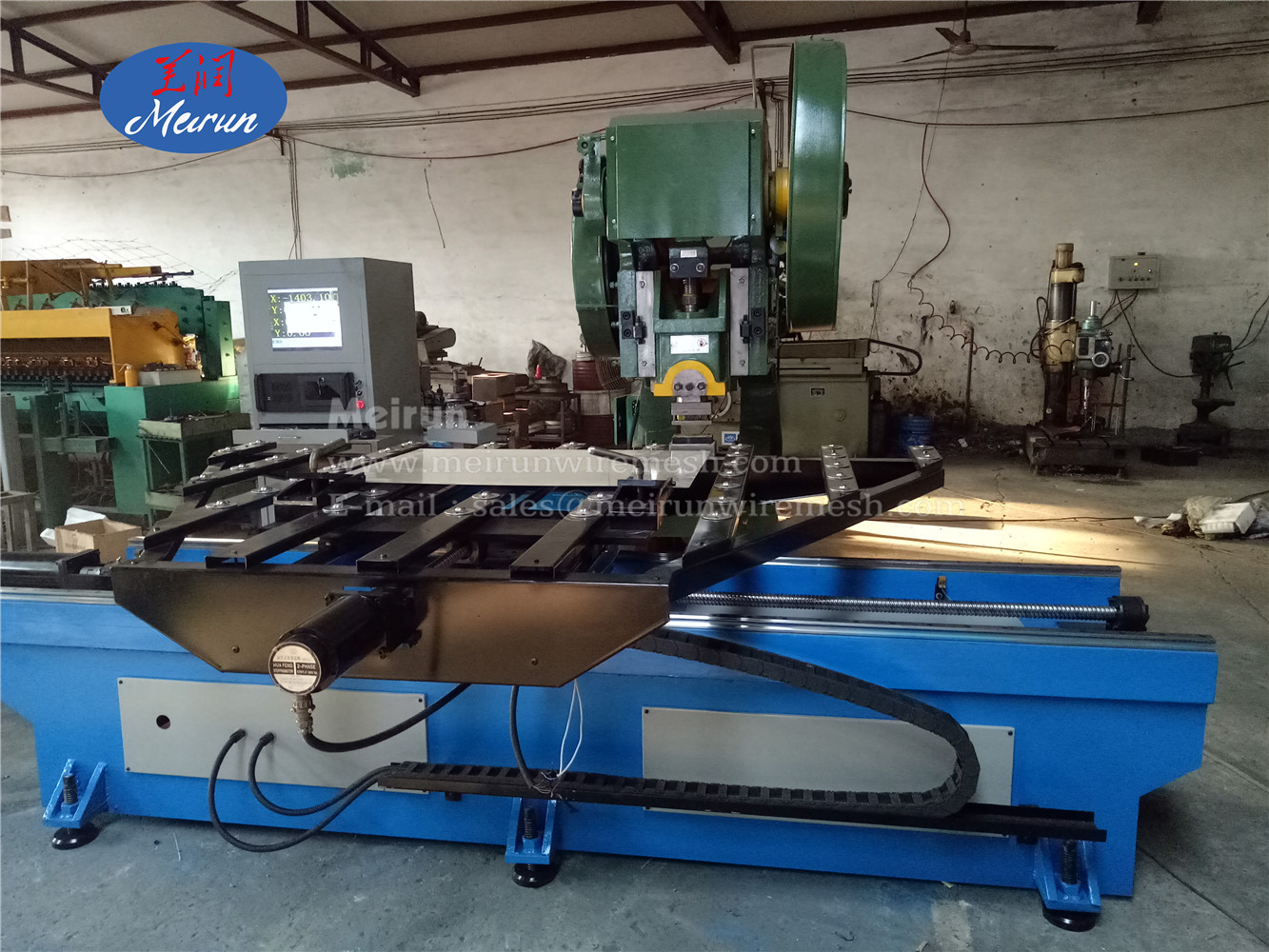

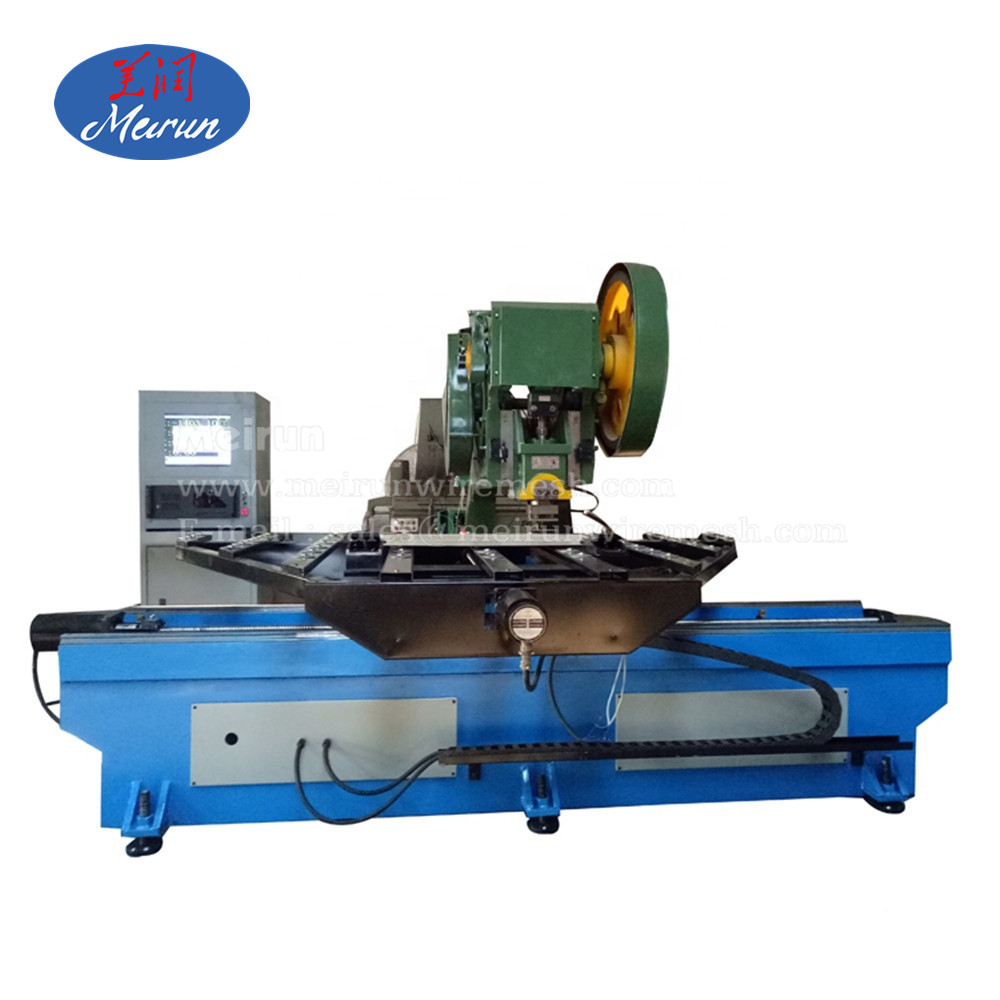

1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .
3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.
5.The machine is automatic and pneumatic and it is very during and stable.
6.It is easy to use, usually 2 men are enough to operate 4 or 6 sets of this type of machine. 7.According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.
8.one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.


012010



012007



012066






012061



012059



4N7@OR2_F97QC)MB%@YUF[N



012072



IMG_1088



Hole Types



冲孔模具花型图案



Specification


Specification CKWJ-25 CKWJ-40 CKWJ-63 CKWJ-80 CKWJ-100
Stamping tonnage 25T 40T 63T 80T 100T
Thickness 0.1mm-2mm 0.5mm-3mm 0.5mm-3mm 0.5mm-10mm 0.5mm-10mm
Width of steel 1250-2500mm 1250-2500mm 1250-2500mm 1250-2500mm 1250-2500mm
Output 85/min 70/min 60/min 45/min 40/min
Voltage 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ
Motor 3kw 4kw 4kw 5kw 7kw
Dimension 3.5*3.5*2m 3.6*3.5*2.1m 3.7*3.5*2.25m 3.8*3.5*2.25m 3.9*3.5*2.3m
Weight 3.5t 4.5t 5.5t 8t 10t



Packing & Delivery


012096



012106


1.The main machine is nude packing or plastic packing.

2.Also can do as customer's request
