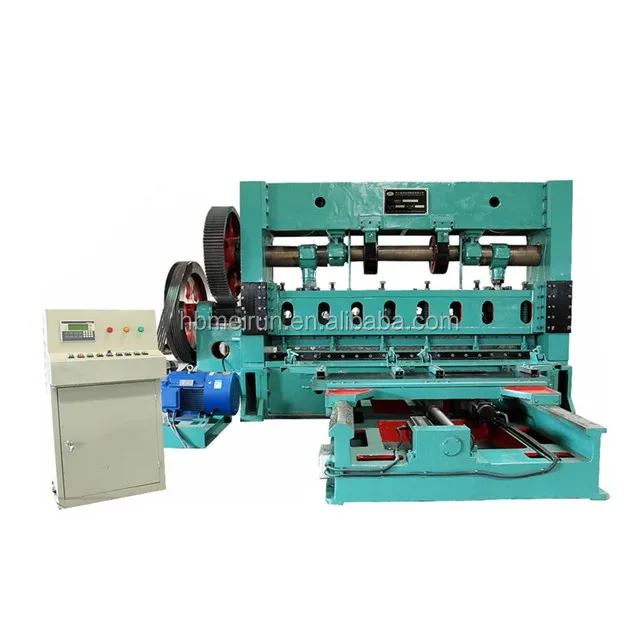

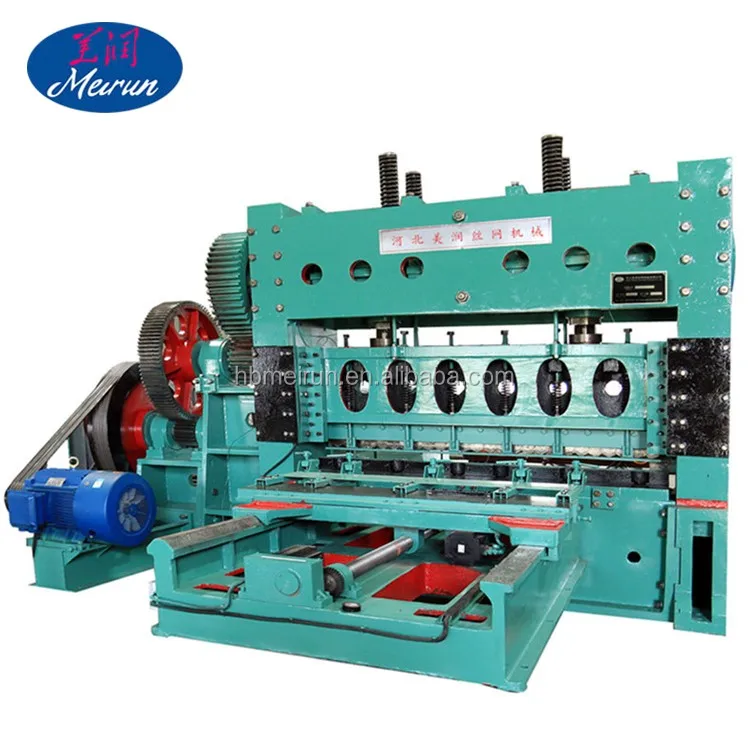

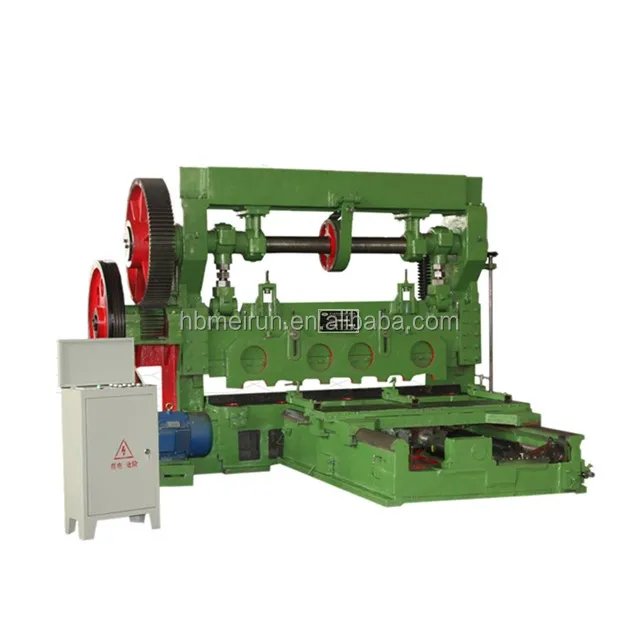

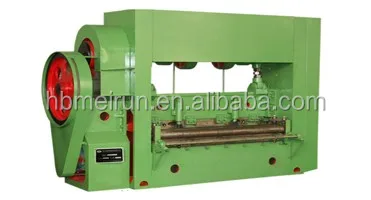

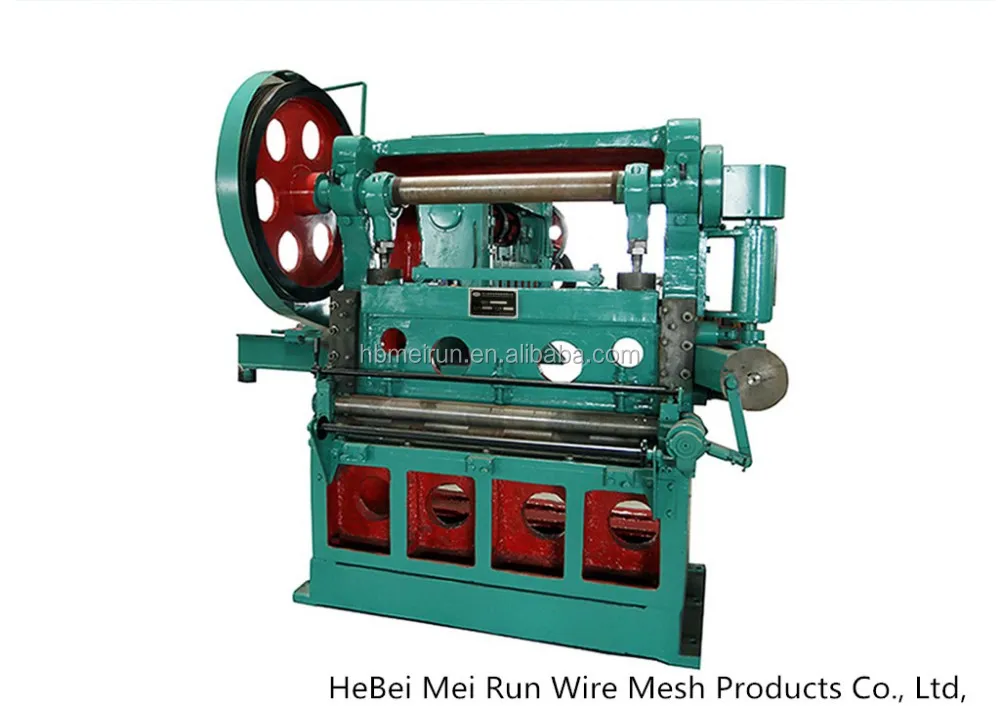

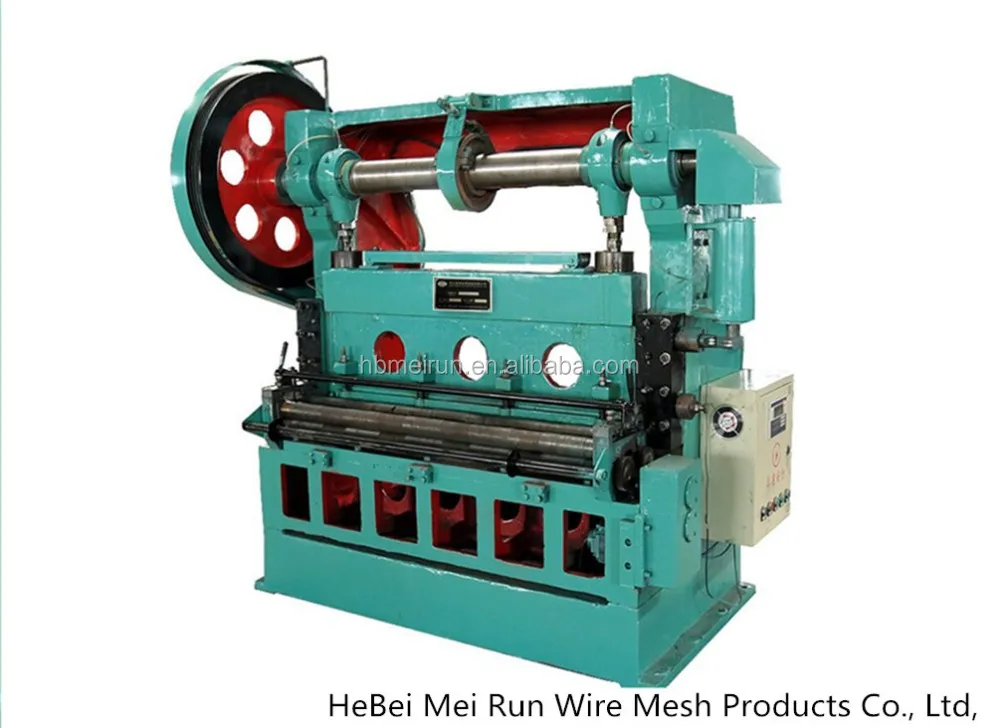

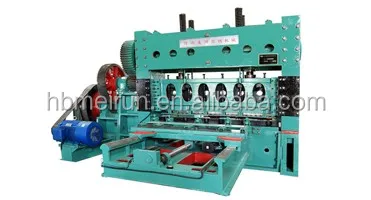

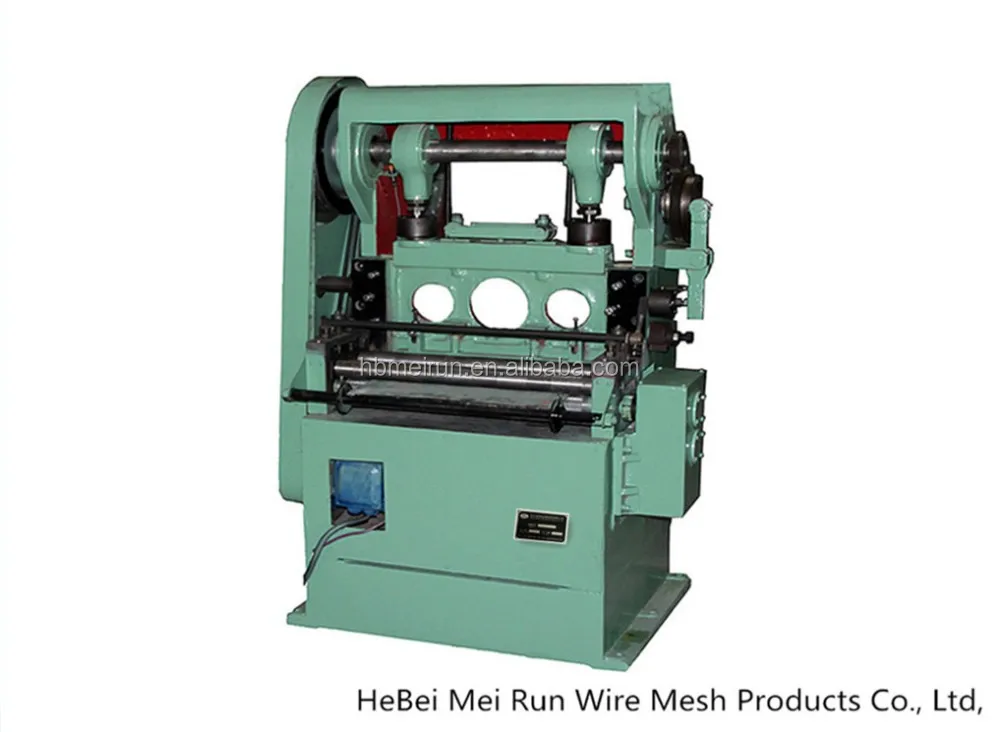

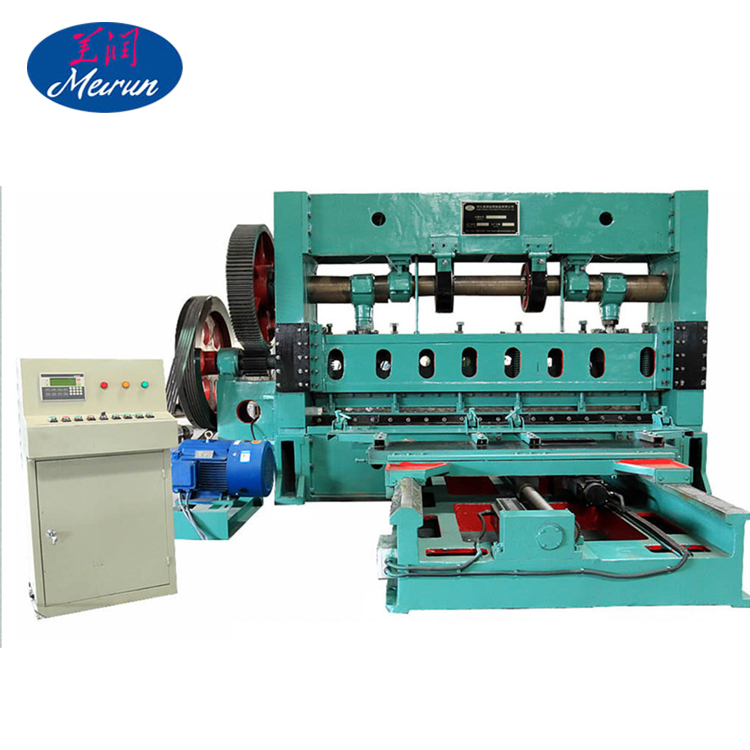

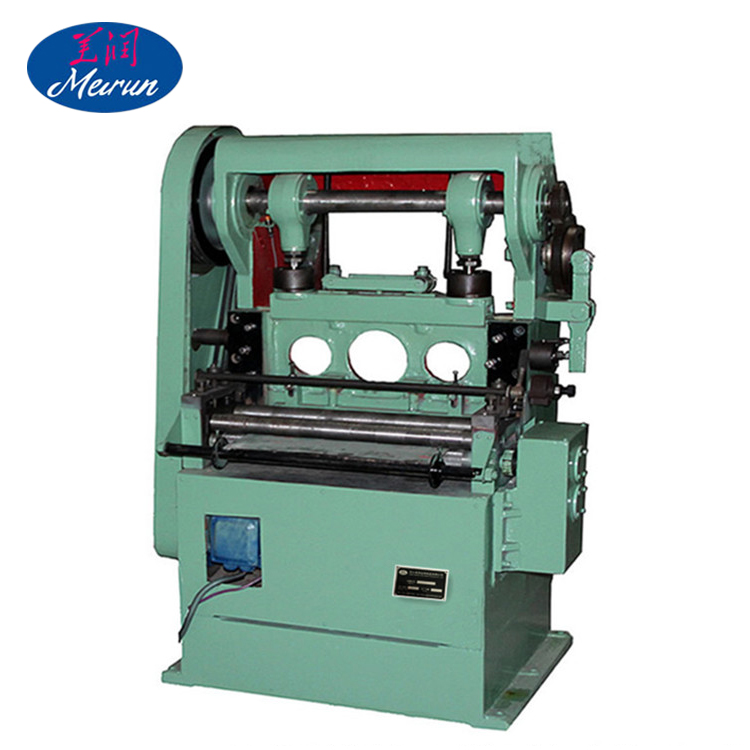

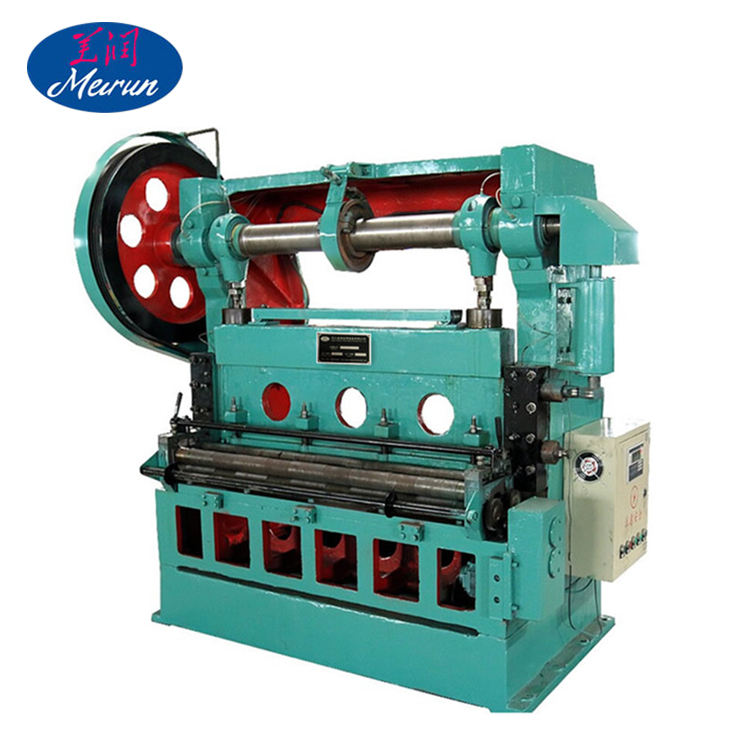

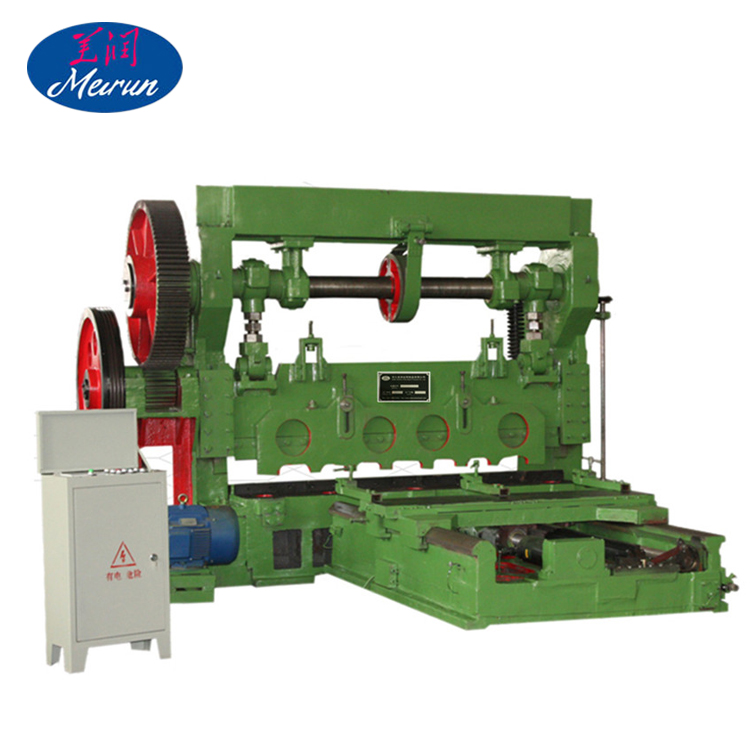

Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.It can be produced max. 1000mm and thickness of metal sheet max. 1mm.The material for expanded metal mesh machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
Model | JQ25-6.3A | JQ25-6.3B | JQ25-16 | JQ-25-16A | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 | JQ25-160 |
Material thickness | ≤1.0 mm | ≤1.0 mm | 0.2-1 mm | ≤1.0 mm | ≤1.5 mm | 0.5-2.5 mm | 0.5-3 mm | 0.5-4 mm | ≤8.0 mm |
Material width | 500-600 mm | 500-600 mm | 1000 mm | 1000 mm | 1250 mm | 2000 mm | 2000 mm | 2000 (2500)mm | 2000 mm |
Long way of diamond | ≤20 mm | 15 mm | ≤25 mm | ≤25 mm | ≤30 mm | 100 mm | 150 mm | 150 mm | ≤200mm |
Feed distance | 0-1.5 mm | 0-1.6 mm | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | 0-4 mm | 0-4 mm | 0-7 mm |
Stroke per min | 195times/min | 195-320times/min | 150times/min | 250times/min | 150times/min | 70times/min | 45times/min | 55times/min | 45times/min |
Motor | 2.2KW | 2.2KW | 3.0KW | 5.5KW | 4KW | 11KW | 11KW | 18.5KW | 30KW |
Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Weight | 0.95T | 0.95T | 2.3T | 2.05T | 3.5T | 11.5T | 11.5T | 13T | 22T |
Dimension | 1090x710x1450mm | 1090x710x1450mm | 1740x1400x1500mm | 1740x850x1630mm | 1940x1600x2010mm | 3500x2400x2300mm | 3500x2400x2300mm | 3280x3100x2280mm | 3280x3620x2850mm |
Product Models
JQ25-6.3
JQ25-16
JQ-25-16A
JQ25-63
JQ25-100
JQ25-160
JQ25-260
JQ25-640
Product Details
Steel cover of safety

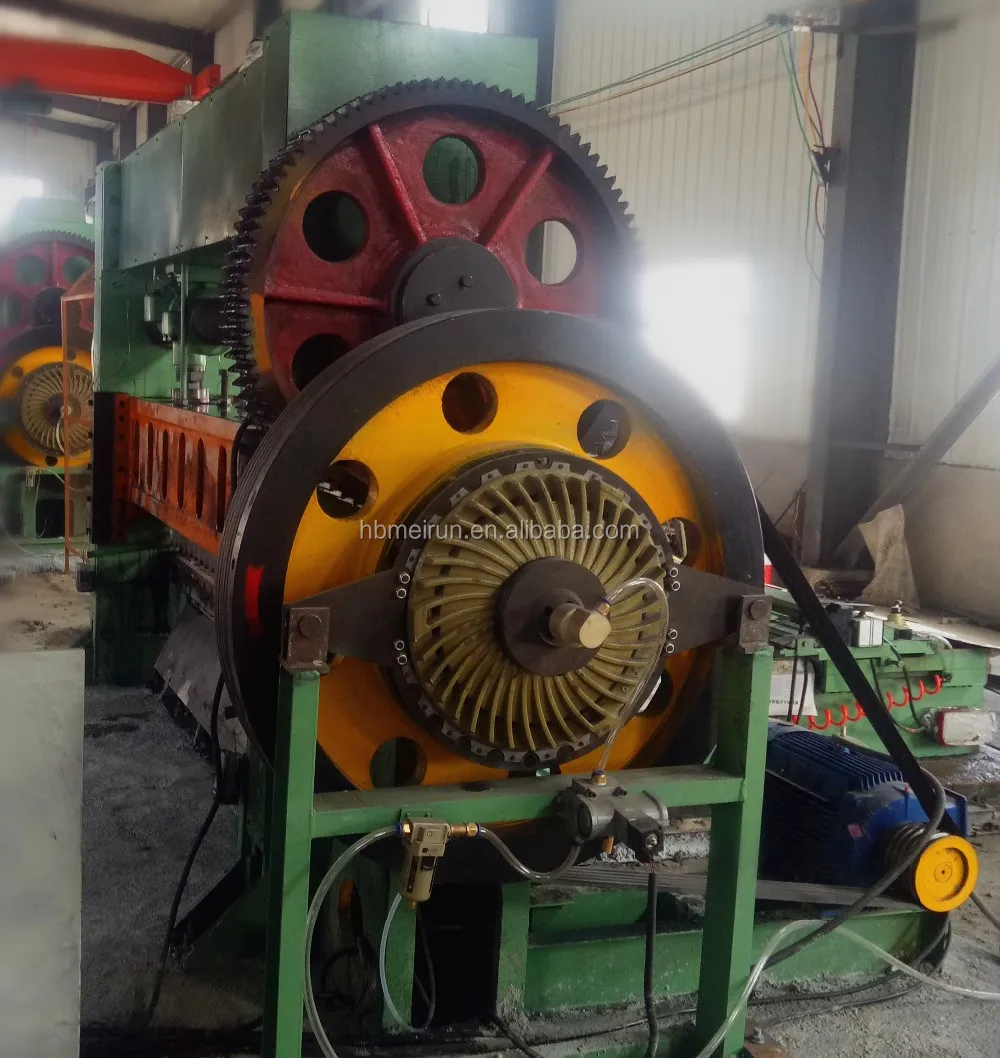

Pneumatic brake

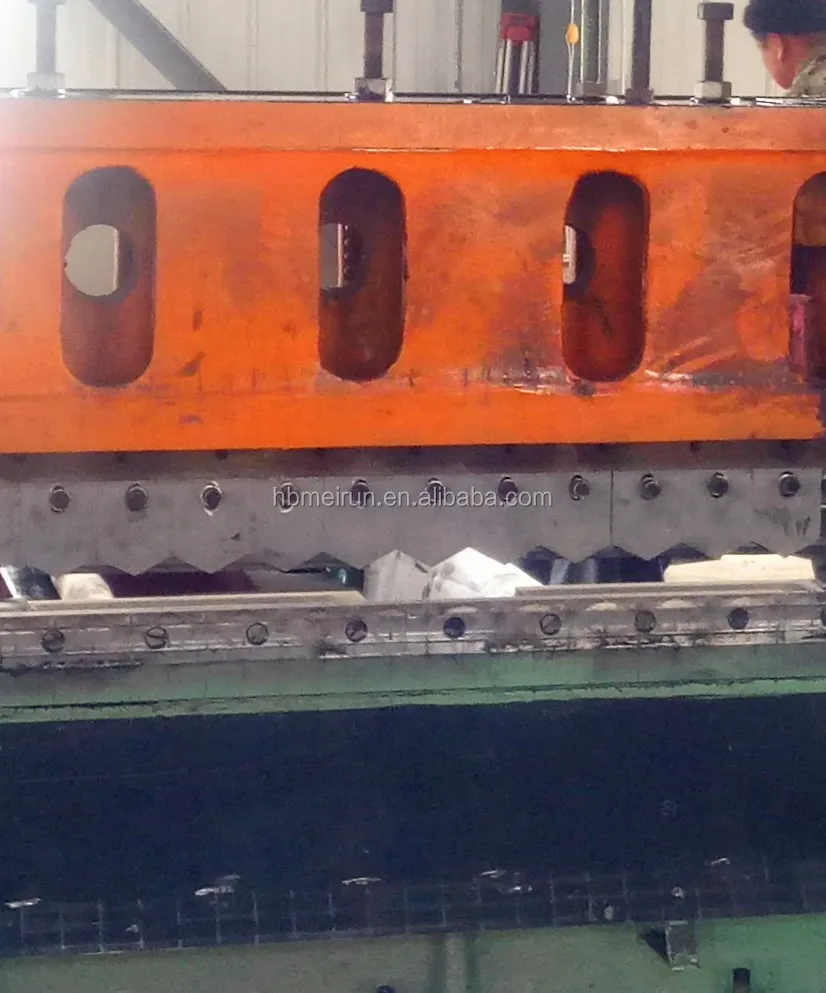

Alloy cutter model

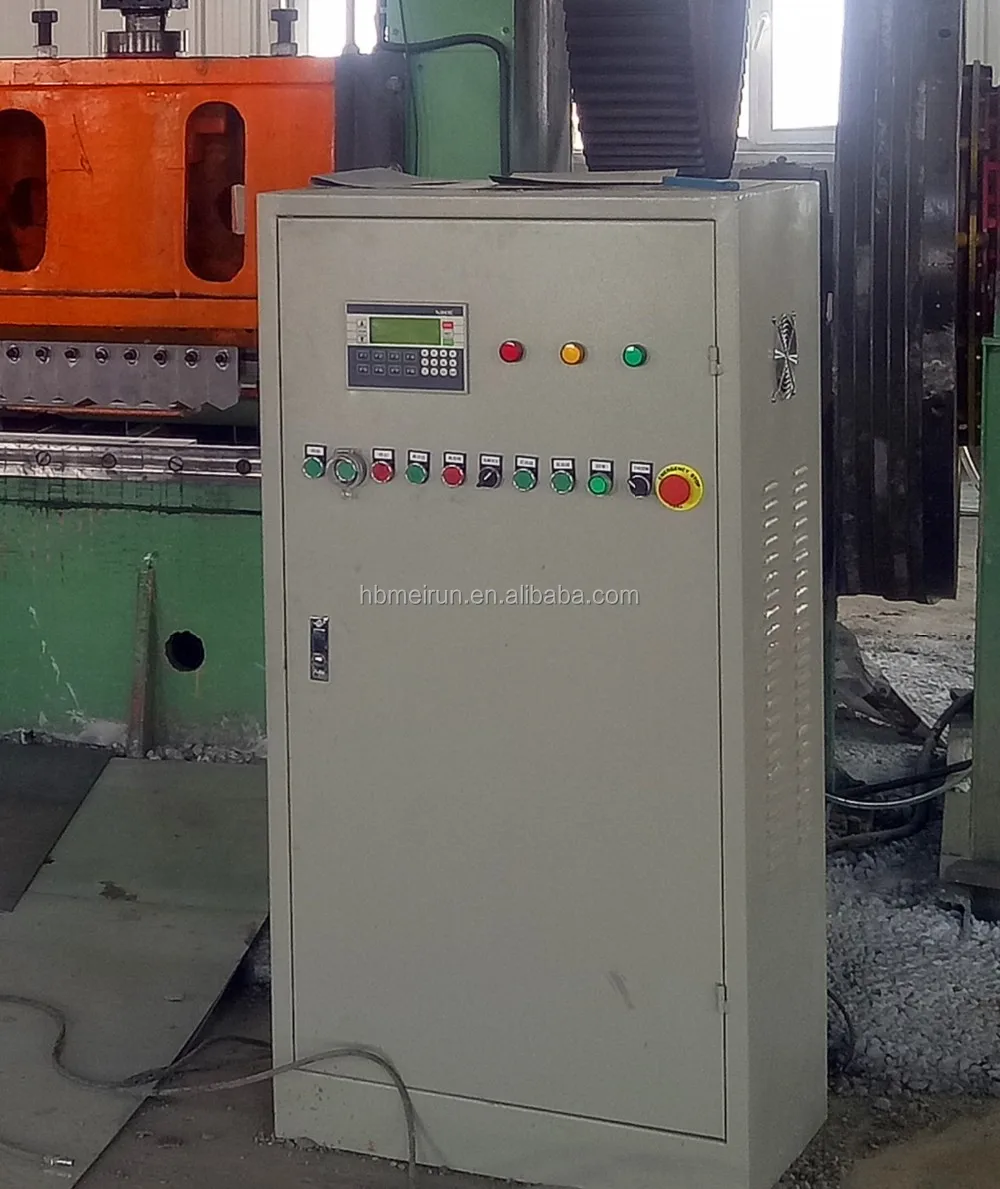

PLC+Text screen
Flattening machine
Making Products
About Us:
Hebei Meirun Wire Mash CO, LTD is located in the Anping county, Hengshui, Hebei. Anping county is the hometown of the wire mash having hundreds of years history and in the international screen production it occupies an important position. And our company produce, research and develop kinds of wire mesh making machine and we have our own factory. About some of machines our market share is about 70%.
Welcome to visit our company!
THE TENET OF THE FACTORY:
The tenet of our company are integrity as a foundation, customer first, upgrading quality of products, focusing on equality and mutual benefit and promoting common development.
Q: Why I choose your company?
A:1)Our company produce, research and develop kinds of wire mesh making machine.
2)Our company has about 20 years with strong experience and advanced technique.
3)Best Quality & Best Service with competitive price. 1 year guarantee and lifetime maintenance.
4)We have CE certificate and ISO 9001.
5)We have Professional technical team, and will supply 24 hours service.
Q:What about the quality of your products?
A:High quality products, Real factory trustworthy.
Q:Where is your factory located? How can I visit there?
A:Our factory is North Of Weimin East Street, Anping county, Hengshui, Hebei, China(Mainland). When you conform the flight NO. and time, please tell me then we will pick you up at Airport.
Q:What are your terms of payment?
A:Payment terms usually T/T as you like.
