MRKKJ
Meirun
The ideal assembly partner for razor wire, capable of producing over 5,000 clips per hour.
●Using galvanized steel sheets as raw material, the machine performs cutting, stamping, and forming in a single process, producing precise and durable clips that fully meet industrial standards.
●The length, width, height, and specific shape of the clips can be adjusted through molds to suit different application scenarios.
●Both models for producing continuous strips of clips and individual clips are available.

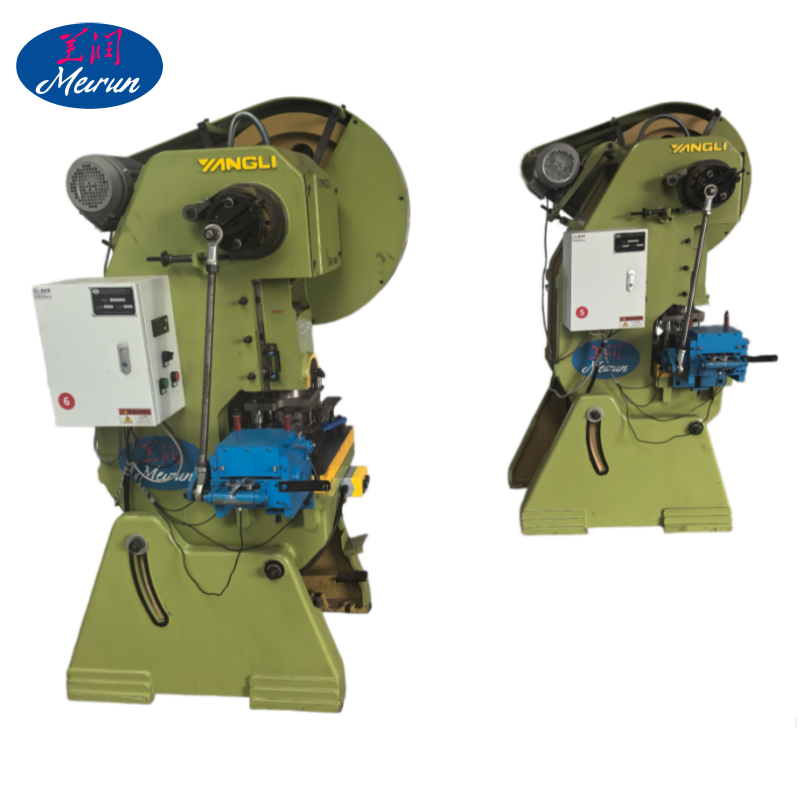

Razor wire continuous clips making machine
Suitable for batch production of continuous clips. The machine is equipped with a tube threading function, which can evenly string the clip parts onto a plastic tube and cut them at preset lengths. Continuous clips require tools such as a clip gun for installation.
Razor wire clips making machine for individual clips
Suitable for batch production of individual clips. The discharge outlet is located at the front of the machine, and the finished clips need to be manually tightened using pliers.
Product Introduction
The razor wire clips machine is an industrial device specifically designed to produce clips used for connecting razor wire. This machine uses narrow strips of galvanized steel sheet as the main raw material, and after stamping and forming, produces three-dimensional "C" or "U" shaped clips. The finished clips are mainly used for bundling and fixing razor wire coils.
Continuous clips and individual clips: two models, two choices
Depending on the method of use, clips are divided into continuous clips and individual clips. Continuous clips are strung together by two hollow plastic tubes and require a special clip gun for installation. Individual clips, on the other hand, need to be tightened manually one by one using pliers.Continuous clips and individual clips correspond to different machines, and their processing modes are also slightly different.
Simple interface, easy to operate
It eliminates the complicated operation steps of traditional machines. This clips machine uses push-button control, allowing one-button start and stop. The equipment adopts a highly automated production mode, with steps such as feeding, stamping, and forming all completed by the machine. One worker can simultaneously operate multiple machines, significantly reducing labor costs.
An essential choice for industrial production lines
The clips produced by this machine are precise and durable, with a production speed of 140 to 160 pieces per minute, fully meeting the demands of industrial production. Even when paired with large-scale, high-intensity razor wire assembly operations, you don't have to worry about production capacity falling behind.
Transportation and installation support

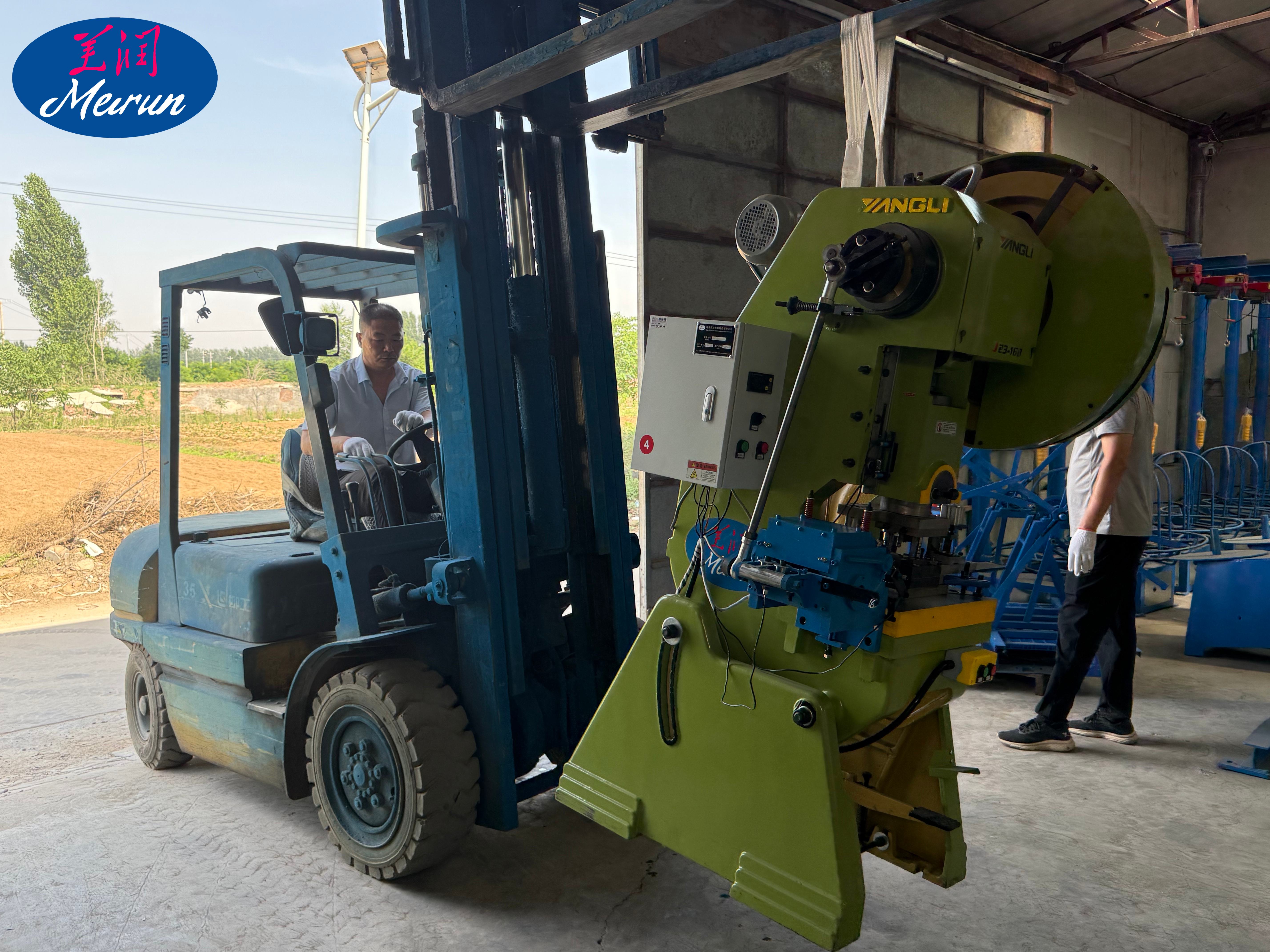

From price inquiry to installation support, Meirun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.
Machine Parameters
Production speed | 140-160 pcs/min |
Power | 3kw |
Processable sheet thickness | 0.5-2.5mm |
Machine weight | 1800kg（Individual Clips Model） 2200kg（Continuous Clips Model） |
Machine dimensions | 5.8m*1.5m*1.8m |
Control system | Simple Push-Button Control |
Machine frame | Steel structure |
Raw materials processed | galvanized steel sheet galvanized iron sheet |
Production process for individual razor wire clips
①The feeding device delivers the raw material (galvanized steel sheet) into the machine.
②After the machine is powered on, it starts operating.
③The built-in straightening device straightens the galvanized steel sheet.
④ After cutting, stamping, and forming, the finished clips drop from the discharge outlet.
⑤Mold display
⑥ Finished clip display
Production process for continuous razor wire clips
①The feeding device delivers the raw material (galvanized steel sheet) into the machine.
②The unwinding machine simultaneously feeds the plastic tubes that string the clips into the machine.
③After the machine is powered on, it starts operating.
④The built-in straightening device straightens the galvanized steel sheet.
⑤After cutting, stamping, and forming, the two plastic tubes evenly string the clips together.
⑥Mold display
⑦When the preset length is reached, the cutting device cuts off the continuous strip of clips.
⑧The finished product drops from the discharge outlet.
Razor wire clips are a special type of fastener, typically used for securing razor wire coils. Smaller clips can be fastened at the overlapping points of the razor wire coils to keep them tight and properly aligned. Larger clips can be used to connect the razor wire to the fence structure, enhancing the overall safety and stability of the protective barrier. These metal parts offer strong gripping force, firmly binding the coil strands together. With simple tools such as a clip gun or pliers, the worker can quickly close the clip tightly. Once fastened, the clip is difficult to cut or damage, offering a faster and more secure solution than traditional manual wire tying. In addition to razor wire installation, these clips are also widely used for reinforcing pet cages, gabion mesh, and mattress structures.
Industry outlook – galvanized clips, a highly common hardware accessory
As a small metal part, galvanized clips are widely used across various industries. Industrial zones, mining areas, warehouses, airports – wherever there is fencing, you can find them. Compared with ordinary steel clips, galvanized clips offer a longer service life and demonstrate excellent protective performance against outdoor rain, snow, sandstorms, and extreme high or low temperatures. Maintenance is also quite simple. When used to assemble razor wire, they significantly reduce the maintenance needs of protective barriers.
Typically, each coil of razor wire requires 3 to 5 clips for fastening. A 500-meter fence may require more than 1,000 clips. This means there is a large market demand for galvanized clips. Buyers of razor wire either order the corresponding quantity of clips from the manufacturer or purchase them separately, and the price is not low.
A razor wire clip seller in Los Angeles – each pack contains 25 clips, priced at $8.78 (approximately RMB 60).
In this case, purchasing a clips machine for mass production of clip parts is clearly a good choice. The razor wire clips machine manufactured in our factory produces over 5,000 clips per hour, with productivity fully meeting the standards of an industrial production line. The production cost per clip is no more than 10 cents (approximately RMB 0.68). The production process is highly automated – from feeding and stamping to clip forming, everything is done by the machine. Only 1 to 2 workers are needed to oversee the machines and handle the finished products, which is sufficient to support daily operations. After the machine is put into use, it can achieve rapid profitability in a short period of time.
What's more, this machine also offers high compatibility. You can change molds on the same machine to produce different types of products, meeting diverse market demands. We have a professional technical team responsible for debugging and ensuring the durability of the molds.

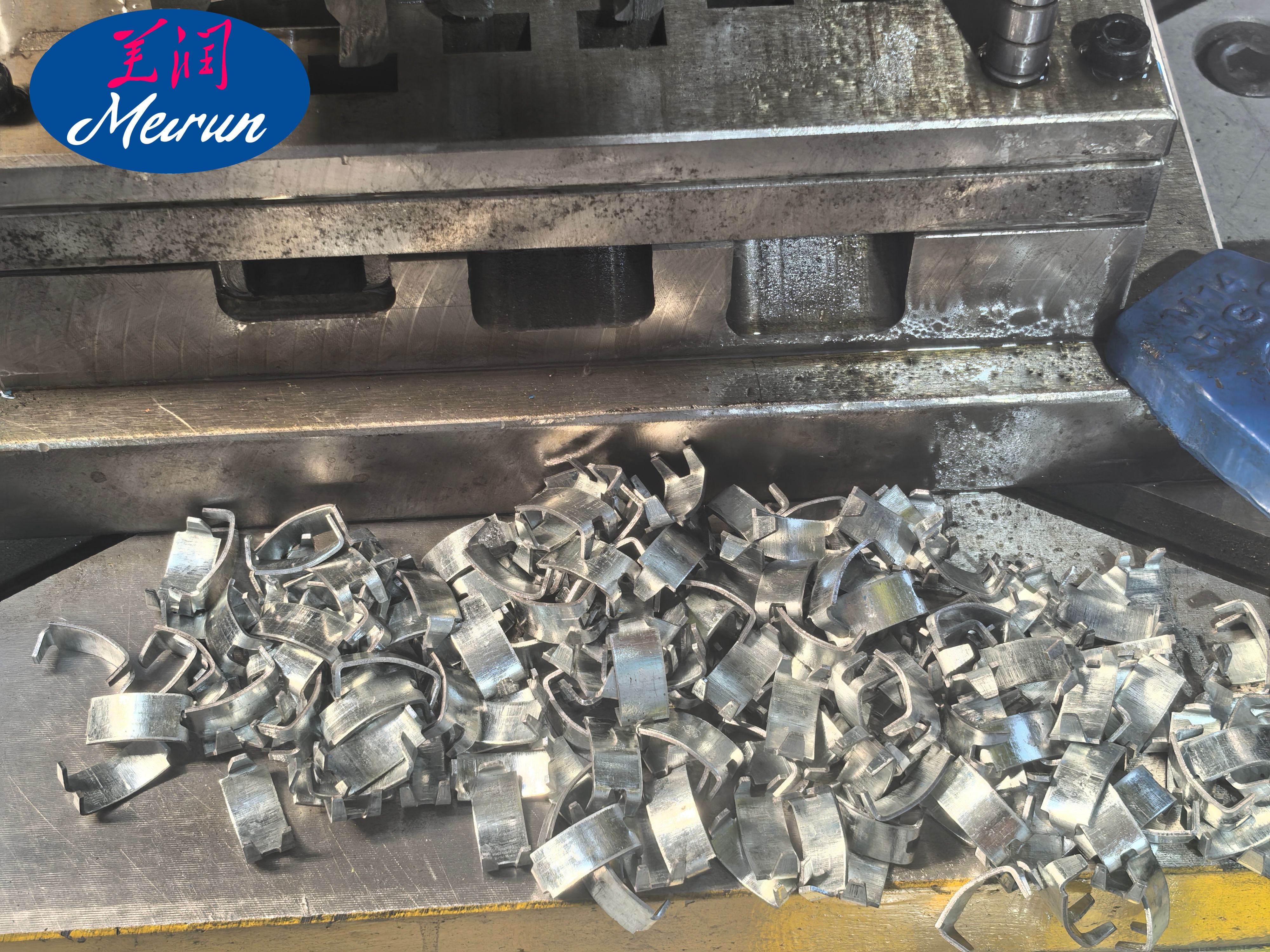

Mold display for the razor wire clips machine
MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best‑selling stores for wire mesh machinery, with a 100% on‑time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
