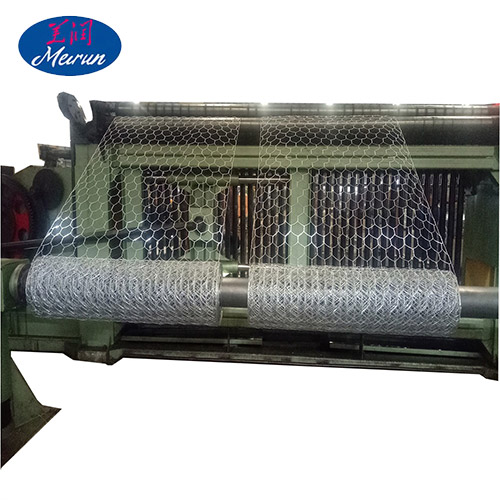

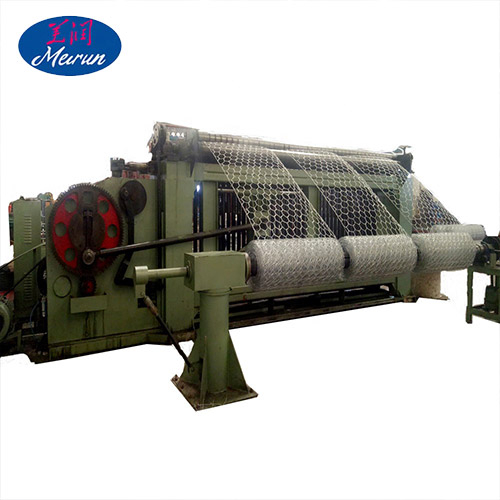

Gabion mesh machine is professional equipment to produce hexagonal wire mesh. The "MEIRUN" heavy-duty hexagonal wire mesh machine, produced by this company is a special braiding machine to fabricate hexagonal mesh work, which is a new developed market-suitable product integrating the merits of domestic and oversea products.
1.Stone cage net machine is also called the hexagonal wire netting machine, guest net machine, hexagonal wire netting machine is the professional equipment production is hexagonal wire netting, raw material can be galvanized iron wire or PVC wire.
2. Stone cage net machine is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noise and high efficiency.

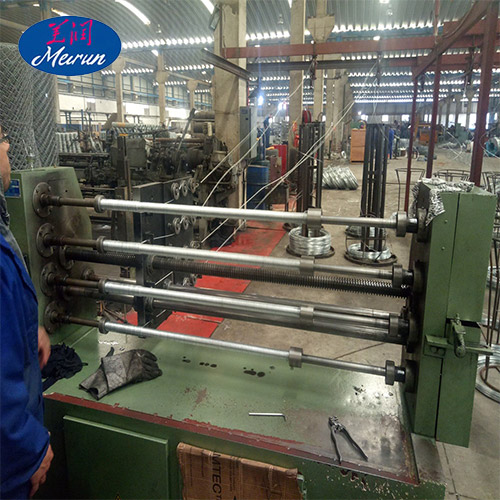

A complete set of Gabion Wire Mesh Machine include put a wire rack, tensioning machine, spring machine and mainframe.
| Hexagonal mesh machine parameters: | ||||
| Product specification(mm) | 60*80 | 80*100 | 80*120 100*120 | 120*150 |
| Wire diameter(mm) | 2-4 | 2-4 | 2-4 | 2-4 |
| Side wire diameter(mm) | 2.5-3 | 2.5-3 | 2.5-3 | 2.5-3 |
| Tied wire diameter(mm) | 2.2 | 2.2 | 2.2 | 2.2 |
| Max width(mm) | 4000 | 4000 | 4000 | 4000 |
| Weaving speed(time/hour) | 50-60 | 50-60 | 50-60 | 50-60 |
| Power(KW) | 22 | 22 | 22 | 22 |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Dimension(m) | 7.2*1.4*2.3 | 7.2*1.4*2.3 | 7.2*1.4*2.3 | 7.2*1.4*2.3 |
| Weight(Ton) | 15 | 15.5 | 16 | 16 |
