MRDPJ-G60
Meirun
●PLC control system for fully automatic operation
●Supports processing of BTO and CBT models
●The blades are strong and durable, offering excellent protection
Razor Wire Making Machine,also known as the Razor Barbed Wire Machine, is a piece of specialized equipment designed for producing razor wire.It uses galvanized or stainless steel sheet as raw material, which is stamped into the initial blade shape and then assembled with the core wire.The finished razor barbed wire features a sturdy structure and sharp blades, providing excellent anti-theft and anti-climb performance, while also serving as a strong deterrent and warning to intruders.Today, razor wire is widely used in industrial and mining operations, border outposts, military barriers, government buildings, and residential construction around the world.

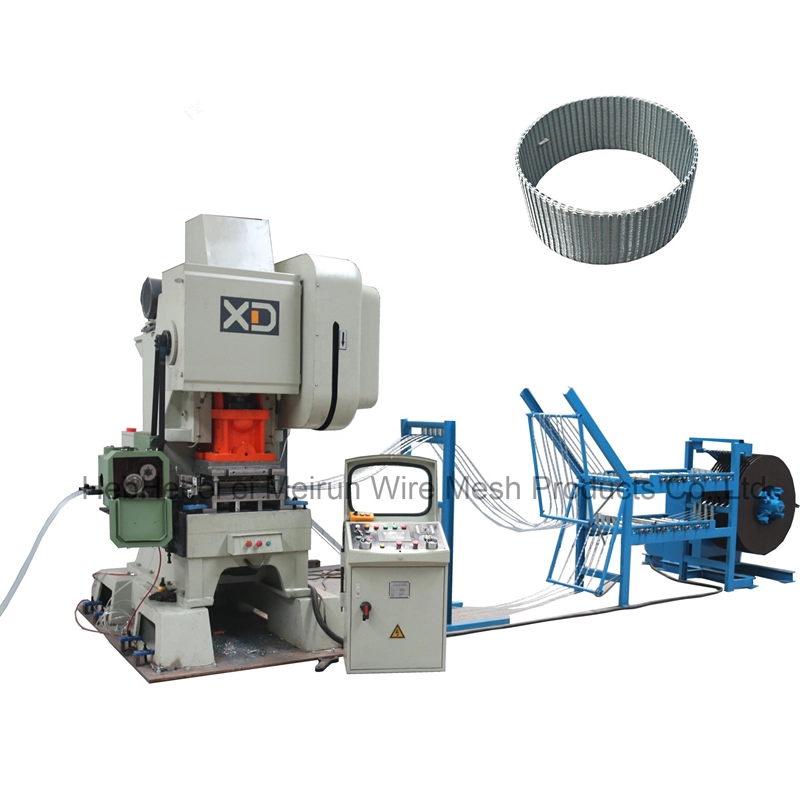

The high-speed razor wire making machine is a new-generation model that upgrades the press and forming equipment based on the standard razor wire making machine. It offers more advanced functionality and smarter operation compared to the standard model. The stamping speed of a standard razor wire making machine is 0–80 strokes per minute, while the high-speed version can reach up to 320 strokes per minute. The daily output of a standard machine is about 1.5 to 4.5 tons, whereas the high-speed machine achieves 8 to 10 tons per day (based on 10 hours of operation). If you need to set up a large-scale razor wire production line, the high-speed razor wire making machine is usually the better choice.
Industry Outlook
Razor wire is an indispensable protective barrier in modern society. With the steady expansion of China's specialized equipment manufacturing sector, the production technology for razor wire making machines has been continuously upgraded. The industry has evolved from manual feeding to automatic feeding, and the number of strands produced has increased from 1, 3, or 5 strands to 9 or 11 strands, with some high-speed models even reaching 13 strands. The supporting equipment for razor wire, such as electroplating and welding machines, has also become increasingly sophisticated. These advancements have expanded the application scenarios of razor wire, making it more popular among customers. For example, razor wire welding machines can straighten, cut, and weld razor wire, transforming it from its original coil form into mesh fencing. This type of fence offers a greater deterrent effect than ordinary fences, is more difficult to climb, and provides equally excellent protective performance. Driven by these structural upgrades, the market size of China's razor wire machine industry reached 1.97 billion RMB in 2025.
The rapid technological renewal also presents challenges for customers looking to purchase razor wire making machines. Every customer has different needs – some want a standard razor wire making machine for small-scale production, while others aim to build a complete production line covering everything from galvanized steel wire manufacturing to razor wire production, welding, and powder coating. Some customers operate in regions or factories that do not support the rated voltage output (380V 50Hz), requiring equipment modifications. Hebei Meirun Machinery Manufacturing Co., Ltd., as a professional manufacturer of razor wire making machines, is committed to providing you with powerful solutions. We offer standard, high-speed, and other razor wire making machine models as specified, and we also support the production of most auxiliary equipment. You can complete one-stop purchasing with us, saving you the hassle of repeated comparisons and inquiries, while also eliminating concerns about parts supply. Leveraging the wire mesh industrial cluster represented by Anping County, Hebei Province, the local self-manufacturing rate of core components has exceeded 85%, effectively supporting overall machine cost optimization and shortened delivery cycles. Choose Meirun, and we will become your best industry partner!
Equipment Parameters
High-Speed Razor Wire Production Line | Standard Razor Wire Production Line | |
Main Configuration | High-speed punching machine + high-speed wire forming machine | Conventional punching machine + conventional wire forming machine |
Main Features | ☑PLC touch screen control system, variable frequency speed adjustment, automatic feeding ☑Maximum stamping speed up to 320 strokes per minute ☑Maximum daily output of 8 to 10 tons (based on 10 hours) ☑Presettable production length; the machine stops automatically when the preset value is reached ☑Self-contained dust suction function | ☑PLC control system (push-button type), variable frequency speed adjustment, automatic feeding ☑Stamping speed: 0～80 strokes per minute ☑Daily output: 1.5 to 4.5 tons ☑Length measurement using infrared sensing technology for accurate results |
Power | 25KW | 15KW |
Size | 15m*2m*2.3m | 8m*1.3m*2.3m |
Weight | 15T | 4.5T |
Production Size | BTO 10,12,15,18,22,25,28,30,65,CBT 60 | |
Strips | 5,7,9,10,11 | |
Coil Diameter | 450mm-1100mm | |
Voltage Rating | 380V 50HZ | |
Material | 2.5mm steel wire, SS wire 0.5mm galvanized plate，SS plate | |
Both the high-speed press and the high-speed wire forming machine can be selected separately as standalone units.If you have higher requirements for production capacity, we can also offer a configuration of "one punching machine + multiple wire forming machines" for your consideration.
Equipment Details:
A complete razor wire production line consists of the following equipment:

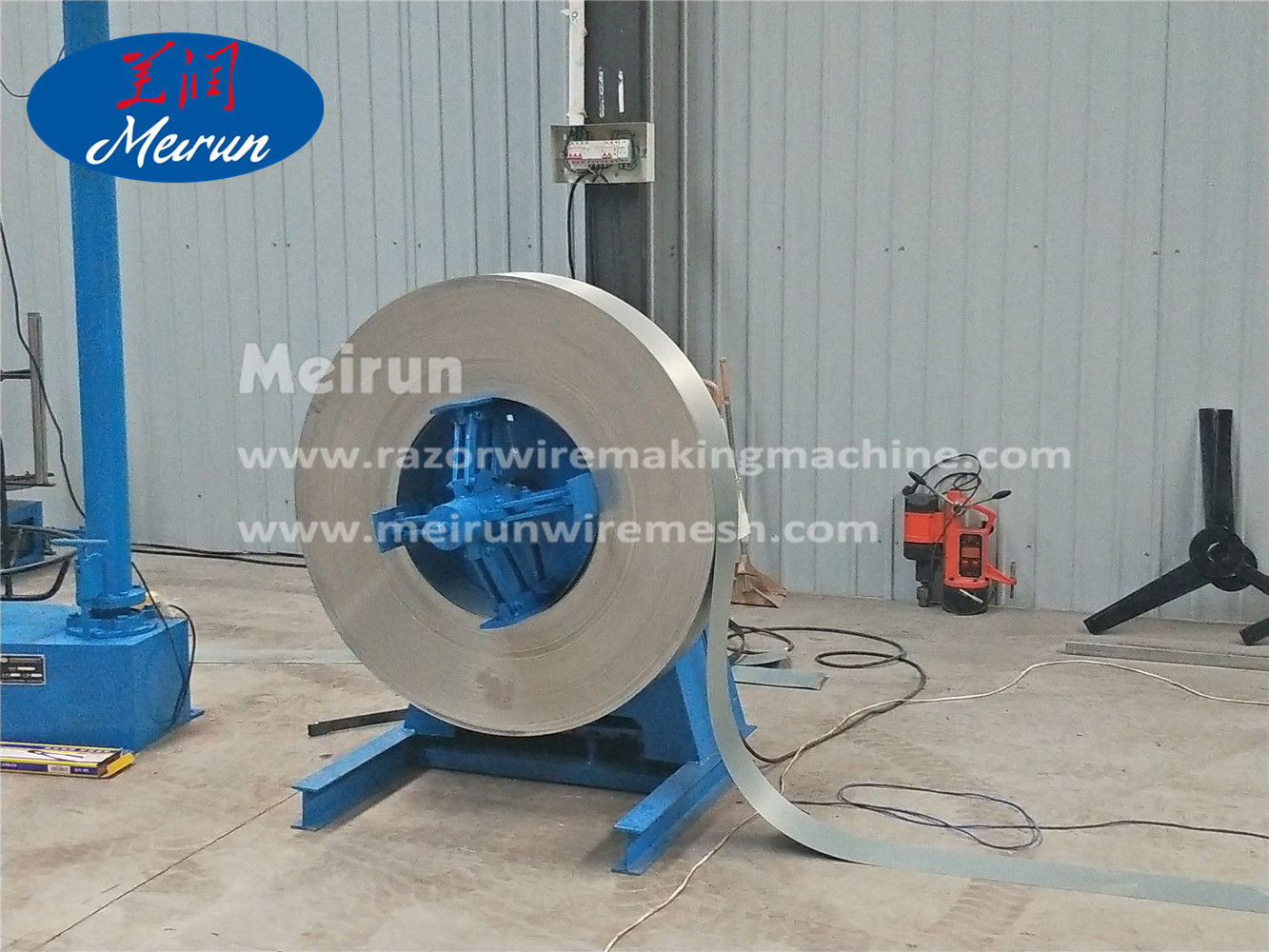

1.The punching line: Automatic discharging machine, punching machine, razor wire mould, Tensioning frame, Automatic feeder.

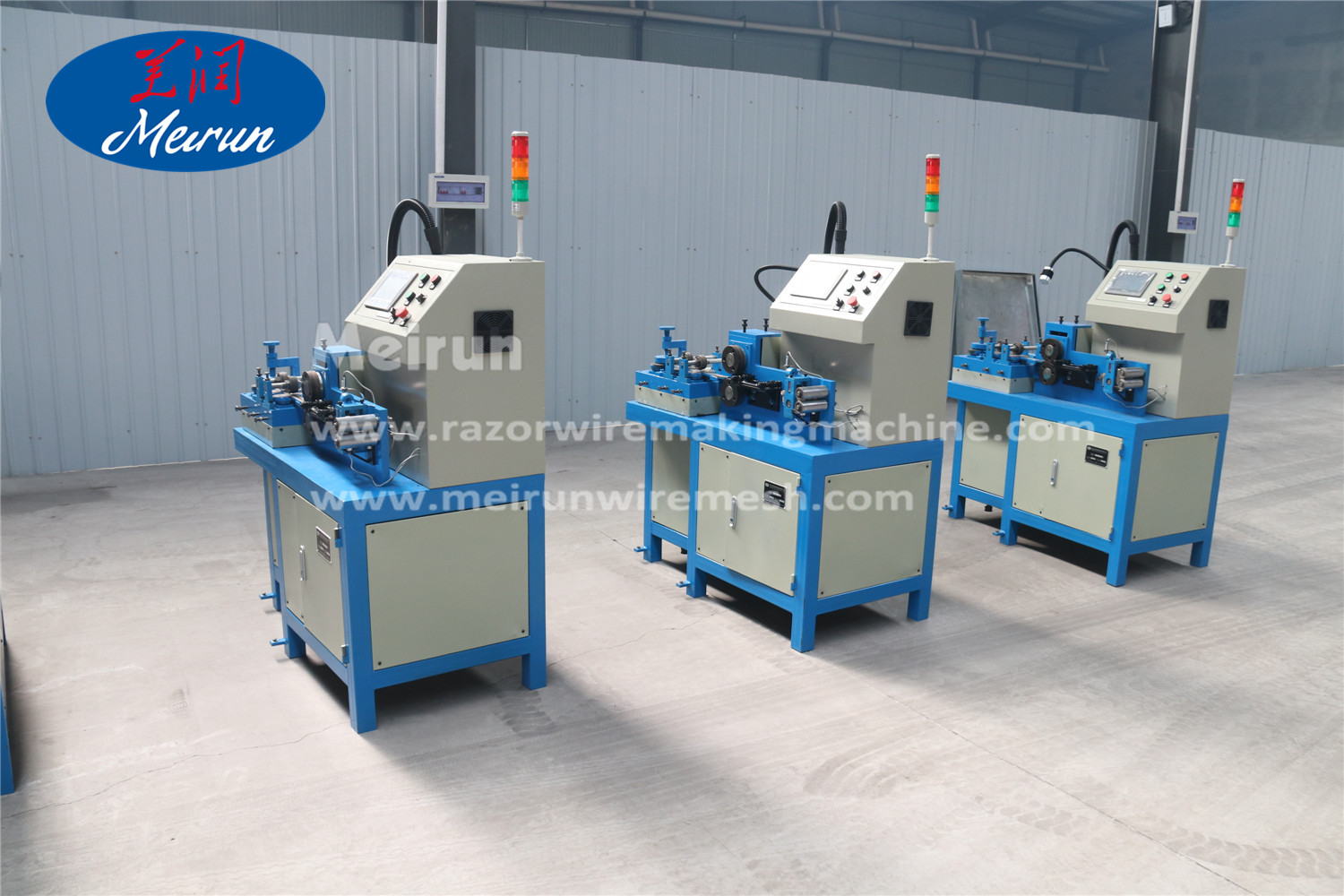

2.The forming line: wire laying frame, plate frame, forming machine, forming frame.

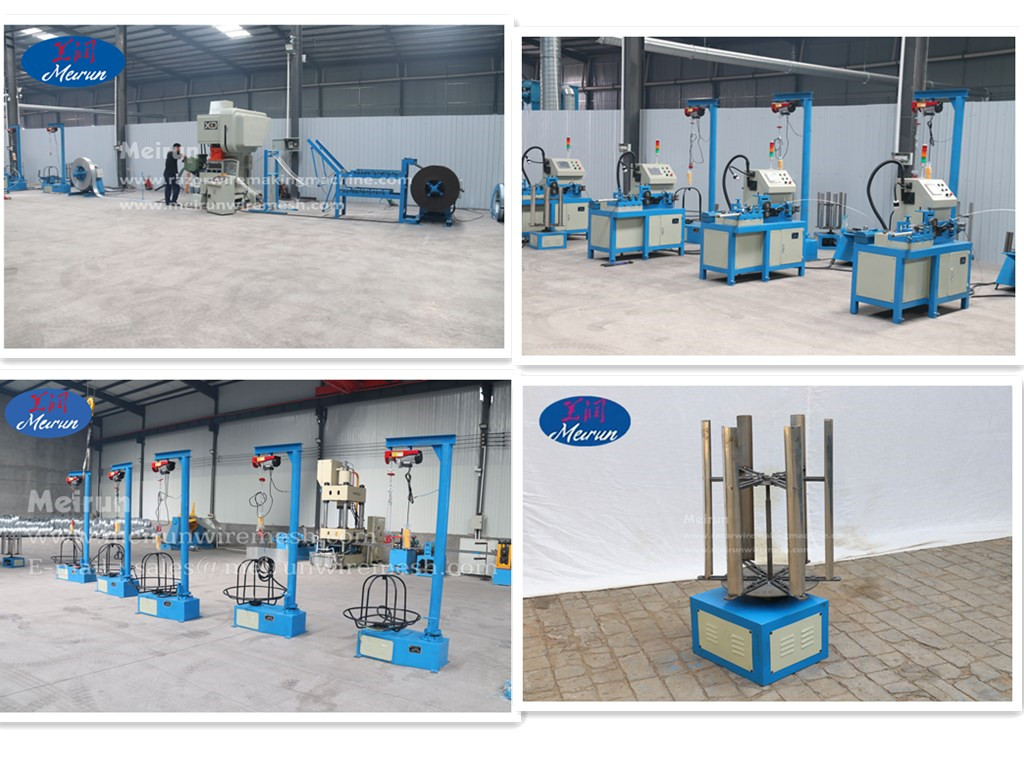

Product Display
Service Advantages
●Manufactured Directly by the Source Factory
All the equipment we sell is independently manufactured by Hebei Meirun Machinery Manufacturing Co., Ltd. The production process is transparent, and customers are welcome to visit our factory for on-site inspections and detailed product inquiries.
●Professional Technical Support
24 hours online service, providing pre-sales support at any time
Installation guide videos and manuals are provided for all equipment
Engineers can be dispatched on-site to guide equipment installation and provide worker training
●Quality Assurance
All equipment is certified under the ISO international quality management system
Mechanical test reports and certificates of conformity are available upon request
●Considerate After-Sales Service
One-year warranty service, starting from the delivery date
Any machine parts damaged during the warranty period will be replaced free of charge
Company Introduction
Hebei Meirun Machinery Manufacturing Co., Ltd. was founded in 2013 and has been focusing on the manufacturing and sales of wire mesh machinery for many years.The company is located in Anping County, Hengshui City, Hebei Province -- an area known as the “Wire Mesh Capital of China.”By taking advantage of the local industrial cluster, we have continuously expanded our production scale and enhanced our trade competitiveness, achieving a market share of over 90% in some product categories.Today, we have our own factory and professional R&D team, and have applied for multiple invention patents. Our products are exported to many countries across Europe, the Middle East, South Africa, and beyond, with our quality widely recognized by customers.Choose Meirun, and we will become your loyal partner, providing you with the highest quality products and services.Hebei Meirun Machinery, you are always welcome!
Package and delivery
Company certificate
Frequently Asked Questions (FAQ)
1.What is your company’s delivery lead time?
Answer: Our delivery lead time is typically around 15 to 65 days. For some specially customized models, the lead time may be extended to 75 days, depending on the specific machine type and configuration you order.
2.What is the main shipping method?
Answer：We usually ship by sea from the nearest port. If you have special requirements, we can also arrange shipment from a port you specify.
3.If the razor wire making machine I want to purchase has a special specification (for example, a single-strand razor wire making machine), can you supply it?
Answer：Some razor wire making machines can be customized. If the product you’re looking for is not listed in our product catalog, please check with our customer service team.
