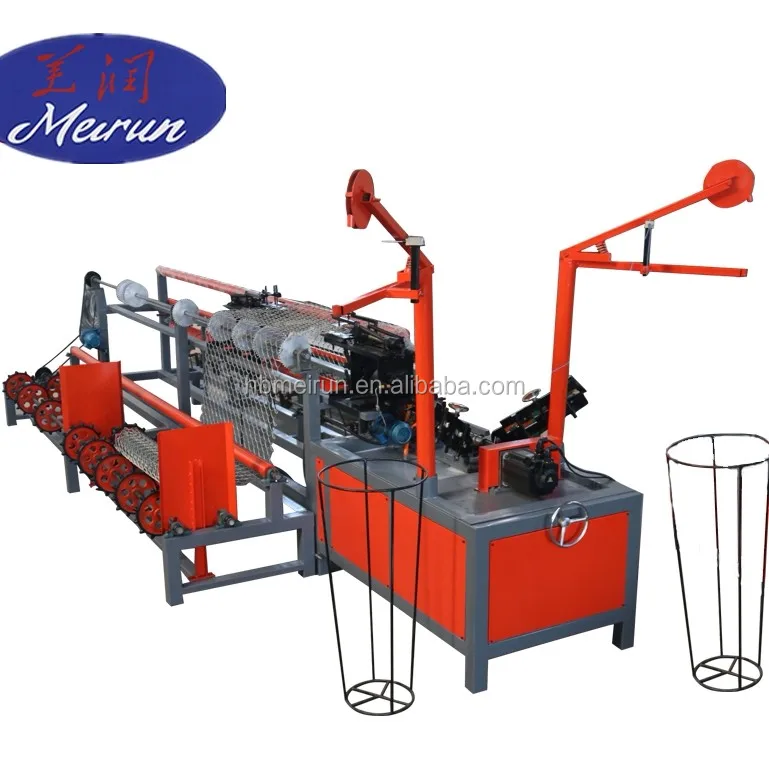

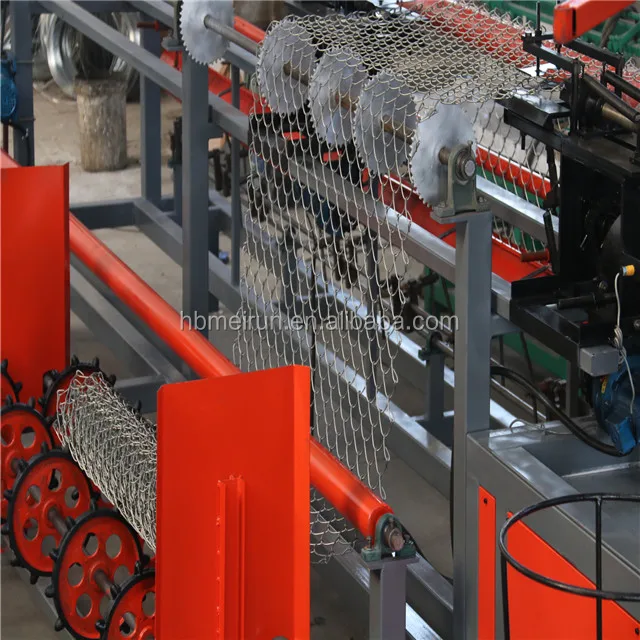

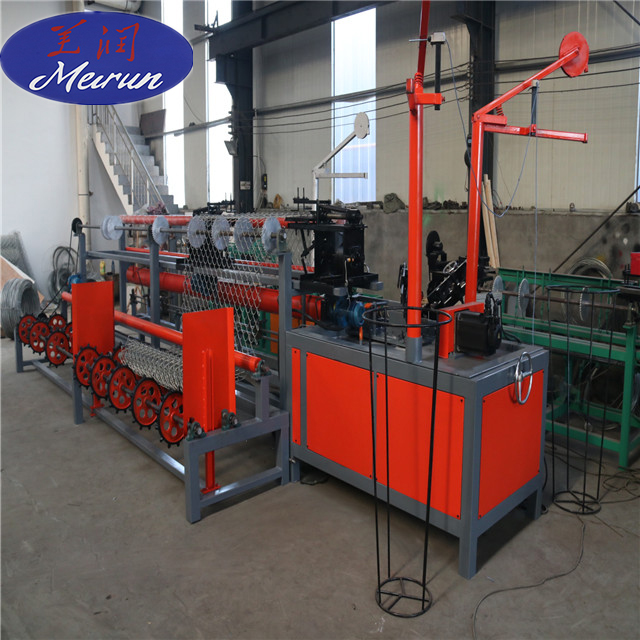

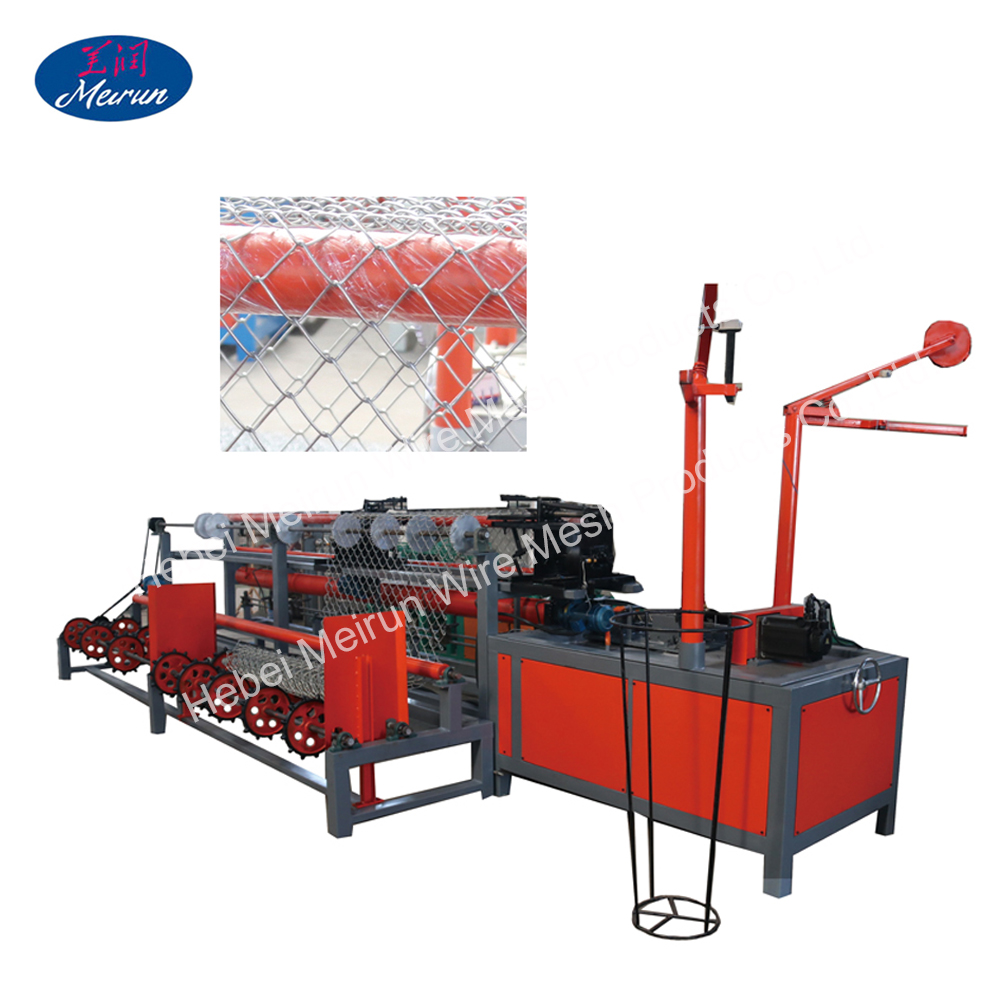

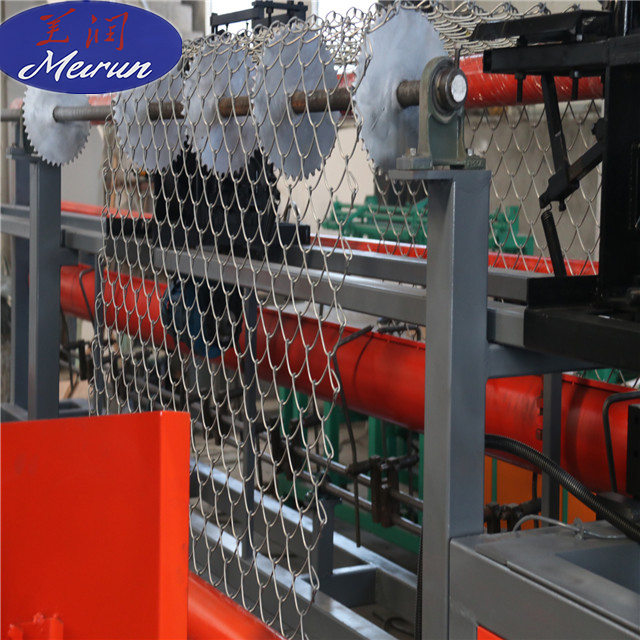

Chain link fence machine
MR
MR02
Our automatic Chain link fence machine applies technical double wire mesh forming principle of germany that produce high quality mesh panel with good production efficiency .it uses reasonable design,microcomputer control and electro mechnical intergration to complete working procedures of spining ,shearing mesh winding and lock seaming.

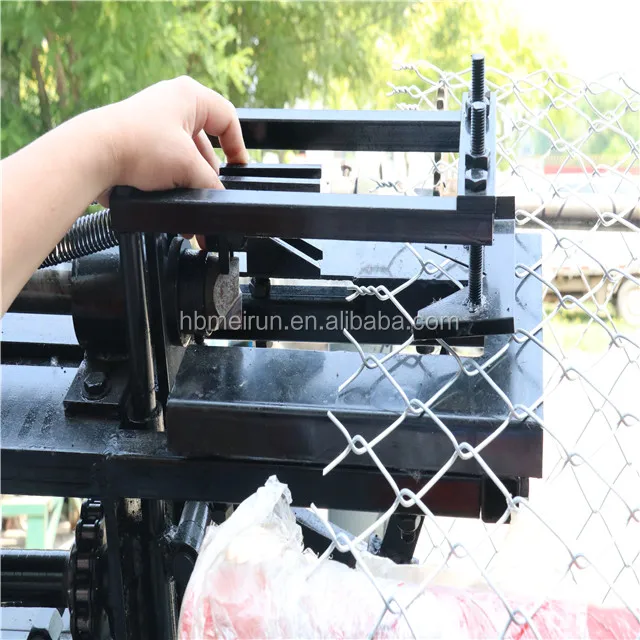

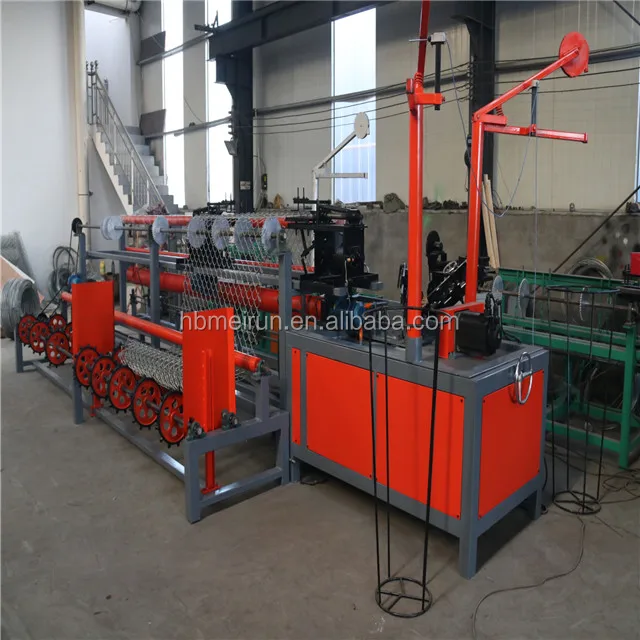

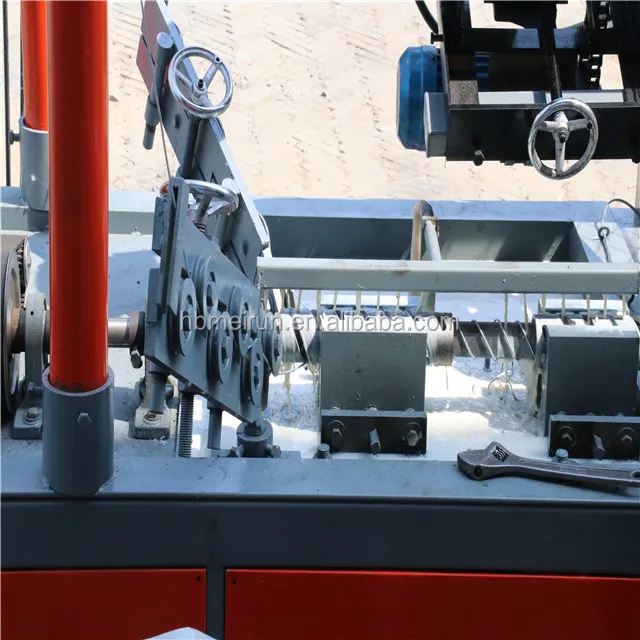

Chain link fence machine Detailed
Features of Chain link fence machine

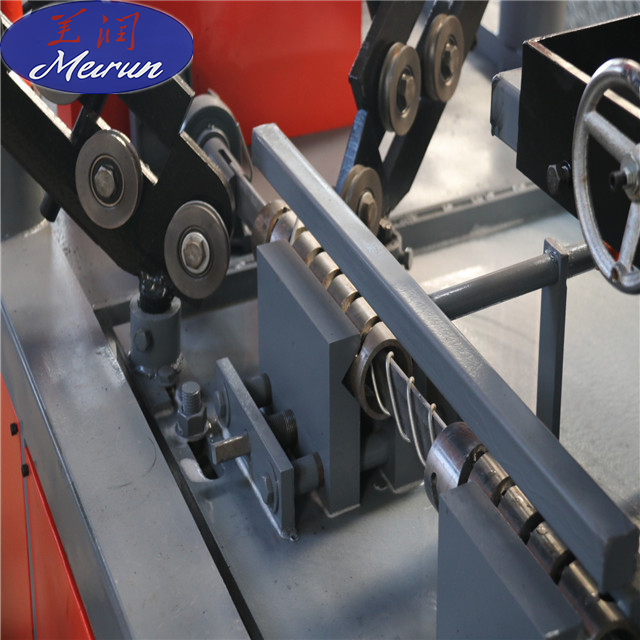

1. This machine adopts PLC (programmable logic controller). Controlling the wire feeding, chain making and chain link fence weaving.
2. Machine adopts 2 feeding wire methods to weave the mesh, high weaving speed with high quality.
3. Reasonable designing, touch screen controller, complete wire feeding, wire cutting, mesh conveying and edge finished totally automatic.
4. Main components used in the machine such as single-chip computer and hydraulic system are of famous brand and excellent quality.
Model | LW30/80-4 |
Wire diameter | 1.5-4mm |
Mesh opening size | 25-100mm |
Width of mesh | 0.5-4m |
power | 3kw |
Forming spindle speed | 275-1100 rpm (adjustable speed) |
size | 6700mm*1430mm*1800mm |
Weight | 3.2T |
Capacity | 120 Square meters per hour |

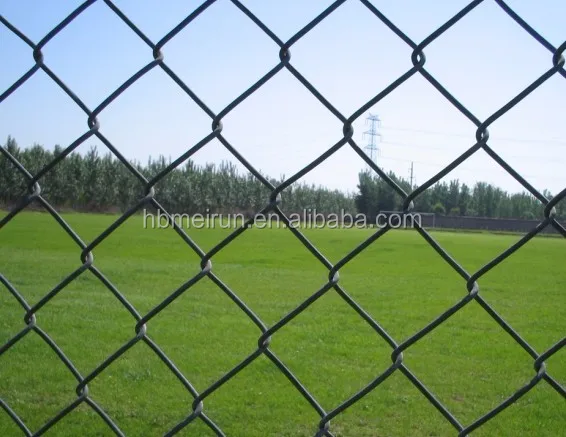

Application of the chain link fence/diamond mesh
1.Widely used in breeding chickens, ducks, geese, rabbits and zoo fence.
2.In the handicraft manufacturing,mechanical equipment transmission network.
3.Machinery and equipment protection,highway guardrail,sports venues fence, the road green belts fence.
4.The superior material is flood control and flood fighting.
5.The screen to make into a container of a box shape,fill the cages with rocky and so on, also can be used to protect and support seawall, slope, road and bridge, reservoirs and other civil engineering fields.

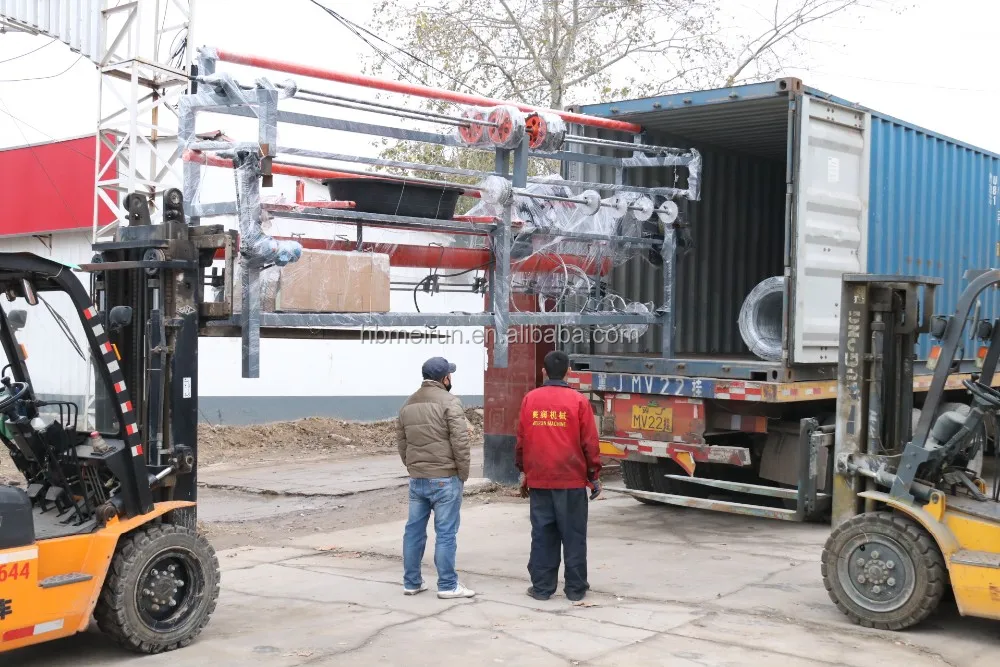

Packing:wooden pallet and plastic package in the container or pack per customer's request
Delivery: Delivery within 15 days after receiving 70% of balance payment

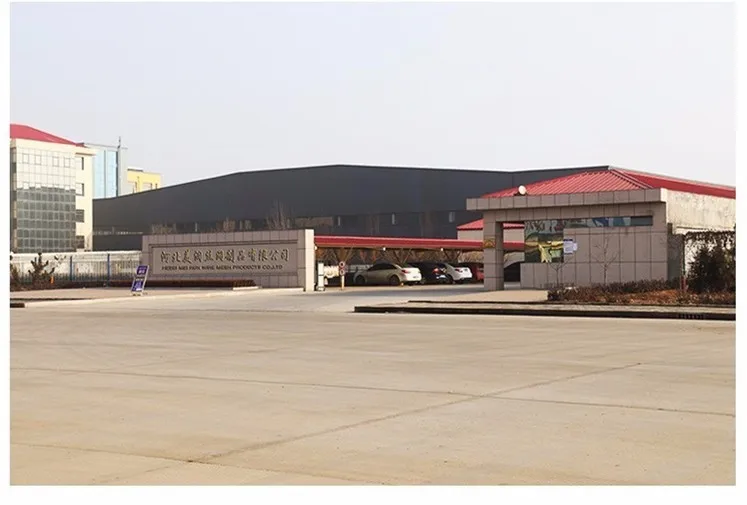

Hebei Meirun Wire Mesh CO.,Ltd.
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
