Fixed Knot Deer Fence Mesh Machine

1.The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
2.Our machine adopts sophisticated computer control,advanced production technology.It can weave the weft and warp wire
automatically together to form the field fences.It have the features of reliable property, high efficiency, simple operation, low-cost maintenance.3.The finished products enjoy innovative structure, firm and precise weaving, neat and beautiful and diverse specifications.

Machine name :	Hinge Jointed Fence Machine
Netting Width:	1422mm
Motor:	5.5kw
Twine diameter:	1.9-2.5(mm)
Weight:	3.5T
Availability:

Quantity:



Inquire Add to Basket

Model:
MRHWJ
Brand:
Meirun
Code:
8463300000

Product Description

Full Automatic Hinge Jointed Fence Machine

1.The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
2.Our machine adopts sophisticated computer control,advanced production technology.It can weave the weft and warp wire automatically together to form the field fences.It have the features of reliable property, high efficiency, simple operation, low-cost maintenance.3.The finished products enjoy innovative structure, firm and precise weaving, neat and beautiful and diverse specifications.

Machine Specification

Netting Width	1422mm	1652mm	1880mm	2000mm	2400mm
Motor	5.5kw	7.5Kw	7.5kw	7.5kw	11kw
Efficiency	≤45row/min	≤45row/min	≤45row/min	≤45row/min	≤45row/min
Twine diameter	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)
Side wire diameter	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)
Weight	3.5T	3.6T	3.8T	4.0T	4.5T
Warp number	11	12	13	18	23
Dimension	2.83.22.4(m)	3.03.22.4(m)	3.33.22.4(m)	3.43.22.4(m)	3.93.42.4(m)
Productivity	21600row/day (150m/h)

Machine component

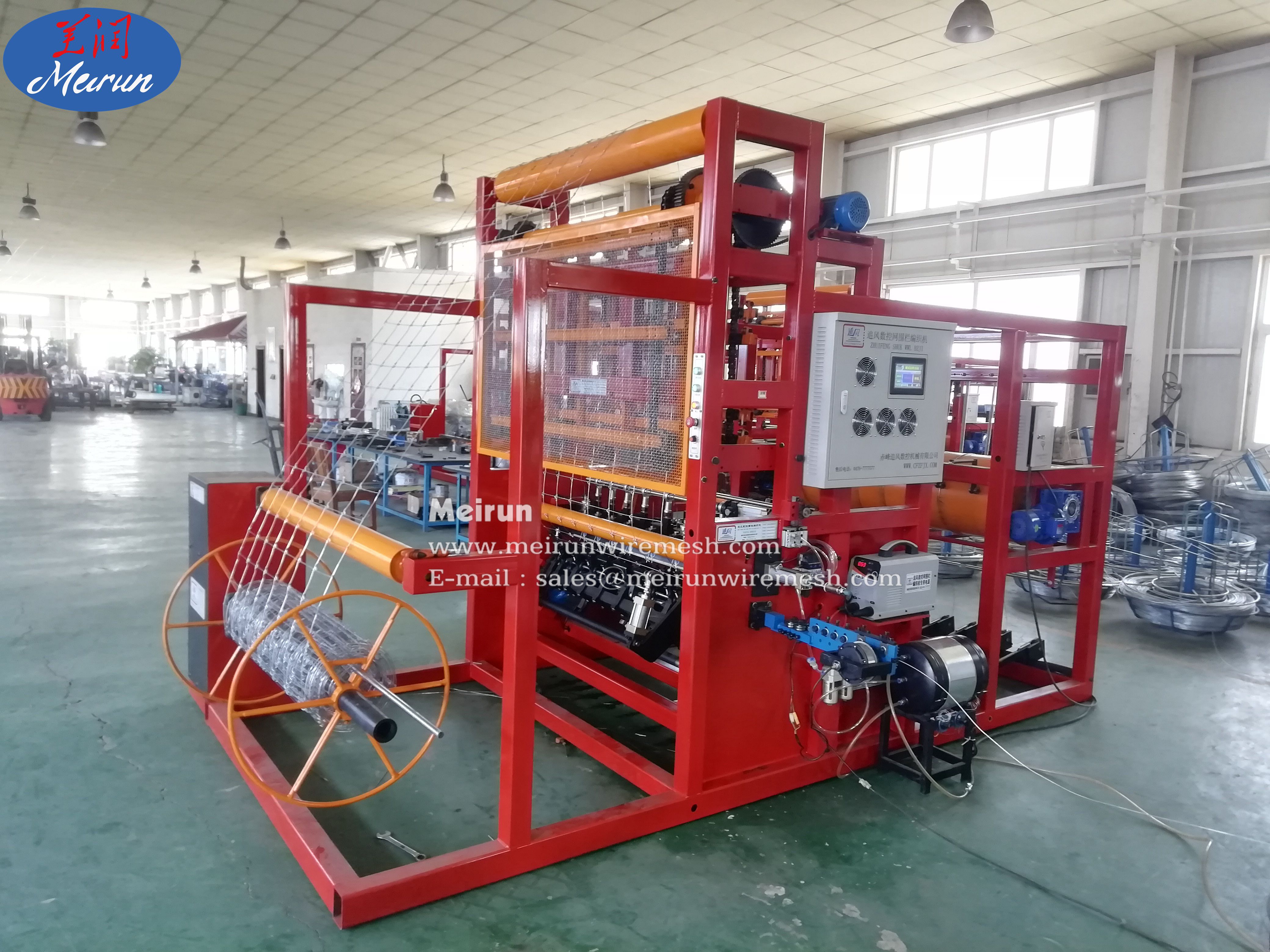

Machine picture

Packing & Delivery

Company Profile

Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines
are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
