Field Fence Weave Machine/ Grassland Fence Mesh Netting Machine

Products used to produce cattle fence, grassland fence. Field fence machine adopts a frequency-adjustable-motor to drive the machine and uses a counter to calculate woven fence, easy operation.
Mesh hole :
Wire diameter :
Motor:
Voltage :
Availability:
Quantity:
  • MRCYWJ

  • Meirun

  • 8463300000


                          Field fence weave machine/ grassland fence mesh netting machine


牛栏网机首图1

01222

The new type fixed knot fence machine is developed by our technical team .

 Mechanical production of wire mesh products have great advantages :

1.★ Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable. 2. ★★Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years. 3. ★★★The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state. 4. ★★★★The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.

Machine specification

Model
KZF-1560
KZF-1800
KZF-2400
Line wire spacing
120 mm (Multiple adjust)
Cross wire spacing
70-300 mm(Arbitrarily adjust)
Edge wire diameter
2.0-3.5 mm
Line wire diameter
1.6-3.2 mm
Knot wire diameter
1.6-2.5 mm
Production speed
32 Time /min
Line wire testing
Automatic stop lack of wire
Cross wire testing
Automatic stop lack of wire
Knot wire testing
Automatic stop lack of wire
Control system
PLC+touch screen
Wire material
Iron wire, Steel wire, Galvanized wire, etc
Fence height
Max 1560 mm
Max 1800 mm
Max 2400 mm
Line wire number
Max 14
Max 16
Max 21
Roll mesh length
30-100 meter
30-100 meter
30-100 meter
Dimensions
5000*2000*2600 mm
5000*2300*2600 mm
5000*2800*2600 mm
Weight
2800 kg
3200 kg
4500 kg

01214

Machine component

012410121901235

Products application

01229

01237



Our company

Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.

客户6 (1)

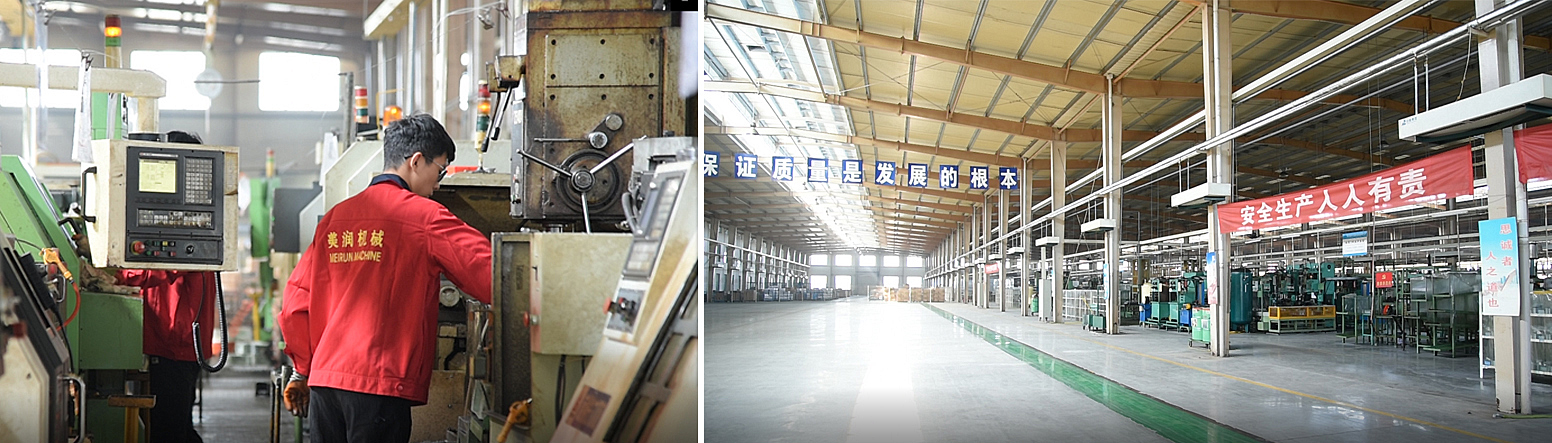

Our factory

QQ图片20210610164908

Company certificate

证书合成
