Fence Welded Making Machine

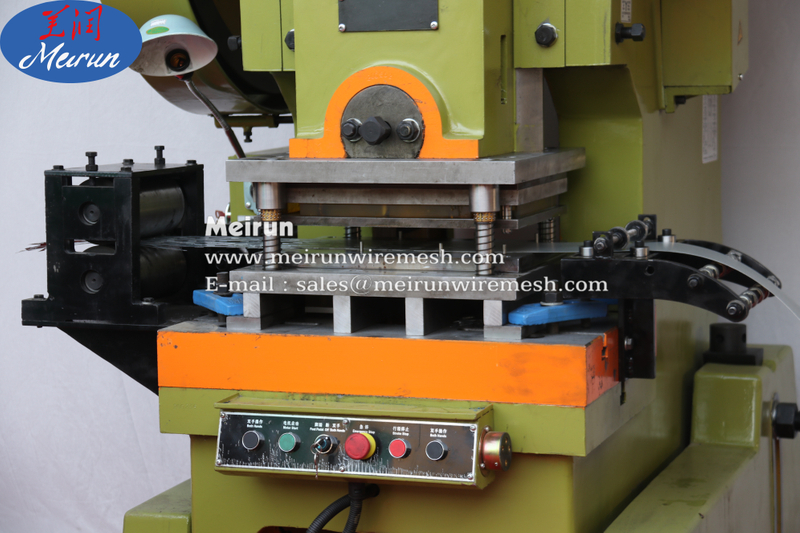

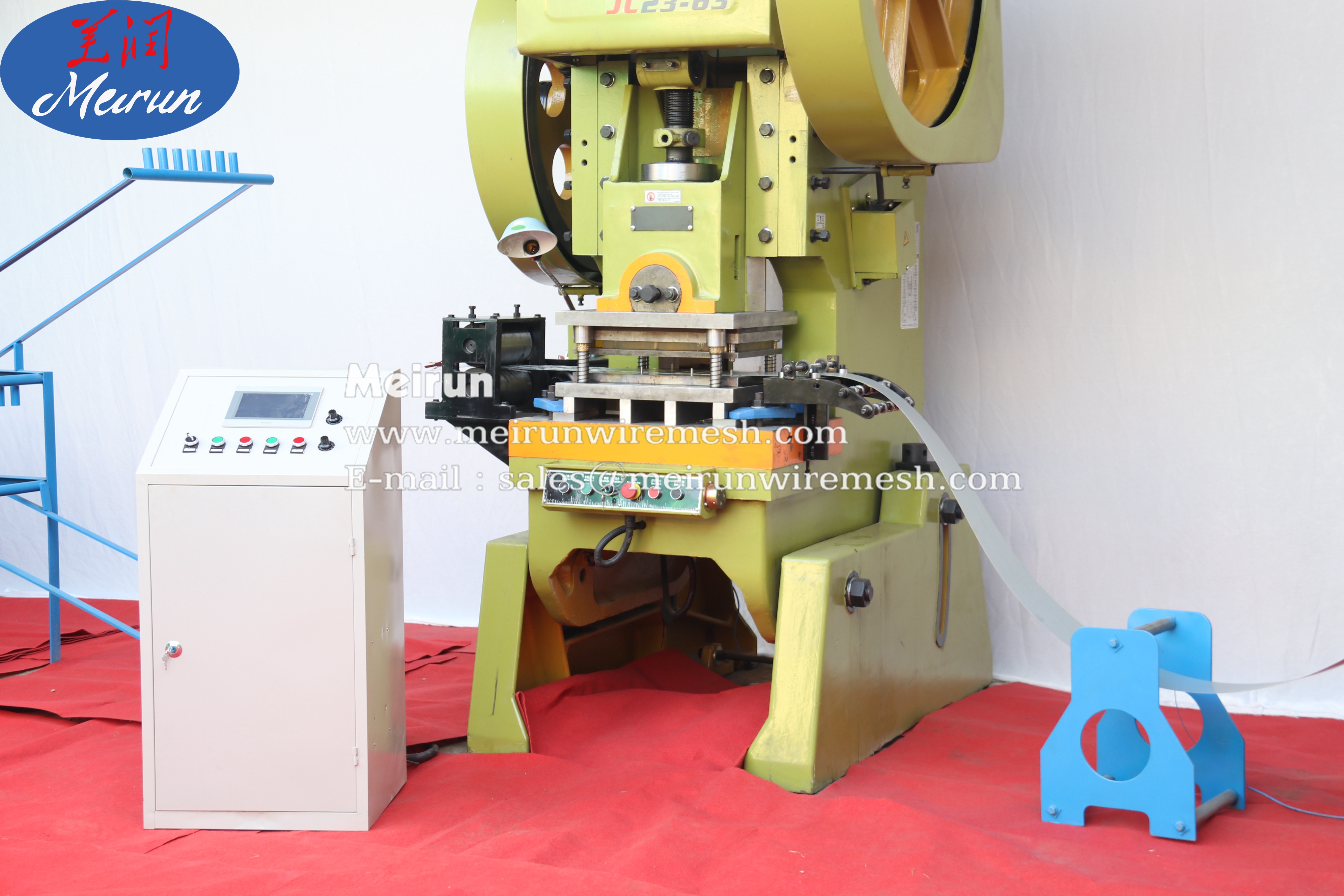

Razor barbed wire machine,also called blade barbed wire machine.It is composed by two production lines:Punch line and assembly Line.Punch line is used to punch the Galvanized sheet becoming wire with blade shape. And the assembly Line combine inner round with blade shape wire together.This type has advantages of easy operation,easy maintain,high speed and low energy consumption.

Machine name :	Razor barbed wire making machine
Wire Diameter :	2mm -3mm
Material:	2.5mm steel wire/0.5mm galvanized plate
Power:	22 KW
Availability:

Quantity:



Inquire Add to Basket

Model:
MRCSJ
Brand:
Meirun
Code:
8463300000

Product Description

Razor barbed wire making machine

Razor barbed wire machine,also called blade barbed wire machine.It is composed by two production lines:Punch line and assembly Line.Punch line is used to punch the Galvanized sheet becoming wire with blade shape. And the assembly Line combine inner round with blade shape wire together.This type has advantages of easy operation,easy maintain,high speed and low energy consumption.

Machine Specification

Razor Barbed Wire Making Machine
Model	GSDP-63
Production size	BTO10,12,18,22,26,28,30/CBT60
Strips	5,7,9,11,23m/min
Coil diameter	450-1000mm
Material	2.5mm steel wire/0.5mm galvanized plate
Output	1t/h
Voltage rating	380V 50HZ
Power	22KW
Size	10m1.5m2.3m
Weight	15t
Working principle	Punching ,then wrapping wire
Components	De-Coiler/High velocity ram machine/Hydraulic strips recoiling machine

Machine component
