Factory Supply Custom Made High Quality Steel Grating Steel Grating Making Machine

Share to:

Factory Supply Custom Made High Quality Steel Grating Steel Grating Making Machine

Grating grid forming machine is a special equipment for steel grating production. This machine uses the principle of single electrode resistance welding to weld flat steel and twisted steel into a firm grid according to the set requirements. Applicable raw materials can be flat iron, cold-rolled ribbed steel bars, cold-rolled smooth steel bars or hot-rolled steel bars.

Machine name :	Galvanized wire Steel grating machine
Welding width:	1200mm
Welding length:	6000mm
transformer:	200kva*2
Availability:

Quantity:



Inquire Add to Basket

Model:
MRGBJ
Brand:
Meirun
Code:
8463300000

Product Description

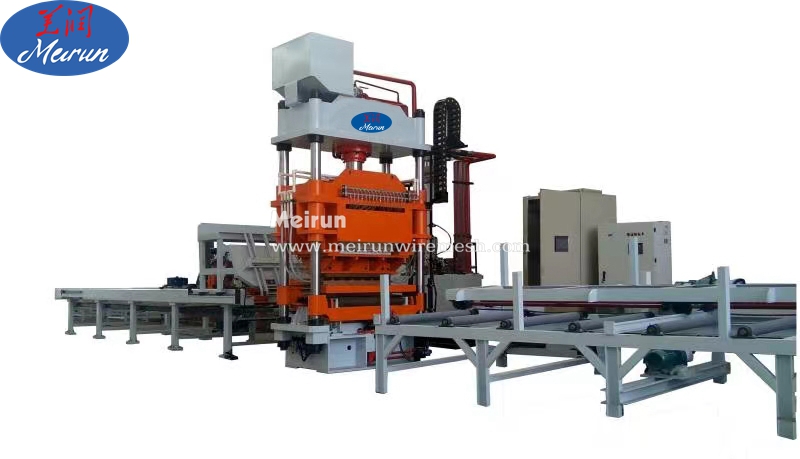

Galvanized Steel Gratings Making Machine

Grating grid forming machine is a special equipment for steel grating production. This machine uses the principle of single electrode resistance welding to weld flat steel and twisted steel into a firm grid according to the set requirements. Applicable raw materials can be flat iron, cold-rolled ribbed steel bars, cold-rolled smooth steel bars or hot-rolled steel bars.

Specification

Weight (KG)	4500
Power (kW)	5.5
Welding width	1200mm
Welding length	6000mm
twist bar spacing	40-300mm
flat bar distance	20,40,30,60mm..
transformer	200kva*2
welding motor	2.6kw
speed	20-40times/min
welding number	3 points one time welding
twist bar diameter	6mm,8mm
flat bar thickness	max 10mm

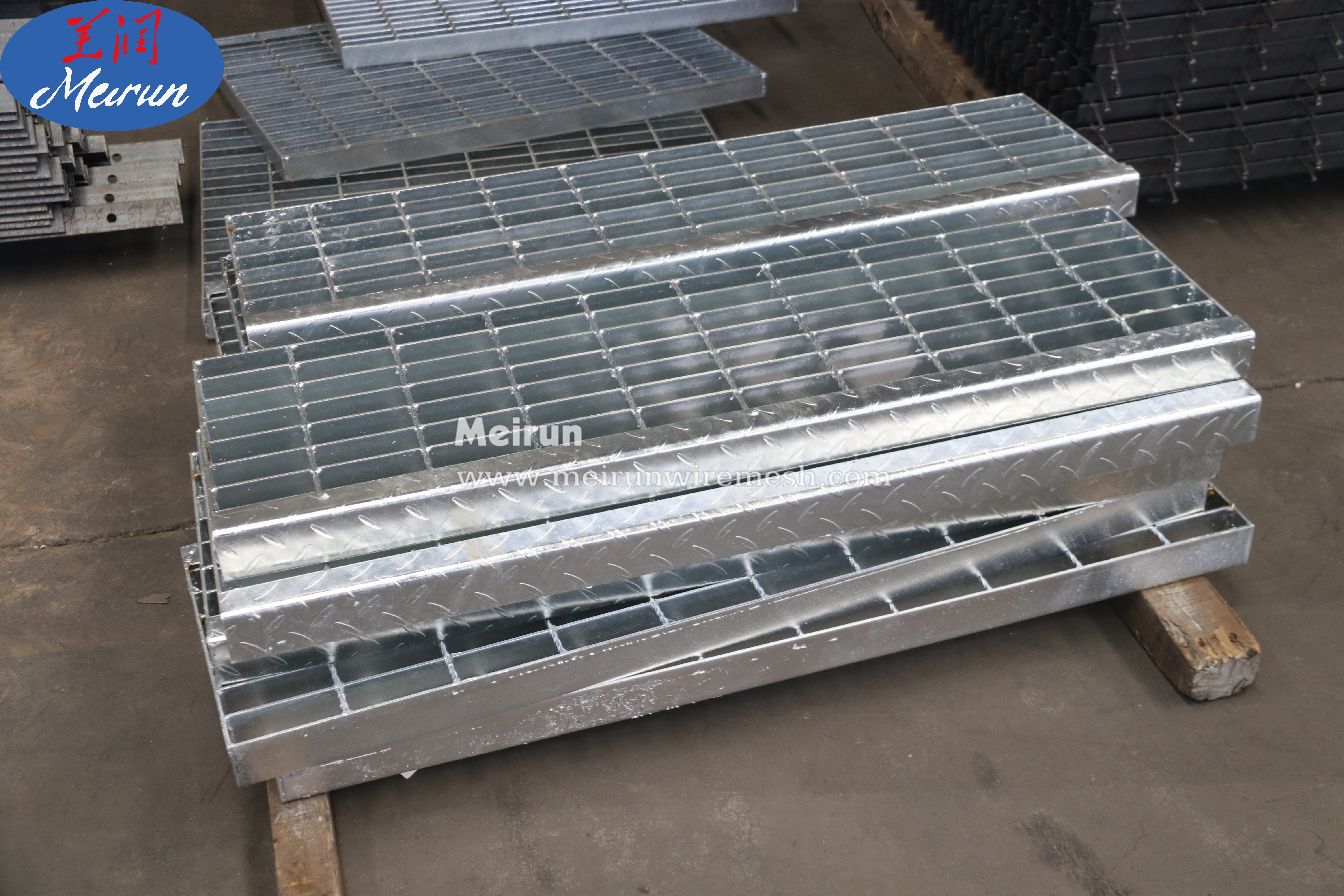

Machine products

Machine products used for walkway,stairways,platform,drainage cover,floor,safety fence barrier tree guard,ramps,stair tread...and so on .
