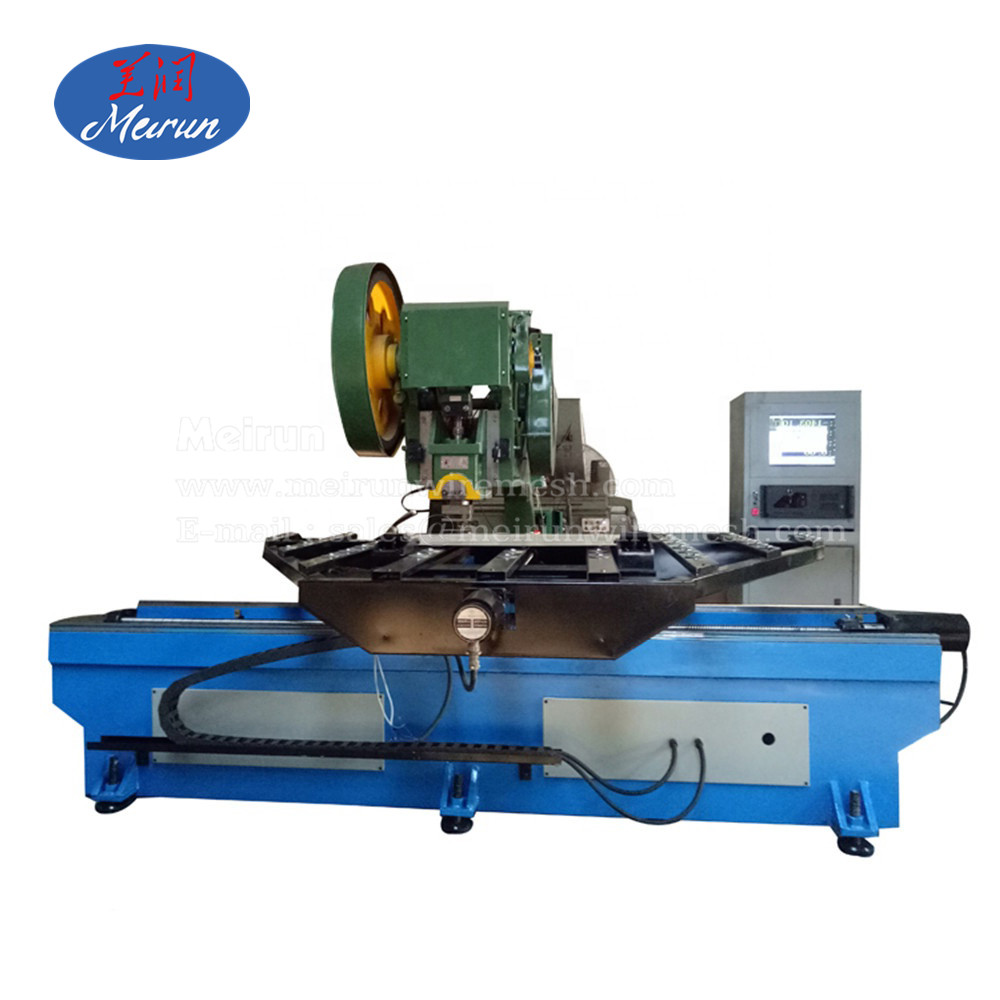

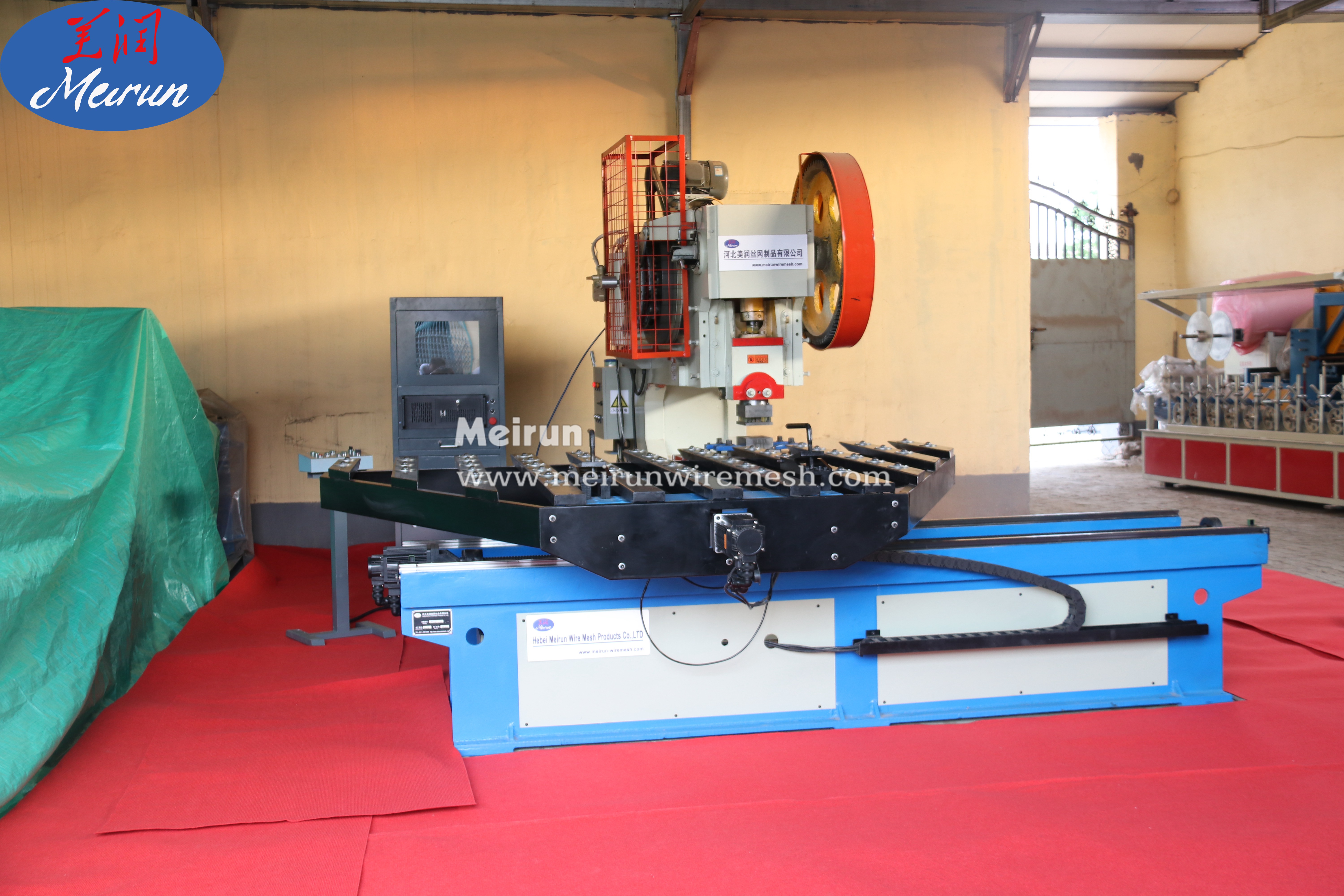

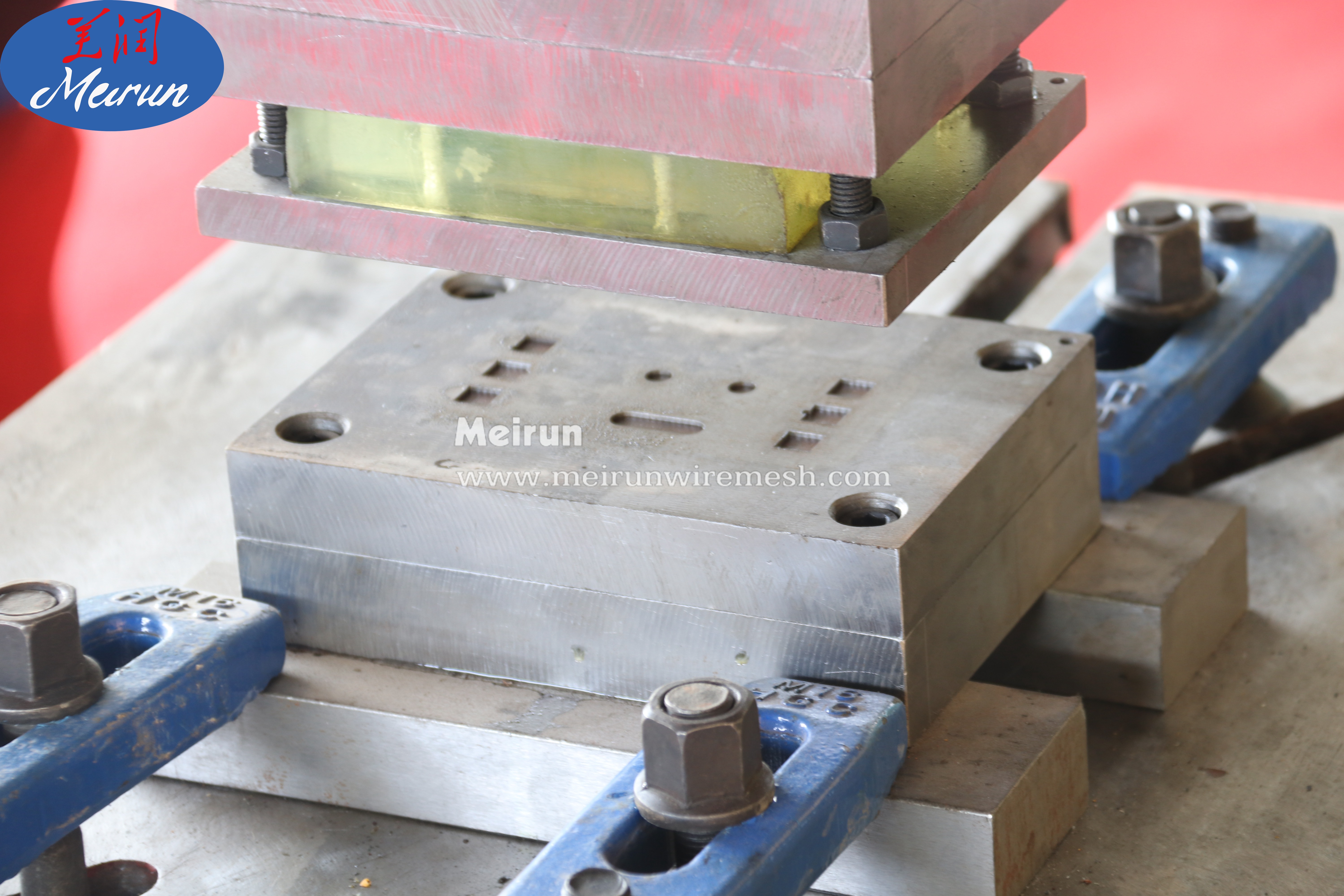

A perforated metal mesh machine is a piece of equipment used to produce perforated metal sheets. Here is a brief introduction. It typically uses a punching mechanism. A motor drives a mechanical or hydraulic system to generate force. This force is transmitted to a punch and die set. The punch, under the action of the driving force, moves downwards at a certain speed and impacts the metal sheet placed on the die. The die has a specific hole - shaped pattern. As the punch presses the metal sheet against the die, the metal is deformed and cut, forming holes of the desired shape and size.
Specification
| CKWJ-25 | CKWJ-40 | CKWJ-63 | CKWJ-80 | CKWJ-100 |
| Stamping tonnage | 25T | 40T | 63T | 80T | 100T |
| Thickness | 0.1mm-2mm | 0.5-3mm | 0.5-3mm | 0.5-10mm | 0.5-10mm |
Width of steel | 1250-2500mm | 1250-2500mm | 1250-2500mm | 1250-2500mm | 1250-2500mm |
Output | 85/min | 70/min | 60/min | 45/min | 40/min |
| Motor | 3kw | 4kw | 4kw | 5kw | 7kw |
Weigh | 3.5t | 4.5t | 5.5t | 8t | 10t |
Dimension | 3.5*3.5*2m | 3.6*3.5*2.1m | 3.7*3.5*2.25m | 3.8*3.5*2.25m | 3.9*3.5*2.3m |
Perforated Metal offers endless possibilities with its wide range of materials, styles, patterns, and sizes. Perforated Metal is a special type of sheet metal that has punched holes in a variety of patterns — or as we like to call it, design, character, and functionality! Perforated Metal has a variety of applications in heating, ventilation, air conditioning (HVAC), filtration, aesthetics, and more. Many industries can benefit from using Perforated Metal in their projects such as architecture, engineering, and construction to name a few.
