MRCSJ
Meirun

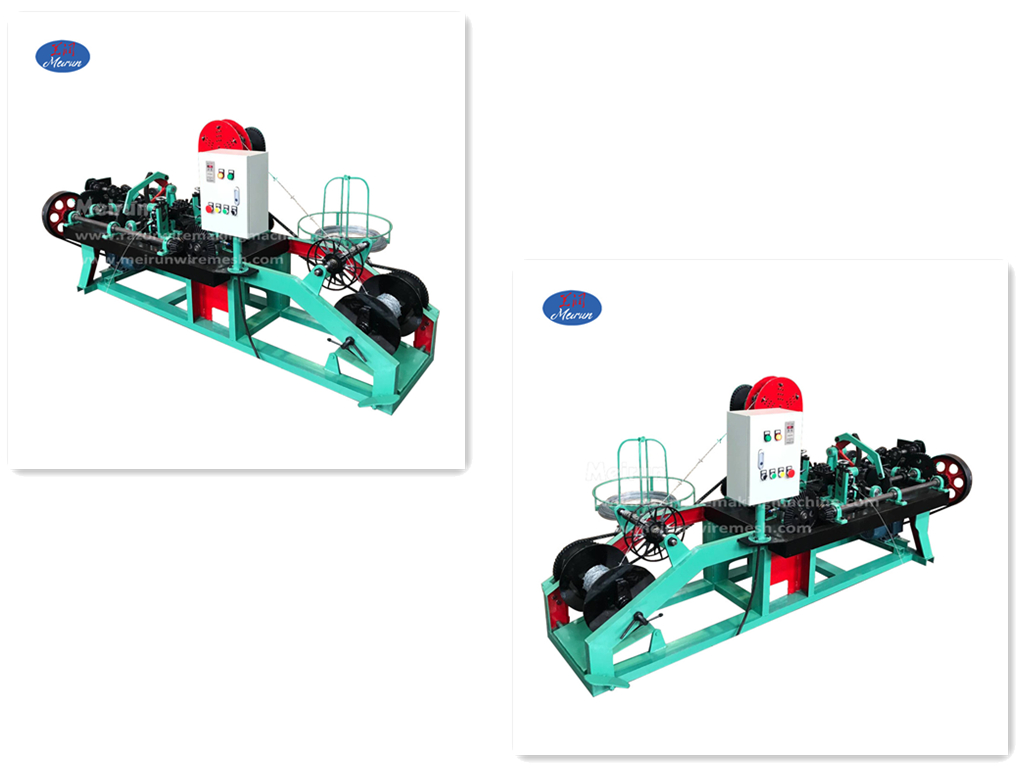

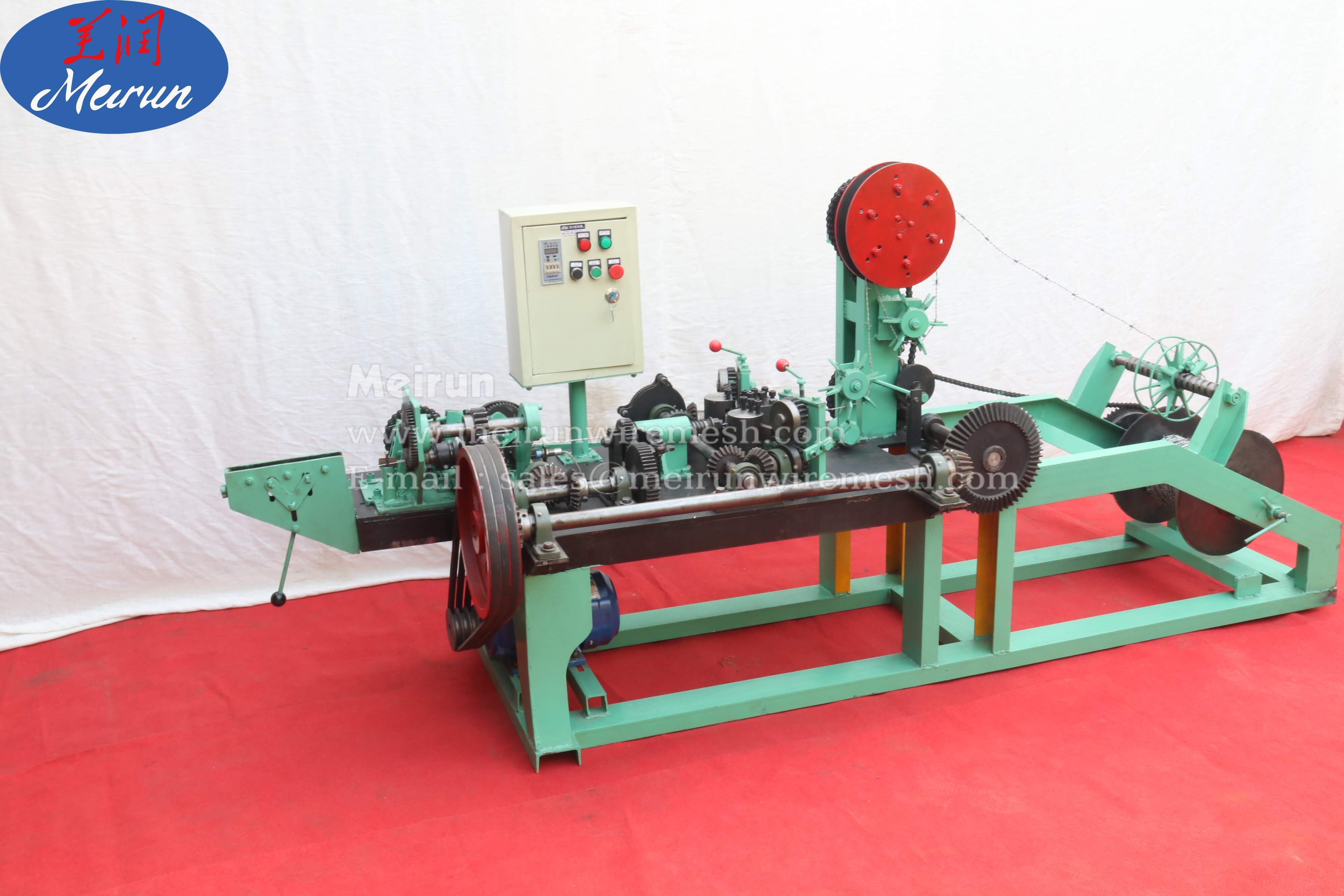

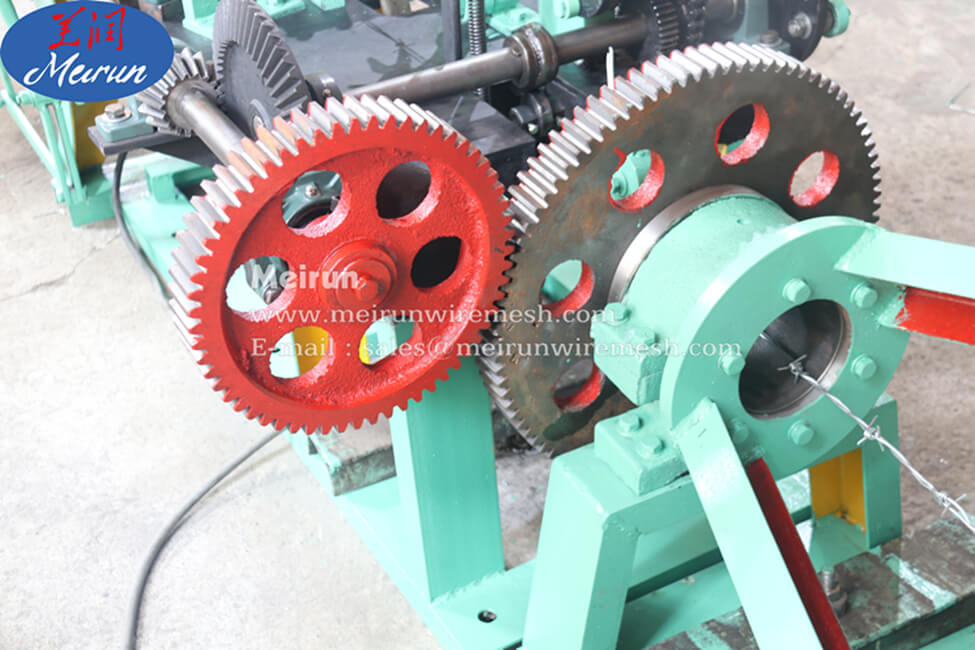

Double strands barbed wire mesh machine
Common Double Twisted Barbed Wire Machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal husbandry, playground fence,agriculture, expressway, etc.We always keep the best professional design and manufacturing technology in this barbed wire machine with over 25 years of experience.
Advance Technologies
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.

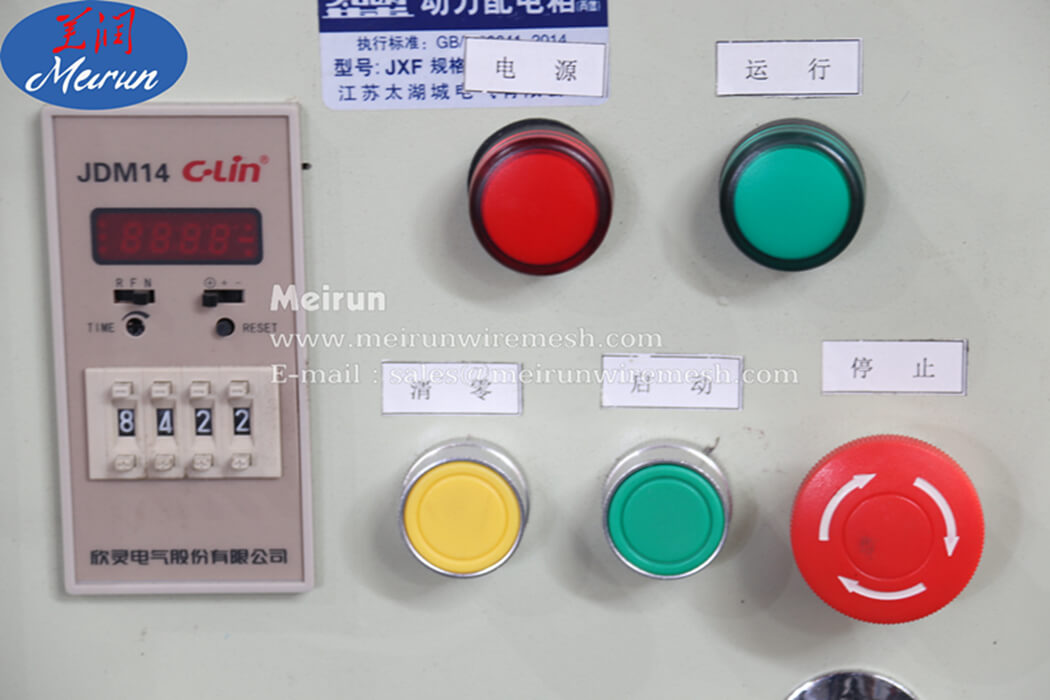

5. Button switches and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
Specification
Model | CS-A | CS-B | CS-C |
Strand wire diameter | 1.6-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
Barb diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.8mm |
Barb pitch | 3/4/5/6 Inch | 3/4/5/6 Inch | 3/4/5/6 Inch |
Twisted number | 3-5 | 3 | 7 |
Raw material | Galvanized steel wire or PVC coated wire or black wire etc. | ||
Productivity | 70kg/h 20meters/minute | 40kg/h 17meters/minute | 40kg/h 17meters/minute |
Motor power | 2.2/3kw | 2.2/3kw | 2.2/3kw |
Voltage | 380V 50Hz or 220V 60hZ or 415V 60Hz or customized | ||
Total weight | 1200kg | 1000kg | 1000kg |

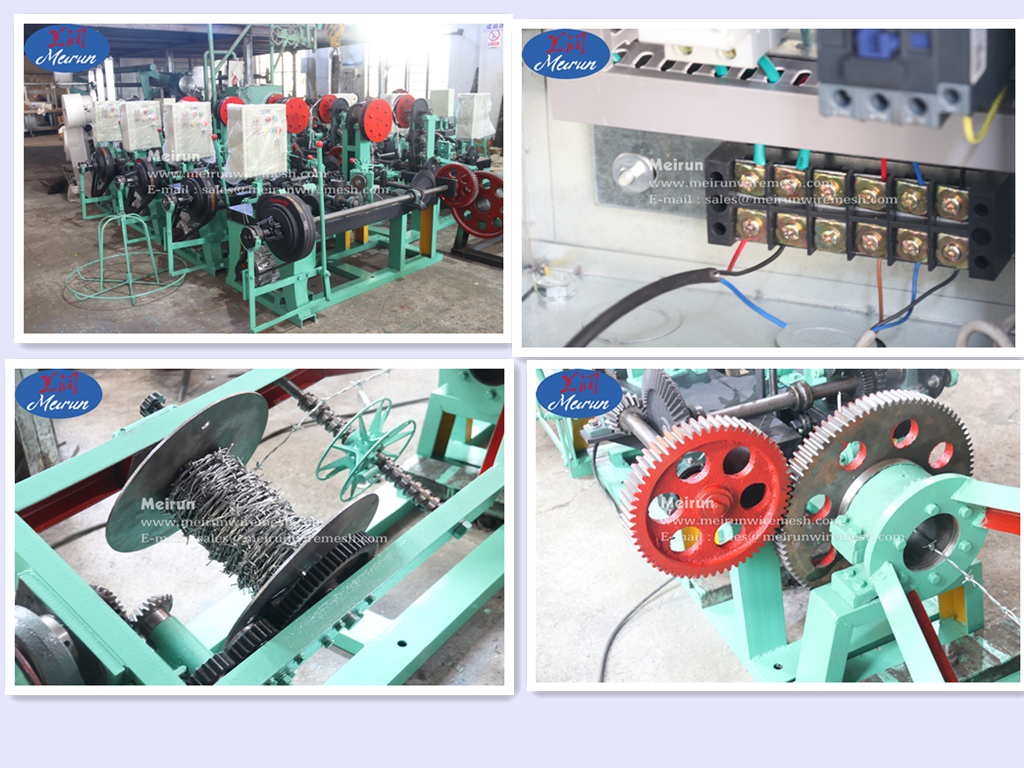

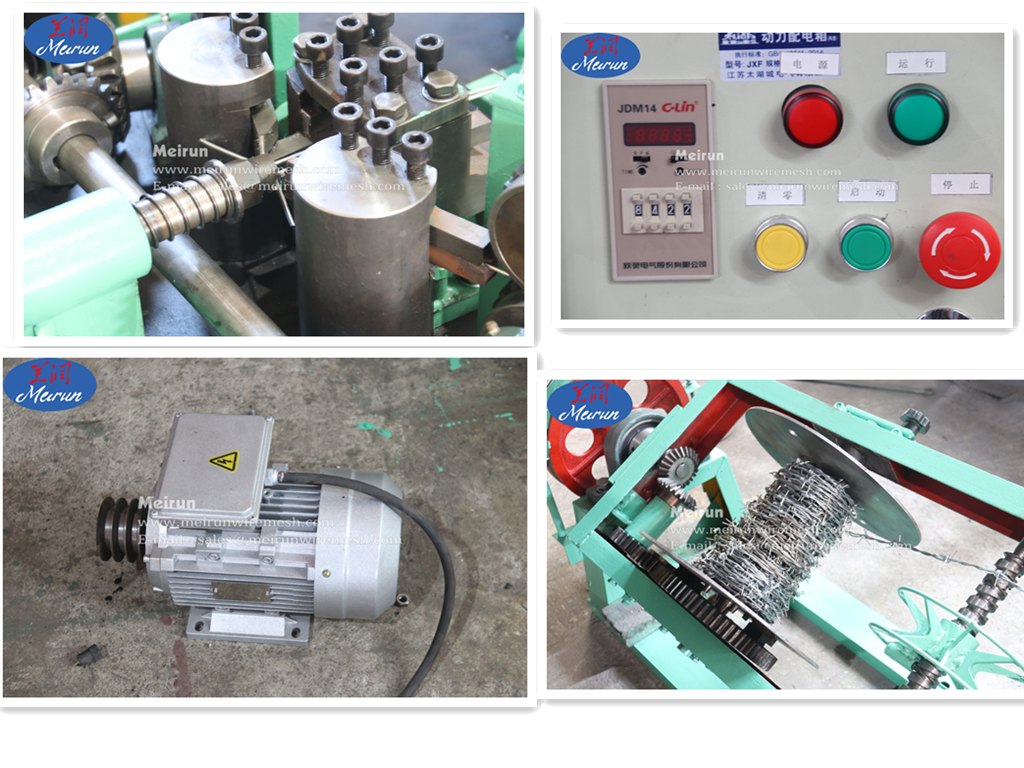

Part of machine
pay-off.
Common Double Twisted Barbed Wire Machine has consisted of wire wrapped and wire collected device and equipped with a three-wire pay-off.

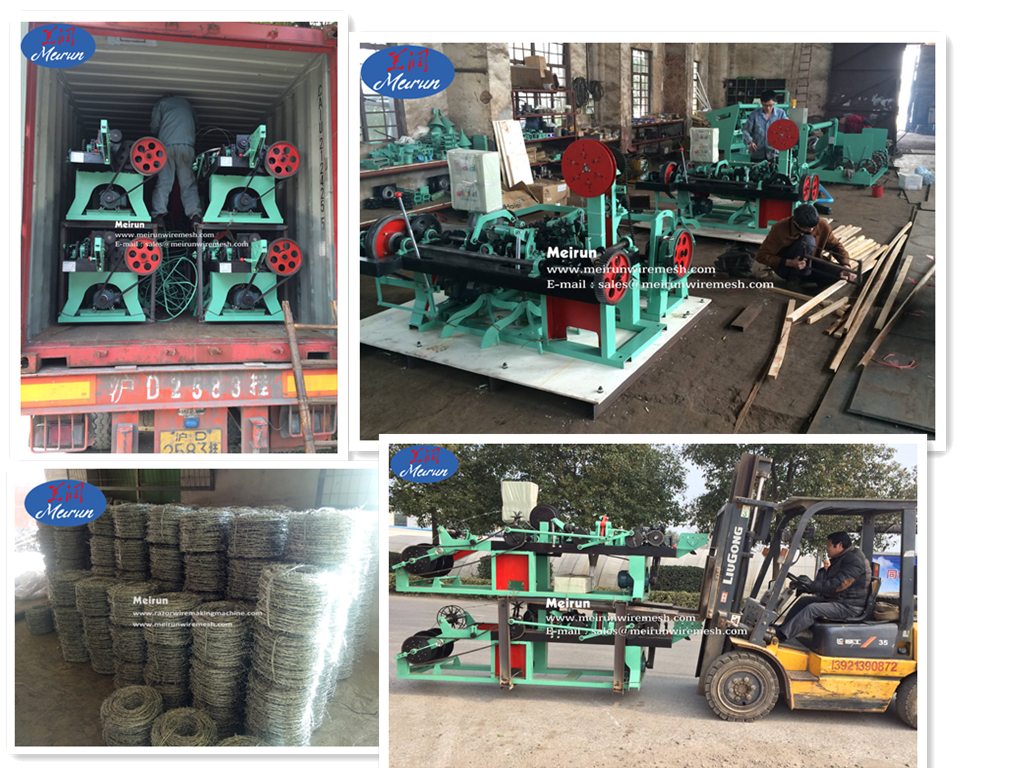

Packing & Delivery
