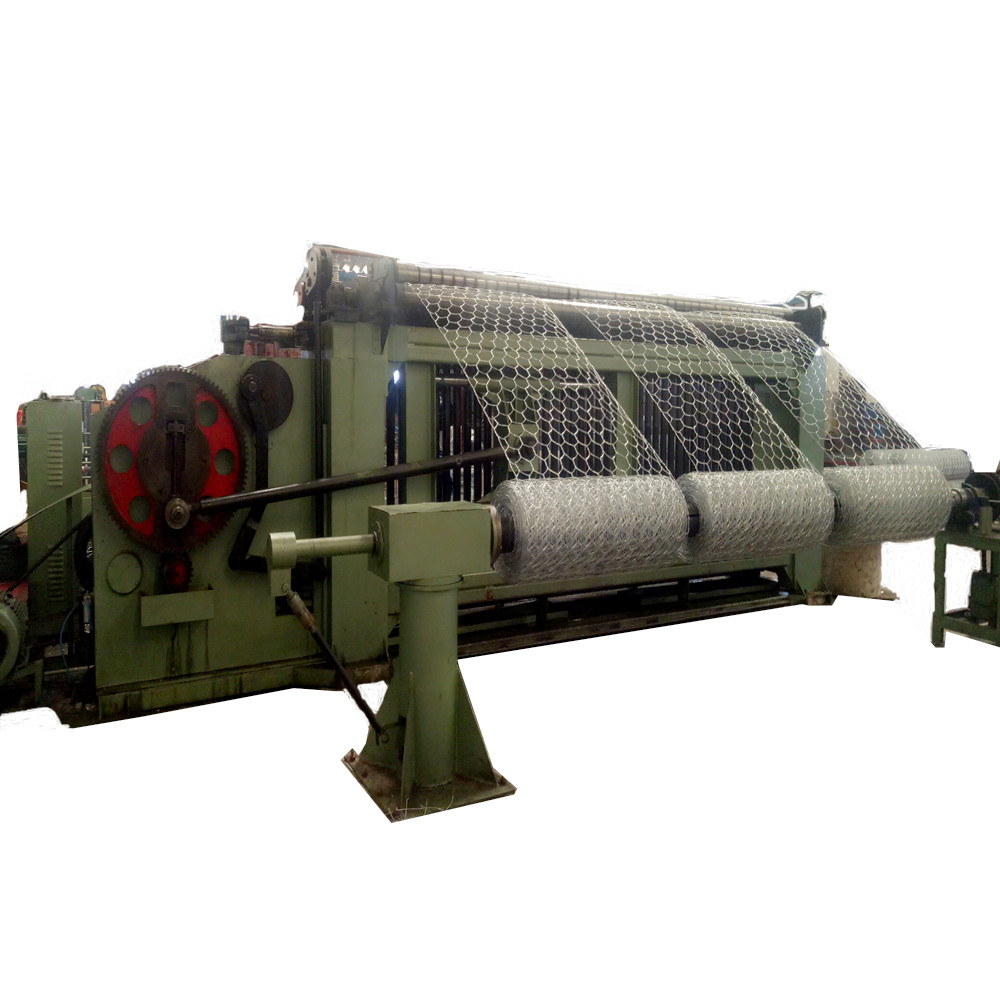

Gabion mesh machine
MR
MR09
The gabion cages machine is a special equipment for producing the hexagonal metal mesh, which is designed and produced independently by our own factory, Hebei meirun. It is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noice and high effiency.
The gabion cages machine detailed
Also known as the big six mesh specifications or hexagonal, stone cage net, by the high quality steel wire netting machine twisted
Our type gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
A full set of gabion mesh machine include main machine, spring winding machine, mesh coiling machine and wire tension machine.
Machine Advantages :
1. big mesh size : 60*80 ,80*100, 100*120mm, etc
2. big wire diameter : usually from 1.6-3.2mm
3. big mesh width:Max.width : 4.3m
4. smooth running and high efficiency
5. good after sales service
6. suitable machine for produce big mesh size with big wire diameter
Gabions mesh machine have the following characteristics :
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
5.Good permeation can prevent the damage by hydrostatic.
Gabion mesh detailed
Gabion mesh machine can produce gabion mesh which is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh; It also can be used for fencing, residential and landscape protection, etc. while it is also good material which is used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering , also it is the best material for flood.
Mesh size(mm) | Max width(mm) | Max wire diameter(mm) | Capacity (kw) | Weaving speed (m/hour) | Opening size (mm) | Weight (T) |
60x80 | 2400 | 3.2 | 15 | 165 | 5200*1400*2400 | 13.5 |
3300 | 3.2 | 18 | 6200*1400*2400 | 15 | ||
4300 | 3 | 22 | 7200*1400*2400 | 16 | ||
80x100 | 2400 | 3.2 | 15 | 200 | 5200*1400*2400 | 13.5 |
3300 | 3.2 | 18 | 6200*1400*2400 | 15 | ||
4300 | 3 | 22 | 7200*1400*2400 | 15.5 | ||
100x120 | 2400 | 3.2 | 15 | 220 | 5200*1400*2400 | 13.5 |
3300 | 2.8 | 18 | 6200*1400*2400 | 16 | ||
4300 | 2.8 | 22 | 7200*1400*2400 | 15.5 | ||
120x150 | 2400 | 3.2 | 15 | 230 | 5200*1400*2400 | 13.5 |
3300 | 2.8 | 18 | 6200*1400*2400 | 15 |
Packaging Details:gabion machine wooden pallet and plastic package in the container or pack per customer's request
Delivery:Deliver goods 15 days after receiving 70% of balance payment
We can send our technician to install the machine accordingly if needed.The buyer has to pay for the salary , air ticket, accommodation. Please kindly note.
