CSB CSC Automatic Barbed Wire Making Machine strand Double strands Barbed wire equipment with 4 pay-off

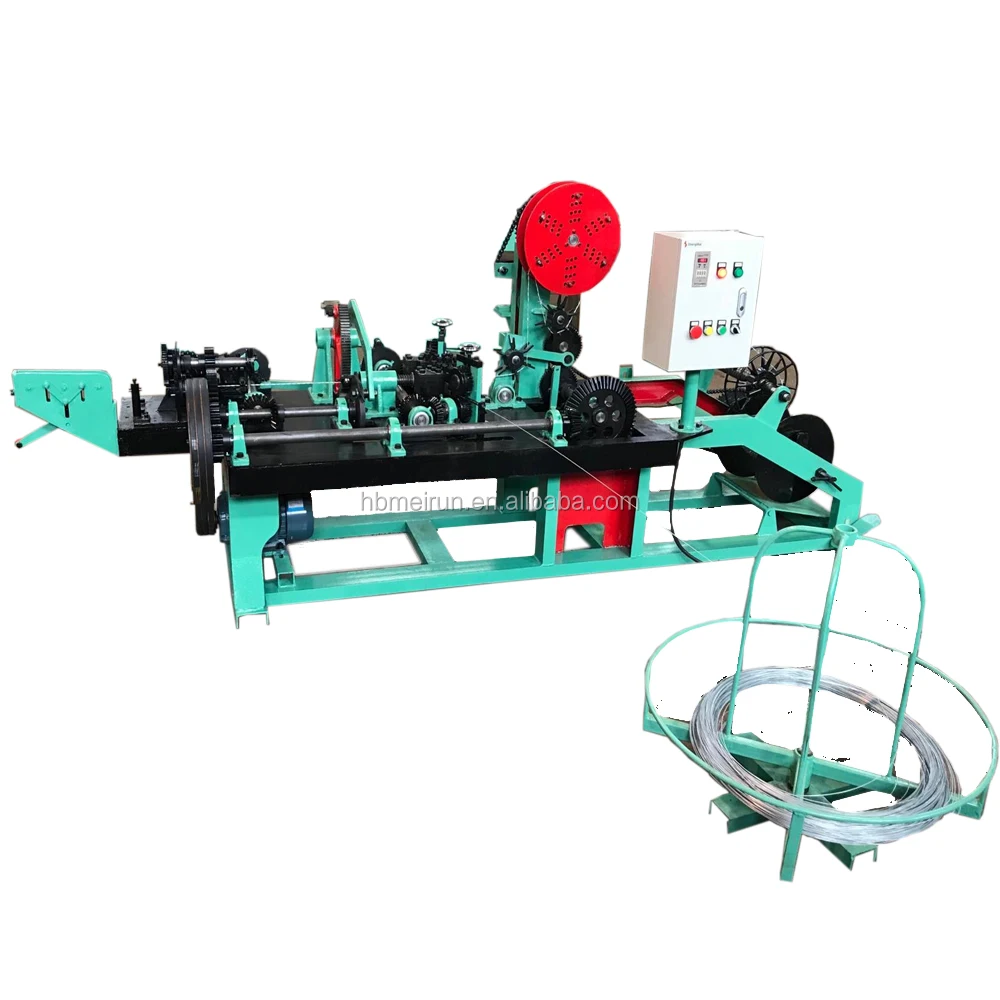

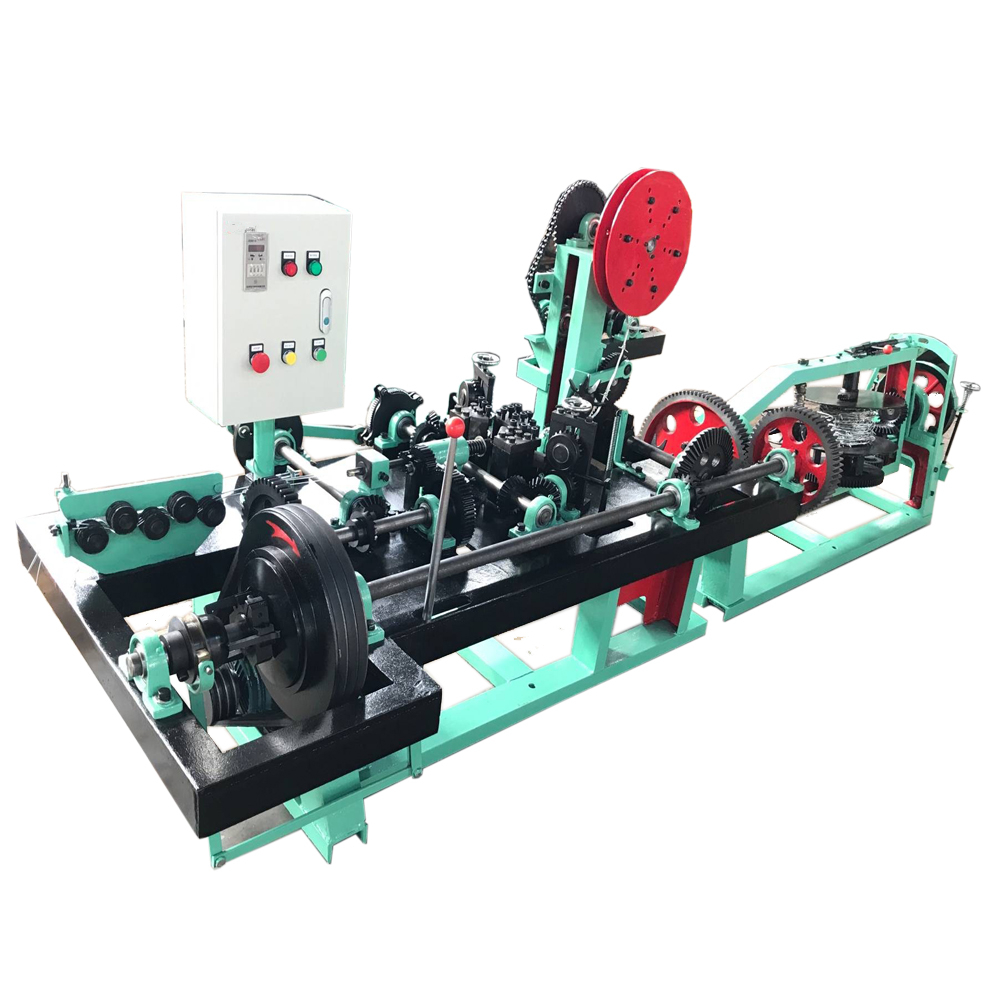

The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.
Size:
Availability:
Quantity:
  • barbed wire machine

  • MR

  • MR04

Barbed wire making machine description:

 The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.

The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.

 galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience

Features of the barbed wire making machine:

1. It is of low-noise, high-safety and high-efficiency.
2. It is easy to operate and of high-capacity.
3. Twisted number and barbed space can be customized according to customer's requirement.
4. It is inexpensive.

 galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience

galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience                        galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience

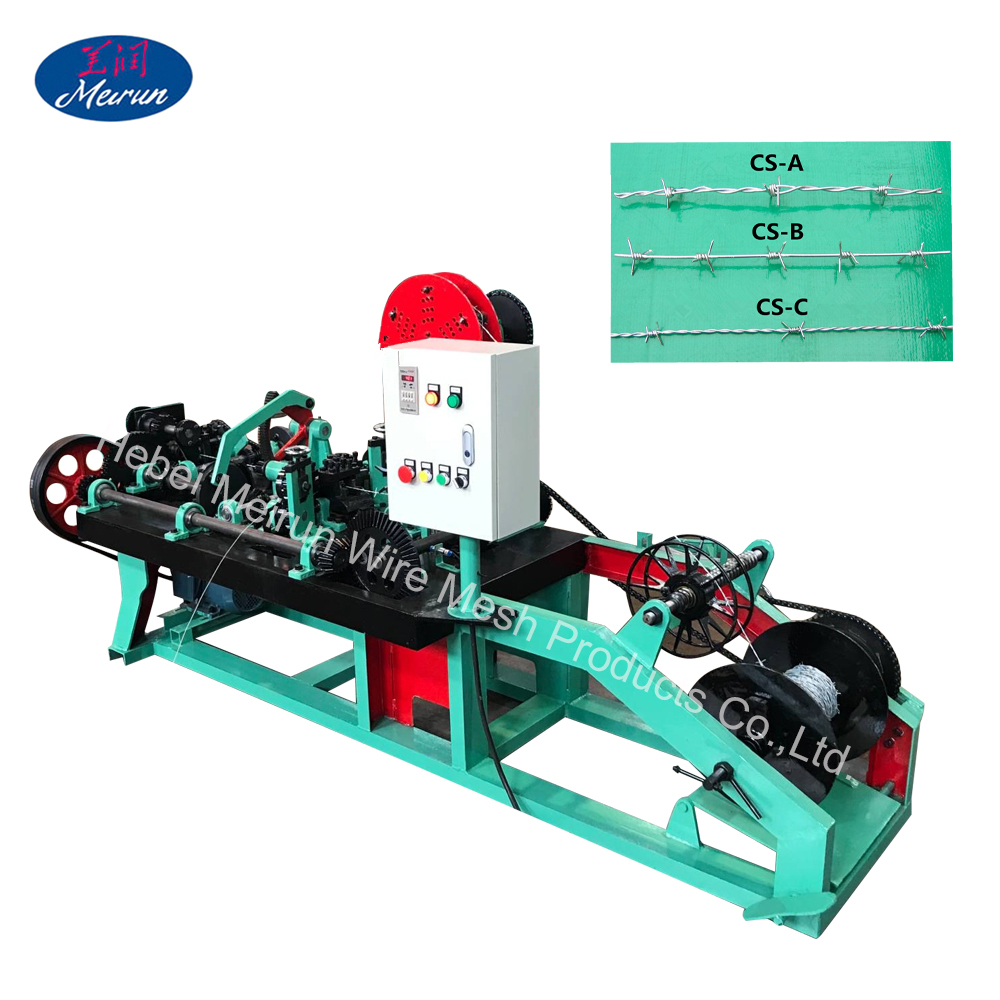

Barbed wire making machine specification :


Model CS-A CS-B CS-C


Barb pitch spacing



76mm-152mm



76mm-150mm



100mm-120mm



Strand diameter



1.8-3.0mm



1.6-2.8mm



2.2-2.8mm



Barbed wire diameter



1.8-2.8mm



1.6-2.3mm



1.8-2.2mm



Motor



3KW



2.2KW



2.2KW



Voltage



380V/50HZ



380V/50HZ



380V/50HZ



Rated output



80-120kg/h



50-60kg/h



40kg/h



Size of the host



1.8*0.75*1.1m



3.5*0.8*1.1m



3.5*0.8*1.1m



Vice machine size



1.9*0.75*0.90m



Machine weight



1500kg



1200kg



1000kg

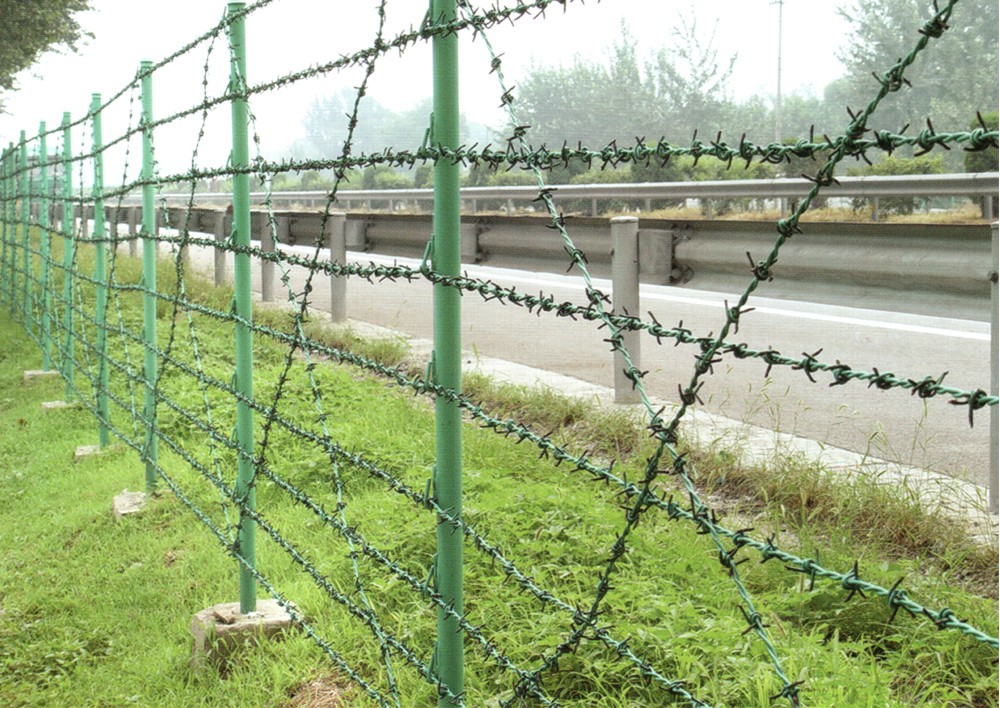

Barbed wire usage:

Barbed wire with strong anticorrosion performance, long service life, good defense, and other characteristics, suitable for factory, private villas, residential buildings on the ground floor, construction site, Banks, prisons, print works, military machine, bungalow.

galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience   galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience



galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience  galvanized steel iron barbed wire making machine factory supplier/The factory has more than 20 years of experience
