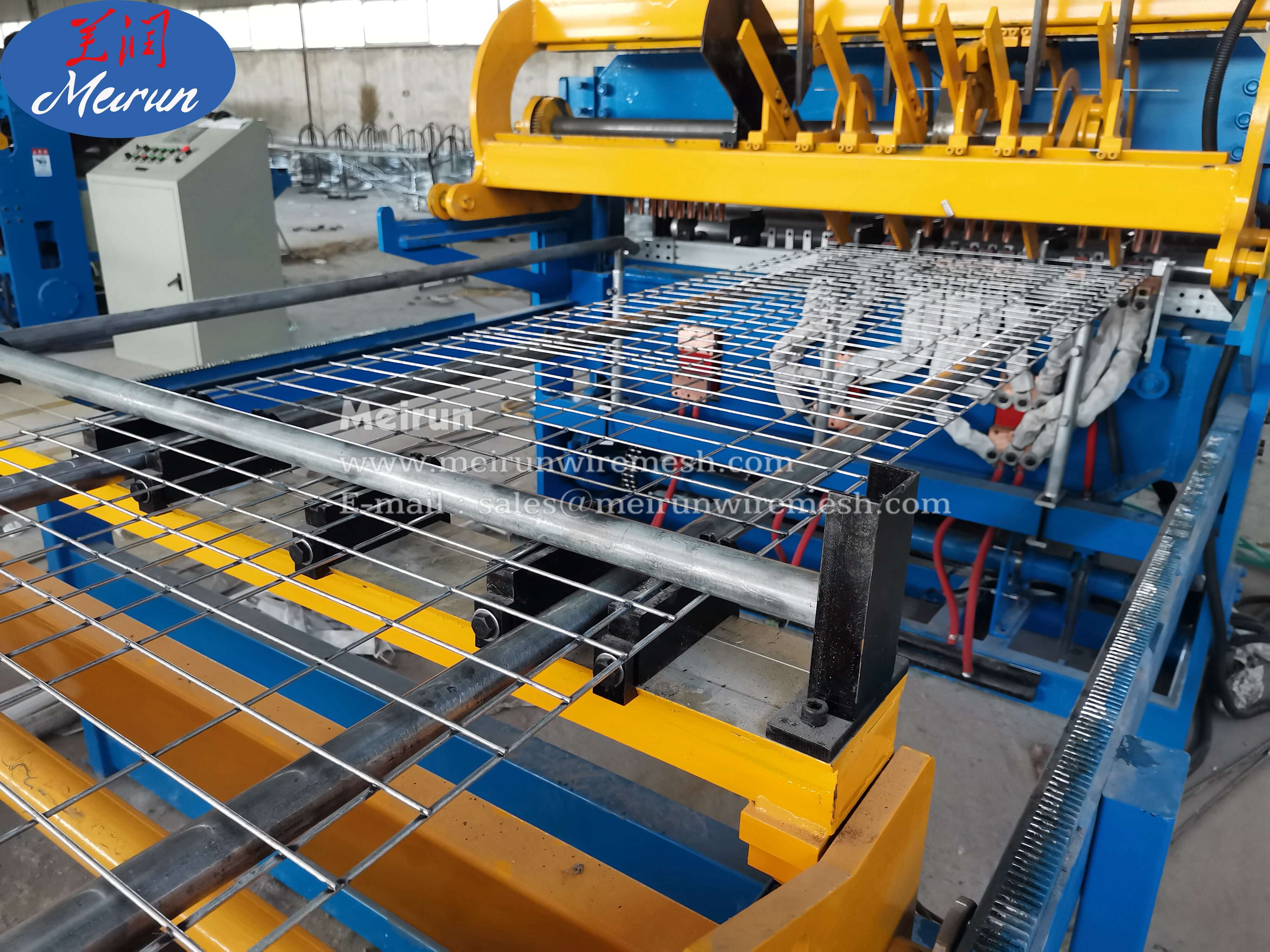

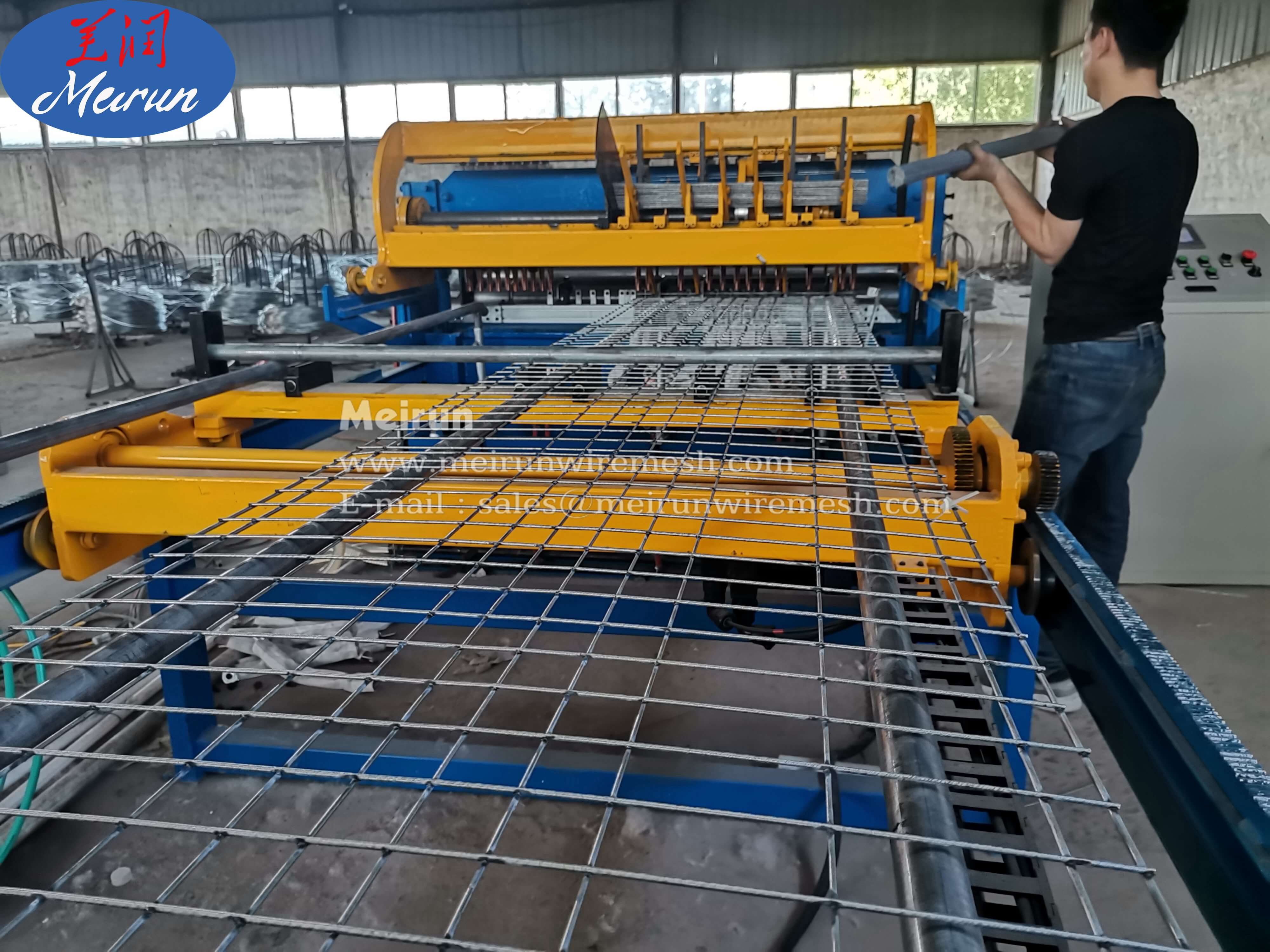

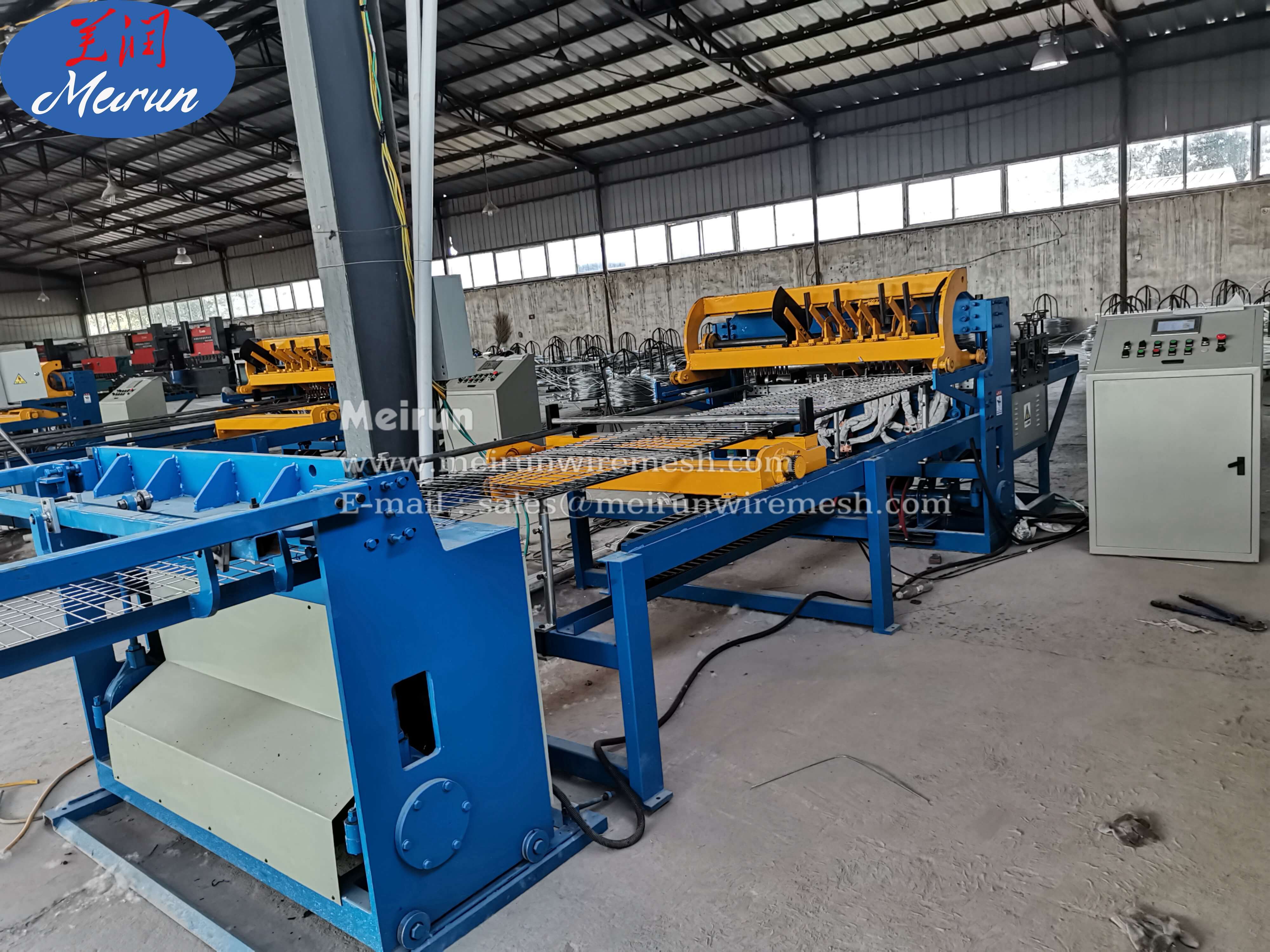

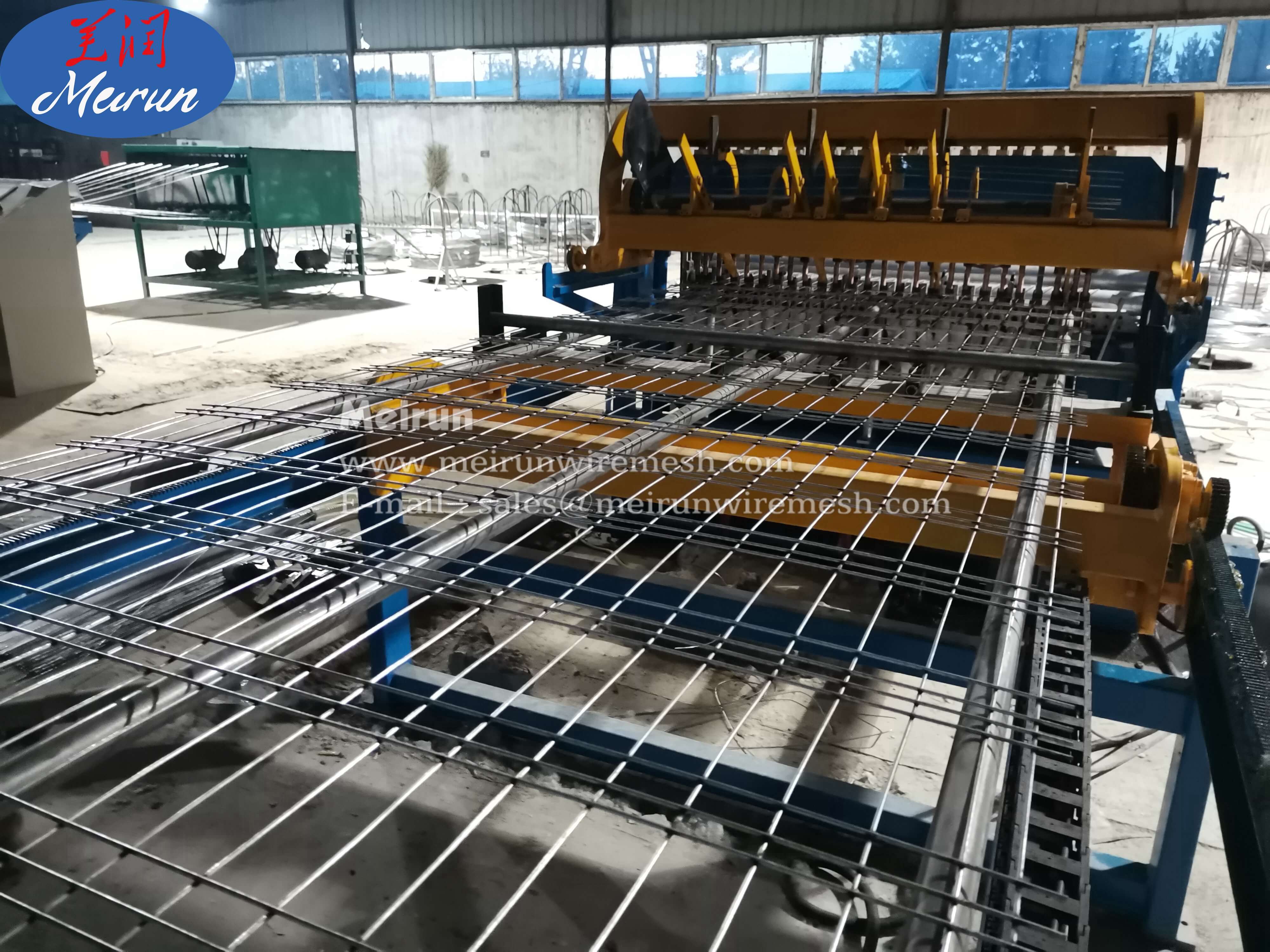

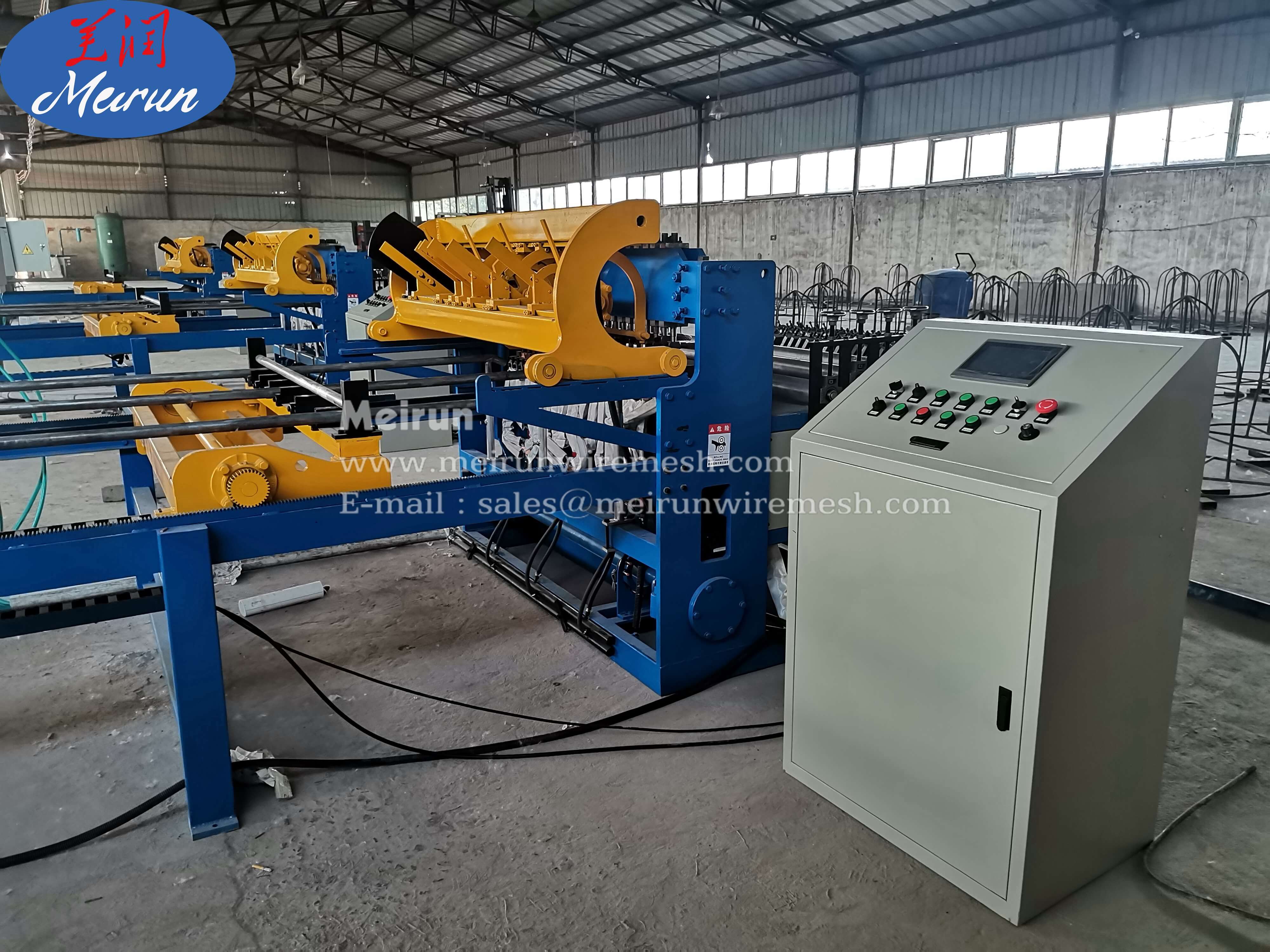

CNC Welded Wire Mesh Panel Machine for Fence

CNC Welded Wire Mesh Panel Machine for Fence is the most advance kind in the field of the fence mesh welding machine .it have the character of the PLC control system ,water cooling when the machine works, it was very precise when you want to adjust the press ,the mesh aperture The most feature is that it do not need to slice the side .More ever ,both the weft wire and the longitude wire are feeding by wire coils .
Availability:
Quantity:
  • MRJLWJ

  • Meirun

CNC Welded Wire Mesh Panel Machine for Fence

 CNC Welded Wire Mesh Panel Machine for Fence is the most advance kind in the field of the fence mesh welding machine .it have the character of the PLC control system ,water cooling when the machine works, it was very precise when you want to adjust the press ,the mesh aperture The most feature is that it do not need to slice the side .More ever ,both the weft wire and the longitude wire are feeding by wire coils .

鸡笼网机首图

CNC Welded Wire Mesh Panel Machine for Fence detailed:
 CNC Welded Wire Mesh Panel Machine for Fence characters:
1), This kind of machine is expert to produce mesh sheet. The finished mesh is much smoother than mechanical machines products.
2), PLC control. Easy to set and control. It makes this machine more intelligent and reasonable.
3), The weft wire supply is automatic.
4), The greatest advantage is possible to adjust the distance of wefts at random on the same mesh sheet

5) the finished produce welded wire mesh are for fence, construction, poultry cage etc

鸡笼网机机器部分图片


CNC Welded Wire Mesh Panel Machine for Fence Machine :
Uniform mesh hole
Flat surface
Firm welding spot
Long service life
Corrosion protection
High quality
Beautiful appearance


Specification

Model
HLHJ--1800
HLHJ--2000
HLHJ--2500
Mesh width
1500-1800mm
1500-2000mm
1500-2500mm
Mesh opening size
50-200mm
Wire Diameter
2.5-5mm
Welding Speed(Mesh/min)
50--60
Welding length
1000mm-3000mm
Outside transformer
80KVA--200KVA
Voltage
380V 50HZ
Motor power
4KW
4.5KW
5KW
Machine size
5800*2300*1700mm
5800*2600*1700mm
5800*3100*1700mm
Machine weight
2500kg


鸡笼网部分图片Packing & Delivery

鸡笼网机装箱图片

Company Profile

Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we'reyour sensible choice and stable cooperation partner. Welcome to contact us and visit our company! All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines. All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines.


证书11


Our customers

公司图片
