Brick Force Welding Wire Mesh Machine Designed Exclusively for Masonry Reinforcement

Brick Force Welding Wire Mesh Machine Designed Exclusively for Masonry Reinforcement

A multi-functional machine for efficiently producing brick wall reinforcement mesh, integrating automatic wire feeding, straightening, welding, and cutting into one unit

●PLC control system + servo motor control significantly improve welding speed. The finished brick force mesh features precise dimensions and neat edges, making it a high-quality building material.

●Mesh panel size, weft wire spacing, and welding hole size can all be flexibly adjusted.

●Supports production of brick force mesh in panels, rolls, and individual pieces.

At Meirun, you can quickly get your customized wire mesh welding equipment solution

Wire mesh machinery is Meirun's core product line. Based on different mesh types and welding requirements, we have developed over 20 types of automated welding equipment, including razor wire welding machines, livestock mesh welding machines, brick force wire mesh welding machines, fence welding machines, double loop wire ties welding machines, spot welding machines, and more - covering more than 90% of wire mesh welding applications. Most of these models support customization, and both conventional and high-speed options are available. If you are looking for a suitable wire mesh welding machine, please share your production plan and target products with us. Our staff will contact you shortly to develop a professional custom solution for your wire mesh welding needs.

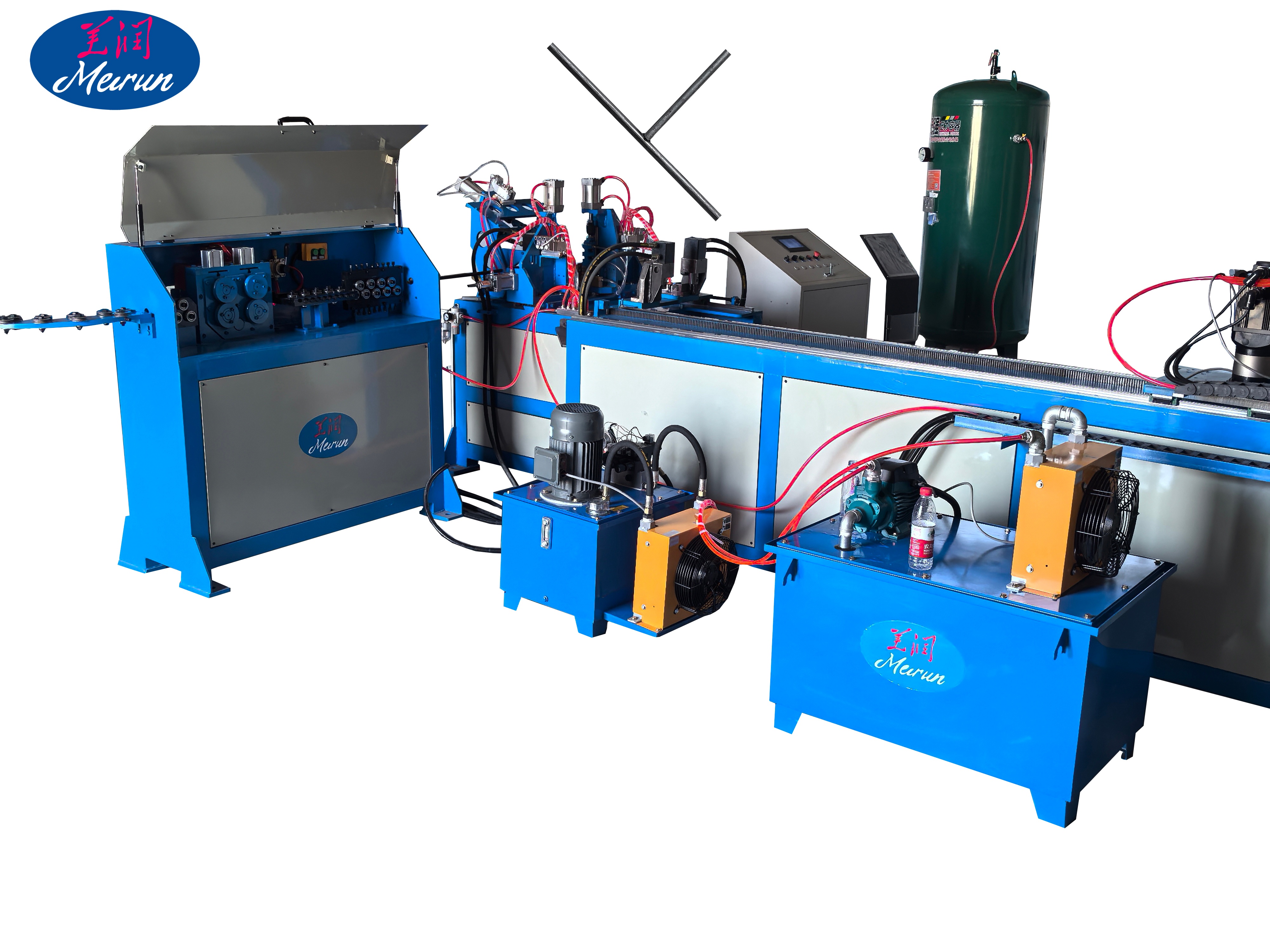

Conventional Brick Force Wire Mesh Welding Machine

It mainly processes trapezoidal brick force mesh, with a welding speed of 50–70 times per minute.

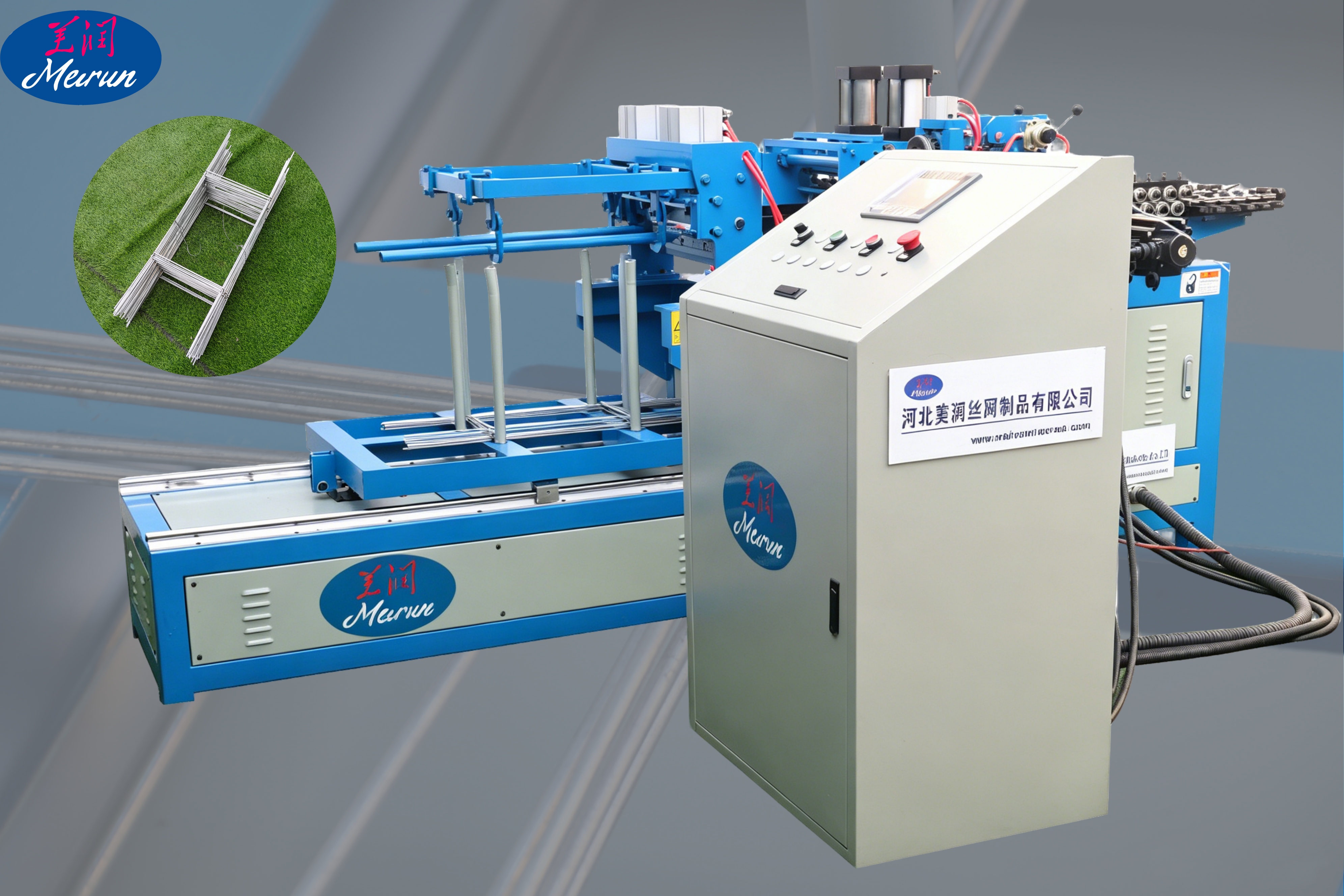

Customized brick force wire mesh welding machine

It mainly processes specially shaped brick force mesh, such as triangular brick force mesh.

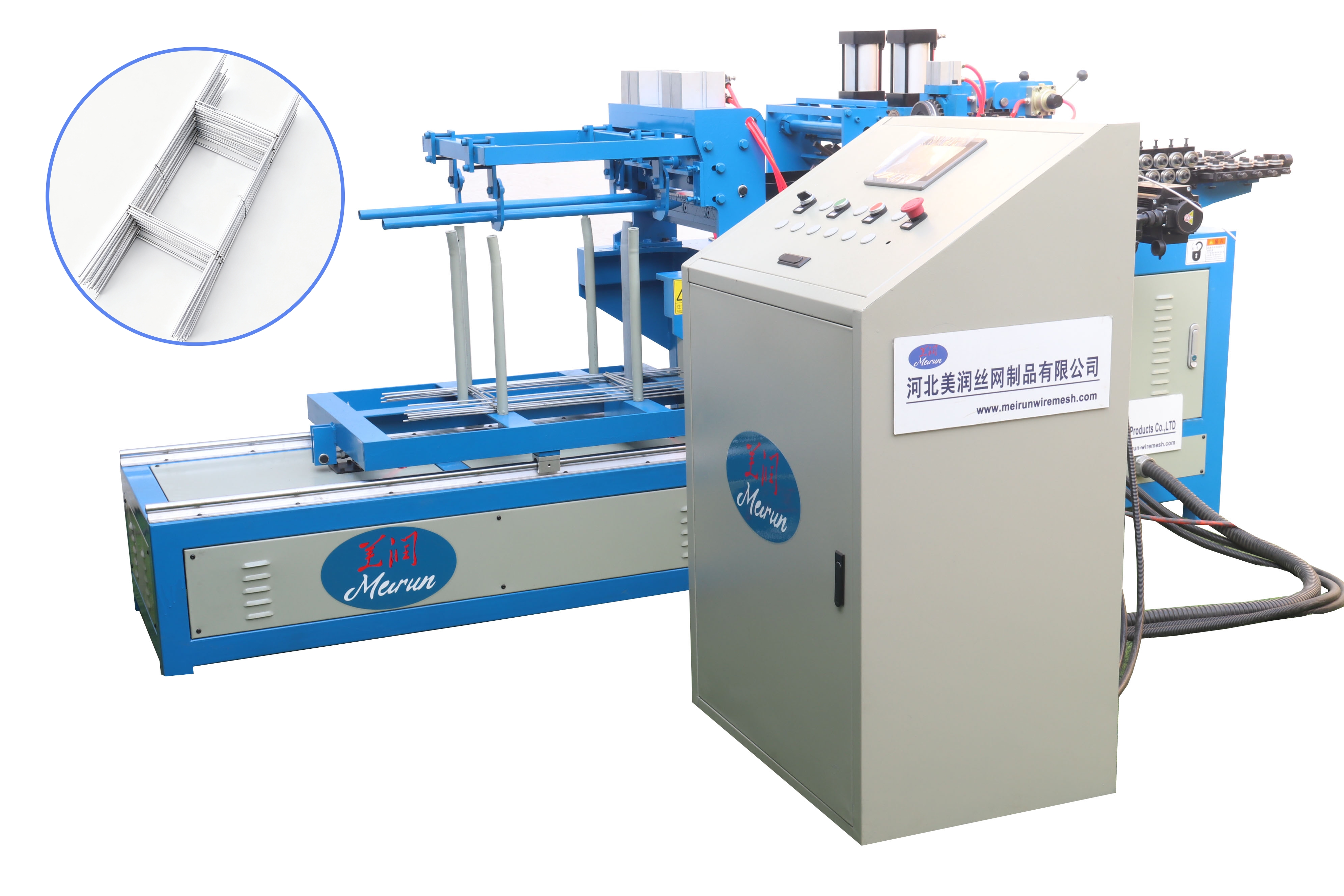

Fully automatic brick force wire mesh welding machine – delivering the most satisfactory welded brick force mesh products

Resistance welding technology

The machine uses pneumatic welding with dual welding electrodes, effectively improving welding precision.

Automatic feeding and cutting

Saves labor and enables easy continuous operation.

Flexible options

Conventional, high-speed, and customized models are available.

Supports various materials

Cold drawn wire, galvanized wire, stainless steel wire, and more can be processed.

High-precision welding

The machine uses advanced resistance welding technology to ensure consistent welding strength and uniform weld spacing. The finished brick force mesh features smooth joints and a neat appearance, with reliable quality control.

Stable performance

The machine is equipped with a PLC control system and high-response servo motors, enabling precise control over the longitudinal and transverse wire feeding lengths. It features automatic speed control, wire break detection, and adjustable welding pressure, making it suitable for continuous production line operations.

Simple and user-friendly control interface

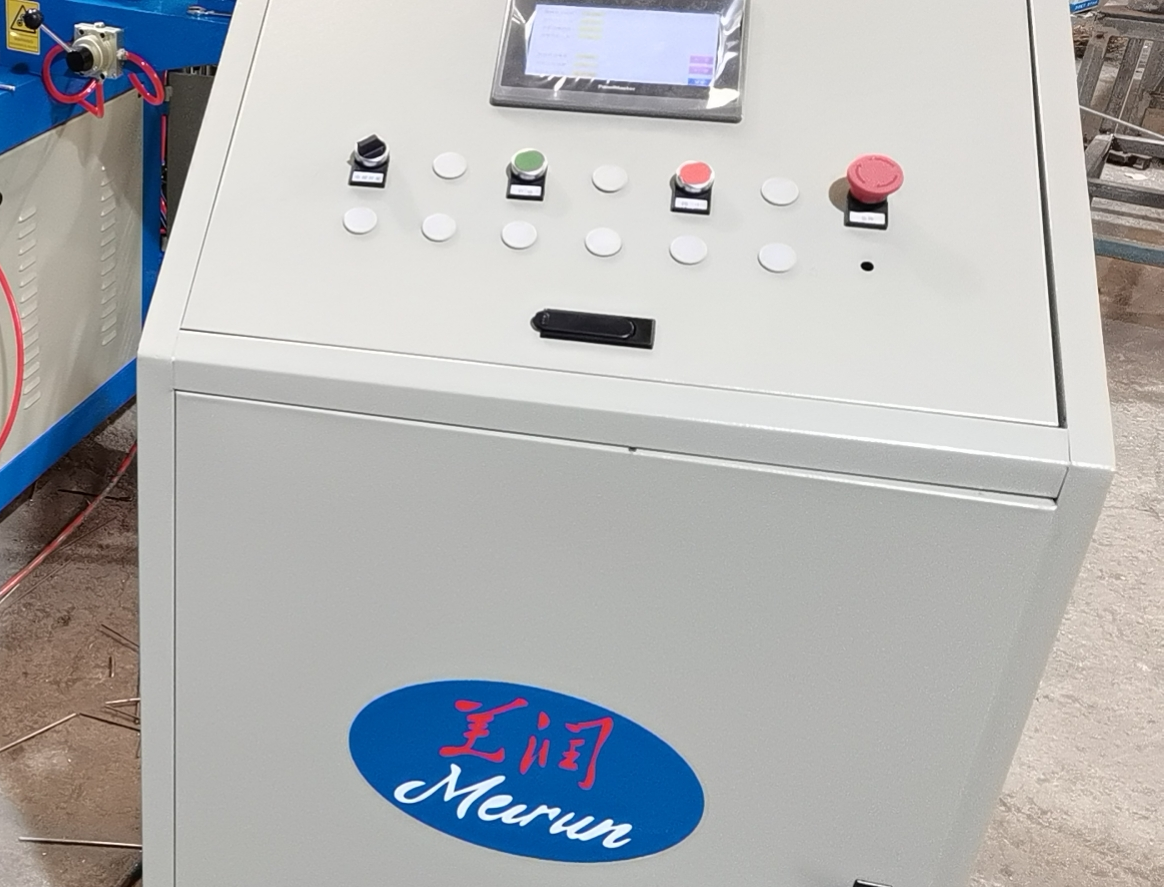

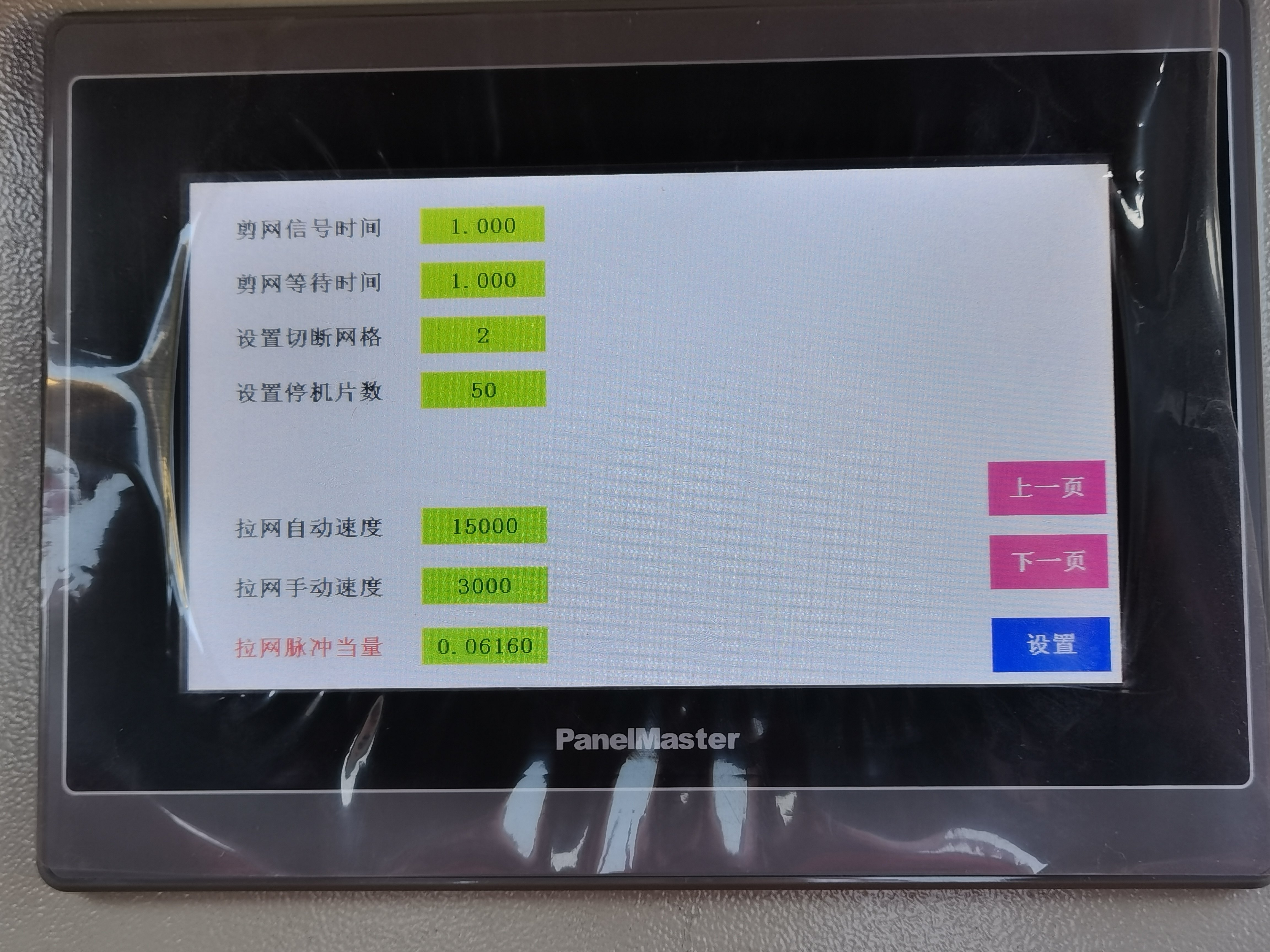

The main machine functions are operated via an LCD touch screen and control buttons. Key parameters such as mesh length, width, and welding speed can all be set through the touch screen. The overall operation is simple and user-friendly.

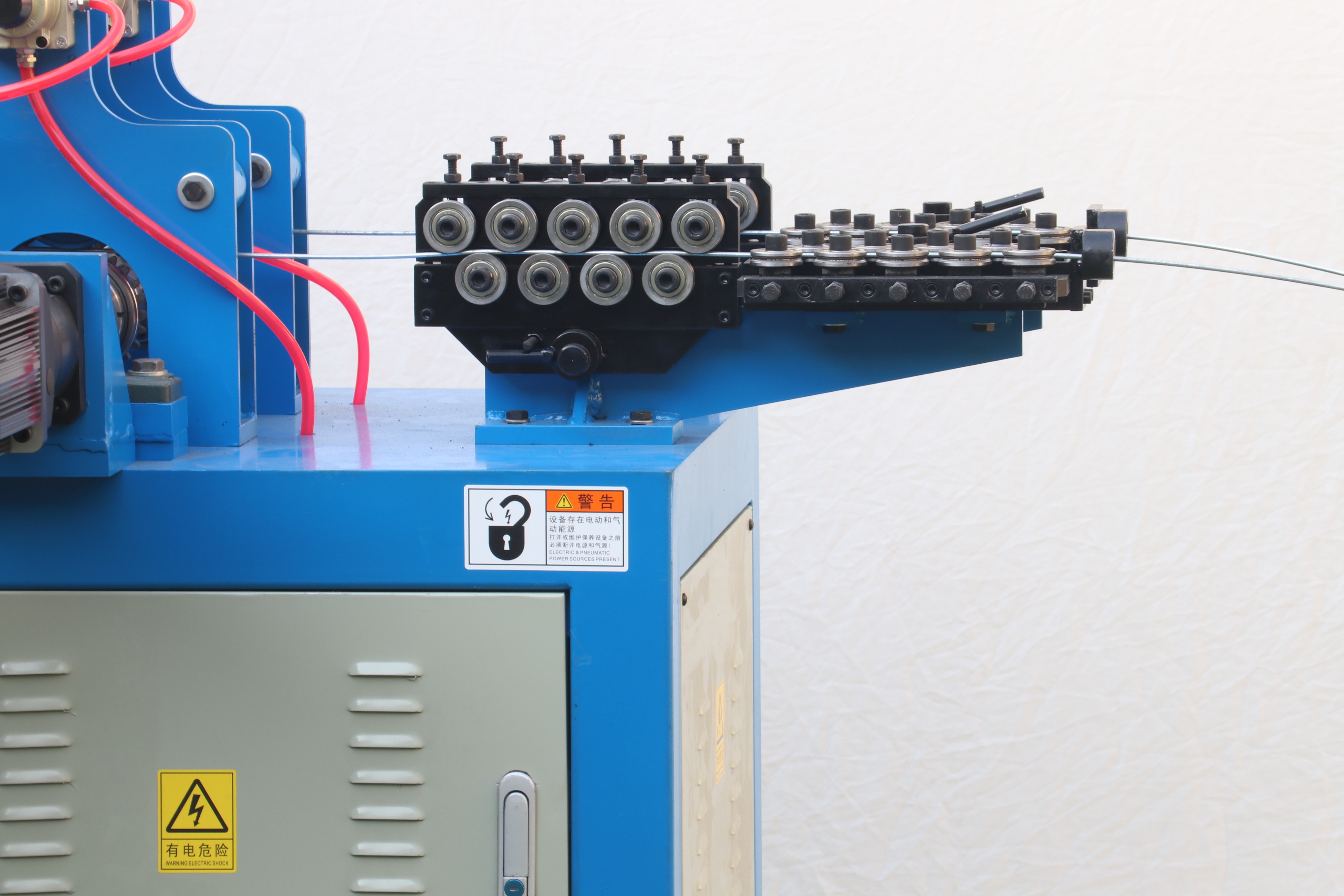

Bidirectional straightening wheels

The machine is equipped with straightening wheels in both horizontal and vertical directions, which optimize the straightening effect while improving wire alignment, resulting in a flatter finished brick force mesh structure.

Wide processing range

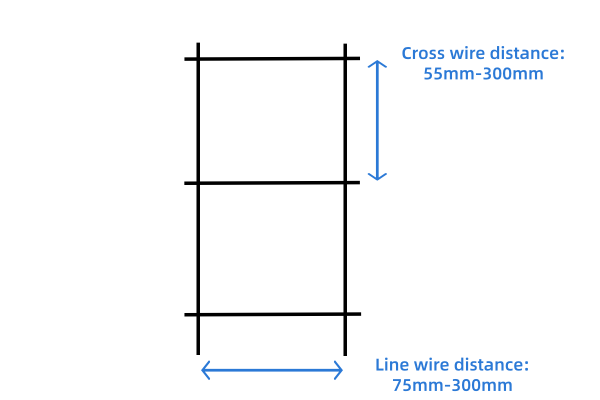

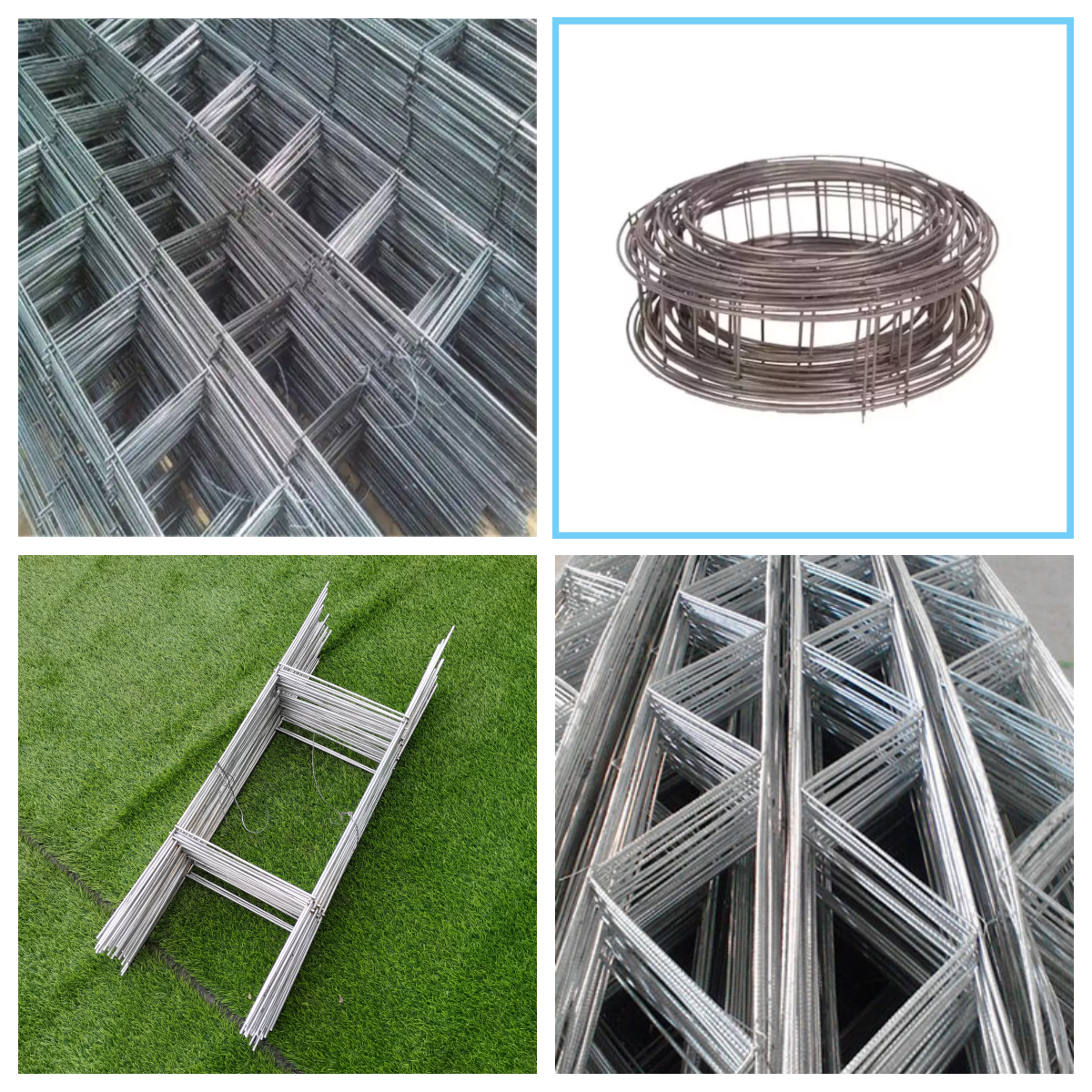

This machine can process brick force mesh in panel form, roll form, or pre-cut pieces, with both transverse and longitudinal wire spacing adjustable within a certain range. Some special styles, such as triangular brick force mesh, can be produced using customized models.

Versatile applications

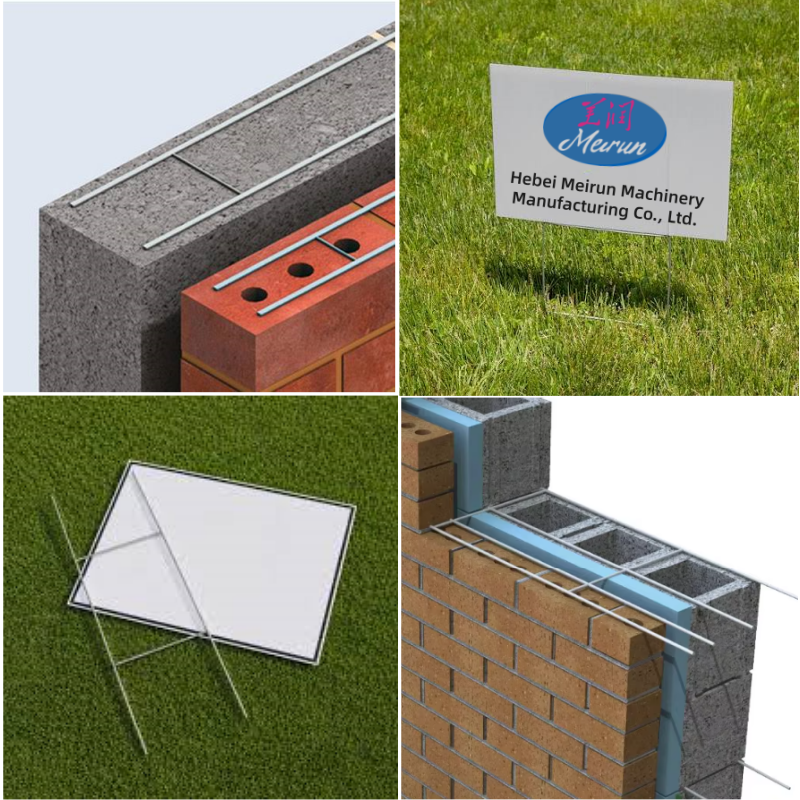

The finished brick force mesh can not only be used for reinforcing brick walls and load‑bearing walls, but also serves as a simple support frame for billboards and signage, and can be used for anchoring on unpaved surfaces such as lawns.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Machine Parameters

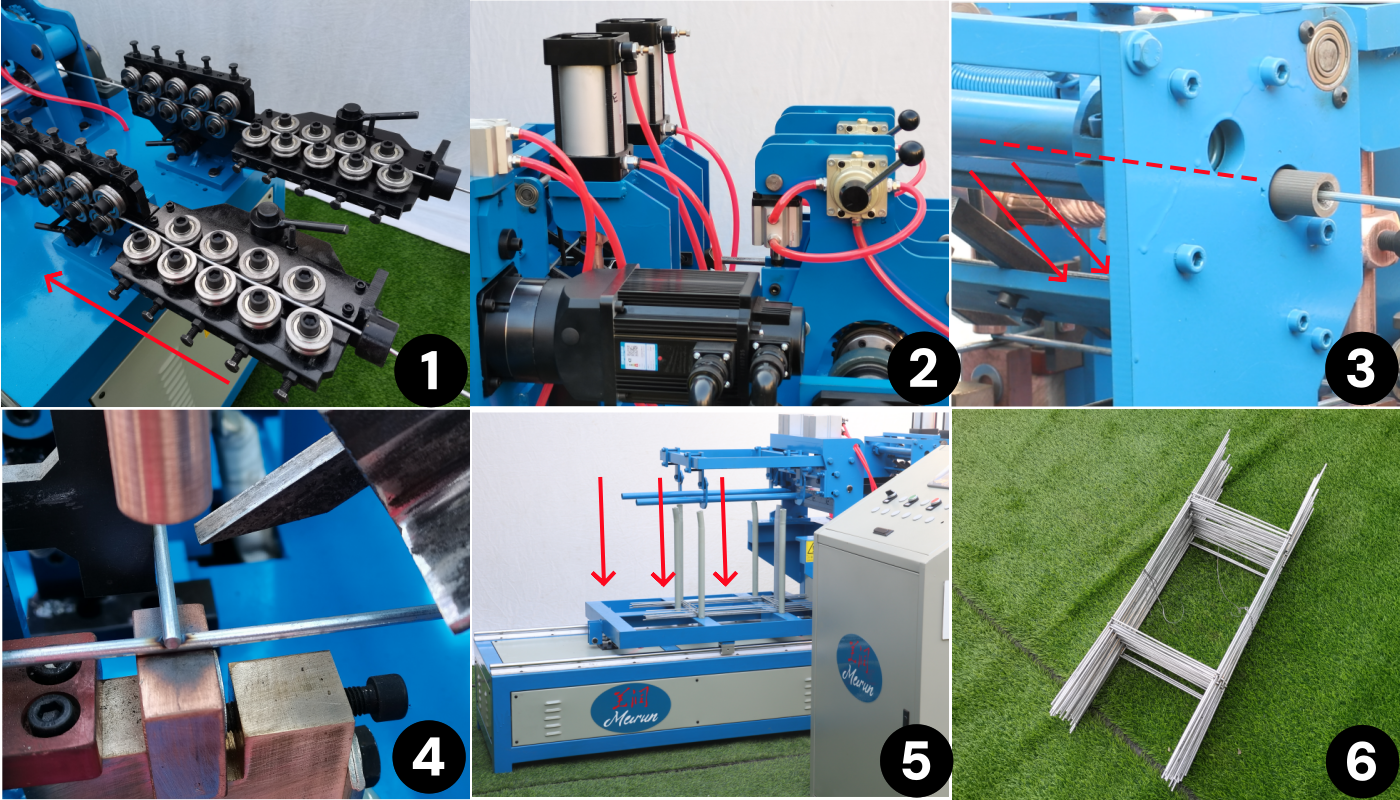

Brick force mesh welding production process:

Step 1: Wire feeding -the metal wire passes through straightening wheels. The longitudinal wire feeding unit has two straightening wheels, while the transverse unit has one.

Step 2: Open the pneumatic welding valve.

Step 3: The built-in cutting unit cuts the transverse wire to a preset length and pushes it to the welding position.

Step 4: Two welding electrodes work simultaneously to weld the basic structure of the brick force mesh.

Step 5: The welded brick force mesh drops into the hopper along the machine's running direction. When a certain quantity has accumulated, workers move and pack it.

Step 6: Finished brick force mesh display.

FAQ

1.I noticed that the brick force mesh produced by this machine is all lap-welded (i.e., the weft wires are placed over the warp wires). Can it also produce butt-welded brick force mesh products?

Answer: Our customized brick force wire mesh welding machine can achieve butt-welding. You can consult our staff for more details about the parameters and product types available for the customized model.

2.Is the welding process of this machine safe enough? I noticed in the detailed video that a small amount of sparks and heavy smoke are generated during welding. Is there a risk of burns if workers come into contact with it?

Answer: During the welding process, the welding electrodes are indeed at high temperatures, and workers should not touch them with hands directly. The machine is equipped with an emergency stop button. If wire breakage or other faults occur during processing, press the emergency stop button first, then follow the instruction manual to troubleshoot. As long as proper procedures are followed, there is no risk of injury.

3.If I want to produce brick force mesh in roll form, do workers need to manually take it up after discharge?

Answer: No, the machine features automatic take-up, and we will also provide spools of suitable sizes for collecting the brick force mesh. Workers only need to handle packing and moving the finished products.
