Meirun

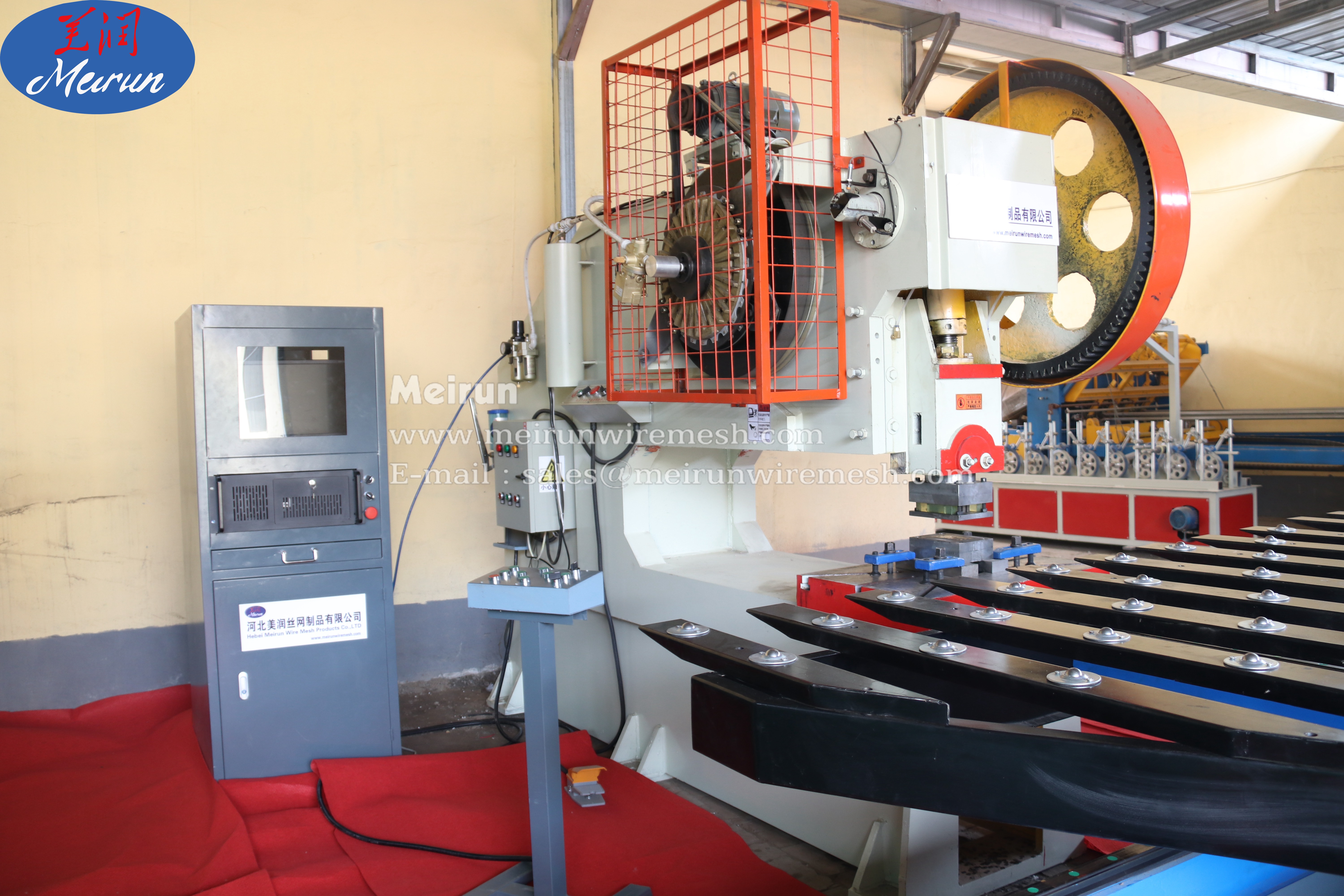

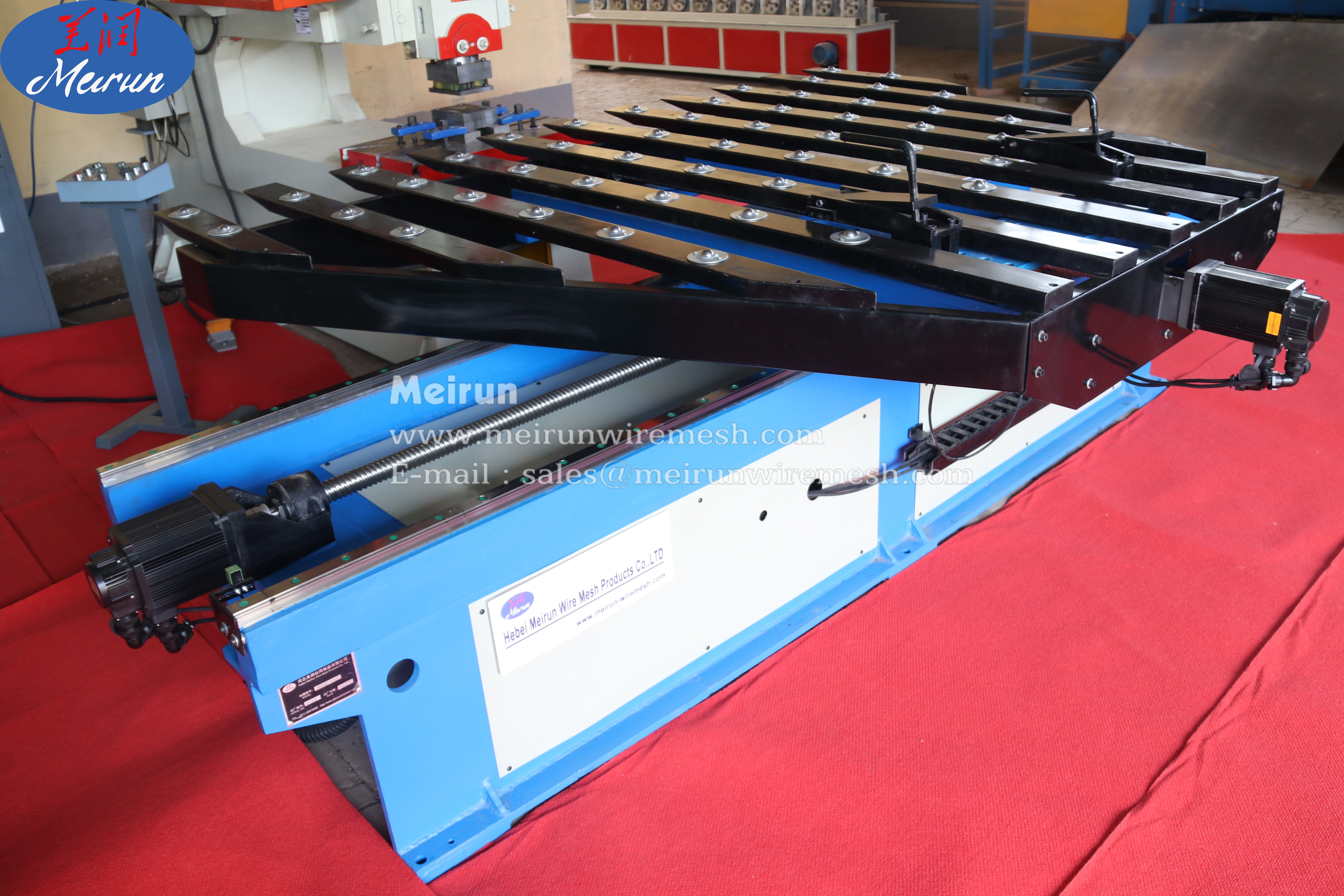

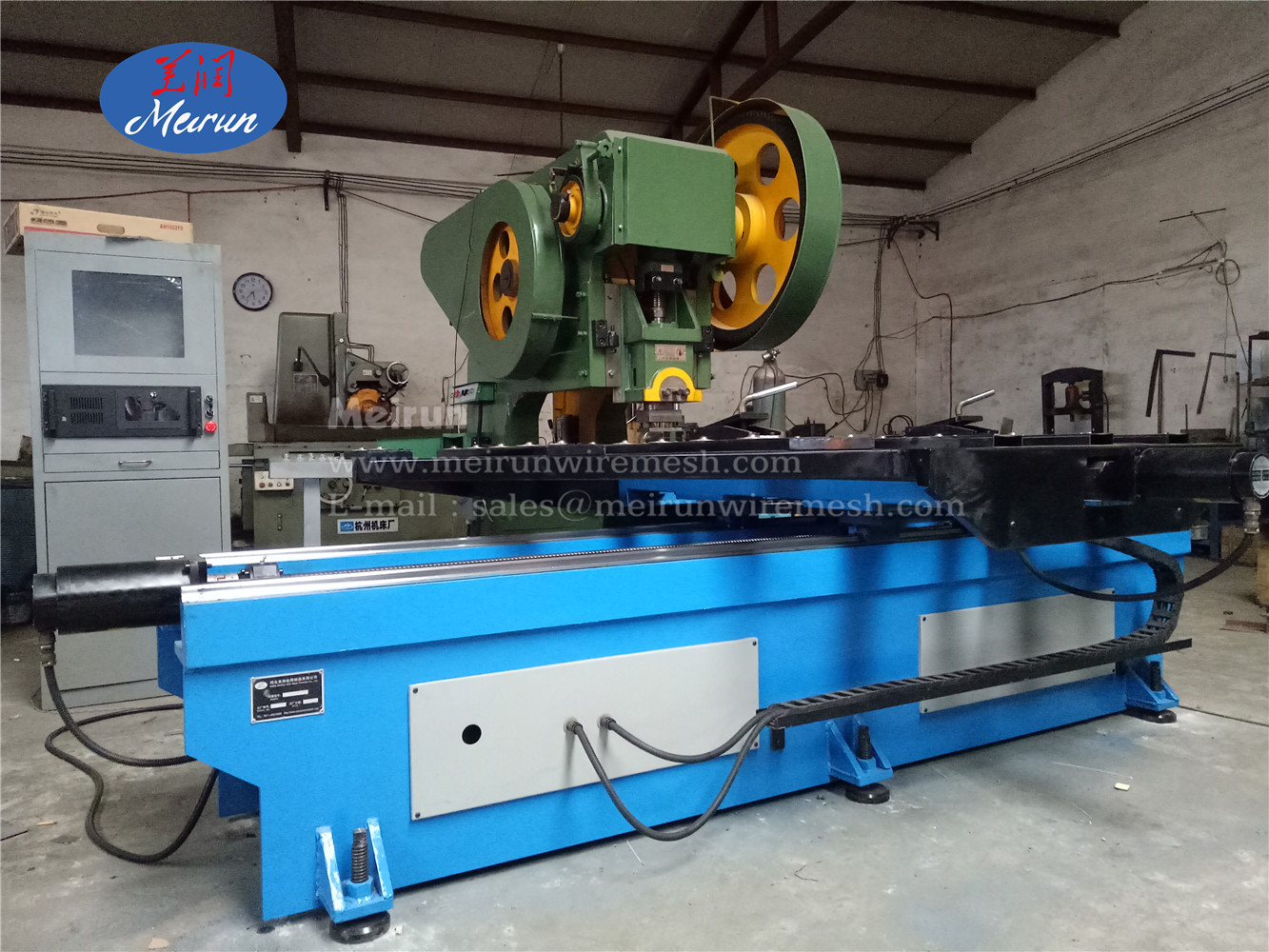

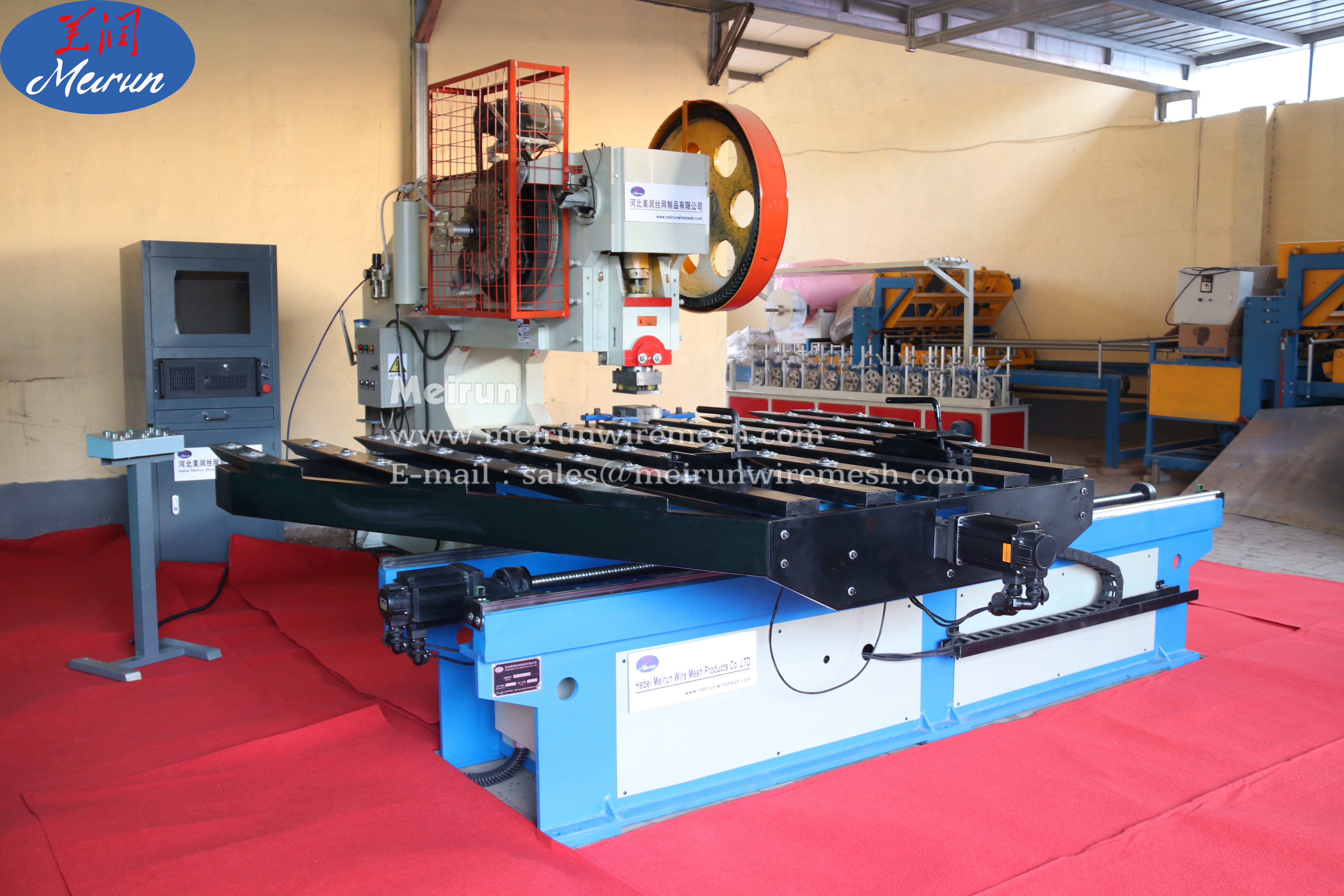

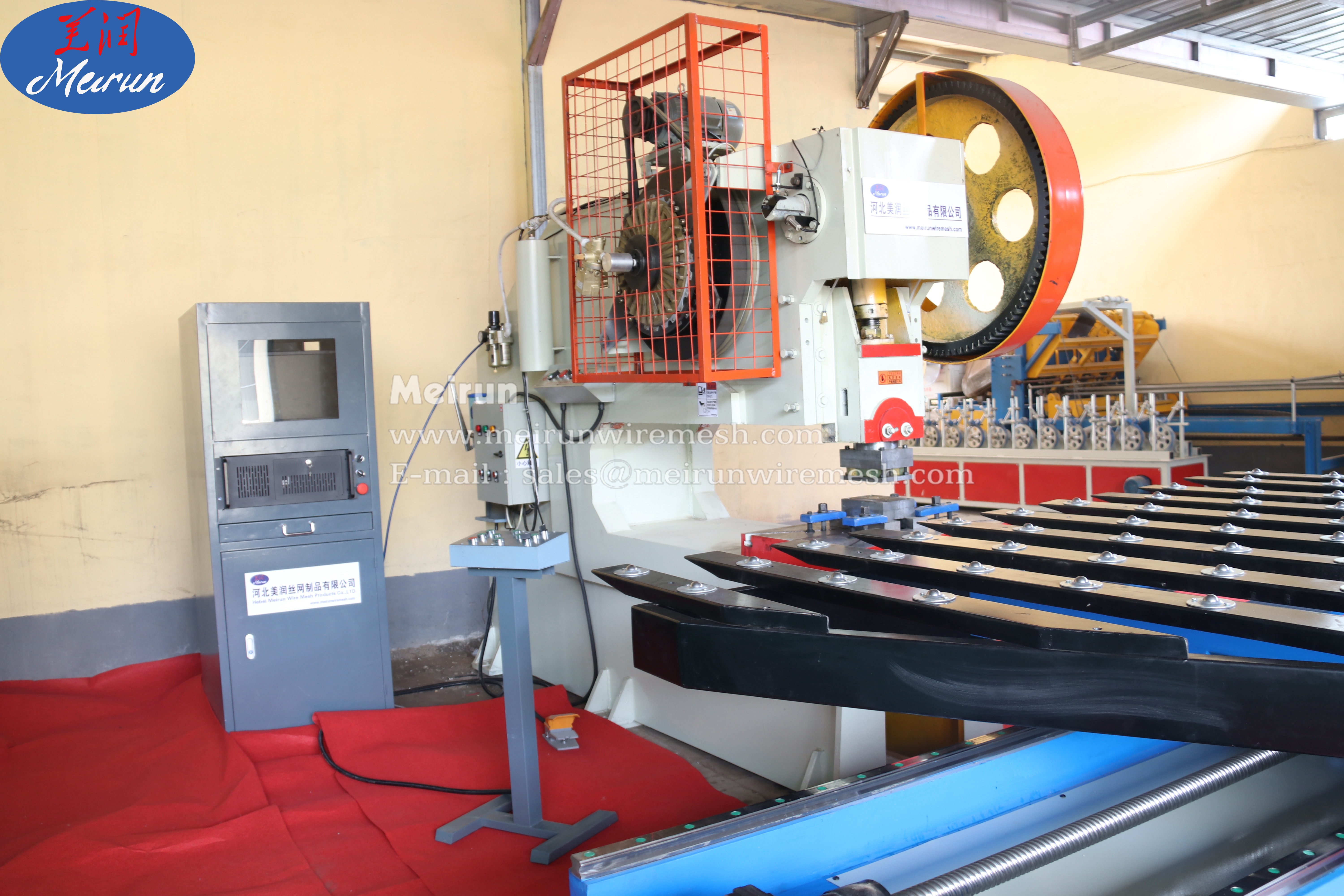

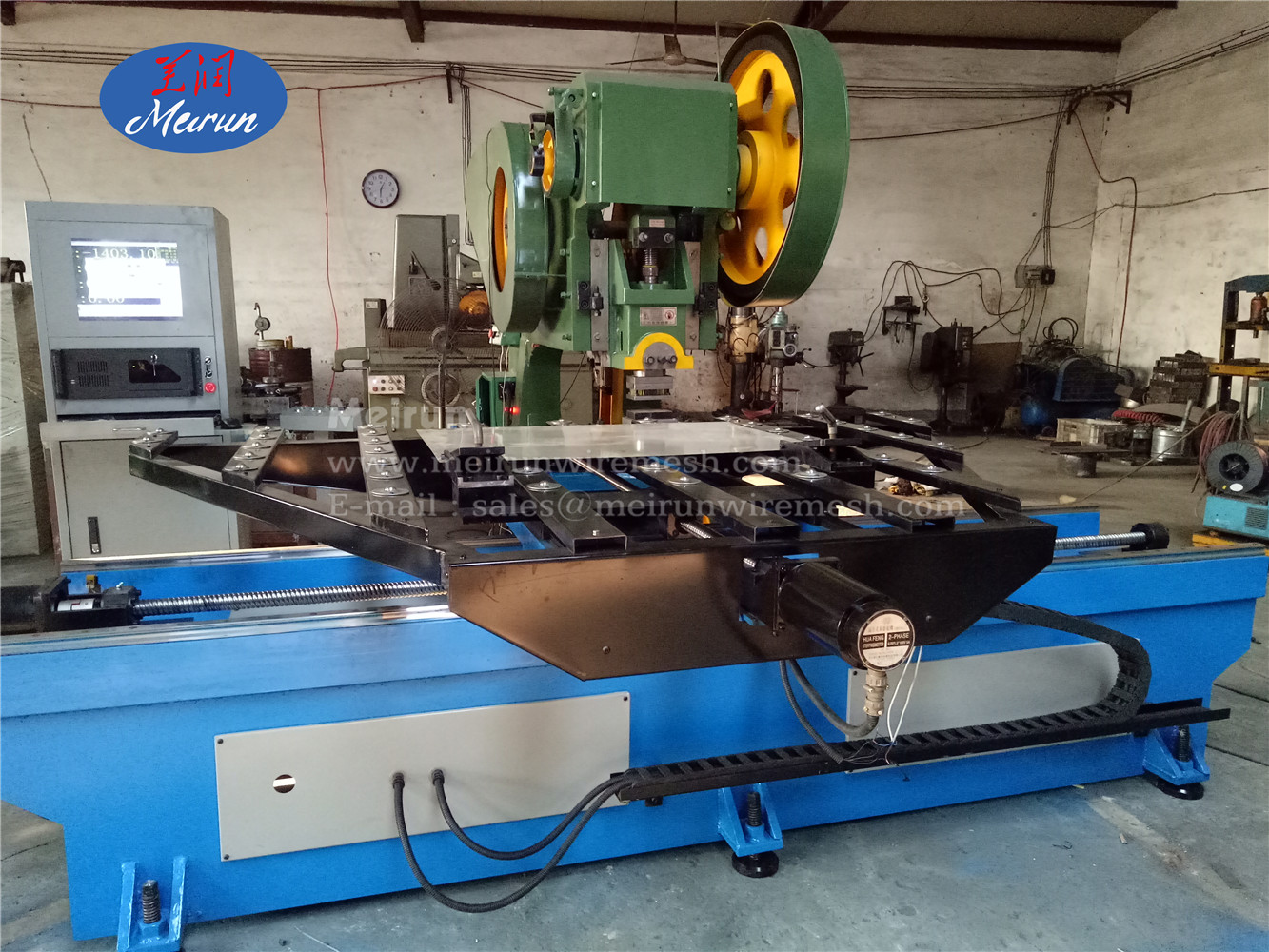

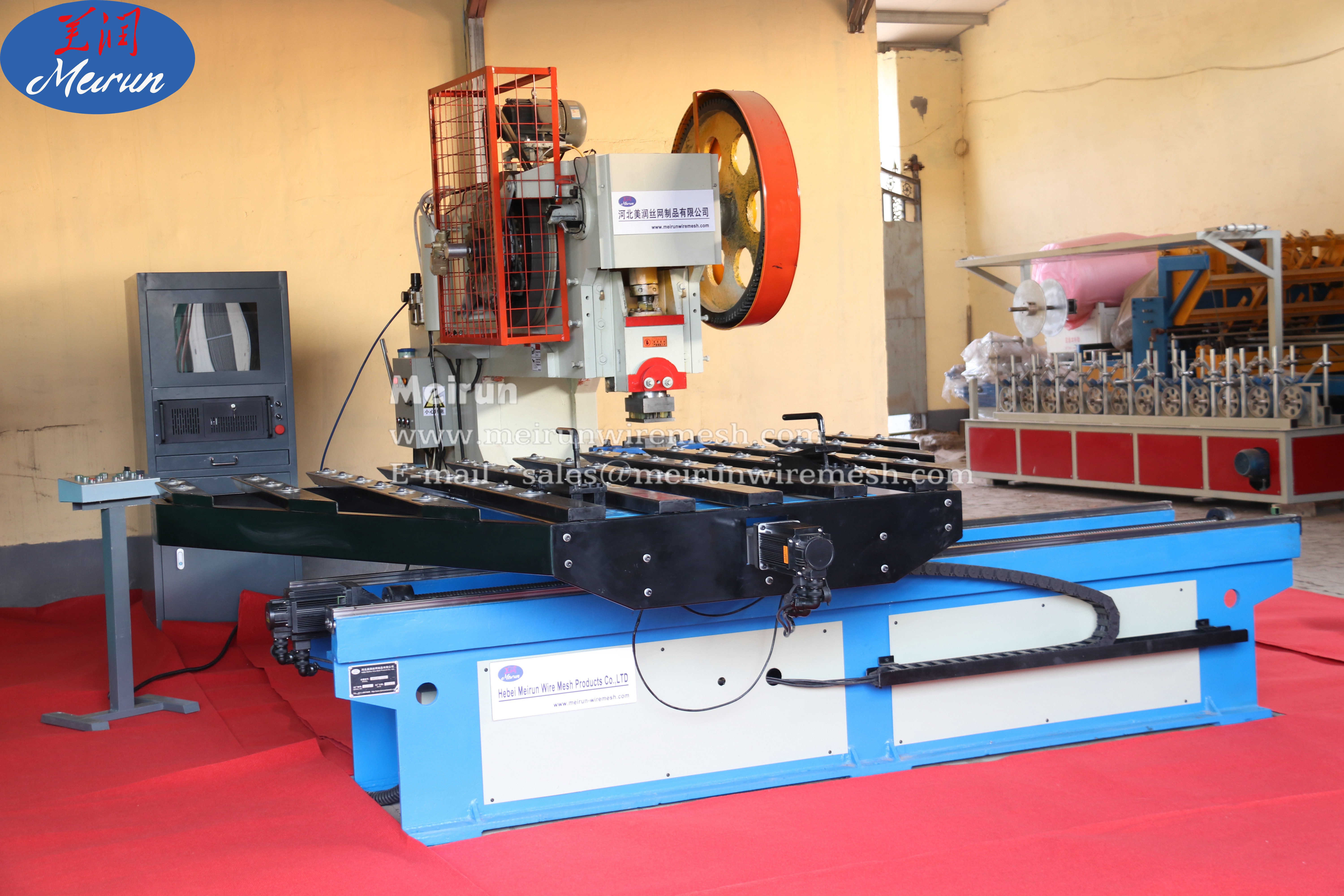

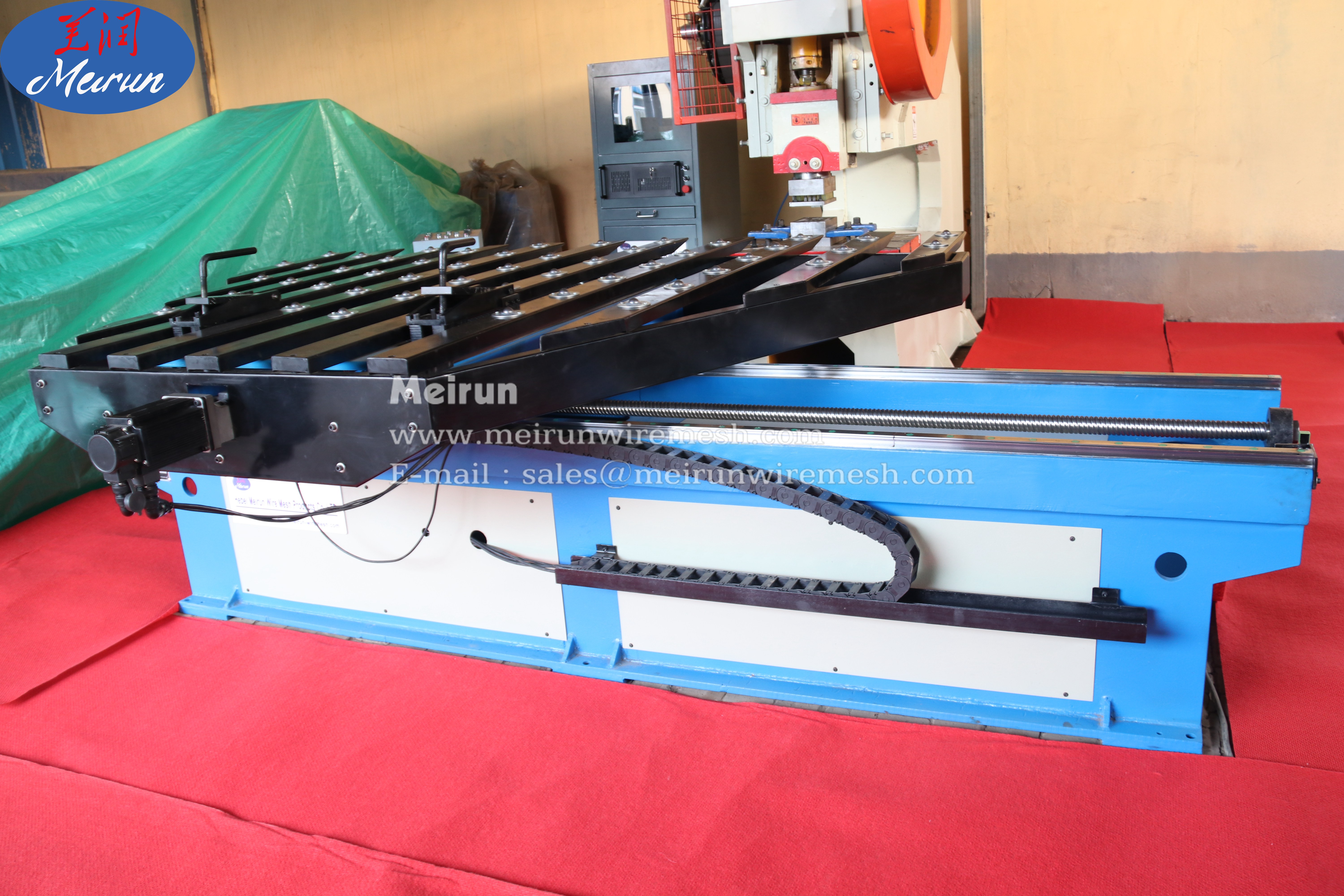

1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .

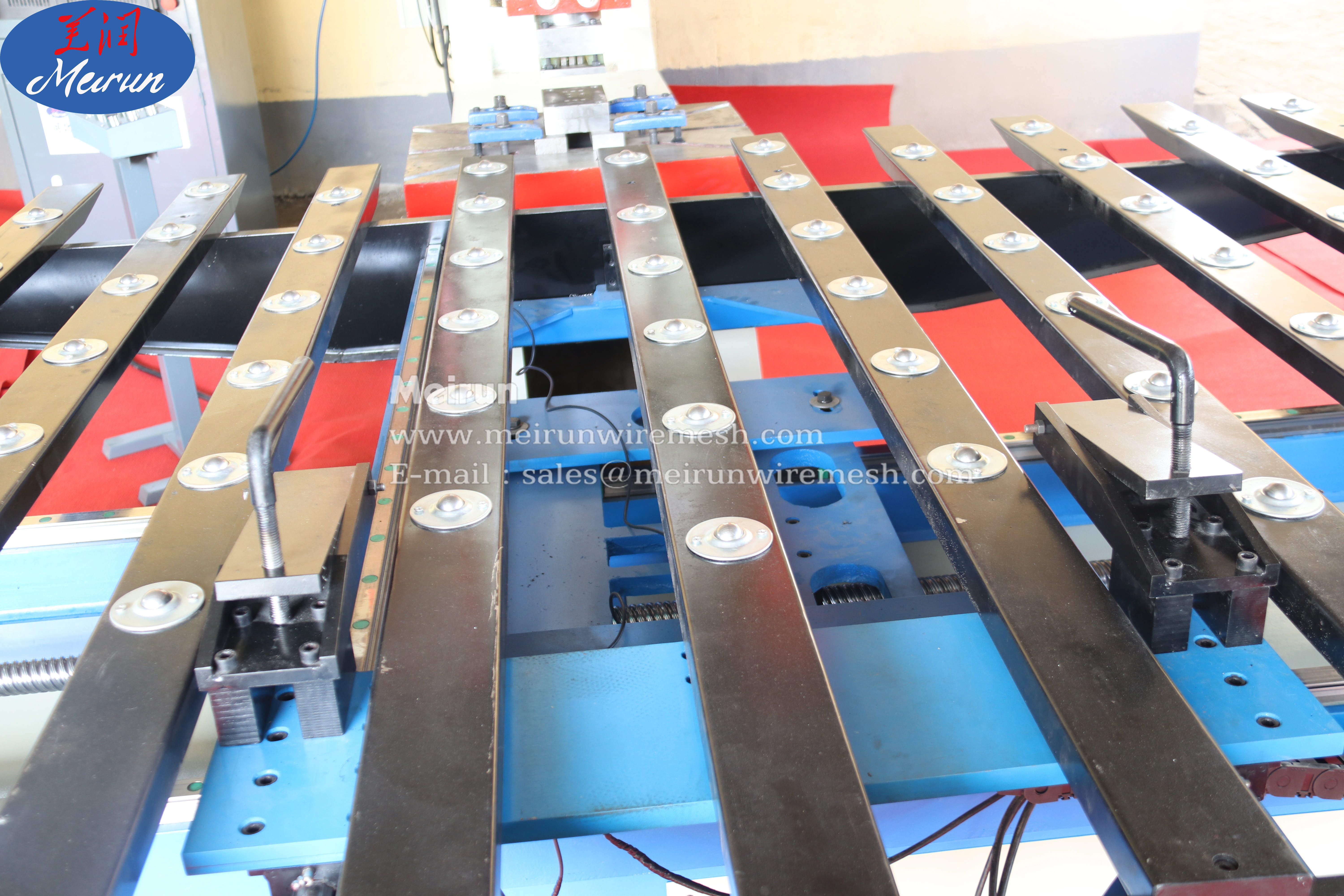

3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.
5.The machine is automatic and pneumatic and it is very during and stable.
6.It is easy to use, usually 2 men are enough to operate 4 or 6 sets of this type of machine. 7.According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.

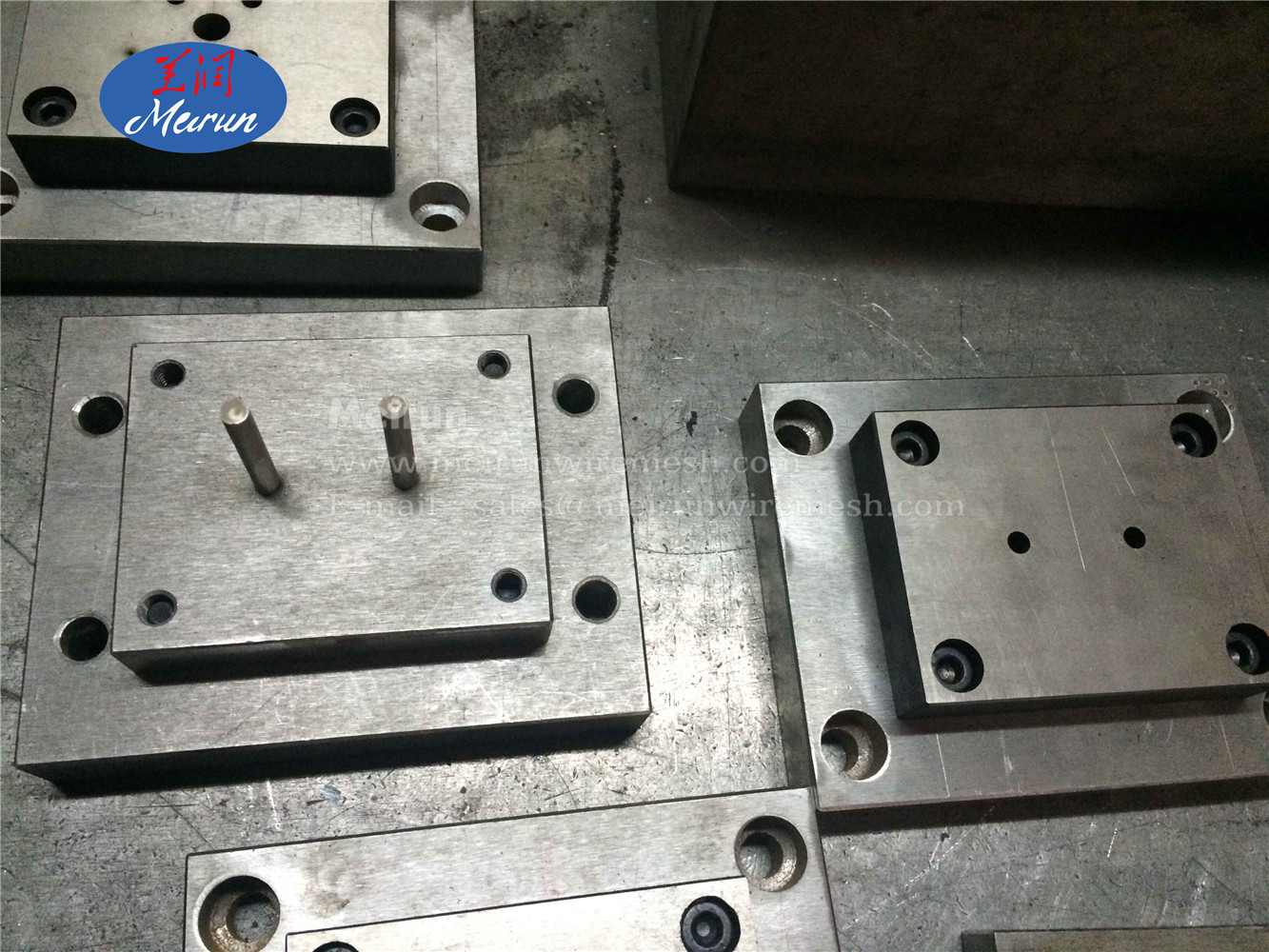

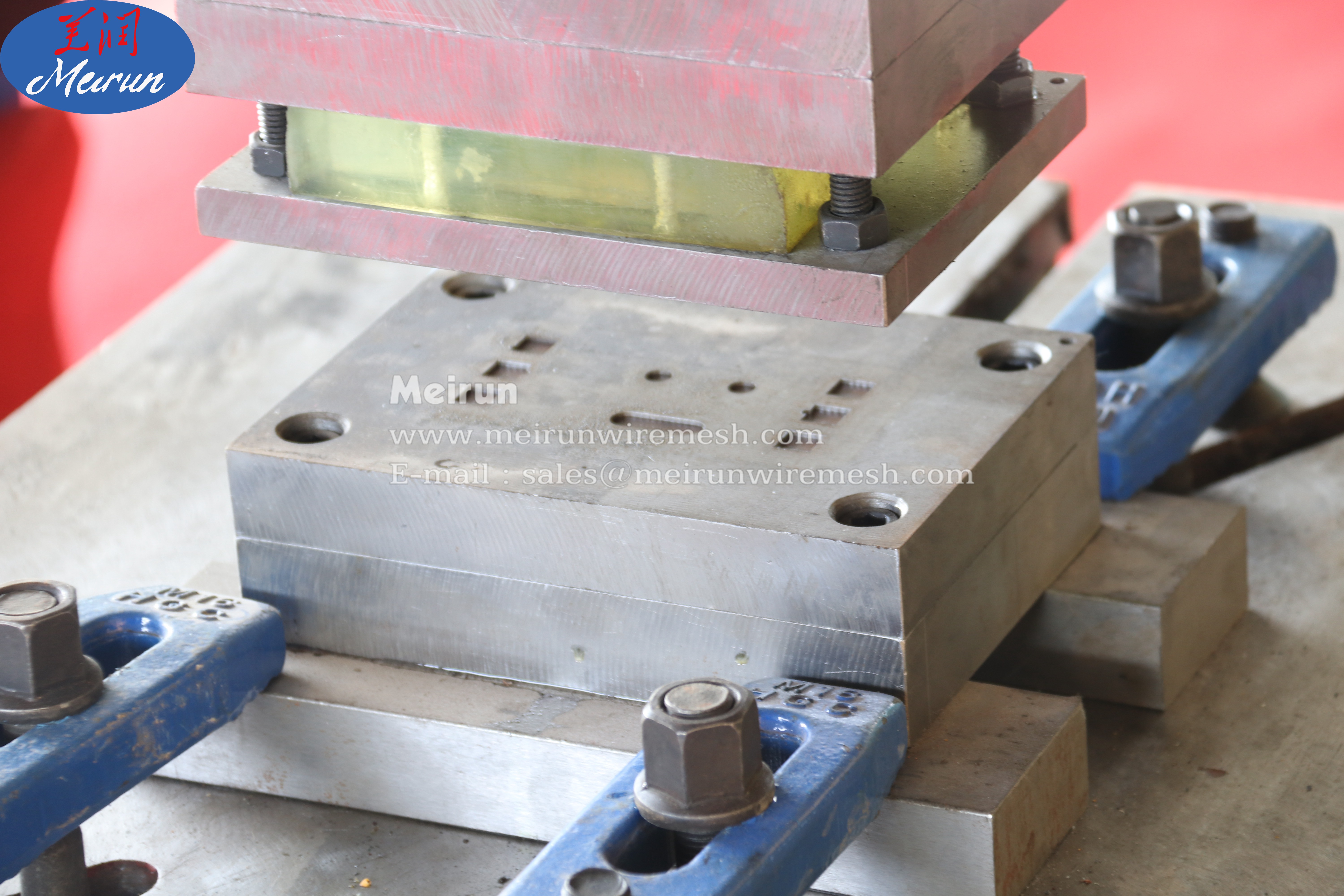

8.one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.

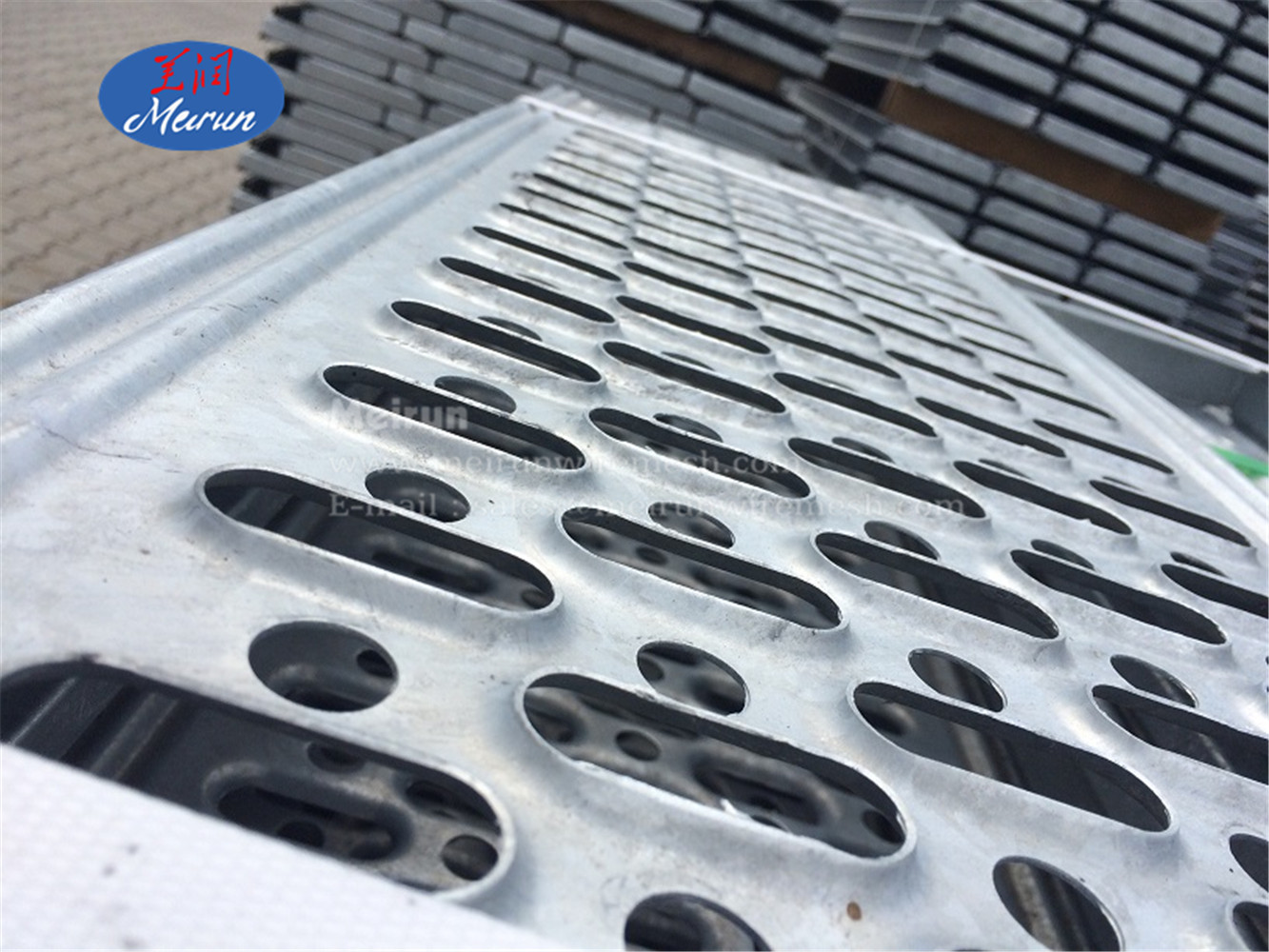

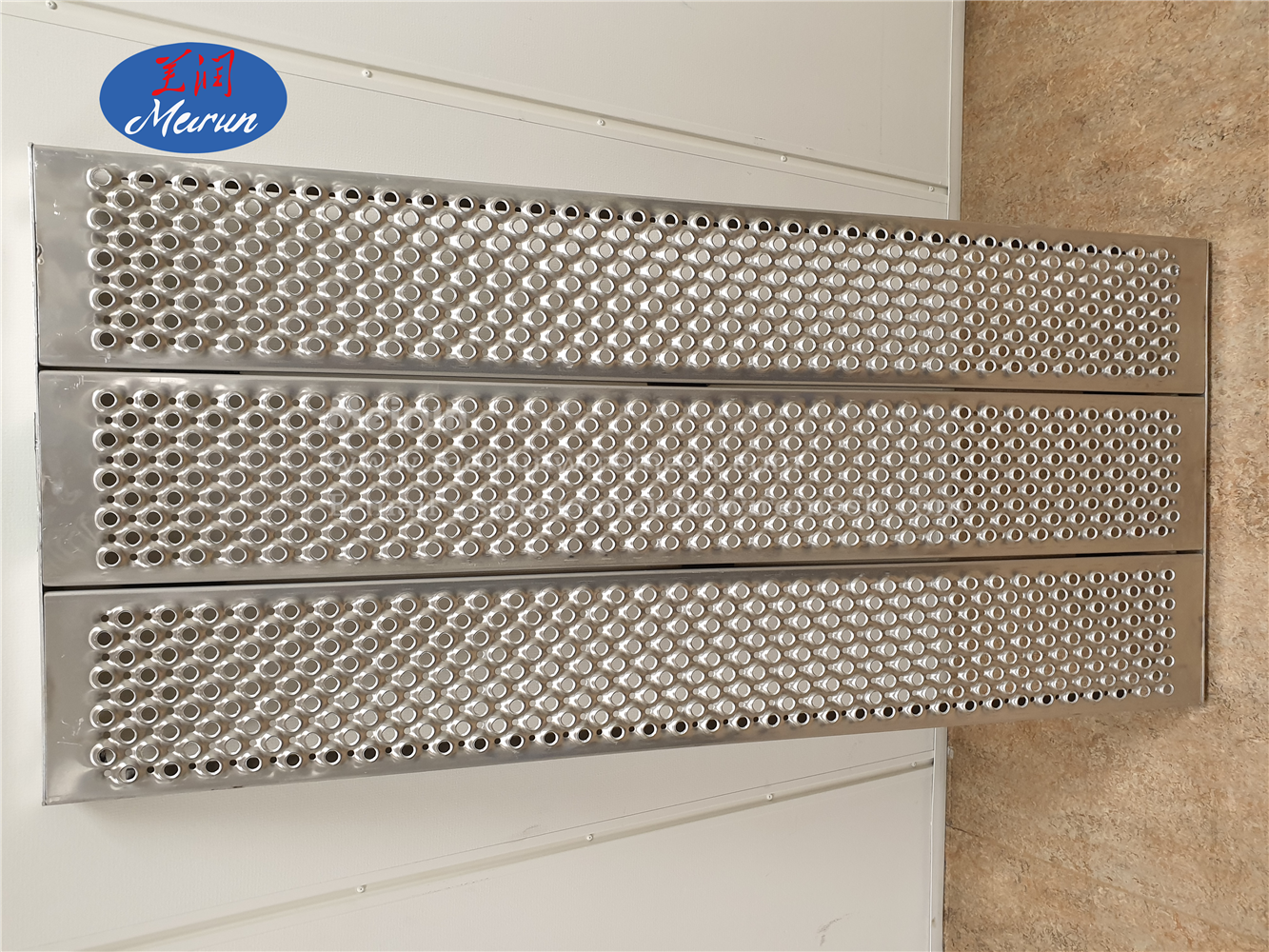

Hole Types
Specification
| Specification | CKWJ-25 | CKWJ-40 | CKWJ-63 | CKWJ-80 | CKWJ-100 |
| Stamping tonnage | 25T | 40T | 63T | 80T | 100T |
| Thickness | 0.1mm-2mm | 0.5mm-3mm | 0.5mm-3mm | 0.5mm-10mm | 0.5mm-10mm |
| Width of steel | 1250-2500mm | 1250-2500mm | 1250-2500mm | 1250-2500mm | 1250-2500mm |
| Output | 85/min | 70/min | 60/min | 45/min | 40/min |
| Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Motor | 3kw | 4kw | 4kw | 5kw | 7kw |
| Dimension | 3.5*3.5*2m | 3.6*3.5*2.1m | 3.7*3.5*2.25m | 3.8*3.5*2.25m | 3.9*3.5*2.3m |
| Weight | 3.5t | 4.5t | 5.5t | 8t | 10t |

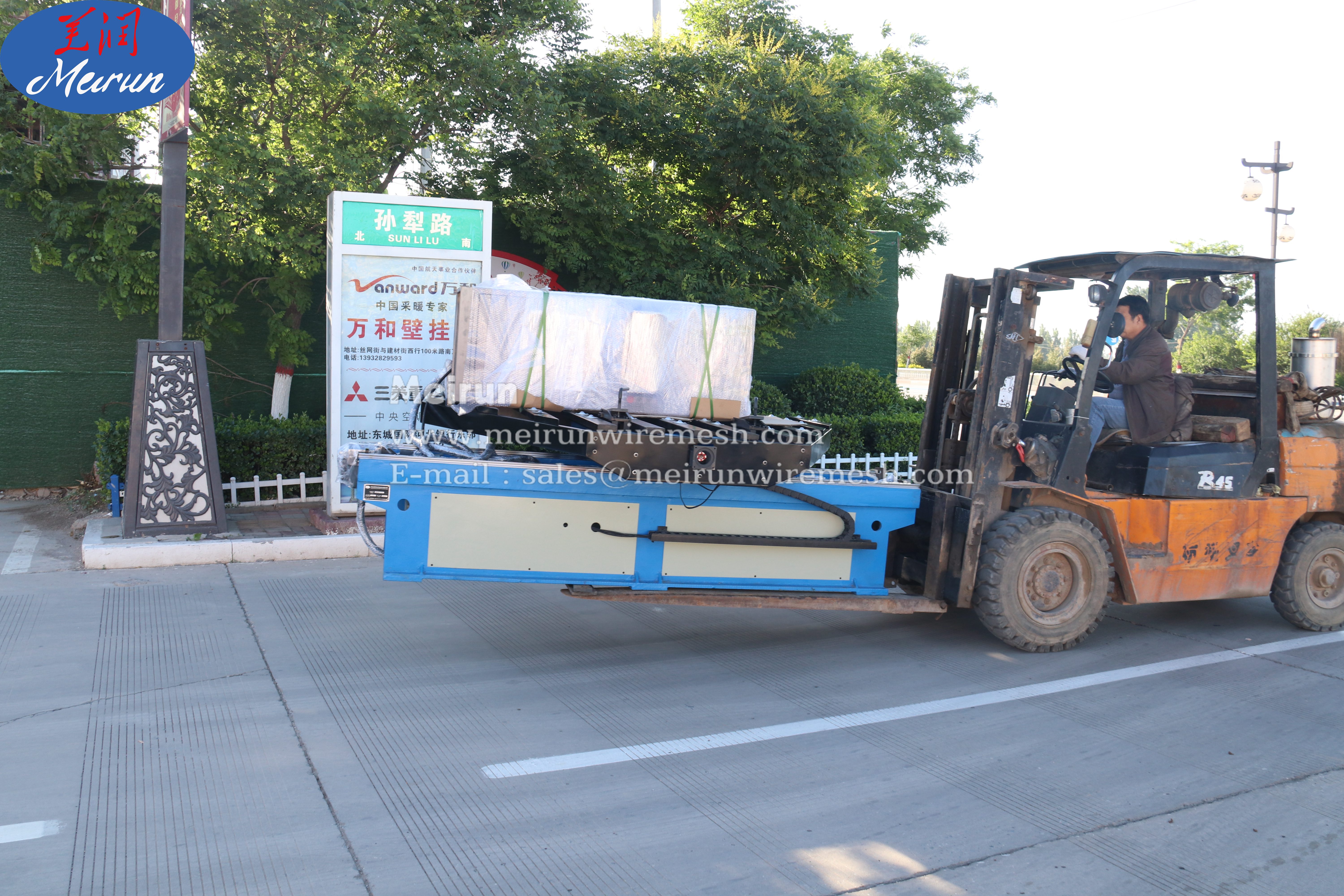

Packing & Delivery
1.The main machine is nude packing or plastic packing.
2.Also can do as customer's request
Company Profile
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines. We have our own factory and professional R&D team to ensure the quality and strict testing of the products. For some machines, our market share is as high as 70%. All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world. So we are your wise choice and best friend.
Company Certificate

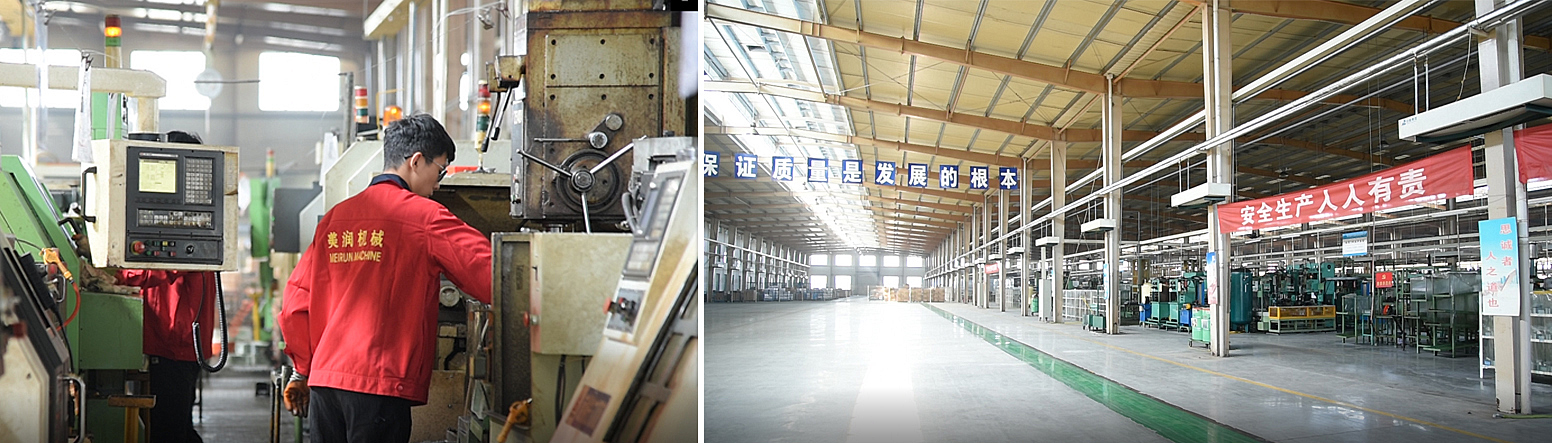

Our Factory
