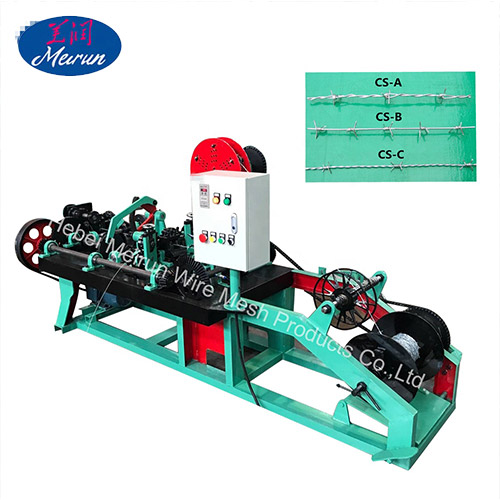

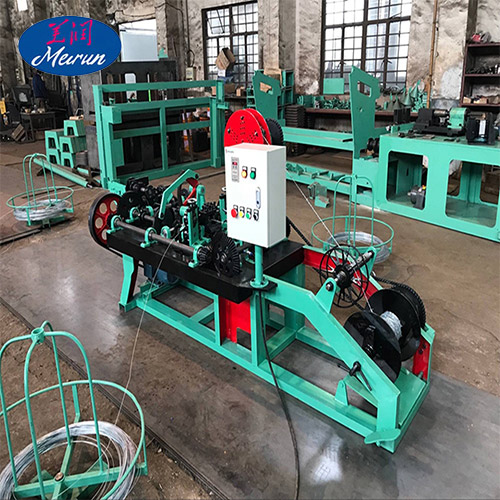

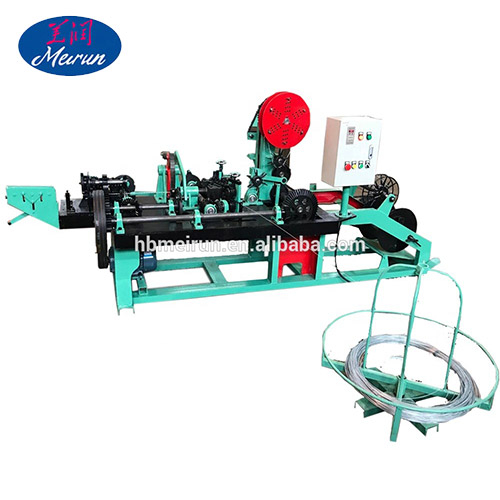

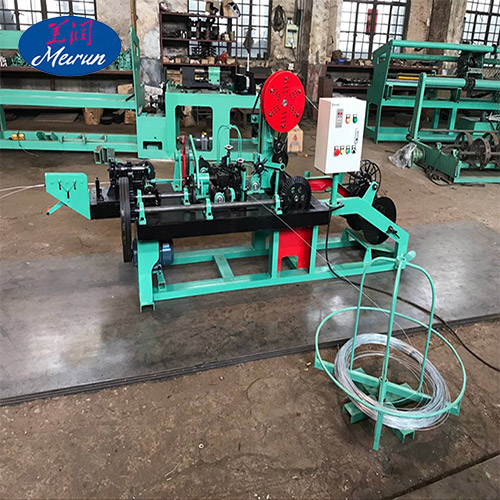

The single strand barbed wire machine consists of winding parts and collecting wire parts,equipped with three wire plates.The machine adopts advanced electronic counting control syestem to guarantee intelligent production.And it also has advantages of below:stable performance,low noise,high production safety and energy saving, high production efficiency.
The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.

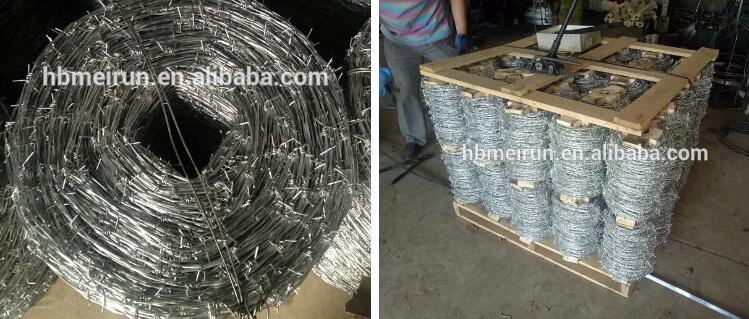

The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
model | CS-A | CS-B | CS-C |
bar pitch spacing | 76mm-152mm | 76-150mm | 100-120mm |
strand diameter | 1.8-3.0mm | 1.6-2.8mm | 2.2-2.8mm |
barbed wire diameter | 1.8-2.8mm | 1.6-2.3mm | 1.8-2.2mm |
motor | 3KW | 2.2kw | 2.2KW |
voltage | 380V50HZ | 380v50HZ | 380v50hz |
rated output | 50-120kg/h | 50-60kg/h | 40kg/h |
size of the host | 1800x750x1100mm | 3500x800x1100mm | 3500x800x1100mm |
vice machine size | 1900x750x900 | ||
machine weight | 1500kg | 1200kg | 1000kg |
The single strand barbed wire machine consists of winding parts and collecting wire parts,equipped with three wire plates.The machine adopts advanced electronic counting control syestem to guarantee intelligent production.And it also has advantages of below:stable performance,low noise,high production safety and energy saving, high production efficiency.
The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.
The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
