Barbed Wire Machine

Barbed Wire Machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal husbandry, playground fence,agriculture, expressway, etc.We always keep the best professional design and manufacturing technology in this barbed wire machine with over 25 years of experience.
Strand wire diameter:
Barb diameter:
Raw material:
Motor power:
Voltage:
Availability:
Quantity:
  • MRCSJ

  • Meirun

                Barbed Wire Machine

Barbed Wire Machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal husbandry, playground fence,agriculture, expressway, etc.We always keep the best professional design and manufacturing technology in this barbed wire machine with over 25 years of experience.

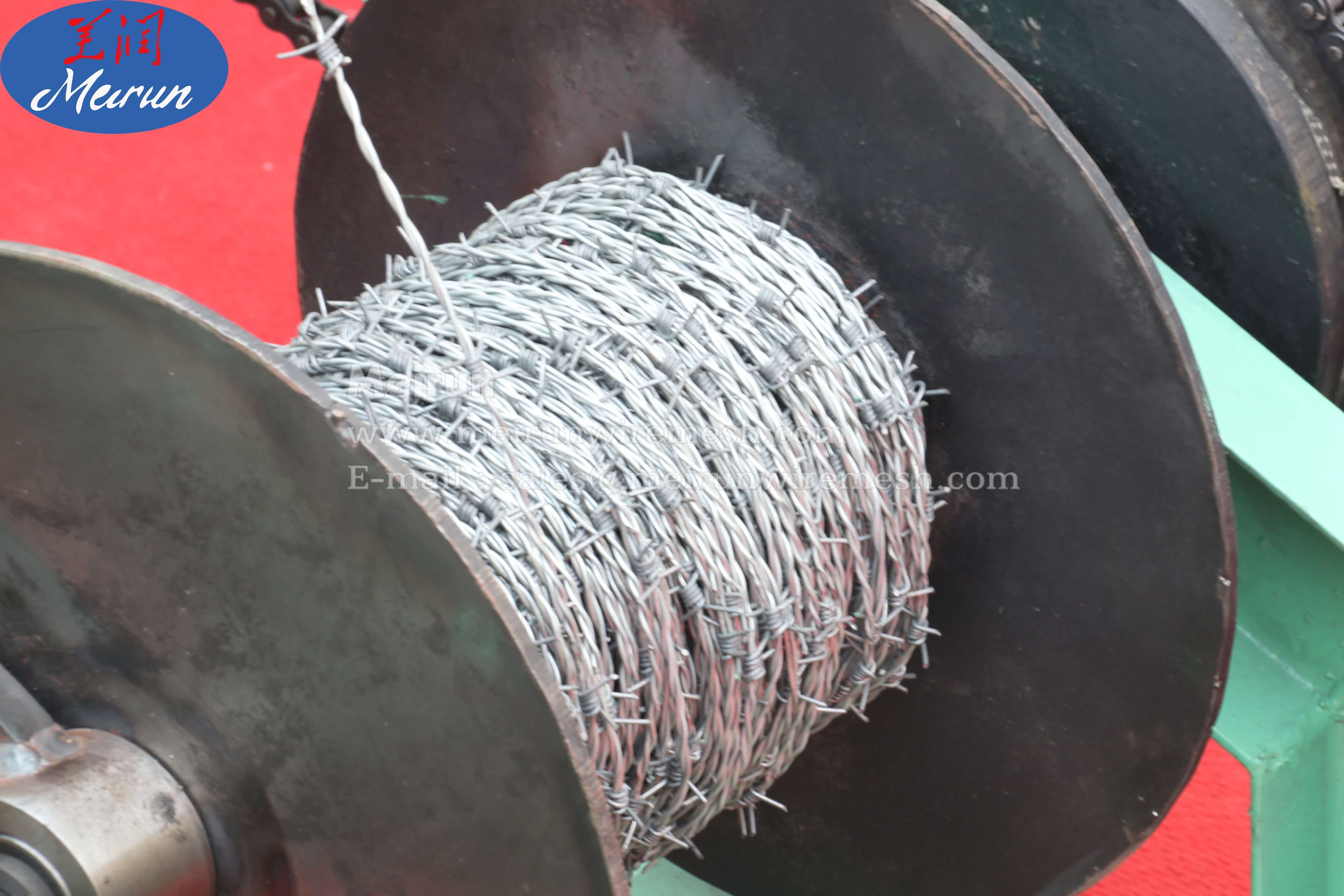

刺绳产品图片


Advance Technologies
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button switches and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.


刺绳图片2


Specification

Barbed Wire Machine

High Speed  is used to produce barbed wire, which is widely used for safety protection function. We manufactures three model of barbed wire fence machine: CS-A is normal twisted barbed wire machine; CS-C is double reverse twist barbed wire machine; CS-B is single barbed wire making machine.

Machine Advantage
Manually installation, Easy to set up;
Steel cover on driving shaft for safety operation;
Saving materials and high capacity;
Counter to count the number of barbs and calculate length of barbed wire.
Button switches and leveler to start and stop machine easily.
Quick and easy roll extraction from the machine.
Guiding system to avoid wire snarls.

Model CS-A CS-B CS-C
Strand wire diameter 1.6-3.0mm 2.0-3.0mm 1.6-2.8mm
Barb diameter 1.6-2.8mm 1.6-2.8mm 1.6-2.8mm
Barb pitch 3/4/5/6 Inch 3/4/5/6 Inch 3/4/5/6 Inch
Twisted number 3-5 3 7
Raw material    Galvanized steel wire or PVC coated wire or black wire etc.

Productivity 70kg/h
20meters/minute
40kg/h
17meters/minute
40kg/h
17meters/minute
Motor power 2.2/3kw 2.2/3kw 2.2/3kw
Voltage     380V 50Hz or  220V 60hZ or 415V 60Hz or customized

Total weight 1200kg 1000kg 1000kg

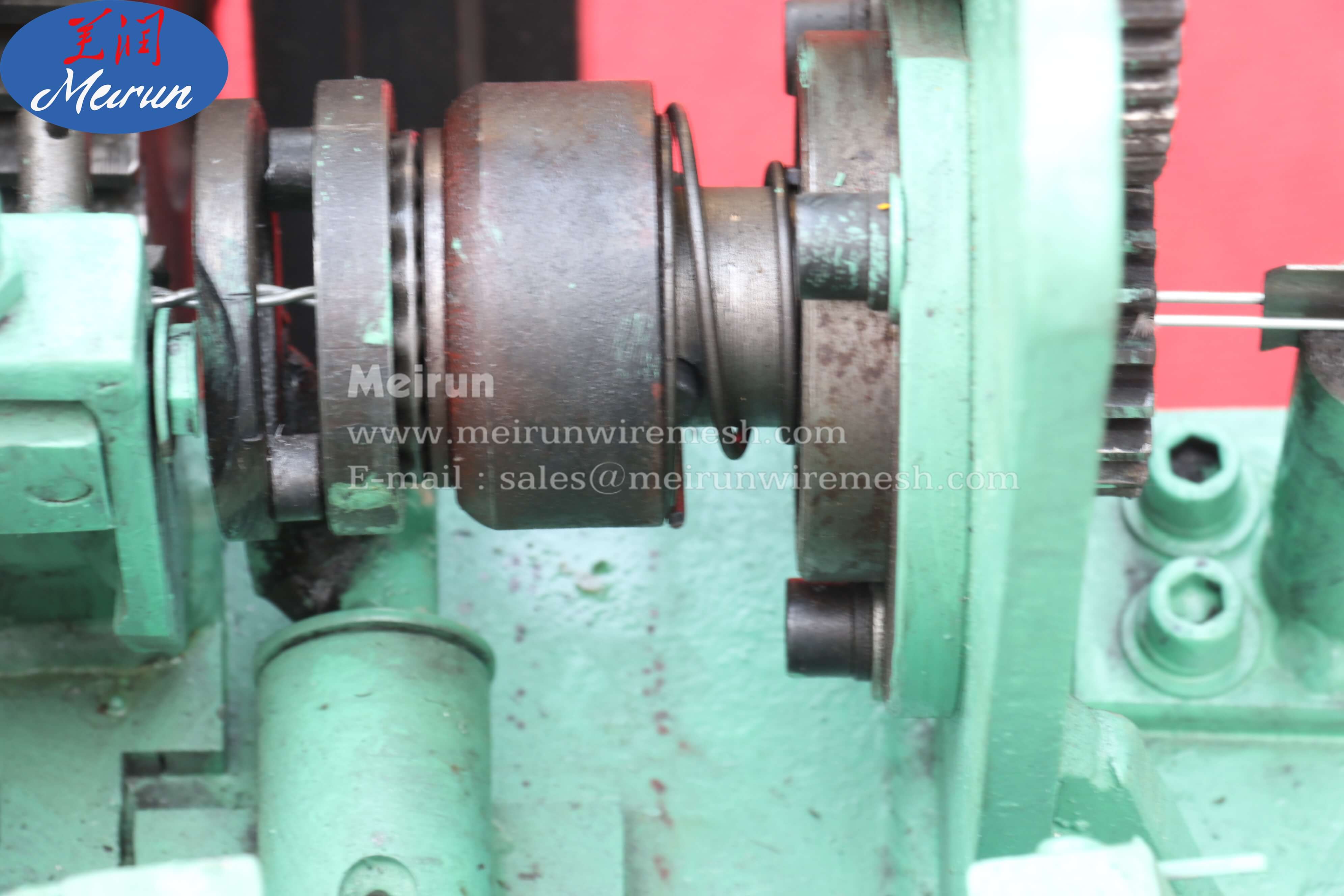

Part of machine

pay-off.刺绳机1_副本

刺绳部分图片2

Common Double Twisted Barbed Wire Machine has consisted of wire wrapped and wire collected device and equipped with a three-wire pay-off.
