Automatic Reverse Twist Hexagonal Wire Mesh Machine

Share to:

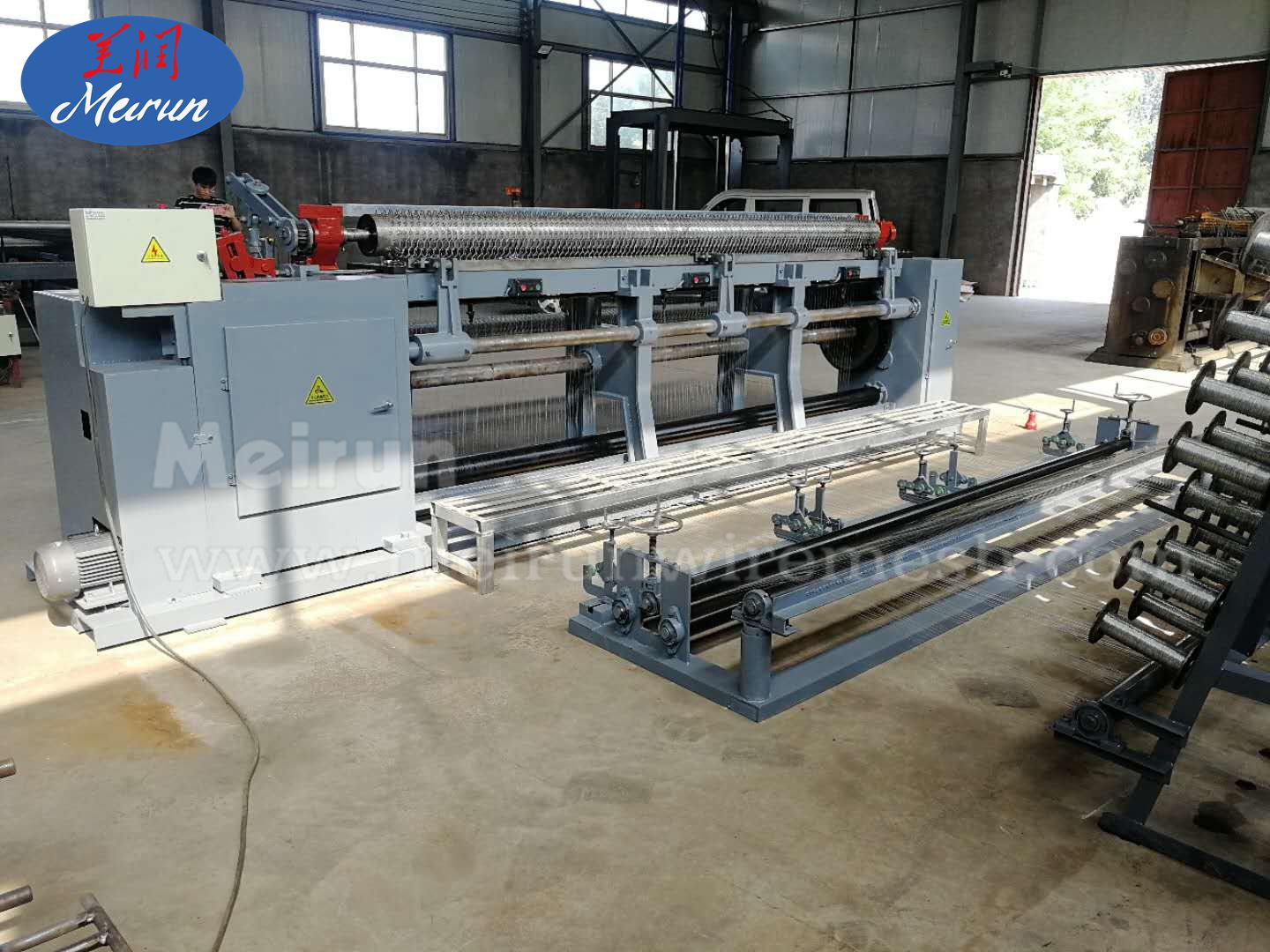

Automatic Reverse Twist Hexagonal Wire Mesh Machine

1. Raw material of the machine is galvanized wire or pvc coated wire.
2. The wire is feeding from spools automatically.
3. The tension device is used to make the wire more straighten so the wire can feeding more easily and the mesh will be more flatten.
4. The wire will be twisted by twisted gear for hexagonal type.
5. Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry, reinforced ribs of building walls etc.

Machine name :	Hexagonal Gabion Mesh Machine
Wire diameter:	0.45-2.2mm
Mesh width:	Normally 2600mm,3000mm,3300mm,4000mm,4300mm
Availability:

Quantity:



Inquire Add to Basket

Model:
MRSLWJ
Brand:
Meirun
Code:
8463300000

Product Description

Automatic Reverse Twist Hexagonal Wire Mesh Machine

1. Raw material of the machine is galvanized wire or pvc coated wire.
2. The wire is feeding from spools automatically.
3. The tension device is used to make the wire more straighten so the wire can feeding more easily and the mesh will be more flatten.
4. The wire will be twisted by twisted gear for hexagonal type.
5. Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry, reinforced ribs of building walls etc.

Machine Specification

Raw material	Galvanized steel wire,PVC coated wire
Wire diameter	Normally 0.45-2.2mm
Mesh size	1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm)
Mesh width	Normally 2600mm,3000mm,3300mm,4000mm,4300mm
Working speed	If your mesh size is 1/2'',it is about 60M/h If your mesh size is 1'',it is about 100M/h
Number of twist	6
Motor capacity	4.5KW for 3.3M width machine 12KW for 4.0M width machine 13KW for 4.3m width machine
Note	1.One set machine can only do one mesh opening. 2.We accept an special orders from any clients.

Package and delivery

Machine produce line

Gabion wire mesh weaving machine

Machine Specification

Type	Mesh size	Wire Diameter	Max.width	Strand	Speed	Power
MR2300-60	60*80mm	1.6-4.0mm	2300mm	3	165m/h	11KW
MR2300-80	80*100mm				195m/h
MR2300-100	100*120mm				225m/h
MR300-120	120*150mm				225m/h
MR-3300-60	60*80mm	1.6-4.0mm	3300mm	3	165m/h	15KW
MR-3300-80	80*100mm				195m/h
MR3300-100	100*120mm				225m/h
MR-3300-120	120*150mm				225m/h
MR-4300-60	60*80mm	1.6-4.0mm	4300mm	3	165m/h	22KW
MR4300-80	80*100mm				195m/h
MR4300-100	80*100mm				225m/h
MR4300-120	120*150mm				225m/h

Machine products

Company Profile

Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines
are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around
the world.So we are your wise choice and best friend.

Company certificate

Our factory
