Automatic Razor Wire Mesh Welding Machine

●PLC control system with automatic feeding

●High-efficiency welding process that effectively increases production capacity

●Mesh size can be flexibly adjusted

Product Introduction

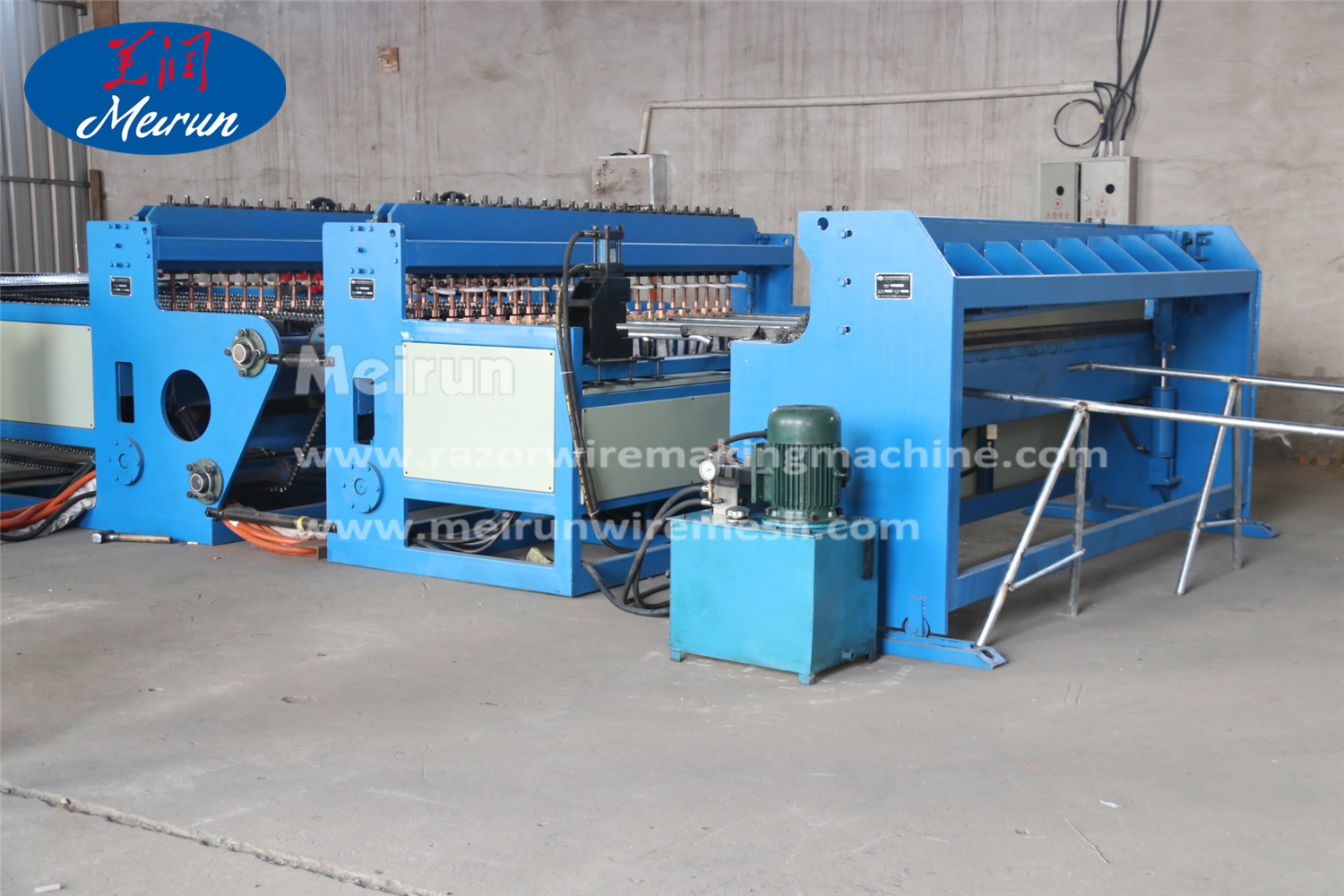

The Automatic Razor Wire Mesh Welding Machine (Automatic Welded Razor Wire Machine) is suitable for welding galvanized and stainless steel razor wire. It is an independently developed piece of equipment by our company.This machine typically consists of two parts. One part is the forming equipment, which straightens, corrects, and cuts the razor wire to ensure uniform length and a straight shape after cutting. The other part is the welding equipment, which can weld the razor wire into panels or rolls, which can then be turned into razor wire fences after processing.

This type of fence features sharp blades and a very strong welded structure that is difficult to cut or damage. It offers excellent protective performance and is safer than traditional fences.It is widely used in airports, power plants, military bases, prisons, and border areas.Some factories, warehouses, and isolation facilities that require enhanced security also often use this type of product.

Razor Wire Fence Production Process

Step 1: Stamping

Use a stamping press to punch galvanized or stainless steel sheets into blade shapes.

Step 2: Forming

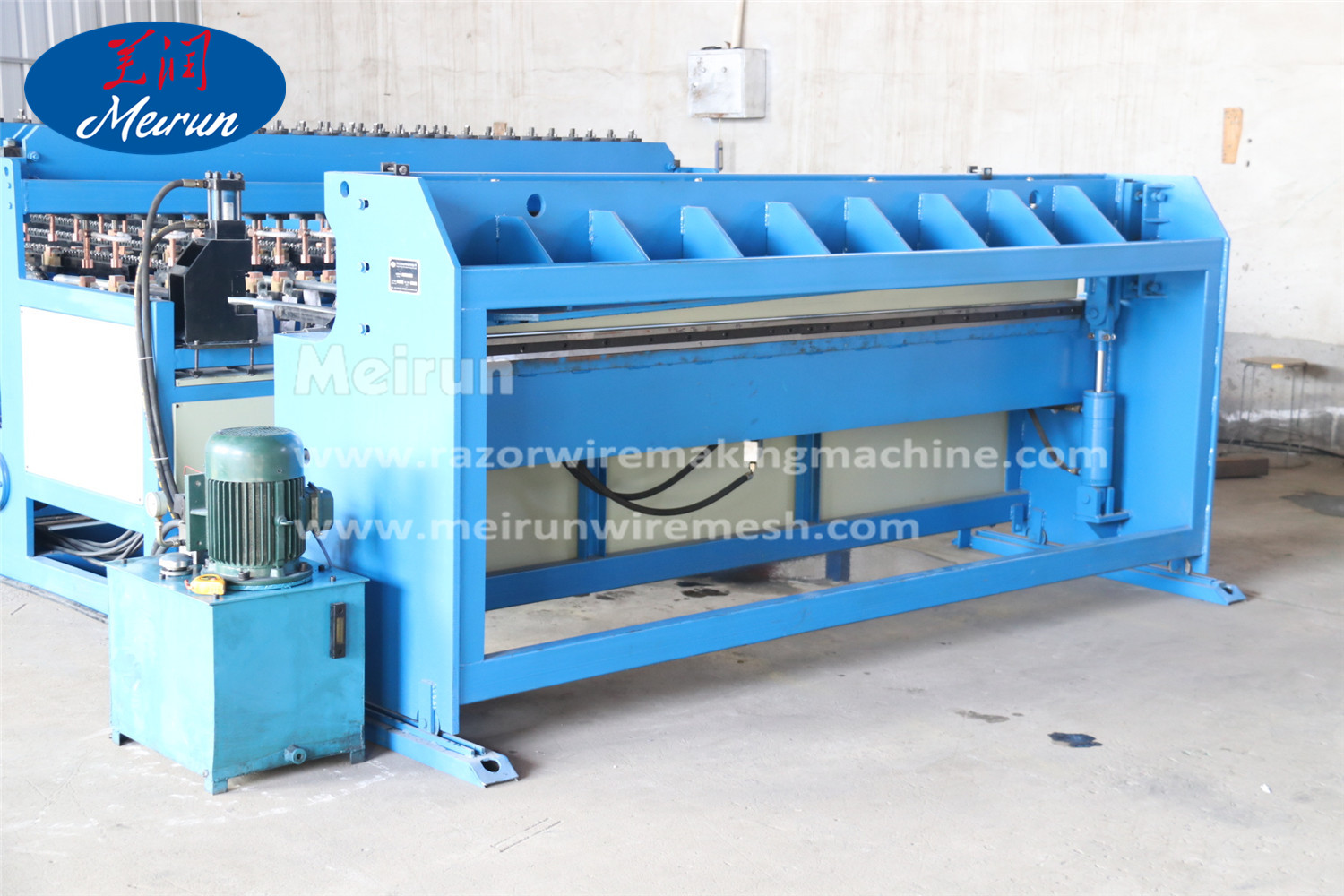

Use a forming machine to assemble the blades and core wire into razor wire, then straighten, correct, and cut it to produce straight razor wire strands.

Step 3: Welding

Use a welding machine to produce razor wire fences.

Industry outlook

Whether in construction, hardware, or livestock farming, the welding quality of mesh directly affects product strength and service life. Traditional fence mesh is welded manually, which is not only inefficient but also difficult to ensure precision. The adoption of automatic welding machines not only frees up labor but also drives batch production and standardization of fence mesh. The benefits are clear: compared with manual welding, automatic welding machines are equipped with multiple sets of electrodes working simultaneously, greatly increasing speed. The mesh structure can be formed in one go, achieving product precision within ±0.5 mm. The automatic razor wire mesh welding machine produced in our factory is capable of welding complex protective structures like razor wire. Based on automated production, the introduction of PLC programming control allows handling of various welding parameters, supports automatic wire feeding and parameter adjustment, improving efficiency more than ten times over manual welding.

From a market perspective, the automatic razor wire mesh welding machine broadens the application scenarios of razor wire, transforming it from the original coil-shaped protective wire into razor wire fence panels with a stronger structure. Both the coil-type protective wire and the fence panels can be sold together, making them more appealing to buyers than a single product.

Equipment Advantages

1.Servo motor drive, combined with a PLC control system and gearbox, with a total power of up to 250KW

2.Automatic feeding function, which significantly improves efficiency compared to traditional manual feeding

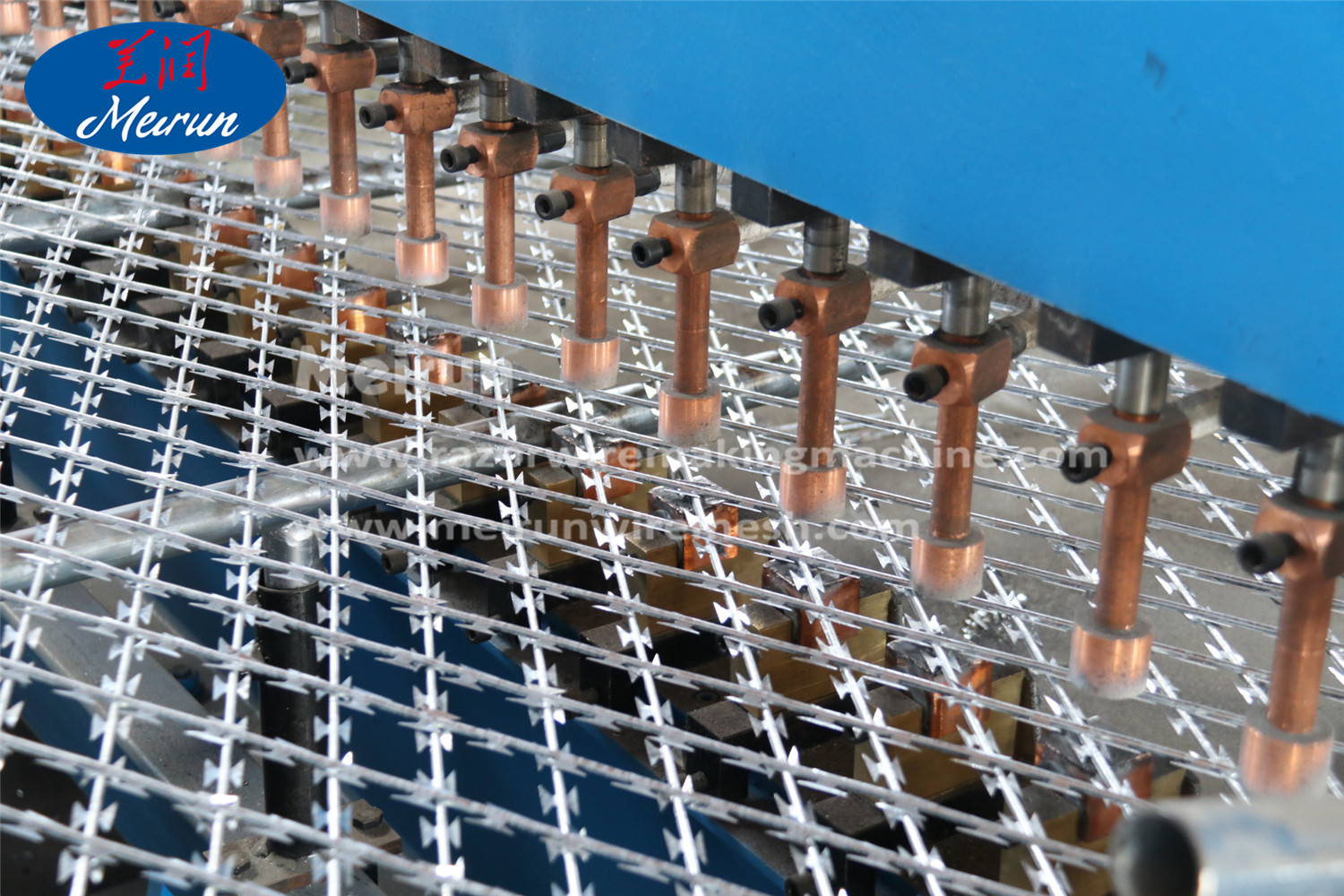

3.Multiple welding electrodes work simultaneously, achieving a welding speed of 20 to 30 times per minute

(The MR-2500R model is equipped with 32 welding electrodes, and the MR-3000R model is equipped with 40 welding electrodes.)

4.The welded mesh panels are flat and durable, with weld points that are not easy to break, offering excellent protective performance

5.Equipped with a water cooling system to prevent the machine from overheating during operation

6. Customizable diamond-shaped or rectangular mesh openings

Standard mesh sizes: 300*150mm / 150*75mm (mesh size is adjustable)

Sheet thickness: 0.5mm

Standard razor wire model: BTO22

Other specifications can be customized according to your requirements

Equipment Parameters

Product Display

Service Advantages

●Manufactured Directly by the Source Factory

All the equipment we sell is independently manufactured by Hebei Meirun Machinery Manufacturing Co., Ltd. The production process is transparent, and customers are welcome to visit our factory for on-site inspections and detailed product inquiries.

●Professional Technical Support

24 hours online service, providing pre-sales support at any time

Installation guide videos and manuals are provided for all equipment

Engineers can be dispatched on-site to guide equipment installation and provide worker training

●Quality Assurance

All equipment is certified under the ISO international quality management system

Mechanical test reports and certificates of conformity are available upon request

●Considerate After-Sales Service

One-year warranty service, starting from the delivery date

Any machine parts damaged during the warranty period will be replaced free of charge

Company Profile

Hebei Meirun Machinery Manufacturing Co., Ltd. was founded in 2013 and has been focusing on the manufacturing and sales of wire mesh machinery for many years.The company is located in Anping County, Hengshui City, Hebei Province -- an area known as the “Wire Mesh Capital of China.”By taking advantage of the local industrial cluster, we have continuously expanded our production scale and enhanced our trade competitiveness, achieving a market share of over 90% in some product categories.Today, we have our own factory and professional R&D team, and have applied for multiple invention patents. Our products are exported to many countries across Europe, the Middle East, South Africa, and beyond, with our quality widely recognized by customers.Choose Meirun, and we will become your loyal partner, providing you with the highest quality products and services.Hebei Meirun Machinery,  you are always welcome!

Frequently Asked Questions (FAQ)

1.Can I purchase just the equipment used for straightening, correcting, and cutting razor wire on its own?

Answer: Yes, the equipment for straightening, correcting, and cutting razor wire, as well as the welding equipment, can be sold separately. In addition, we also offer fully automatic and semi-automatic razor wire welding machines for you to choose from based on your needs. For more details, please contact our customer service team.

2.The factories in my country do not support 380V voltage. Can this equipment still be installed and operated properly?

Answer: We can modify and adjust the equipment in advance according to the voltage requirements of your region. Currently, we support several voltage types including 380V, 230V, 220V, 440V, 240V, and 110V. You can discuss your specific needs with our staff.

3.What is your company’s delivery lead time?

Answer: Our delivery lead time is typically around 15 to 65 days. For some specially customized models, the lead time may be extended to 75 days, depending on the specific machine type and configuration you order.

4.What is the main shipping method?

Answer：We usually ship by sea from the nearest port. If you have special requirements, we can also arrange shipment from a port you specify.
