MRCKJ
Meirun
8463300000
Punching Hole Metal Sheet Machine
1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .
3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.
5.The machine is automatic and pneumatic and it is very during and stable.
6.It is easy to use, usually 2 men are enough to operate 4 or 6 sets of this type of machine. 6.According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.
7.one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.
Specification
Specification | JH21-100 | JH21-125 | JH21-160 | JH21-200 | |
Nominal pressure(KN) | 1000 | 1250 | 1600 | 2000 | |
Nominal force stroke(mm) | 5 | 5 | 6 | 6 | |
Slider stroke(mm) | 150 | 160 | 180 | 200 | |
Number of slider stroke(s.p.m) | 50 | 50 | 45 | 40 | |
Max. die set height(mm) | 320 | 370 | 400 | 450 | |
Die set height adjustment(mm) | 80 | 100 | 110 | 110 | |
Distance from slider center to frame(mm) | 300 | 360 | 390 | 430 | |
Worktable dimension(L x W) (mm) | 580X1000 | 700X1100 | 760X1200 | 840X1400 | |
Workbench plate hole size(mm) | 180 | 160 | 180 | 200 | |
Thickness of the worktable panel(mm) | 120 | 120 | 150 | 180 | |
Slider ground size (L x W) (mm) | 420X560 | 520X620 | 580X700 | 650X880 | |
Size of the handle hole(mm) | 60X80 | 70X80 | 70X100 | 70X100 | |
Vertical columns distance(mm) | 640 | 640 | 660 | 820 | |
Overall dimension(L x W x H) (mm) | 1820X1350X2800 | 1900X1300X3300 | 2040X1360X3300 | 2370X1600X3900 | |
Motor | Model | Y132M-4 | Y160L-6 | Y180L-6 | Y200L-6 |
Power(kw) | 7.5 | 11 | 15 | 18.5 | |
Total Weight(kg) | 8500 | 9800 | 13200 | 19500 | |
Punching part

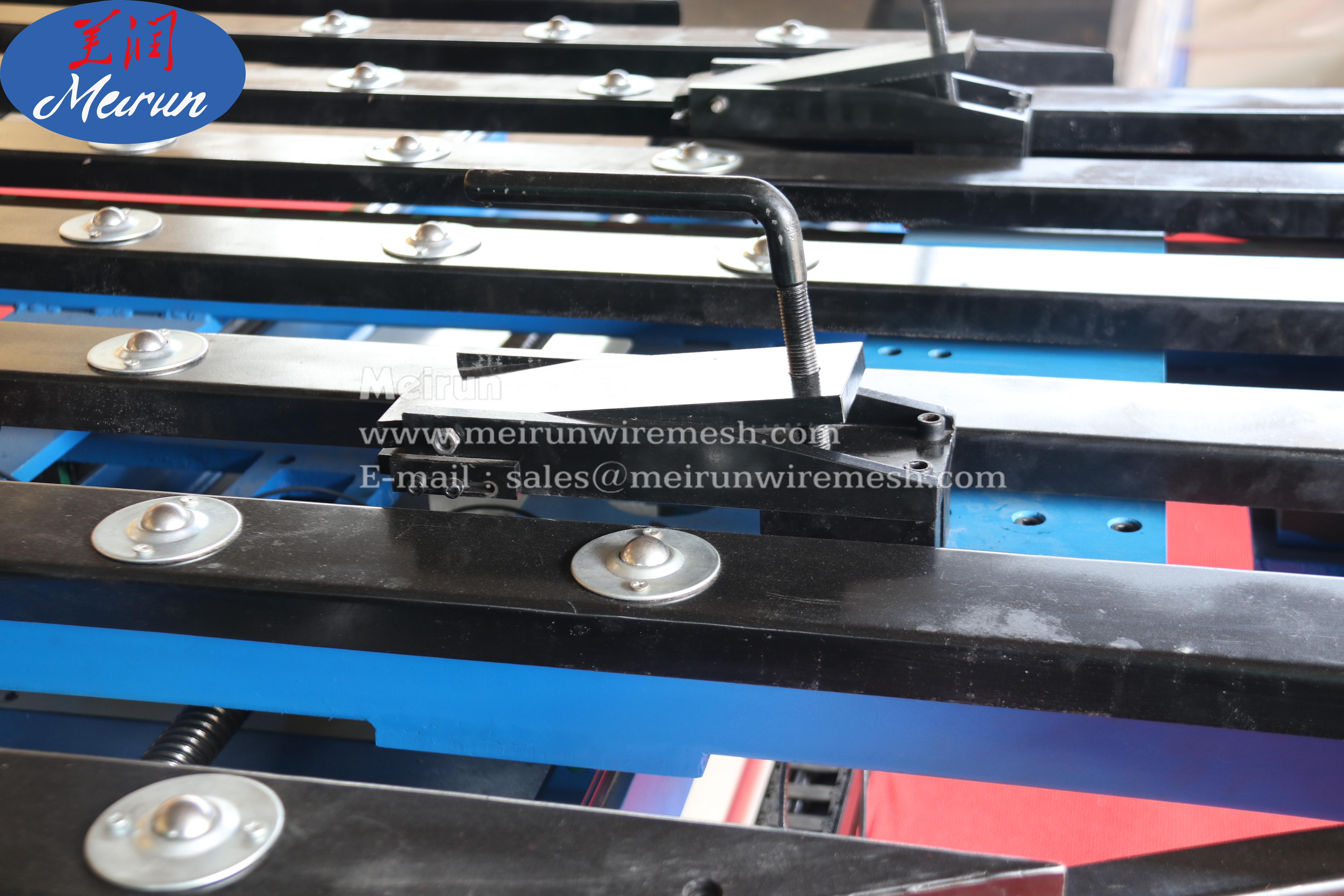

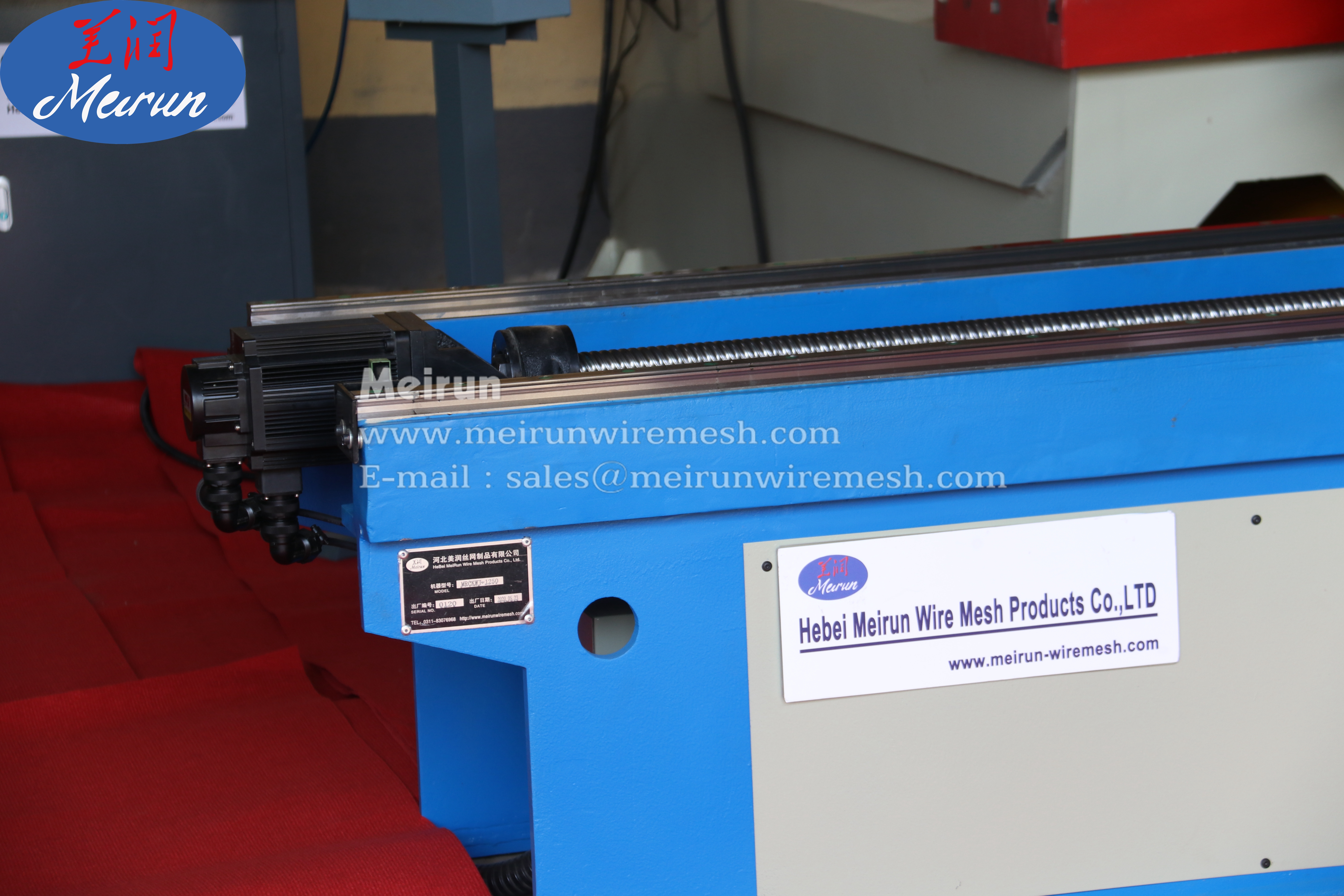

Auto-feeder platform
Pounding plate: 1.25*2.50
Pounding thickness: 0.1-6mm
Mesh size: according the mold, ( mold price: USD1000)Space requirement: 6*3m
Weight: 8T
Parts including: pressure machine, feeding system, control systemMachine component
Hole type
Package and delivery
