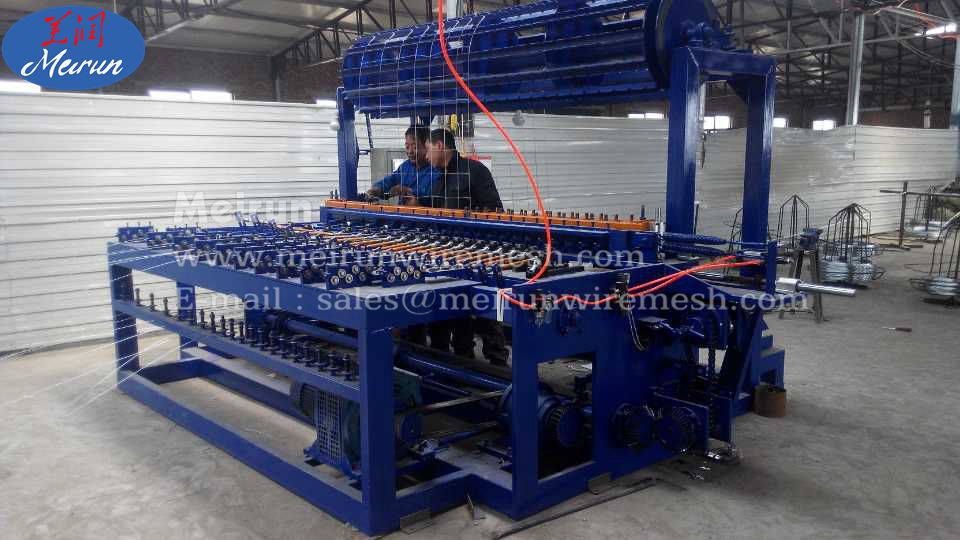

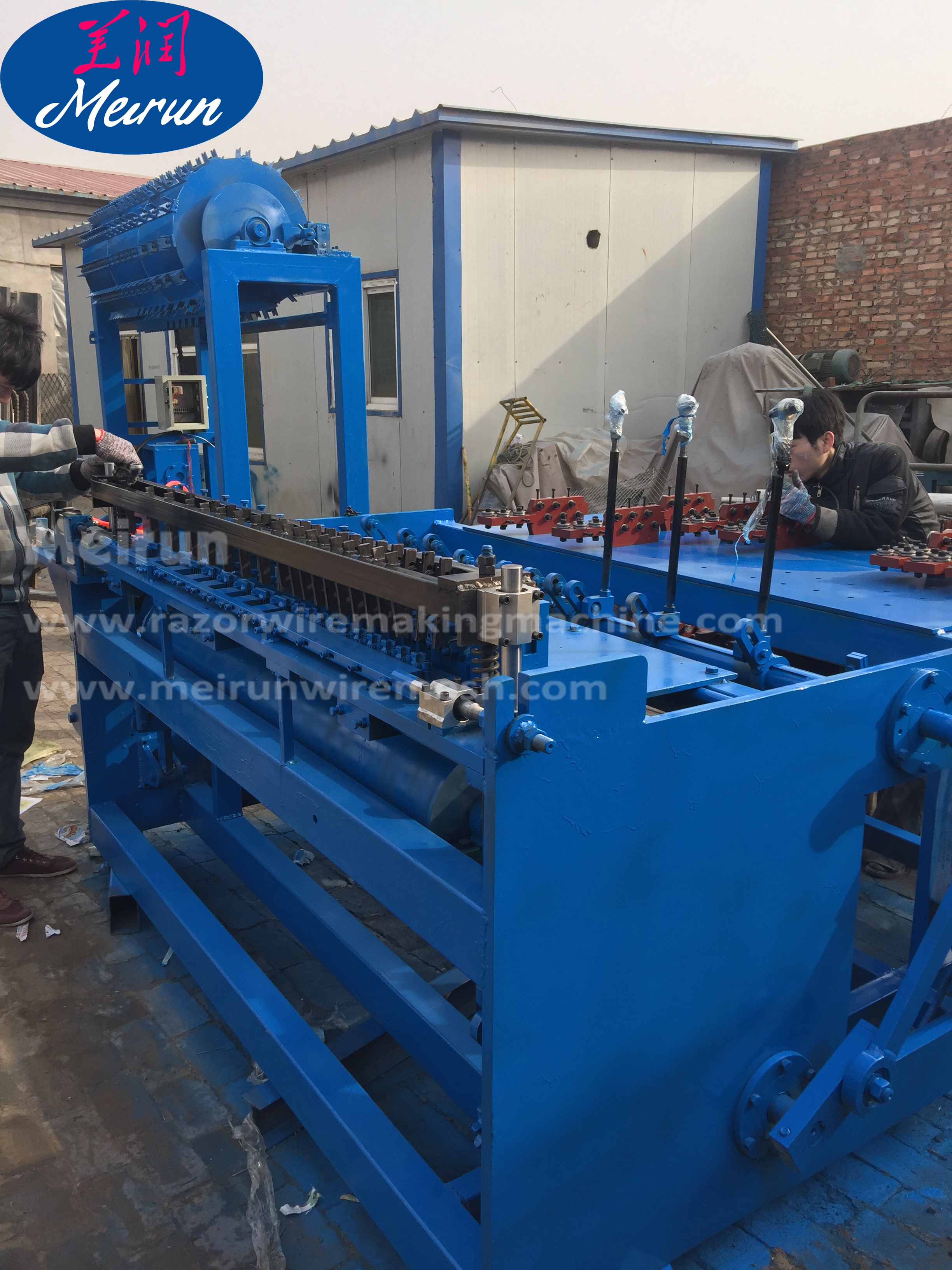

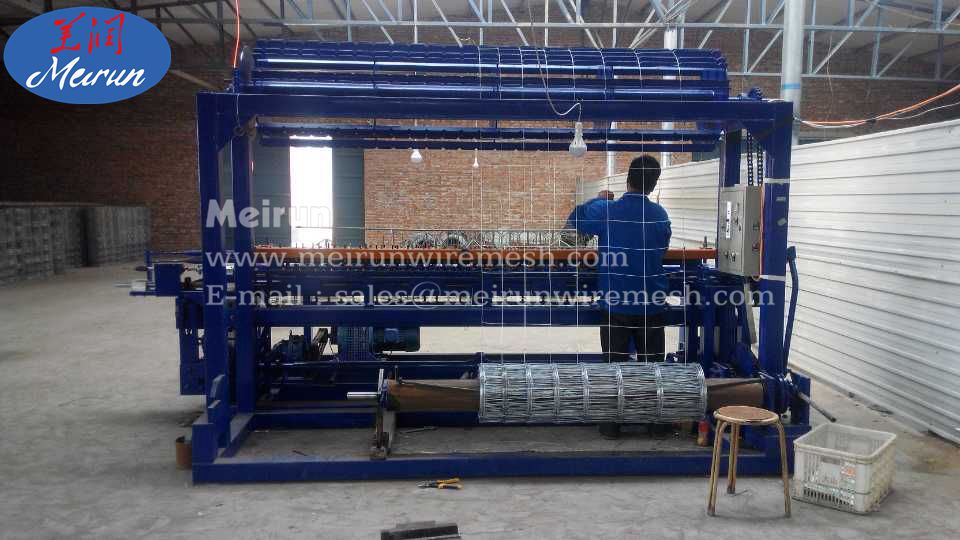

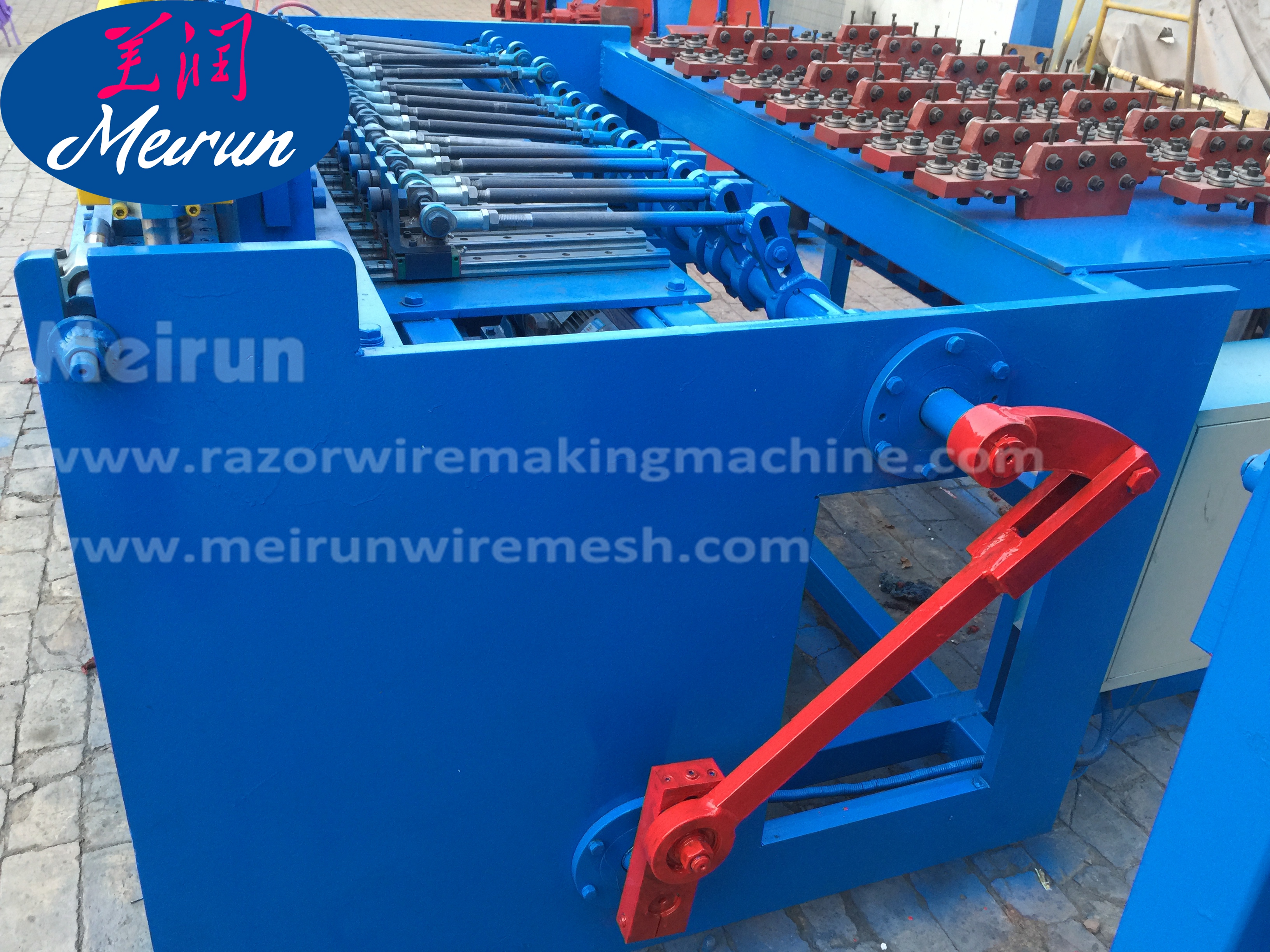

Automatic Grassland Field Fence Wire Mesh Making Machine

The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.

Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.
Wire Diameter (mm):
Dimension:
Weight (KG)::
Voltage:
Machine Type:
Availability:
Quantity:
  • MRCYWJ

  • Meirun

                   Fixed Knot Grassland Mesh Fence Making Machine

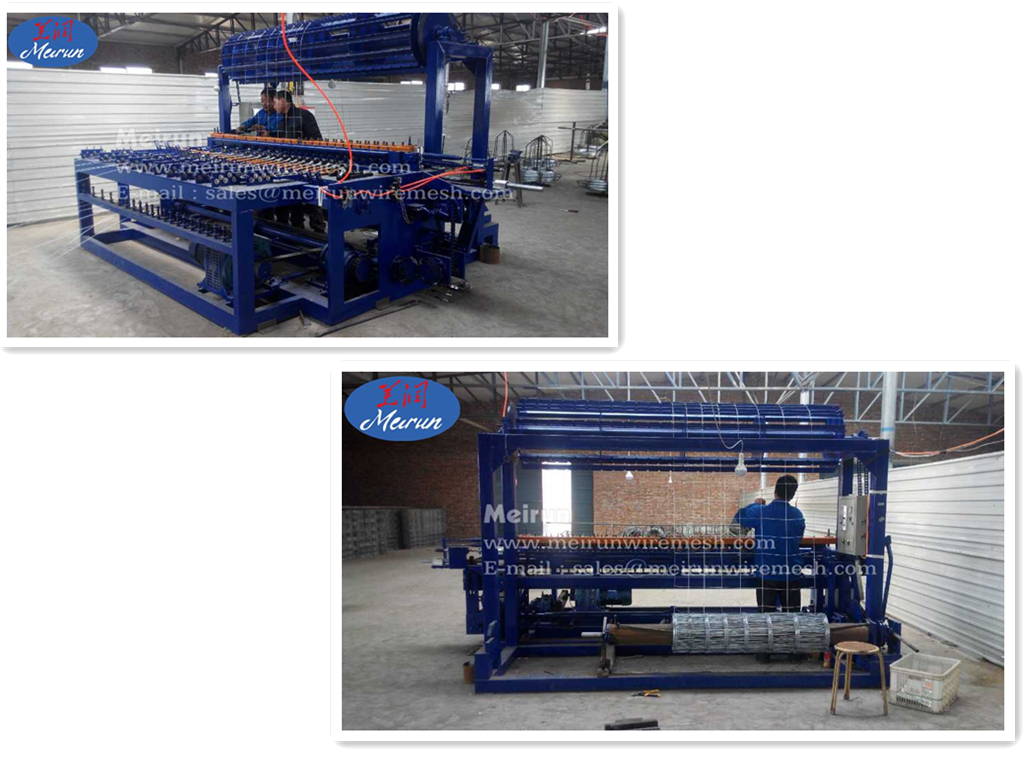

草原网机图片

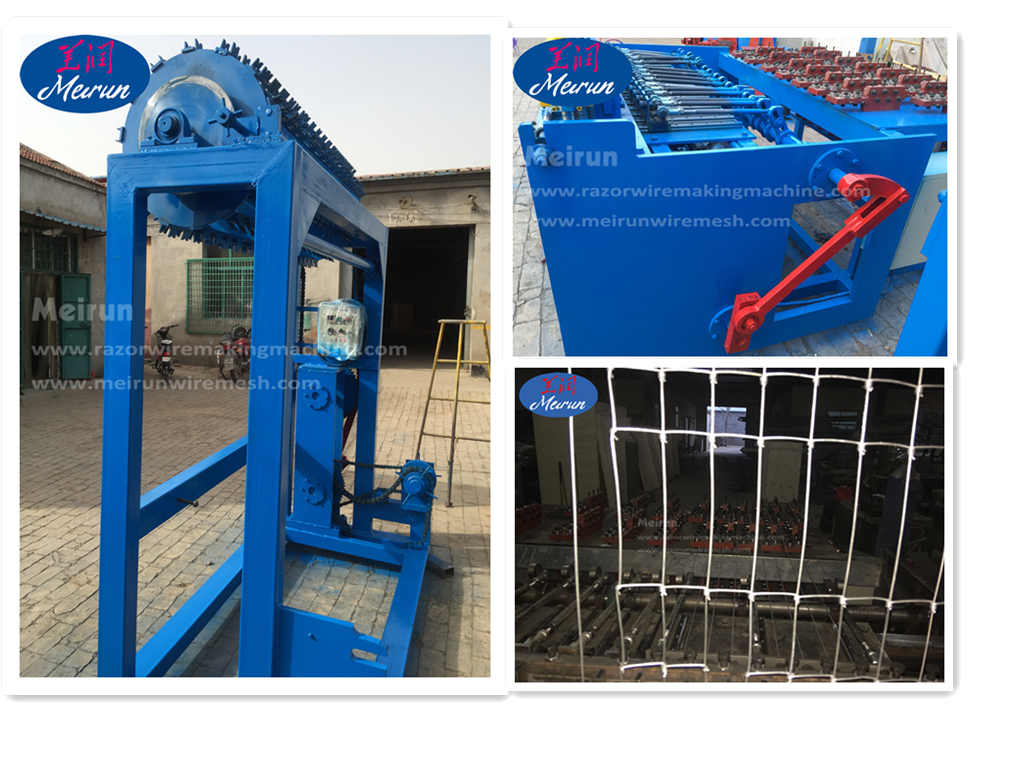

The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.草原网部分图片111The details of  Fixed Knot Fence Making Machine/Deer Field Farm Fence Machine

    1.Install:The machine need not install the anchor bolt, only need to put on the ground of plant. it is easy to   install. we will send the specification to you.
    2.Adjust: All the debugging working will be done in factory manufacture by our engineers.
    3.Production capacity: 400m/h
    4.Width: 1.0-2.4m
    5.The machine's power: 5.5kw, 7.5kw, 11kw.
    6.Accessories: wire bobbin, reel, tool box, etc. the accessories free offer to you

Parameter

type
1422mm
1880mm
2000mm
2400mm
Motor
15kw
15kw
7.5kw
15kw
Dimension
2.8*3.2*2.4(m)
3.3*3.2*2.4(m)
3.4*3.2*2.4(m)
3.9*3.4*2.4(m)
Efficiency
≤25-30row/min
≤25-30row/min
≤25-30row/min
≤25-30row/min
Twine diameter
1.9-2.5(mm)
1.9-2.5(mm)
1.9-2.5(mm)
1.9-2.5(mm)
Side wire diameter
2.0-3.5(mm)
2.0-3.5(mm)
2.0-3.5(mm)
2.0-3.5(mm)
Voltage
380v
380v
380v
380v
7Weight
3.5T
7.5T
8.0T
8.5T
Wrap number
11
13
18
23
Minimum weft opening number
2
4
4
6

Our Machine Advantage

1. Mesh winding roller is easy to install and uninstall.
2. Frequency -adjustable motor--speed-adjustable, no inertia force andsave 30% power
3. Liner guiding line--High feeding speed;
4. Pneumatic device to turn weft wire--high speed and easy maintenance;
5. Counterto calculate weaving length automatically;
6. Machine stopping automatically when weft wire used up.
7. Schneider Low-voltages electronics;
8. Metal screen for safety operation;
9. Different mesh size in longitude and weft for choice;
10. Sophisticated control--easy operation and smooth running and High-degree automation;
